Rear view camera with brake light for Fiat Ducato from 2007-/2014-

Rear view camera Ducato (Fiat) from 2007-

Item ID: 1523-3000

€193

Incl. VAT

Which kit do you want?

Rear view camera only

1523-3000

€193

Available

Rear view camera with 7" rear view mirror screen

1523-3012

€377

Available

Made to order | ~4-6 weeks delivery time

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4-6 weeks delivery time

Product Description:

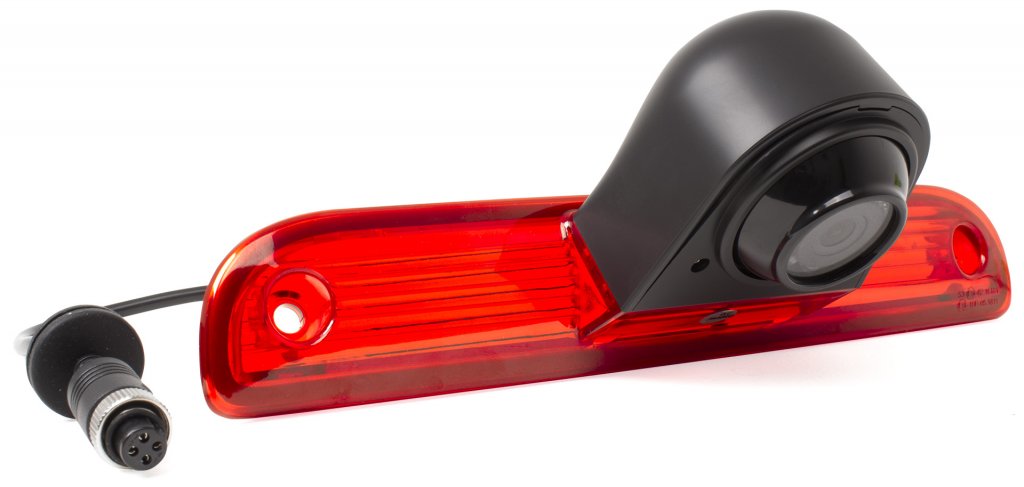

Rear view camera that replaces the 3rd brake light on Fiat Ducato from model year 2007-/2014- and onwards. A model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed image reproduction.

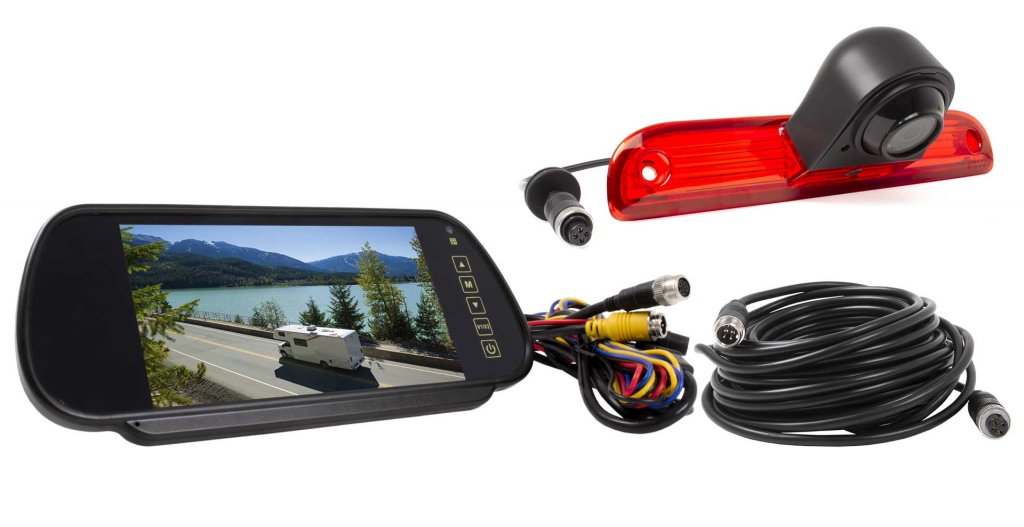

If you want to buy an external screen, you can choose a 7" rearview mirror screen (hung over the existing rearview mirror) from the drop-down list above.

Rear view camera Ducato

Simple and stylish installation when the 3rd brake light is replaced with this module. Brake light and camera combined for mounting in Fiat Ducato.

Specifications reversing camera:

Voltage range: 12 V (12-24 V when connected to monitor)
Wide angle: 120 degrees
Brightness: f/2.8
Image sensor: 1/3" CMOS
IR technology: Yes
Protection class: IP69K
Vibration resistance: 10 G

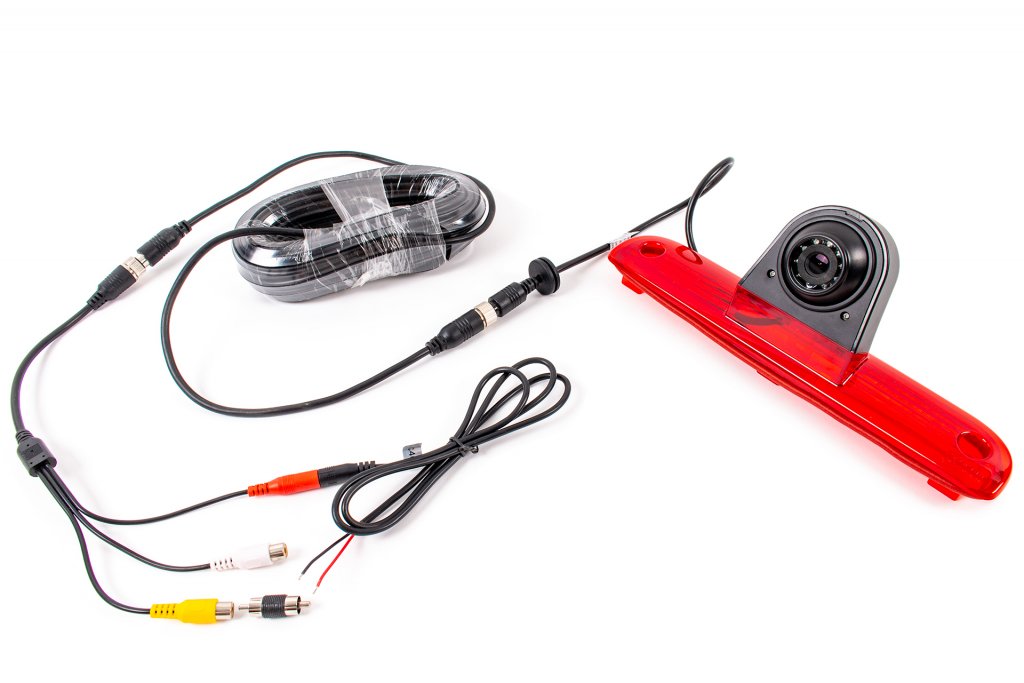

When purchasing only the rear view camera, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.

Our external monitors are very well suited for professional use. Suitable for most types of industries and is advantageously installed in transport vehicles. The LCD screen provides a detailed image and has a fast response time.

Specifications screens:

Screen type: Digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Camera connections: 2 pcs
Dimensions incl. bracket (7" rear view mirror): W 249 mm x H 108 mm x D 39 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

Supplied as a complete kit.

This product is suitable for the following car models:

Fiat Ducato from 2014-
From model year 2014 onwards

Den här produkten passar till Fiat Ducato från 2014-

Fiat Ducato from 2007-2013
2007, 2008, 2009, 2010, 2011, 2012, 2013

Den här produkten passar till Fiat Ducato från 2007-2013

Documents:
attachment

Assembly instructions for the reversing camera kit
