Rear view camera Citroen Berlingo from 2008-

Item ID: 1524-3000

€193

Incl. VAT

Which kit do you want?

Rear view camera only

1524-3000

€193

Available

Rear view camera with 7" rear view mirror screen

1524-3012

€377

Available

Made to order | ~4-6 weeks delivery time

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4-6 weeks delivery time

Product Description:

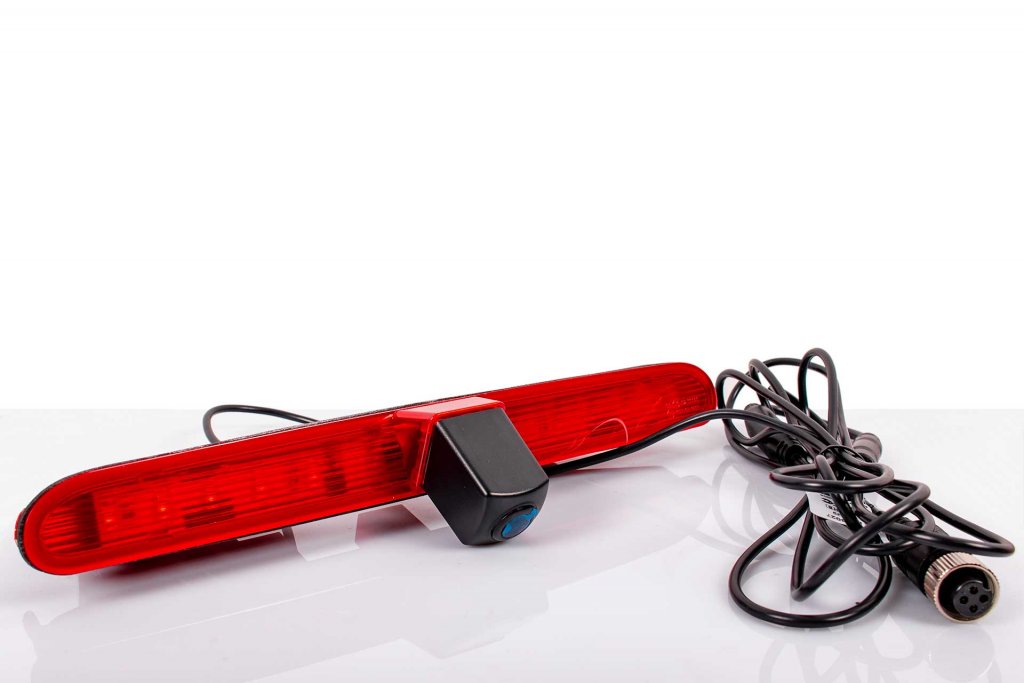

Rearview camera Citroen Berlingo from 2008-2018 and 2019- and onwards replaces the third brake light. Rearview camera Citroen Berlingo is a model-adapted rearview camera designed for our tough Nordic conditions with very clear and detailed imaging.

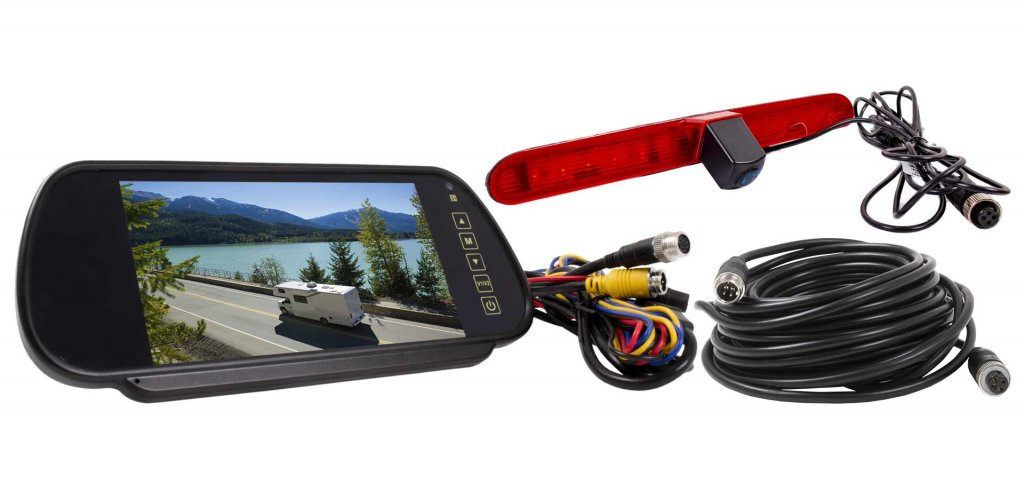

External screen 7 "rearview mirror screen (hung over the existing rearview mirror) is available in the drop-down list.

Rear view camera Citroen Berlingo

Simple and stylish installation when the 3rd brake light is replaced with this module. Brake light and rearview camera Citroen Berlingo are combined for easy installation in your car.

Specification rear view camera:

Voltage range: 12 V (12-24 V when connected to monitor)
Wide angle: 120 degrees
Brightness: f/2.8
Image sensor: 1/3" CMOS
IR technology: Yes
Protection class: IP69K
Vibration resistance: 10 G

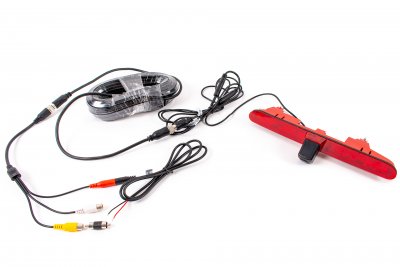

When purchasing only the rear view camera, 10 meters of cable with 4-pin connector and a transition for RCA connection are included.
For cars with sensitive electrical systems, power resistors may be required.

Our external monitors are very well suited for professional use. Suitable for most types of industries and installed in transportation vehicles. The LCD screen provides a detailed image and has a fast response time.

Specification screen:

Screen type: Digital TFT-LCD color monitor
Connection: 4-pin/4-pin
Voltage range: 10-32 V
Camera connections: 2 pcs
Dimensions incl bracket (7" rear view mirror): W 249 mm x H 108 mm x D 39 mm
Temperature range: -20 to +60 degrees
Trigger control: Yes
Remote control: Yes

Rearview mirror screen: Fastening is done using spring-loaded gripping claws around the existing rearview mirror. If there is no existing rearview mirror, there is a mounting bracket VN-162 at the bottom of the page.

Supplied as a complete kit.

Documents:
attachment

Assembly instructions for the reversing camera kit
