Extra light package Volvo V90 from 2016-

Item ID: 76027-830

€926

Incl. VAT

Which variant do you want?

Lazer Linear 18 - 6750 lumen

76027-830

€926

Available in external warehouse | Ships within 1-4 business days

Lazer Linear 18 Elite - 13500 lumen

76027-831

€1 101

Available in external warehouse | Ships within 1-4 business days

Only mounting brackets

931178

€48

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

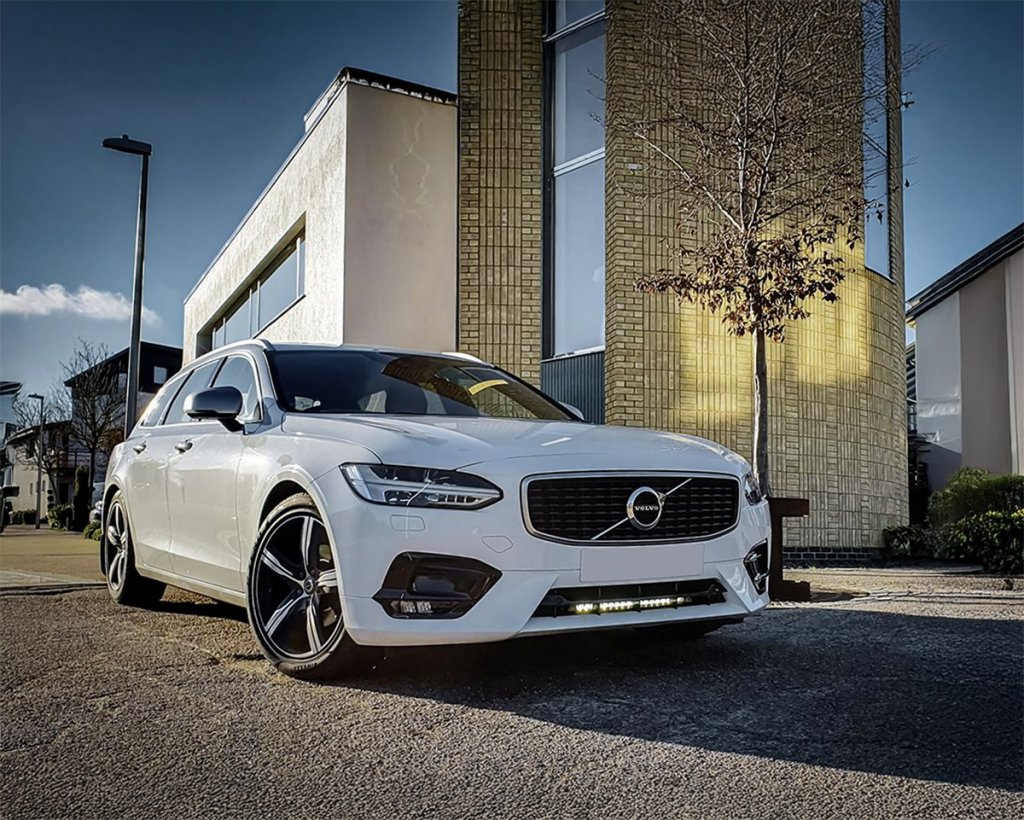

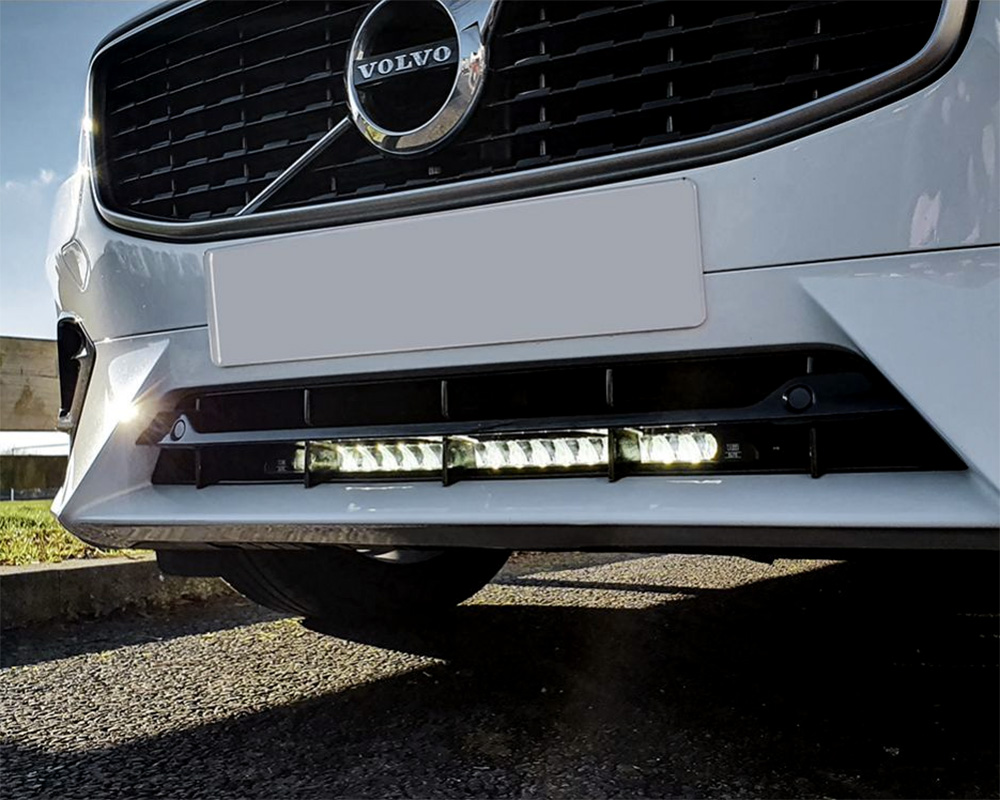

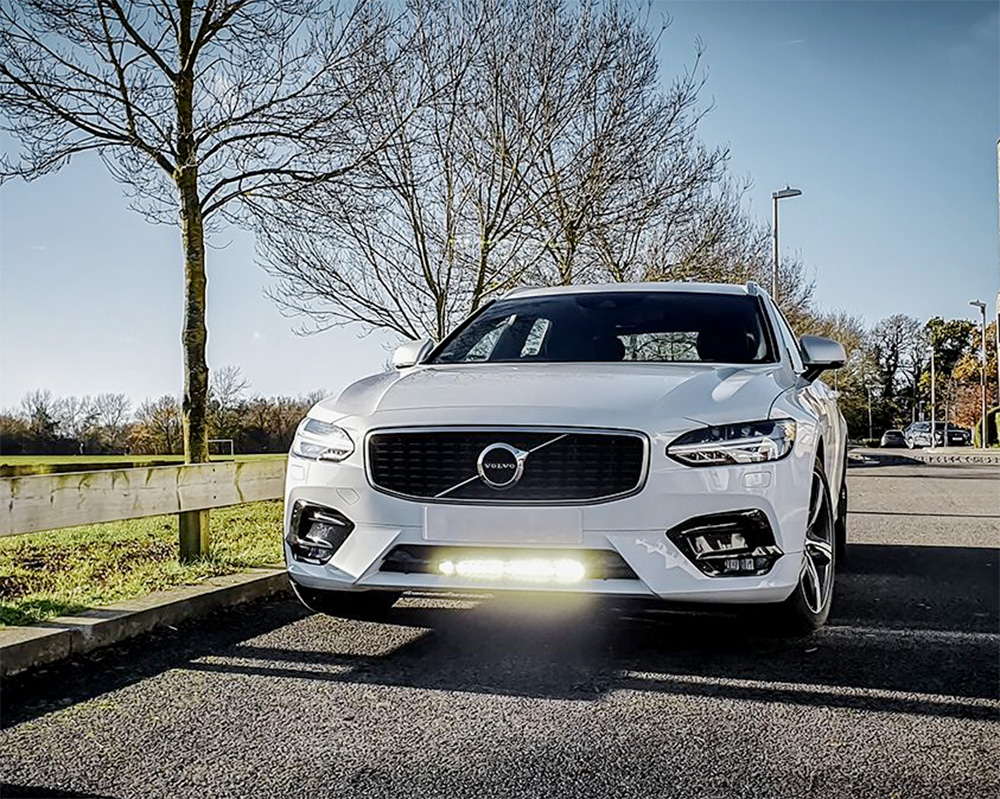

Complete auxiliary light kit containing everything you need for installation in the lower grill of Volvo V90 from 2016 and newer.

Complete extra light package Volvo V90 containing model-specific mounting details together with relay kit, XBB and Lazer Linear 18. You choose whether you want Lazer Linear 18, or the Elite model for longer range and increased power.

Extra light package Volvo V90

Linear 18 | Standard Elite

Voltage 10-32V | 10-32V

Luminous flux 6750 lm | 13500 lm

Color temperature 5000 K | 5000 K

Number of LEDs 18 pcs | 36 pcs

Position light No | No

Power 63 W | 130 W

Load (at 14.4V) 4.4 A | 9 A

Certification

Reference number 30

2 x 25

(2 x 10 E-marked mode)

Main beam ECE R112 ECE R112

Luminous flux

Light angle horizontal 56 degrees 64 degrees

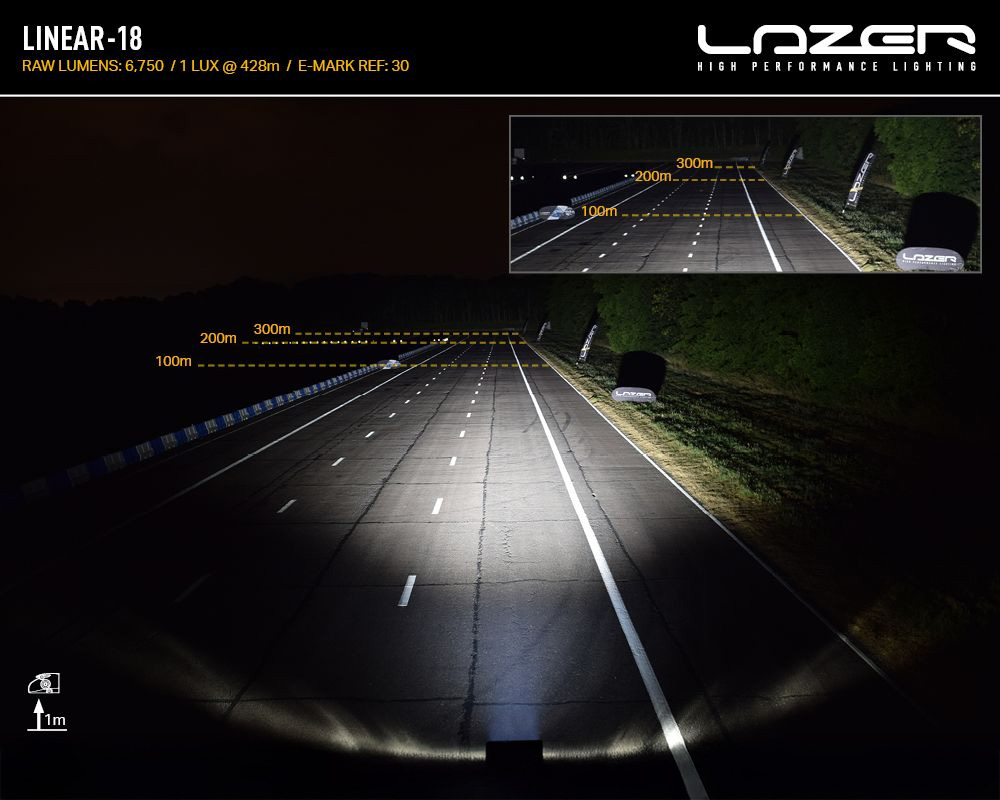

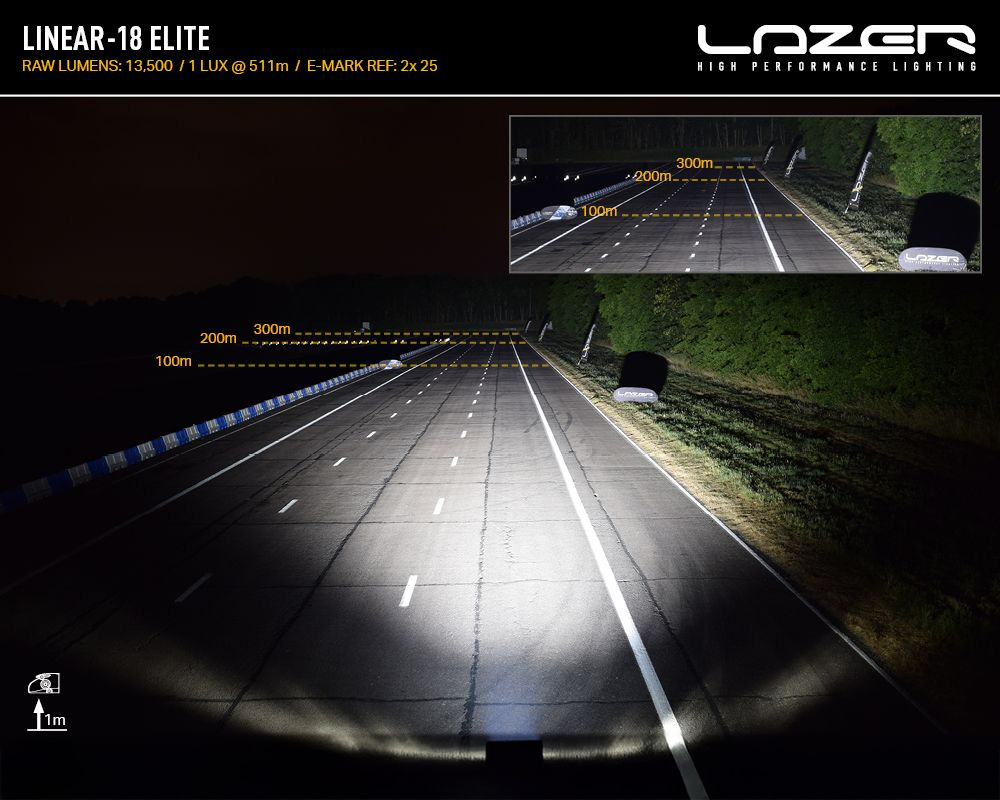

Range (1 lux) 428 meters 511 meters

Range (0.25 lux) 855 meters 1023 meters

Installation

Mounting requires damage to the vehicle's lower aluminum beam behind the front bumper. The parts are finished with a stylish velvet black powder coating that matches the lights perfectly, while meeting high standards of corrosion resistance for long-lasting protection and durability.

XBB Volvo V90 auxiliary light connector

Installation is super simple and communication between the OBD reader and auxiliary light relay is completely wireless via Bluetooth, meaning everything can be done in as little as 15 minutes! No more time-consuming searching for Canbus cables or any wiring inside the car, no cable to be pulled through the torpedo wall out into the engine compartment and the like.

The kit, which is completely complete, consists of the following:

OBD-II transmitter (Dongle)
Receiver relay (Powerunit)
Wiring for 1, 3 or 4 DT outputs depending on how many ramps/extra lights you want to connect.

Installation of XBB kit (complete quick guide here):

Before installation: Download the free XBB Configurator app for your Android phone or Xbb Configurator for your iPhone and make sure your vehicle is compatible with the kit.

Install the transmitter unit (XBB Dongle) in the vehicle's diagnostic socket, the OBDII socket. This socket is usually located under the steering wheel
Install the relay cable (included in the complete kits) at the vehicle battery or fuse box in the engine compartment. The XBB Power Unit is then plugged into the relay holder on the harness
Pull out and connect the DT connector(s) to the LED ramp/extra lights
Launch the XBB Configurator app which will guide you step-by-step to pair the units and finalize the settings.
That's it!

What's included in the Lazer Volvo V90 auxiliary light kit

1 x Lazer Linear 18

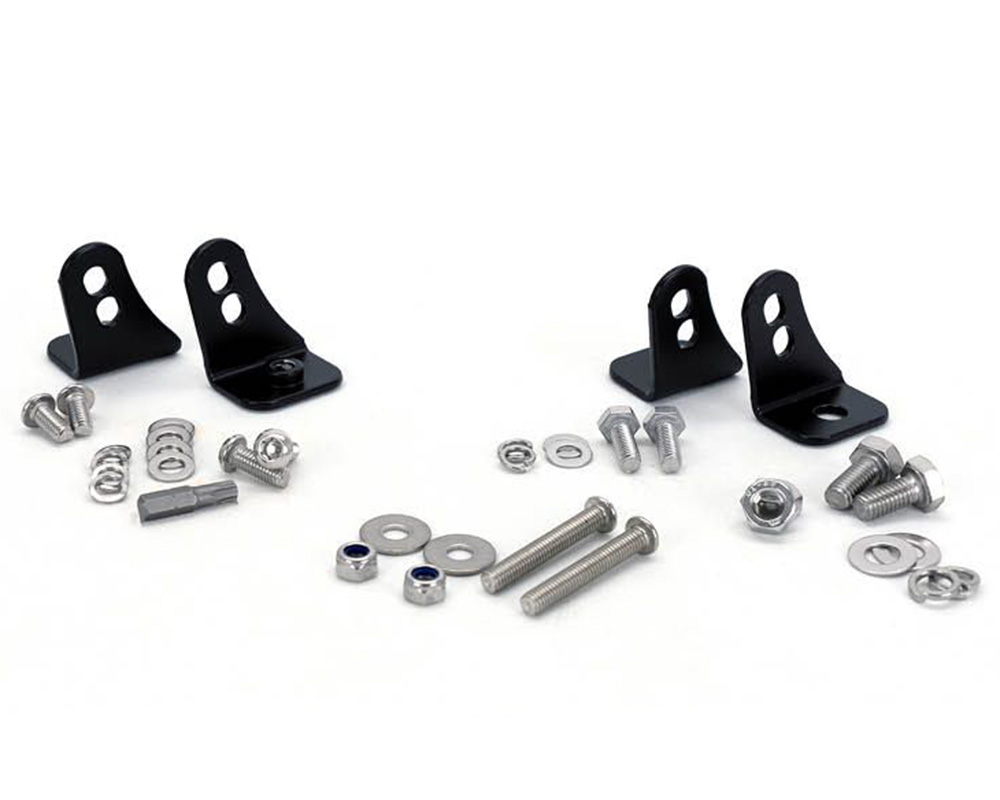

Mounting hardware
XBB
Relay kit
Mounting instructions

Extra light kit Lazer Volvo V90 delivered as a complete kit

Documents:
attachment

Assembly instructions for Lazer LED light bar Volvo V90 - Artnr: 76027-830
