Lazer Grille kit Triple-R 750 for Renault Trafic from 2022-

Grille kit Lazer Triple-R 750 Renault Trafic 2022-

Item ID: 6130-836

€942

Incl. VAT

Which LED light bar do you want?

2x Triple-R 750

6130-836

€942

Available in external warehouse | Dispatched within 1-4 working days

2x Triple-R 750 Elite

6130-836E

€1 137

Available in external warehouse | Dispatched within 1-4 working days

2x Triple-R 750 with Strobe Function

61015-830B

€1 370

Available in external warehouse | Dispatched within 1-4 working days

Assembly parts only

61015-830M

€174

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

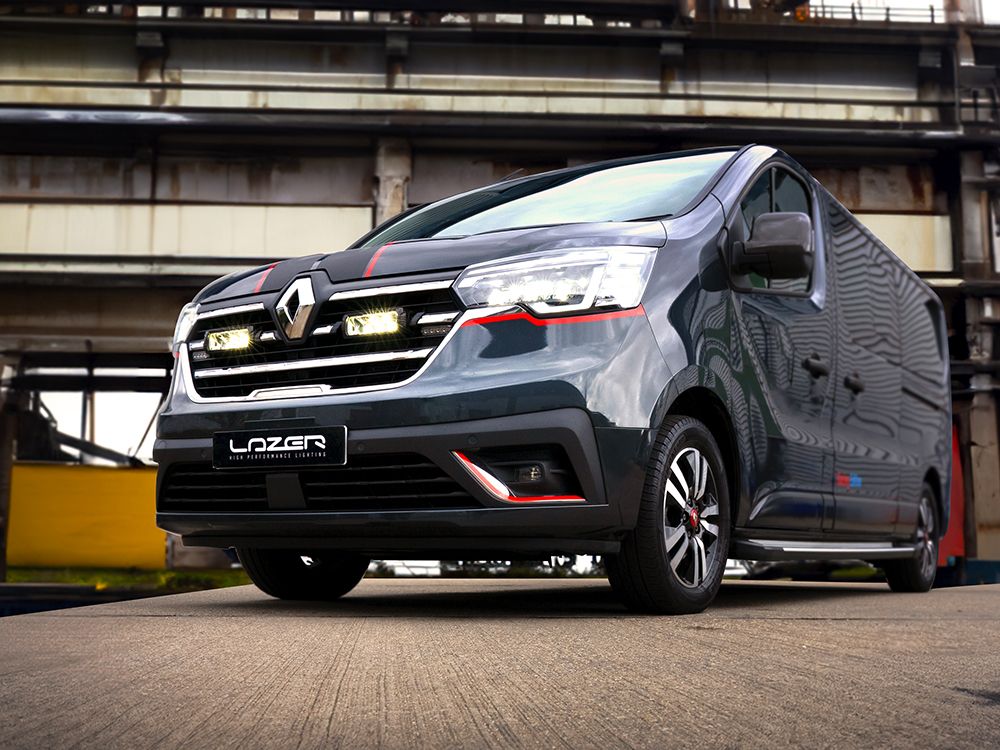

Complete auxiliary light kit containing everything you need for installation on Renault Trafic from 2022-.

Complete grille kit Lazer Renault Trafic containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

Grille kit Lazer Renault Trafic

Triple-R 750	Gen2	Elite Gen2
Voltage range	10-32V	10-32V
Luminous flux	9240 lm	10136 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 4 pcs	2 x 4 pcs
Position light	Yes, White/Orange	No
Power output	88 W	104 W
Load (at 14.4V)	6,2 A	7,2 A
Certification
Reference number	2 x 35	N/A (2 x 12.5 E-marked mode)
High beam	ECE R112	ECE R112
Position light (White)	ECE R7	N/A

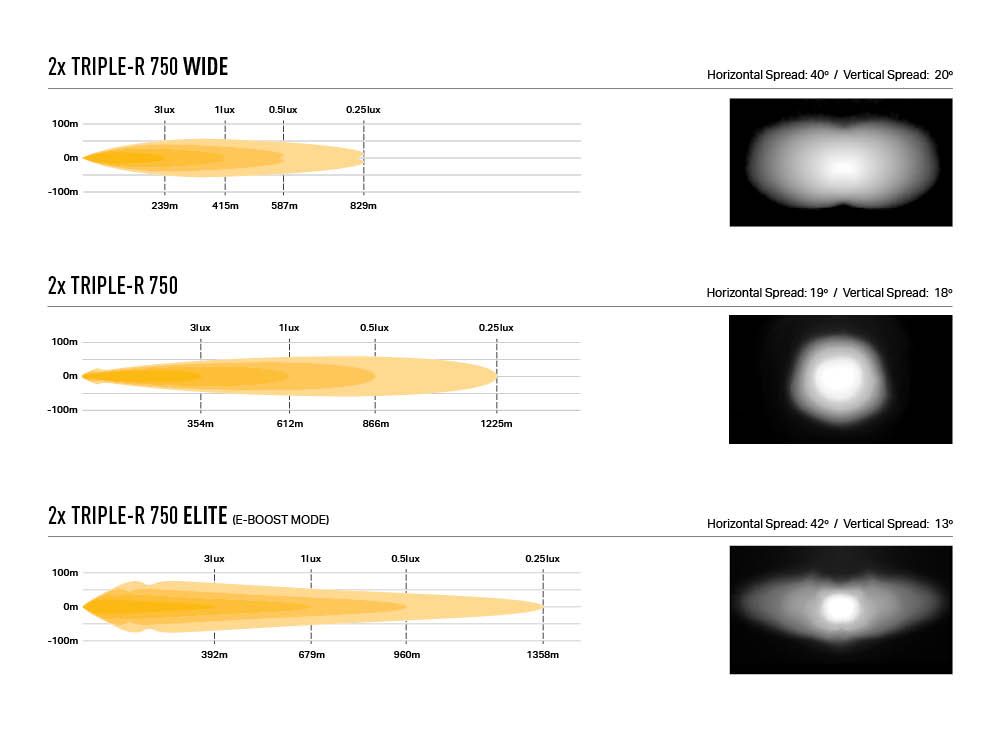

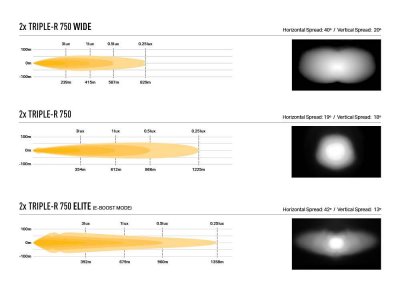

Luminous flux
Horizontal light angle	19 degrees	42 degrees

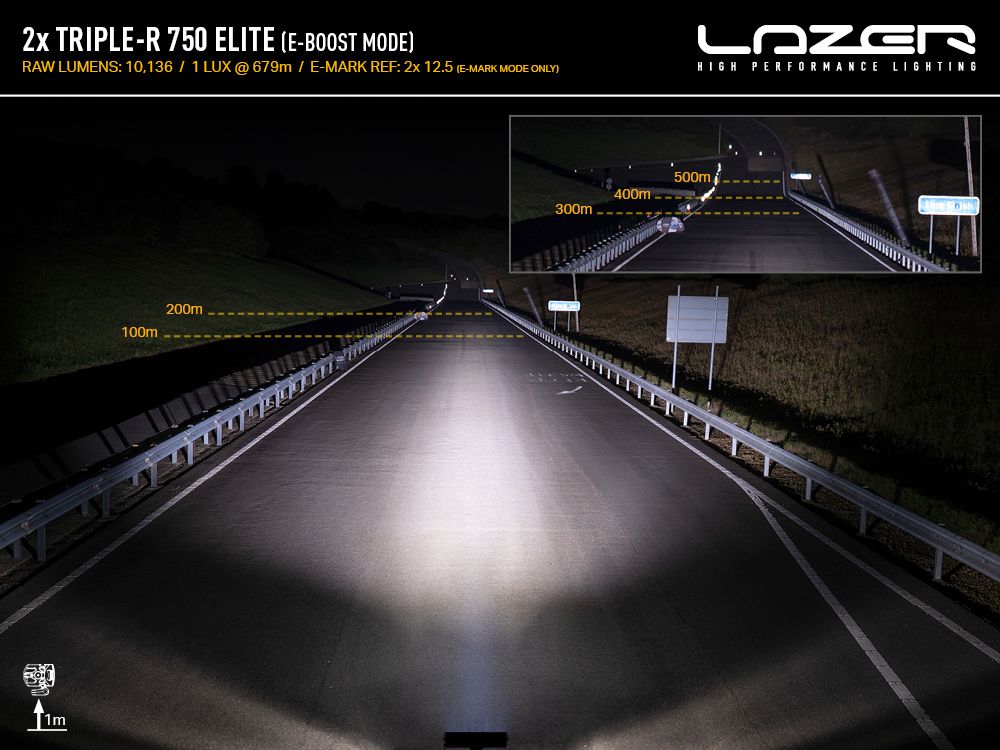

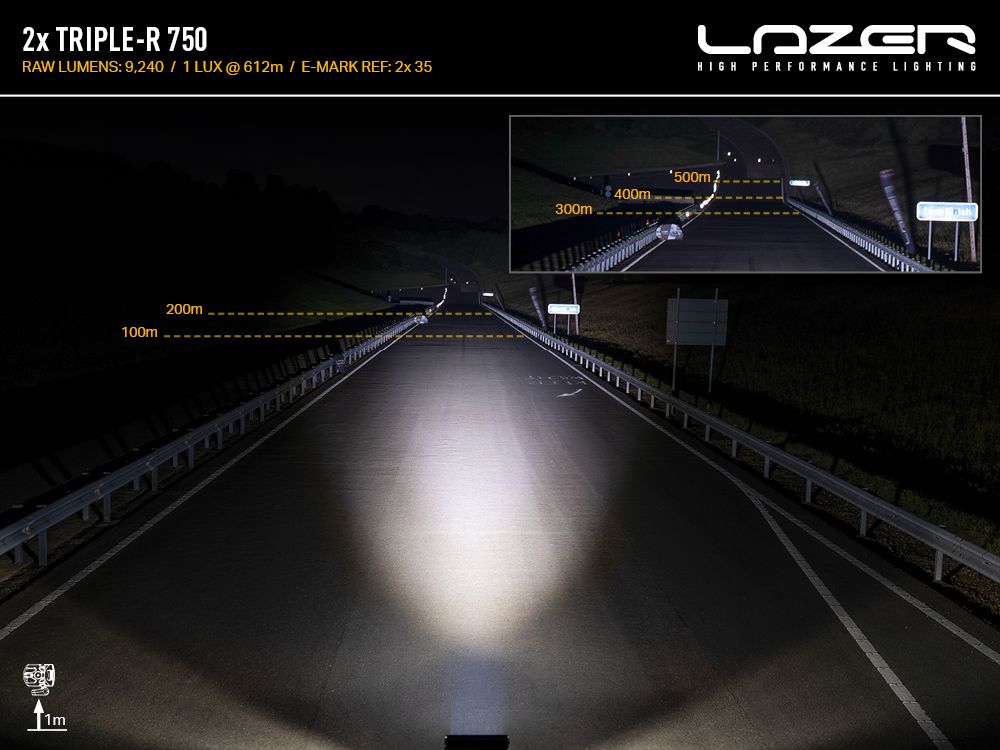

Range (1 lux)	612 meters	679 meters
Range (0.25 lux)	1225 meters	1358 meters

Installation

Installation requires damage to the grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

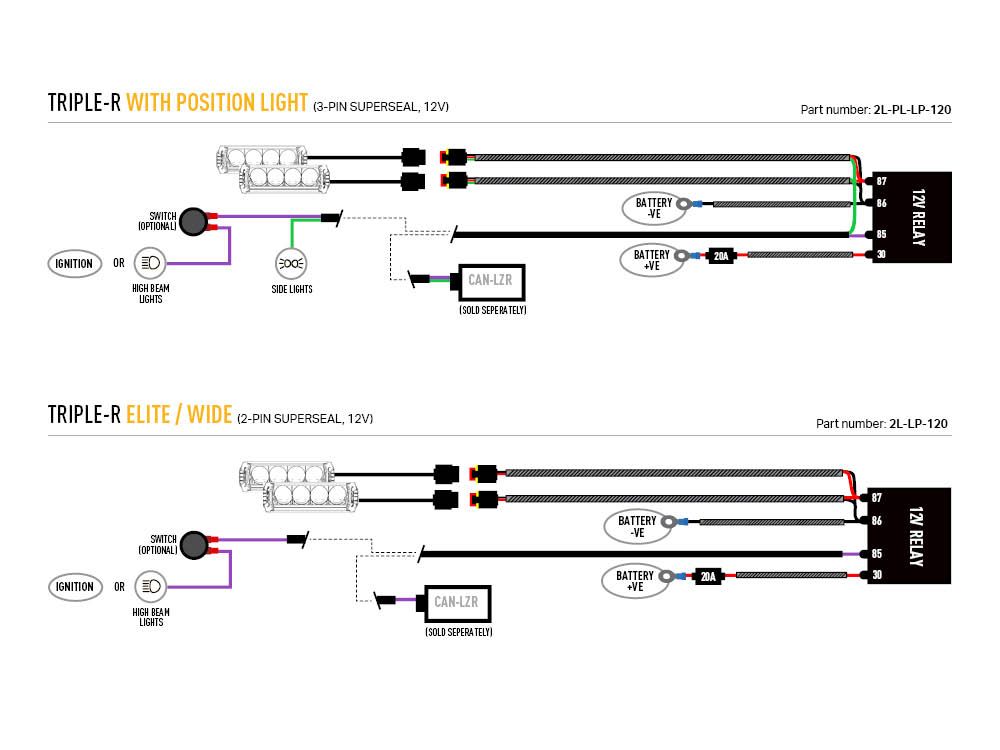

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included with the kit, but is purchased separately.

What is included in the Grill kit Lazer Renault Trafic

2 pcs Lazer Triple-R 750 Gen2

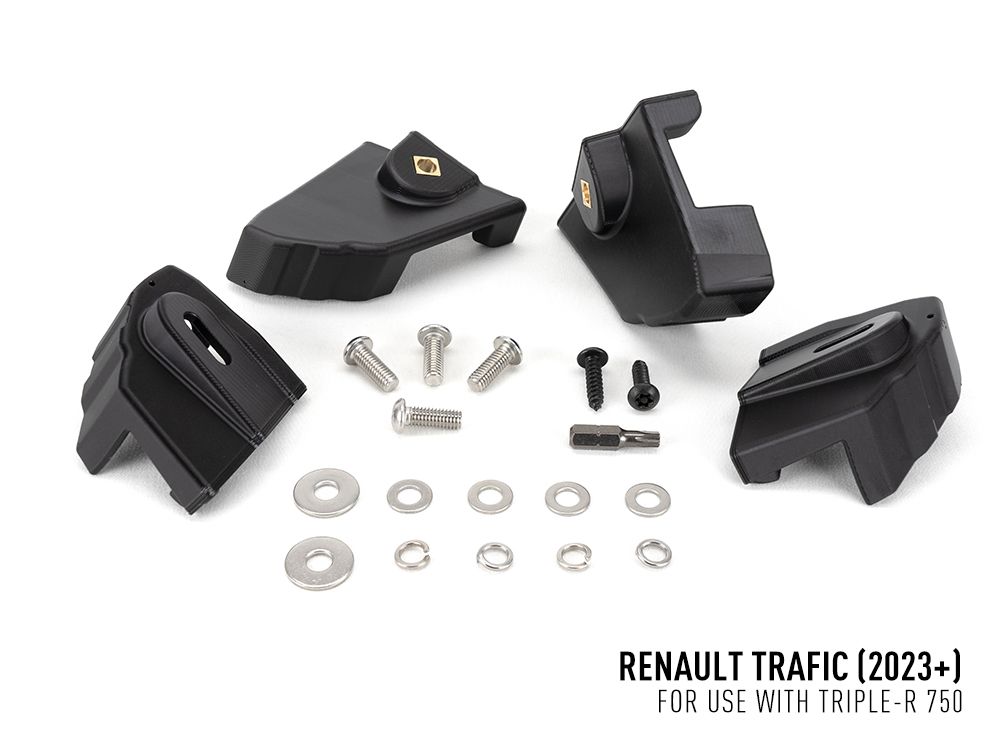

Mounting details

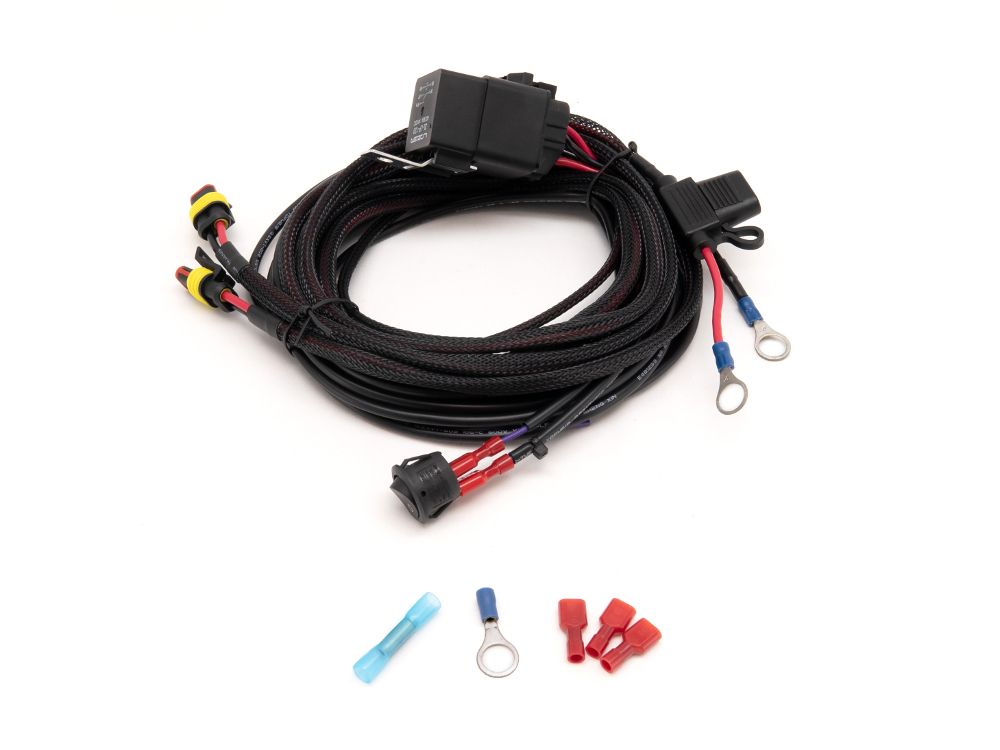

Relay kit
Mounting instructions

Grille kit Lazer Renault Trafic is delivered as a complete kit

Documents:
attachment

Mounting description for led light bar 6130-836
