LEDSON Apollo C LED Ramp - 535 mm (21.5"), 105W, 10-30V

LEDSON Apollo C LED Ramp 535 mm - 105W

Item ID: 33501572

Sorry - this product is currently not avaiable for purchase.

Apollo C delivers plenty of light, 1 lux at 450 meters, and has a raw and modern design that blends in nicely with the car. Add to that E-marking in both R112 and R10, IP68/IP69K that can withstand high-pressure washing, dual mounting options, electronic heat management and pressure equalization membrane. Apollo C will not disappoint.

LEDSON Apollo C

A curved ramp often looks nicer mounted on the vehicle as many cars have a slightly curved front that a curved ramp then matches. Driving Beam "mimics" the vehicle's regular light image. You thus get a similar light spread to your existing vehicle's low & high beam but amplified.

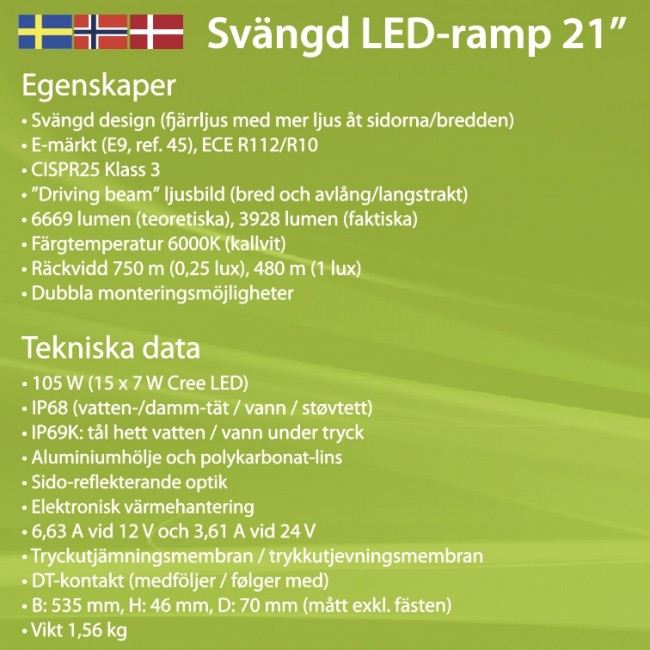

Characteristics

Curved design that matches cars with curved front
Driving Beam light pattern (wide and oblong)
E-marked (E9, ref. 45), ECE R112/R10
CISPR25 class 3 (EMC rated)
6669 lumens (theoretical), 3928 lumens (actual)
Color temperature 6000K (cool white)
Range 750 m (0.25 lux), 480 m (1 lux) (Note that the values on the packaging are wrong)
Dual mounting options

Technical data

105W (15 x 7W Cree LED)
IP68 (water/dust proof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
Side reflective optics
Electronic thermal management
6.63 A at 12 V and 3.61 A at 24 V
DT connector (supplied)
Pressure equalization diaphragm

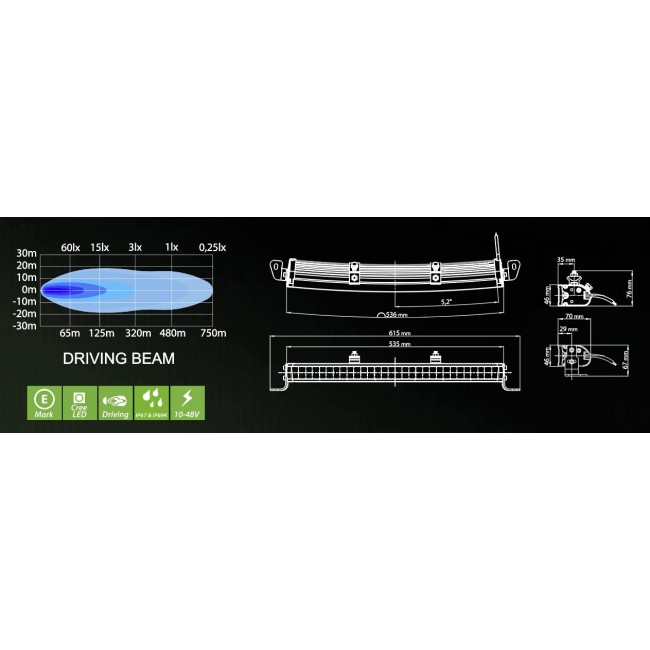

Dimensions: Dimensions

Width: 535 mm
Height: 46 mm
Depth: 70 mm
Depth of curved recess: 7 mm (5.2 degrees)
Weight: 1.56 kg

What is included?

Apollo C LED ramp
Side-mounted legs
Sliding brackets (standing/hanging)
Bolts and screws to fix the ramp to the appropriate surface
DT connector
Installation instructions

The DT connector must not be cut off, as this increases the risk of moisture damage. Damage to the DT connector will void the warranty.

Delivered individually
