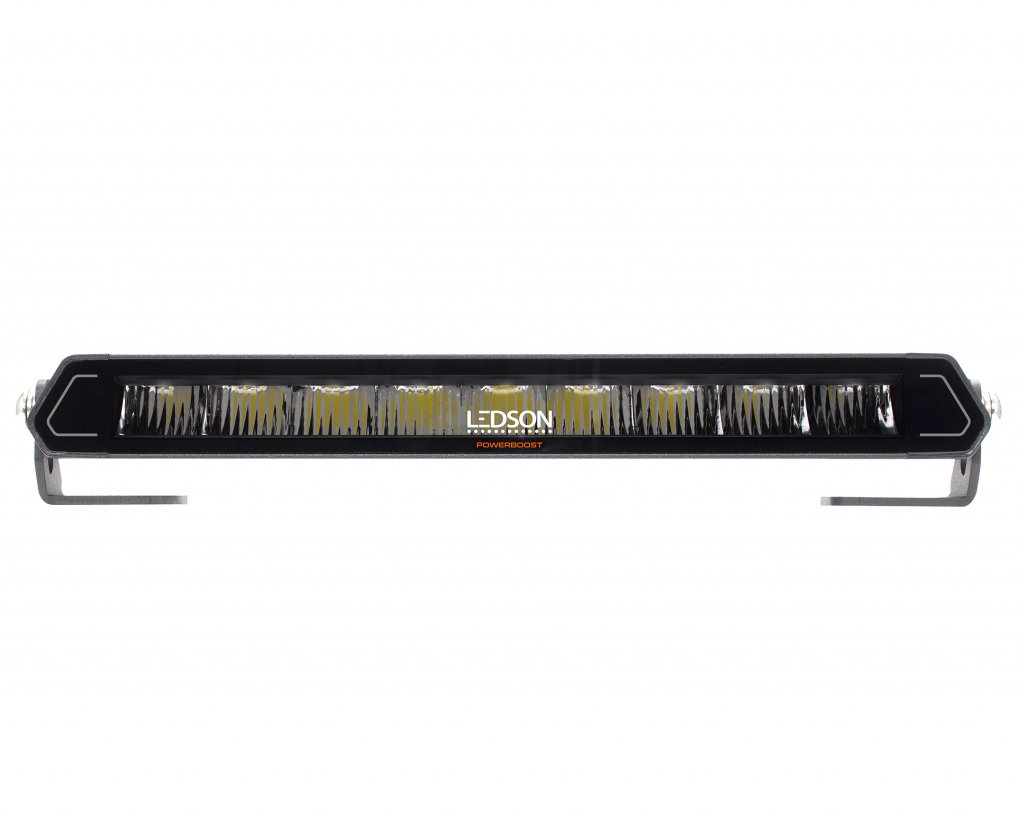

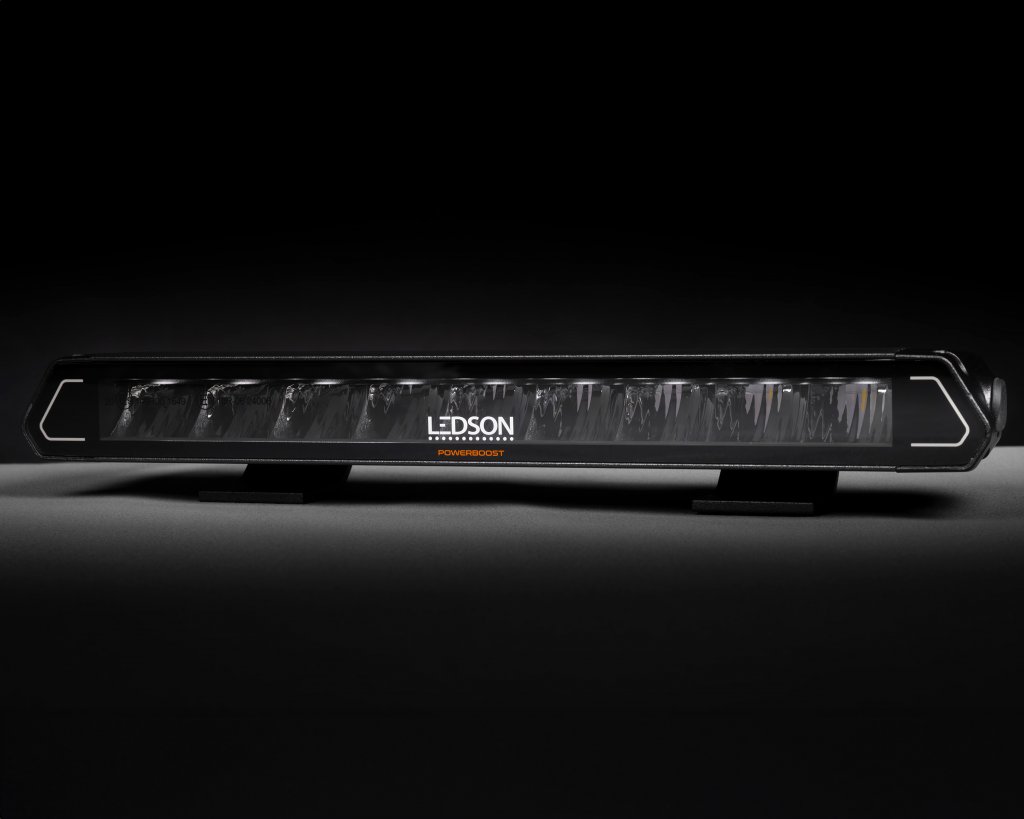

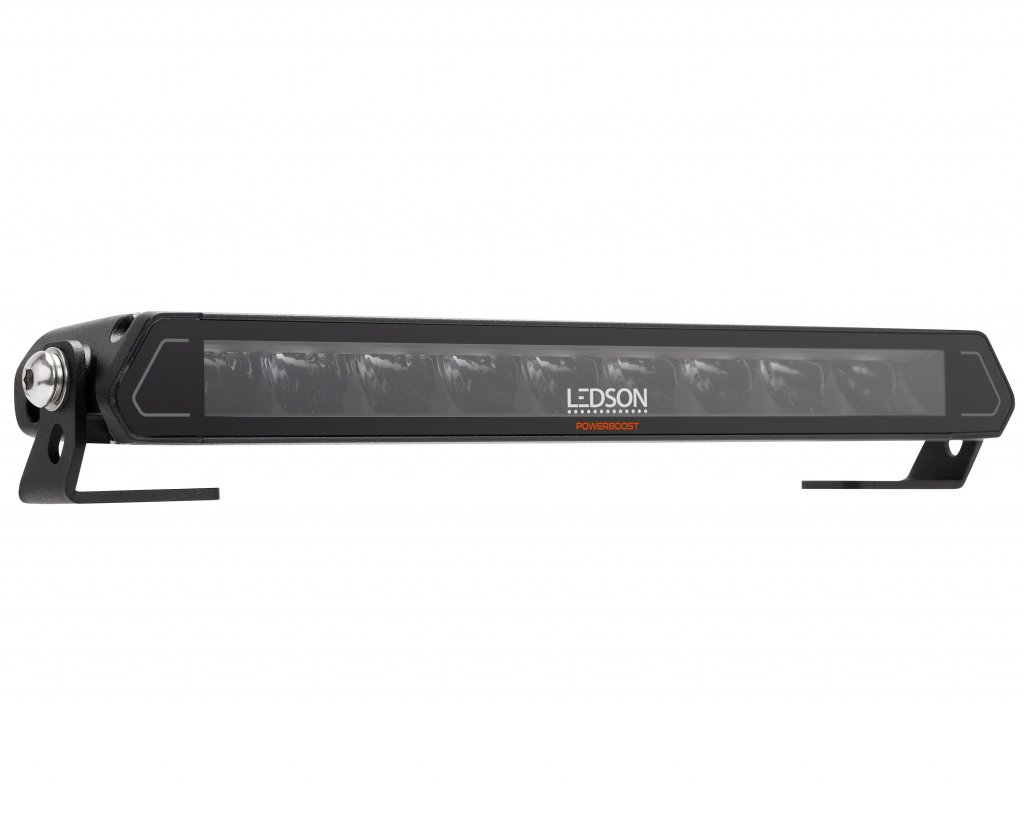

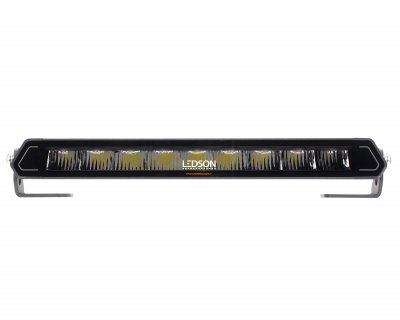

Epix11 Slim - A very slim and elegant LED light bar.
Despite its compact size of only 296 mm in length and 33 mm in height, it delivers impressive brightness and long reach. Ledson's unique design creates a stylish and powerful ramp that sets a whole new standard.
For those looking for power and style in a compact form without compromise - the Epix11 Slim is the ultimate choice. As part of the new generation of the Epix family, this model presents a more streamlined and compact design. LED light bar Epix11 Slim, a ramp with a slimmer profile but with the same impressive power and style.
Precisely designed to fit today's modern vehicles, the Epix11 Slim's compact size makes it ideal for those who demand high performance without compromising on looks. With a power output of 54 W, the Epix11 Slim is ready to light up the road ahead with outstanding brightness.
Features and characteristics
- E-marking: R148, R149 (ref. no. 50), R10 (EMC rated)
- Beam pattern: Drive (wide and oblong)
- Luminous flux: 4900 lumens (theoretical), 3800 lumens (actual)
- Color temperature: 5000K (Xenon white)

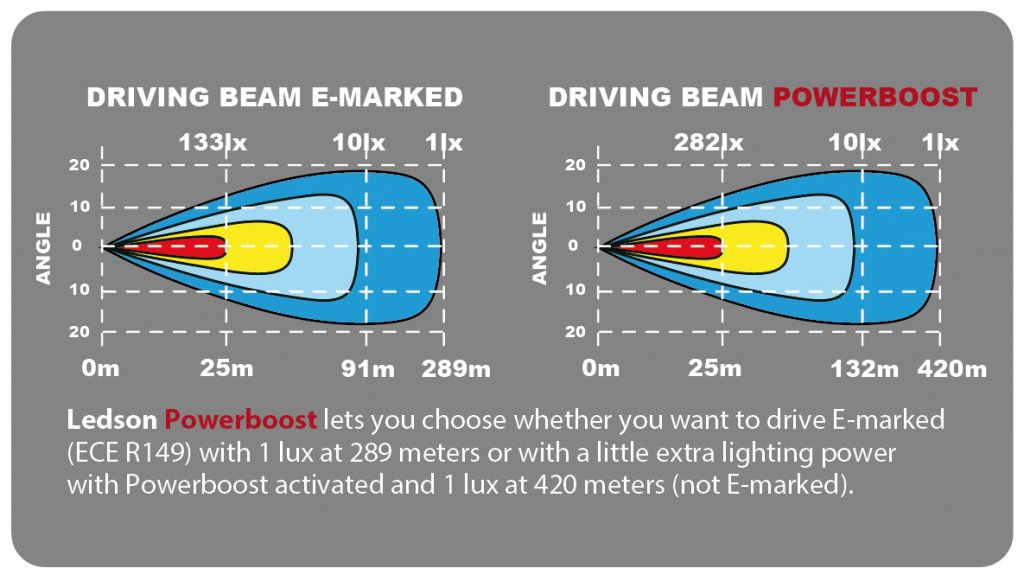

- Range: 289 m (1 lux), Powerboost: 420 m (1 lux)
Technical data
- Power: 54W (18 x 6W LED)
- IP rating: IP69K (water/dust proof)
- Construction: Aluminum housing and polycarbonate lens
- Connector: DT connector 2-pin (included)
- Voltage: 9-36V
Dimensions: Dimensions
- Width: 296 mm
- Height: 33 mm (excl. brackets)
- Depth: 59 mm
- Weight: 0,7 kg
Powerboost - Pulse-controlled Power Boost - Optimal Brightness in One Click
The Epix11 Slim is equipped with a pulse-controlled power boost, allowing you to maximize brightness when you need it most. With a simple adjustment, you can activate this impressive feature to customize the ramp light to your needs. Ledson's new generation of pulse-controlled power boost allows you to switch between modes with a simple push of a button, giving you a smooth and customizable lighting experience.
It is worth noting that the ramp is not e-approved in power boost mode .
Drive light (Driving beam)
The Epix11 Slim continues to deliver the advanced Driving Beam technology previously seen in Epix models. Each reflector is carefully designed to replicate and enhance the car's existing headlights and lights, resulting in an optimal light pattern to illuminate the road ahead.
