LEDSON Blade - LED bar 20,5" 88W

Item ID: 334922042

€259

Incl. VAT

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

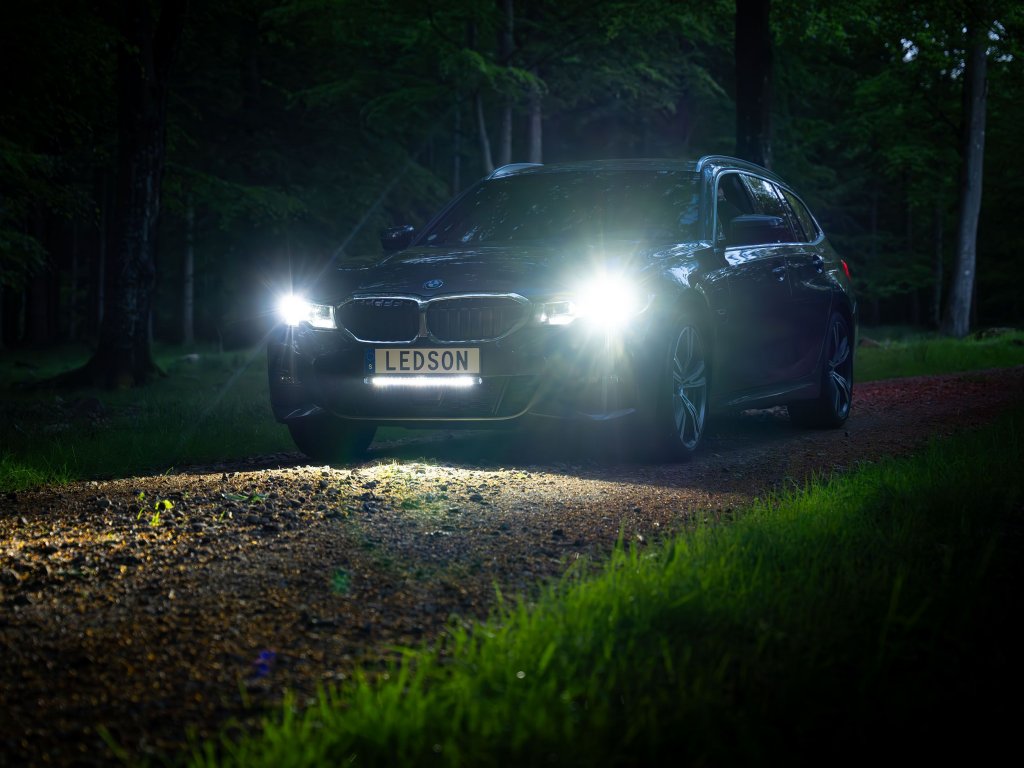

Blade – the LED light bar that blends in and becomes part of the car. With a height of just 25 mm, it is almost invisible in daylight – but when you switch on the high beam, you get a strong and wide light pattern with a range of 435 metres at 1 lux. Perfect for everything from everyday commuting to weekend adventures. Ledson Blade is E-marked according to ECE R149 and can therefore be used on public roads.

LEDSON Blade

Stylish by day – safe by night

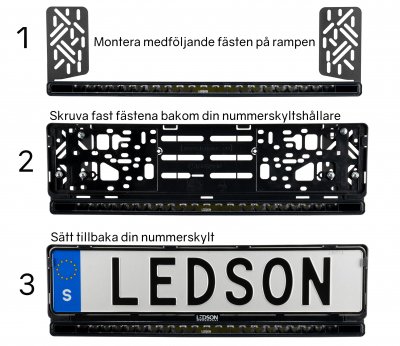

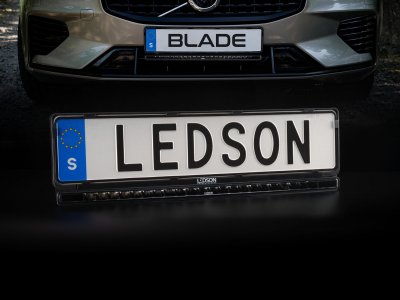

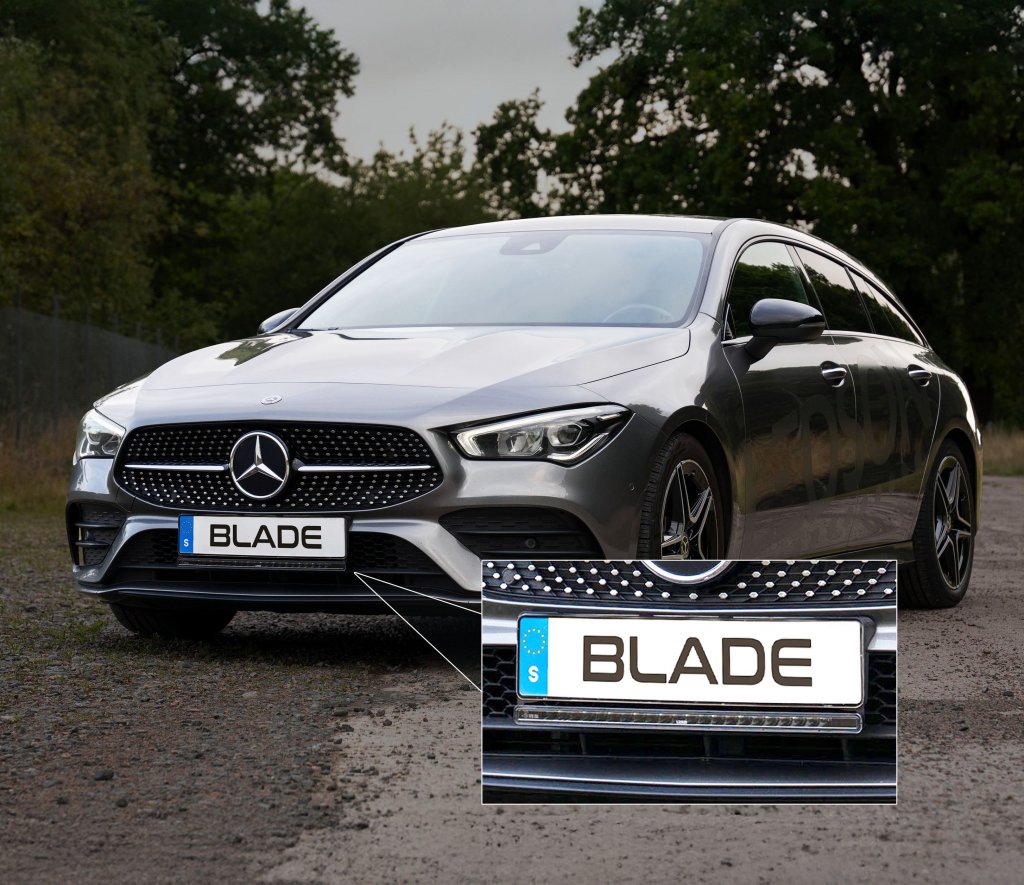

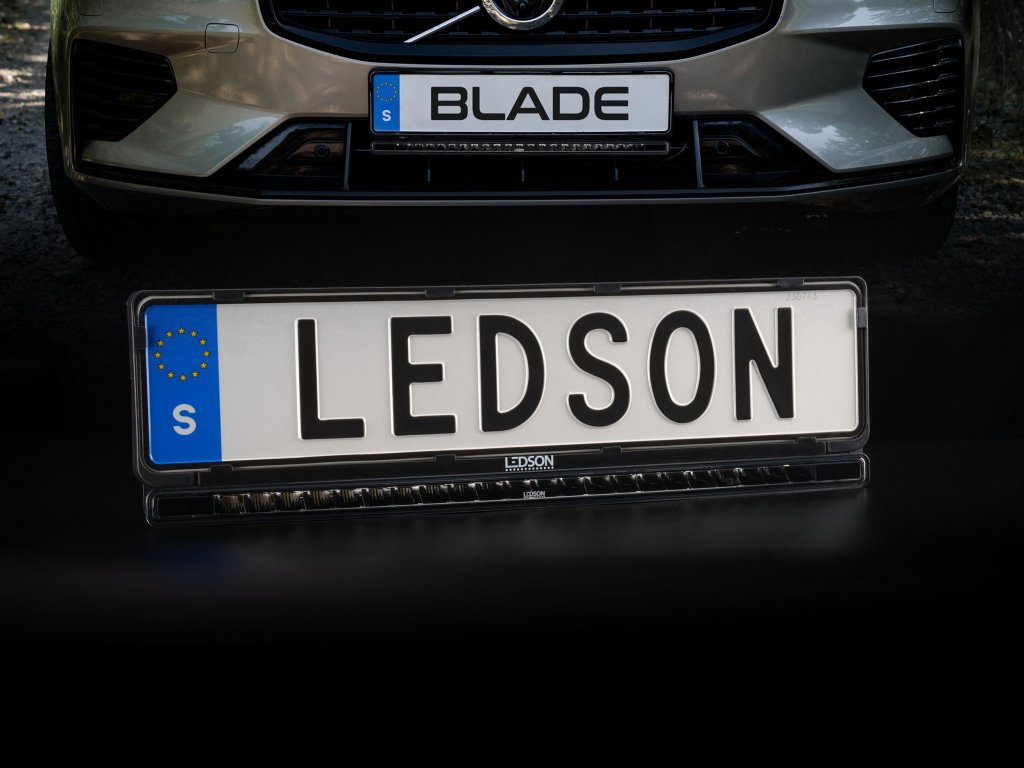

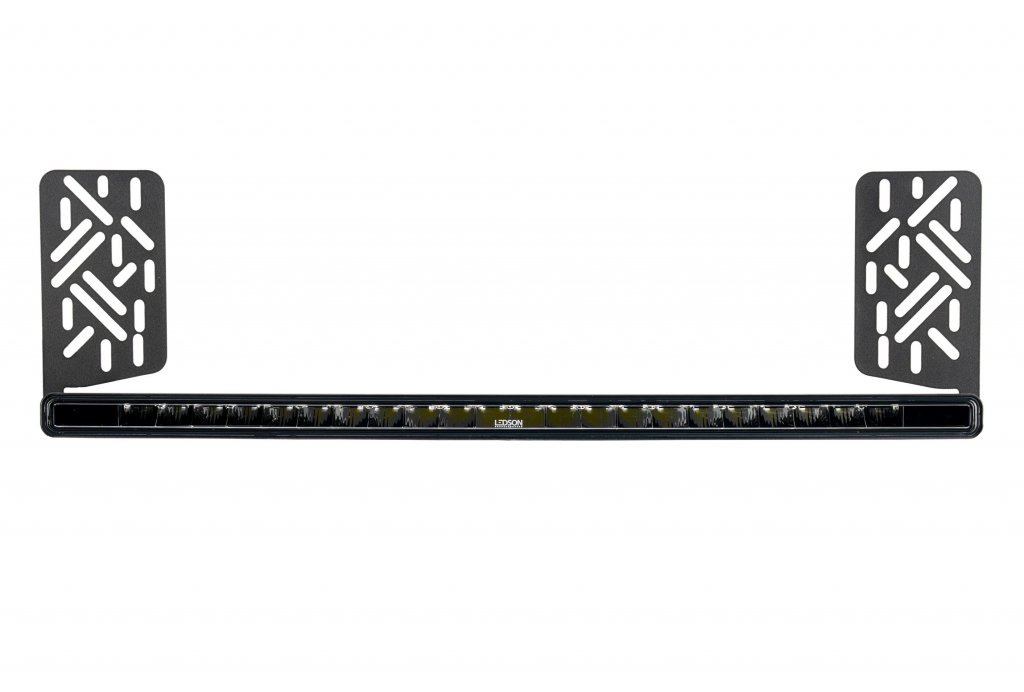

Thanks to the specially designed brackets, the light bar is easily mounted behind the number plate. nbsp;When switched off, it blends in with the lines of the vehicle, making it perfect for those who want a powerful yet discreet lighting solution.

Hassle-free installation – everything included

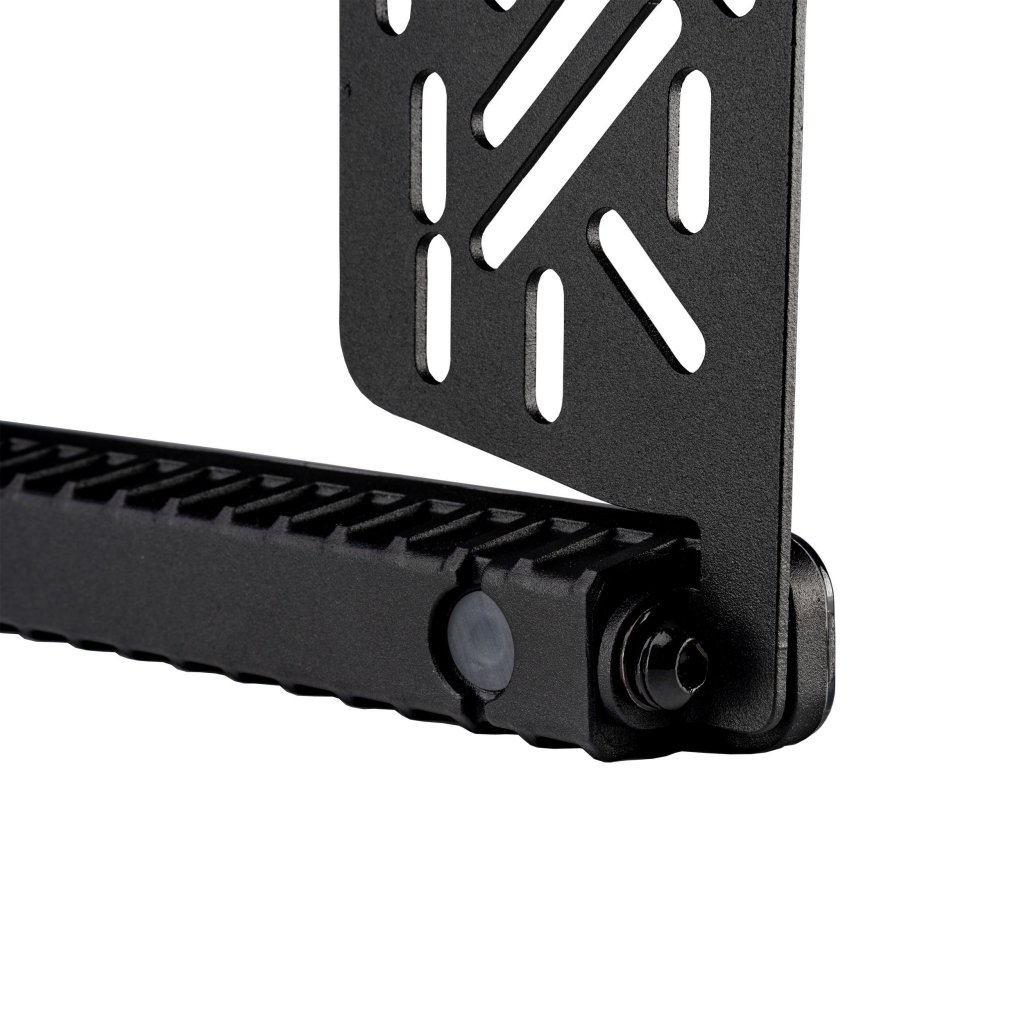

For easy and convenient installation, a complete cable kit is included for direct connection to the vehicle's battery, adapted for both LED, Xenon and halogen vehicles. The cable and its connector are extra thin and can be easily pulled through a discreet hole in the engine compartment. With a 170 cm long cable, you have plenty of leeway during installation. You can easily adjust the light pattern using two screws on the outer edges of the ramp when it is mounted. It couldn't be easier!

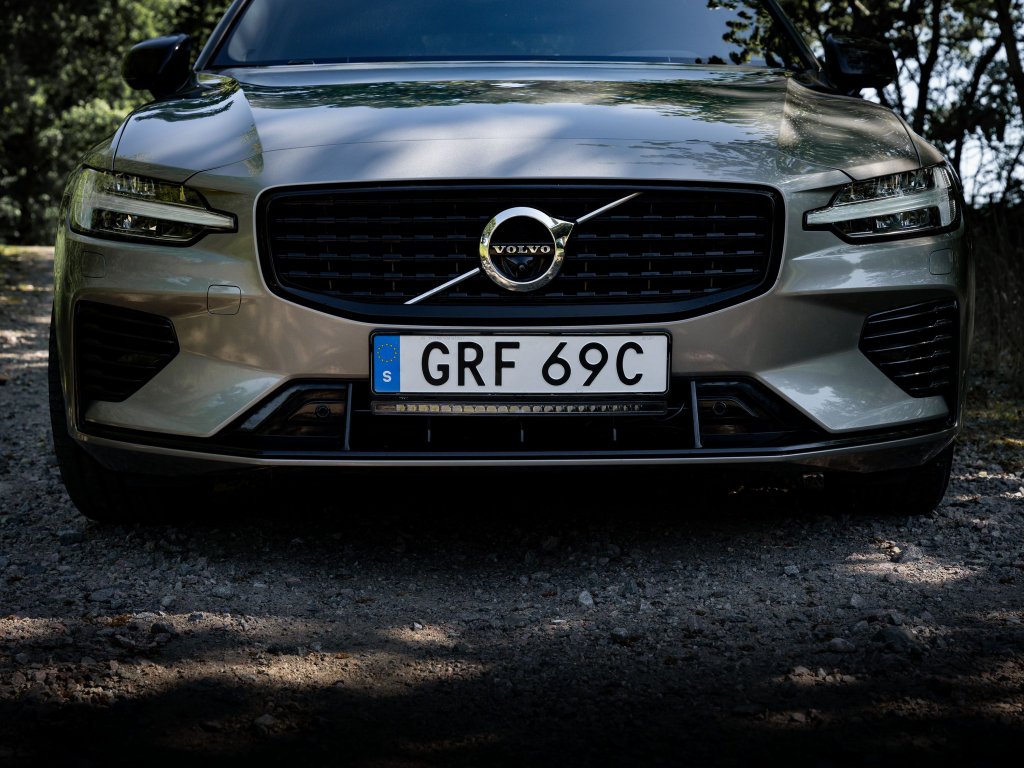

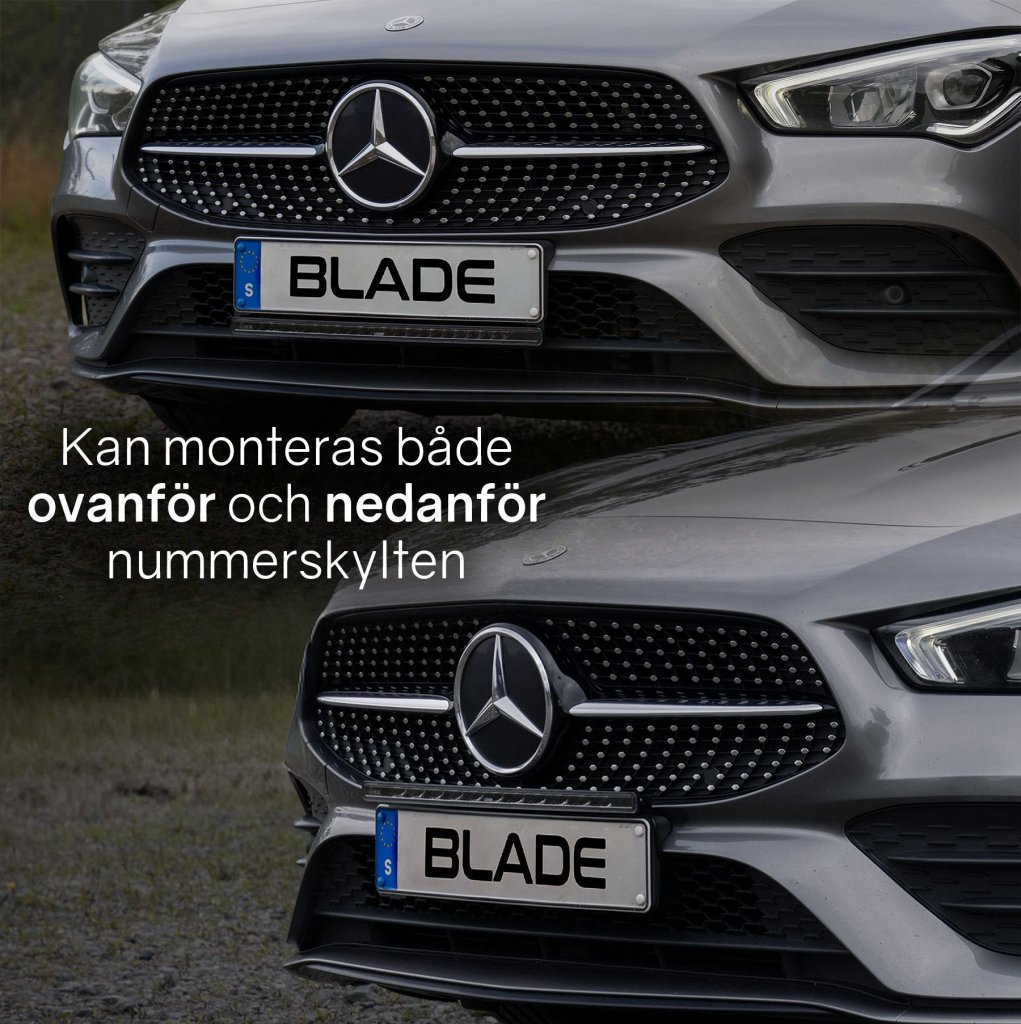

The ramp can be mounted both above and below the number plate, as well as recessed or protruding.

LEDSON Blade

Halogen or XBB to LED/Xenon high beam

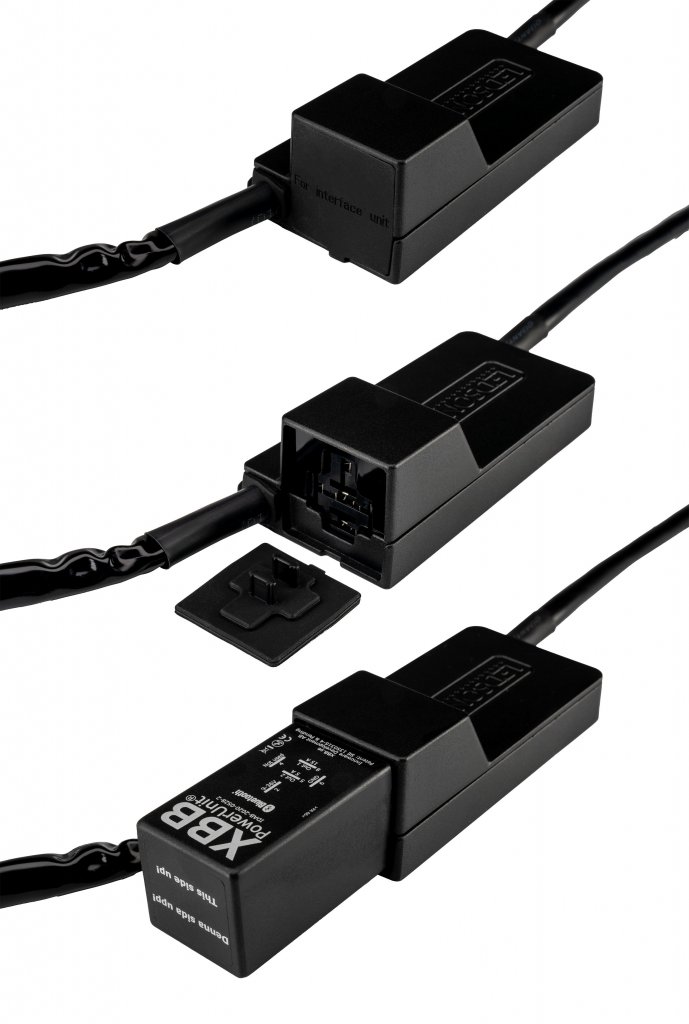

For vehicles with halogen high beams, simply connect the yellow cable to the high beam signal, and for vehicles with Xenon or LED, use the XBB Kit for easy connection. Blade works with both 12V (passenger cars) and 24V (trucks), but only 12V for XBB installation.

Features and technical data:

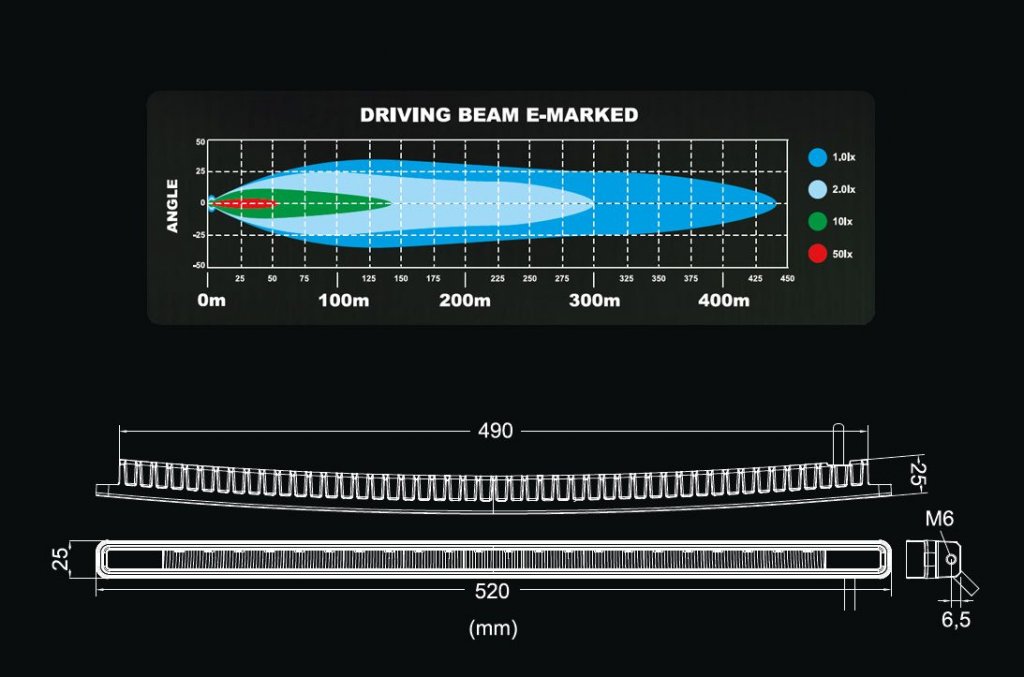

Driving Beam light pattern (wide and long)
Curved design to match the front of the car
E-marked R149 (ref. no. 40), R10 (EMC-rated)
Range: 435 m (1 lux)
Lumen: 8,800 lumens (theoretical), 6,500 lumens (actual)
Colour temperature 5000K (neutral white)
88 W (22 x 4 W LED)
Voltage: 9-36V
IP69K (water/dustproof)
Aluminium housing and polycarbonate lens
Side-reflecting optics
Pressure equalisation membrane
Electronic heat management

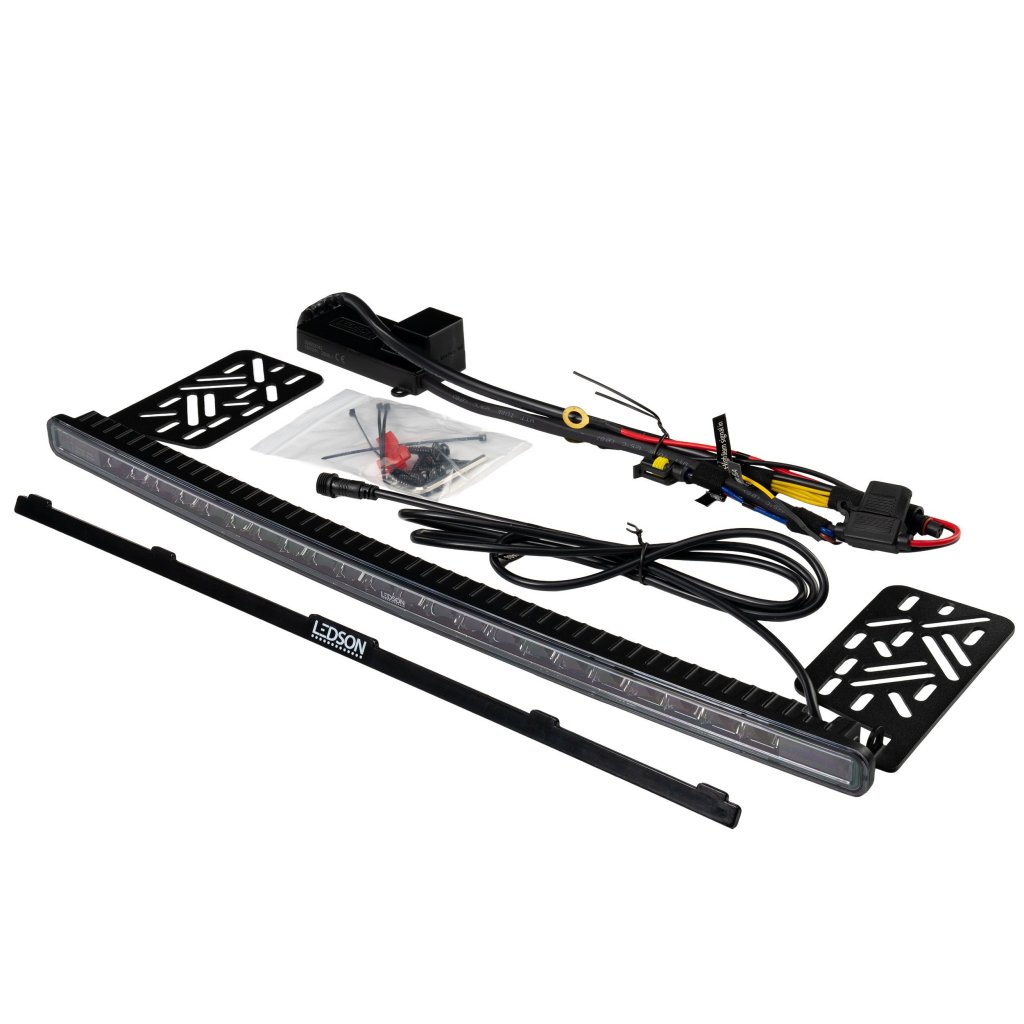

Included:

Blade LED light bar
Control unit with connection cable

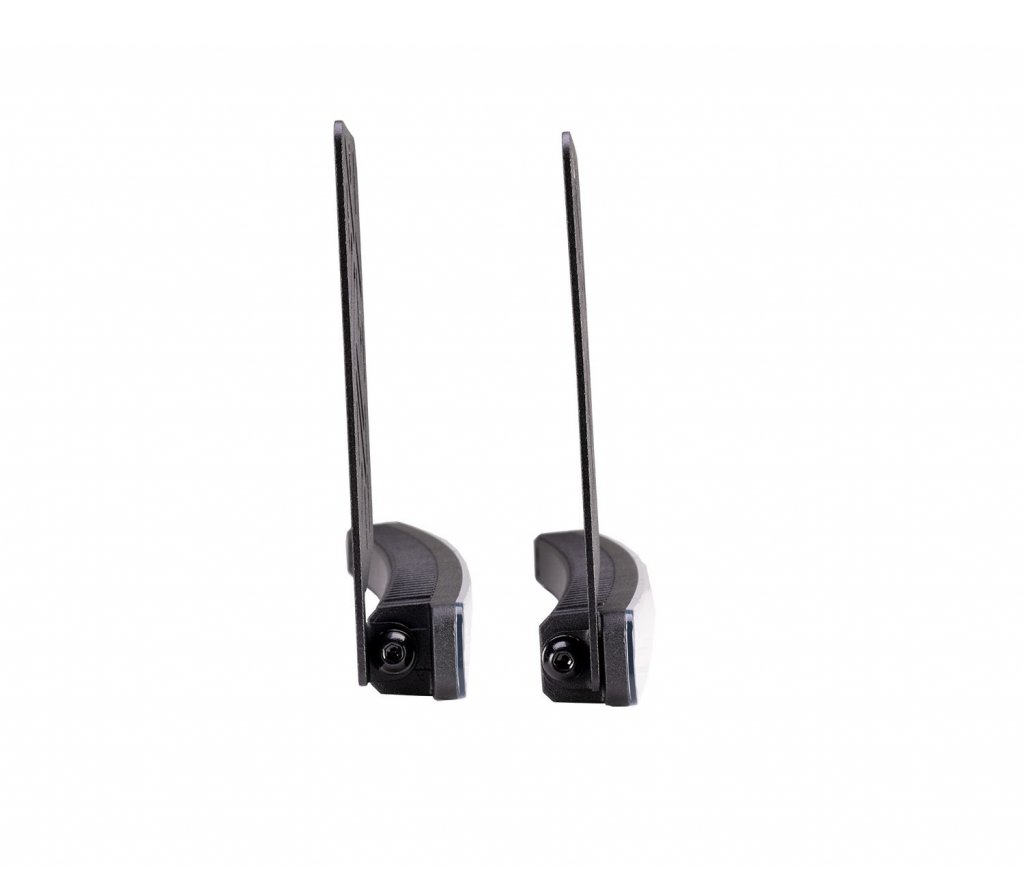

Light bar bracket
Licence plate cover strip
Hexagon screws with washers
Self-tapping screws
Installation instructions

Dimensions and weight (excluding brackets):

Width: 520 mm
Height: 25 mm
Depth: 25 mm
Weight: 850 g (including cables and complete mounting kit)

Documents:
attachment

Mounting instructions for LEDSON Blade 334922042
