Backlight package | 2 pcs Ledson Nano incl. cabling

Item ID: 9035-007

€294

Incl. VAT

Which variant do you want?

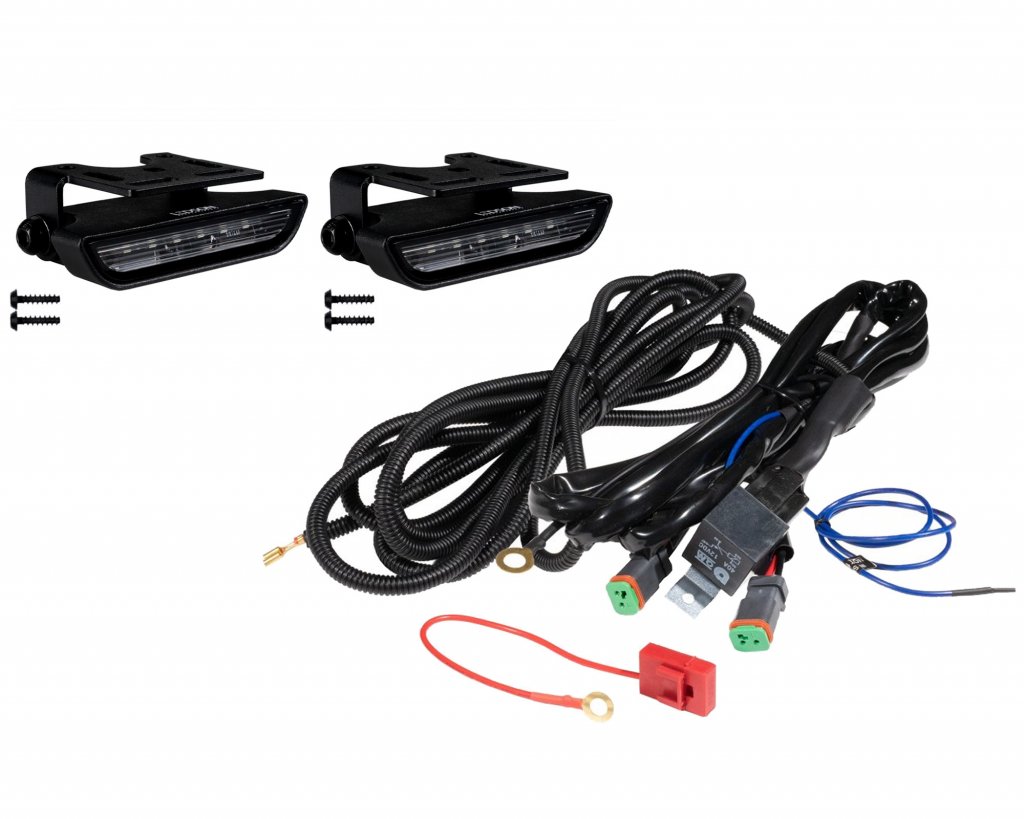

Including cabling (without XBB)

9035-008

€178

Available

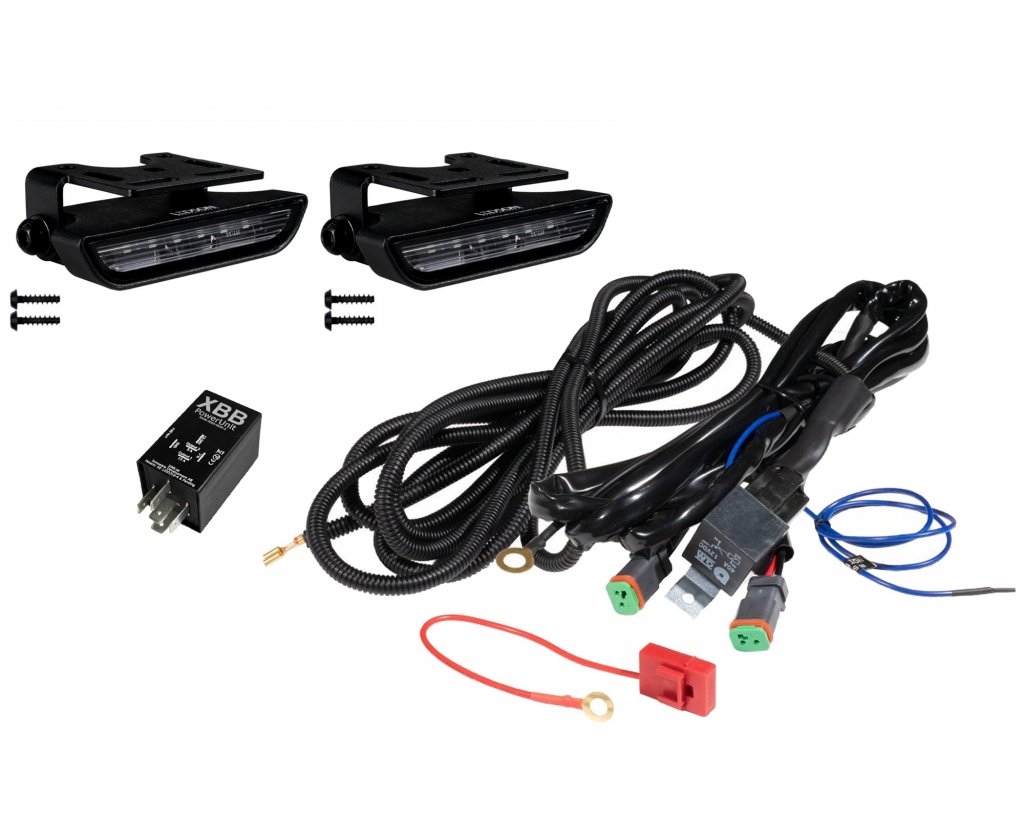

Incl. XBB (PowerUnit) and cabling

9035-007

€294

Available

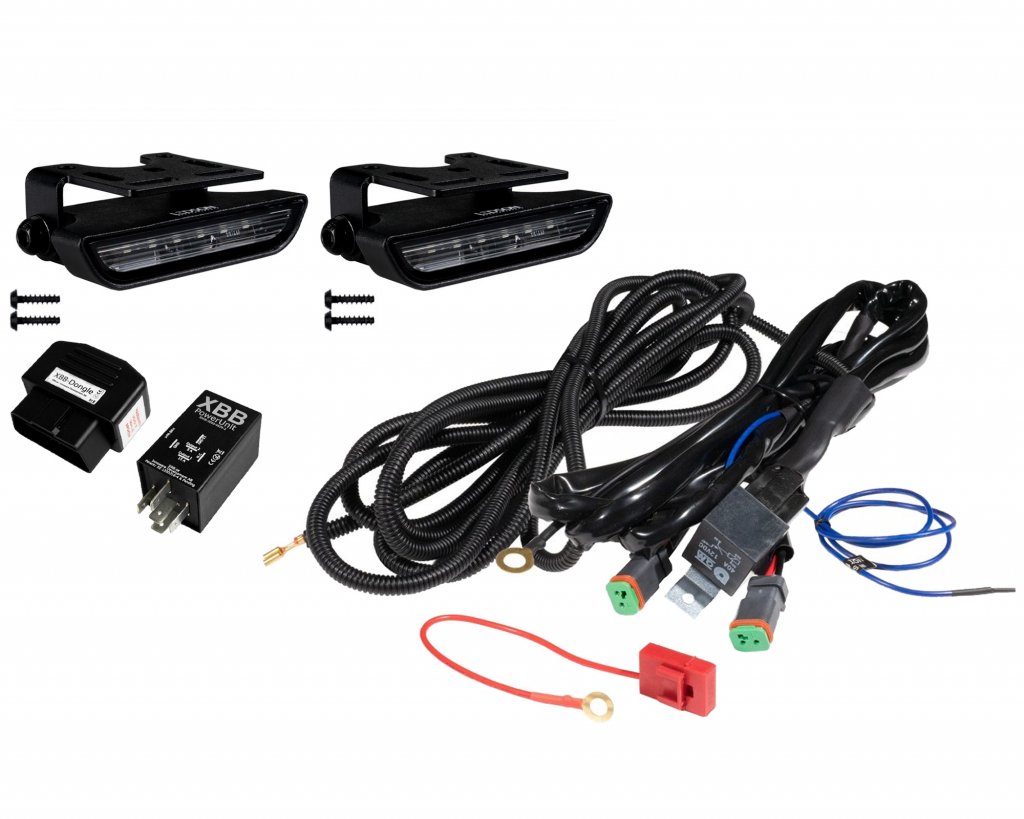

Incl. XBB (Dongle + PowerUnit) and cabling

9035-006

€417

Available

Available in external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 2-7 business days

Product Description:

Complete reversing light kit that includes everything you need for a smooth installation: 2x Ledson Nano reversing lights, cable set and screw. With its sleek design and powerful brightness, the Ledson Nano is both stylish and functional, perfect for giving your vehicle optimal rear visibility in dark and challenging driving conditions.

Reversing light package | 2 pcs Ledson Nano incl. wiring

The package always includes:

2 pcs Ledson Nano
Cable set with 2 DT connectors/DT outputs
4x PT-Screw WN 1451

As an option you can choose:

XBB Dongle + 1 Power Unit
1 Power Unit

Backlight Ledson Nano | 2 pcs included

Taillight Nano is E-marked and approved according to ECE R23, making it completely legal to use as a taillight. The sleek and modern design blends seamlessly with your vehicle, providing a stylish and functional lighting solution.

Specification 1 pcs Ledson Nano:

E-marking: ECE R23 (approved as reversing light)
Range: 31 meters (1 lux)
Lumen: 2800 lumen (actual 1750 lumen)
Light spread: 140° wide beam for optimal coverage behind the vehicle
Color temperature: 5000K, providing a clear and natural light
Power: 30W (6 x 5W LED), providing high performance with low energy consumption
IP rating: IP68, which means that the lamp is both water and dust proof
Electronic thermal management: To ensure long life and constant performance
Voltage: 9-36V, compatible with both 12V and 24V vehicles
Power consumption: 2A at 12V and 1A at 24V
EMC protected: ECE R10, ensuring that the lighting does not cause electromagnetic interference

Relay wiring | Cable set included

Relay cable for those who wish to mount two extra reversing lights on your car, where the supply is to be controlled via a relay.

Extra long plus cable of 3.9 meters allows the wiring to reach all the way from your reversing lights to the battery. The cable has 2 DT connectors / DT outputs with an input for control from the existing reversing light.

XBB Dongle + PowerUnit | Available as an option

Installation is super easy and communication between the OBD reader and auxiliary light relay is completely wireless via Bluetooth, which means that teh electrical installation can be ready in as little as 15 minutes! No more time-consuming search for Canbus cables or any wiring inside the car.

Installation of the XBB kit (complete quick guide here):

Before installation: Download the free appXBB Configurator for your Android phoneor Xbb Configurator for your iPhone and ensure that your vehicle is compatible with the kit.

OBD-II transmitter (Dongle)
Receiver relay (Powerunit)

The receiver relay communicates wirelessly with the transmitter (Dongle) via Bluetooth / Bluetooth and has two independent outputs. These outputs can handle up to 15A and up to 5A respectively.

XBB PowerUnit | Available as an option

If you already own an XBB Dongle, you can choose the XBB PowerUnit package.

Select the desired package at the price button to customize the product to your needs.
