LEDSON Blade 20.5" LED Bar 88W & XBB-kit

  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
  • LEDSON Blade 20.5 LED Bar 88W & XBB-kit | 435 m at 1 lux
Item ID:  1360203
€495
Incl. VAT
Available
In stock at external warehouse | Ships within 1-4 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 1-4 business days
Product Description:

The LEDSON Blade is a slim, curved 20.5" LED bar with a profile height of only 25 mm, delivered complete with an XBB-kit for cars with LED or bi-xenon headlights. The bar delivers 6,500 actual lumens and provides a combined Driving Beam light pattern with a range of 435 meters at 1 lux.

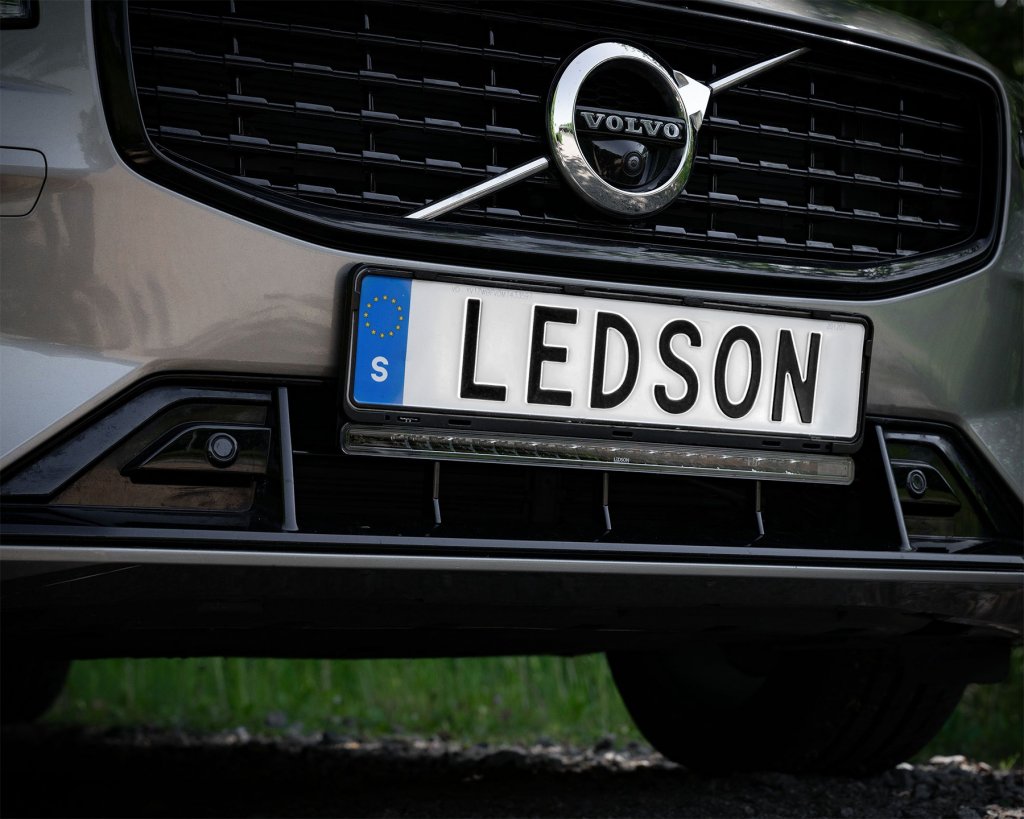

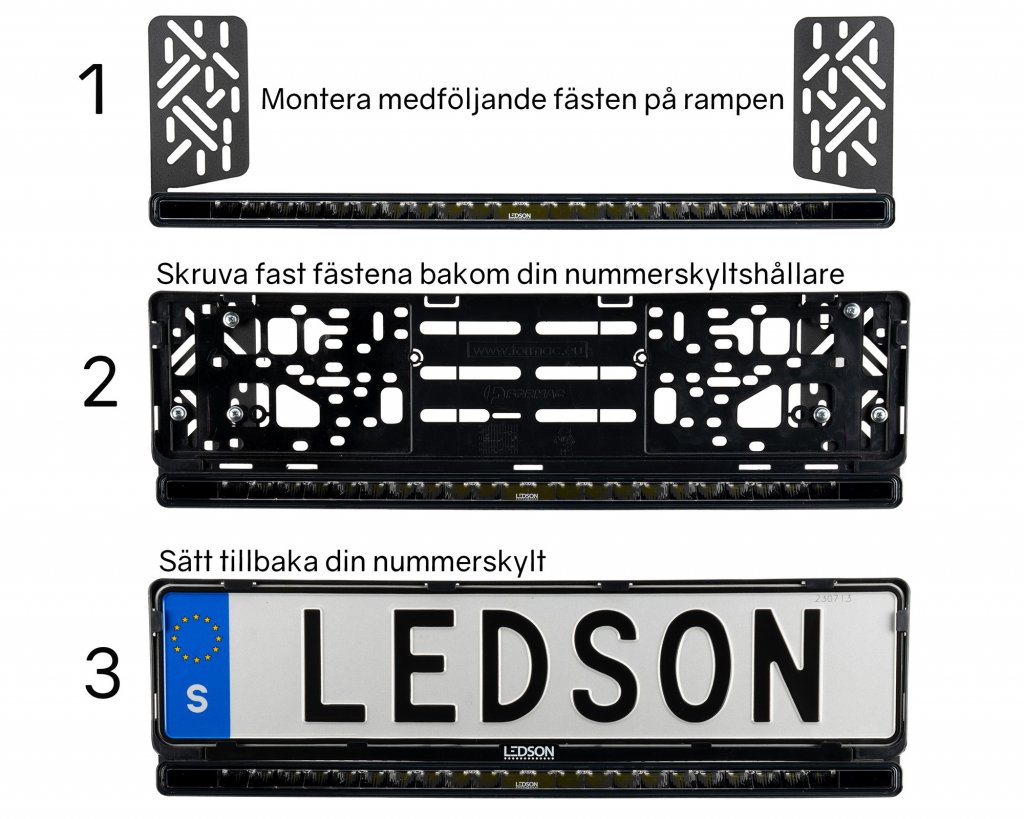

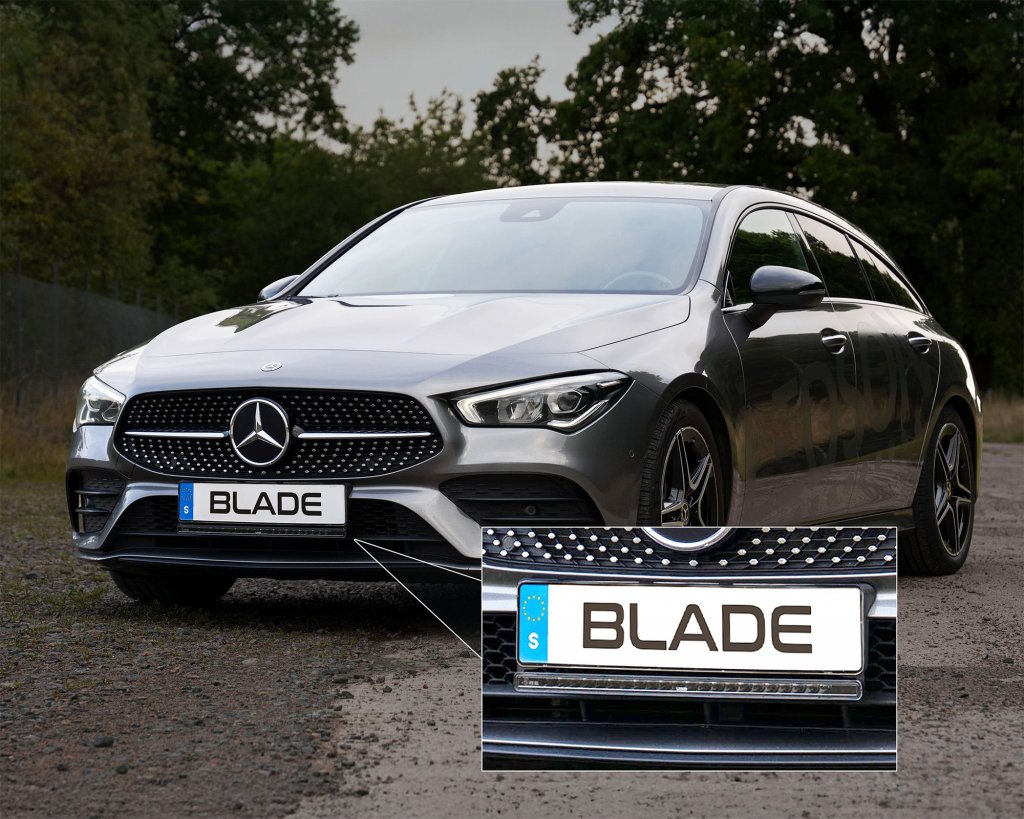

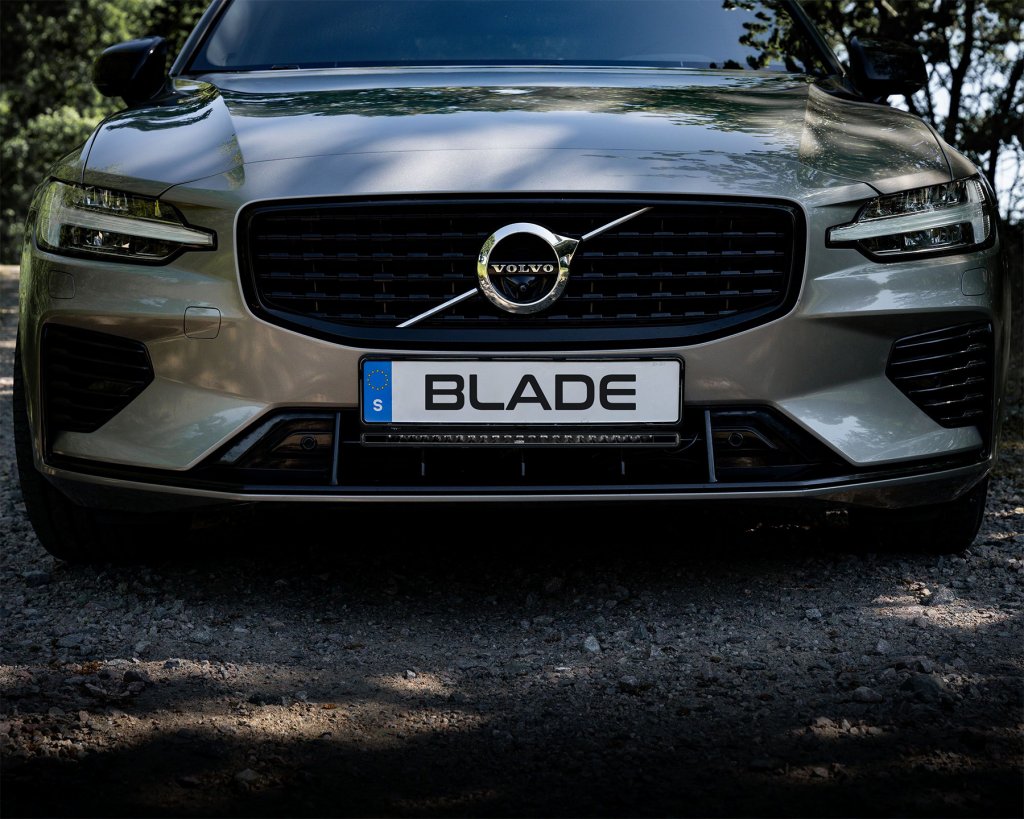

The brackets are discreetly mounted behind the vehicle's license plate, allowing for installation either above or below the plate, in a recessed or protruding position. The chassis is made of durable aluminum with a lens of impact-resistant polycarbonate, and the light pattern is fine-tuned via two screws on the bar's end caps.

LEDSON Blade – Powerful Driving Beam Light Pattern and IP69K Rating

The side-reflecting optics provide a neutral white light with a 5000K color temperature that reduces reflections and eye fatigue during night driving. The unit is approved according to ECE R149 and ECE R10, equipped with a pressure equalization membrane and electronic thermal management, and meets the ingress protection class IP69K for full protection against moisture, road salt, and high-pressure washing.

Technical specifications for LEDSON Blade 20.5" & XBB

  • Power: 88 W (22 x 4 W LED)
  • Luminous flux: 6,500 actual lumens (8,800 theoretical)
  • Range: 435 m at 1 lux
  • Light pattern: Driving Beam
  • Color temperature: 5000K (neutral white light)
  • Voltage: 9–36V (XBB-kit designed for 12V systems)
  • Ingress protection: IP69K (water and dustproof)
  • Approvals: ECE R149 (ref. 40), ECE R10 (EMC-suppressed)
  • Material: Aluminum housing, polycarbonate lens

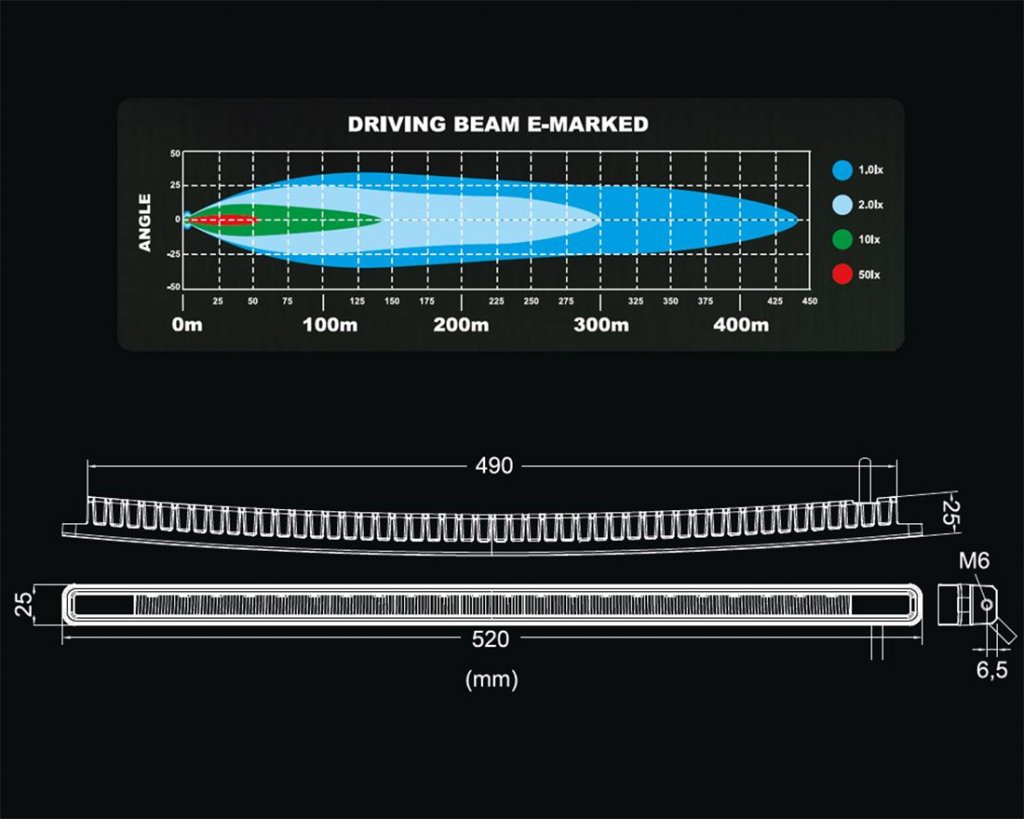

  • Dimensions (W x H x D): 520 x 25 x 25 mm (excl. brackets)

What's included in the delivery?

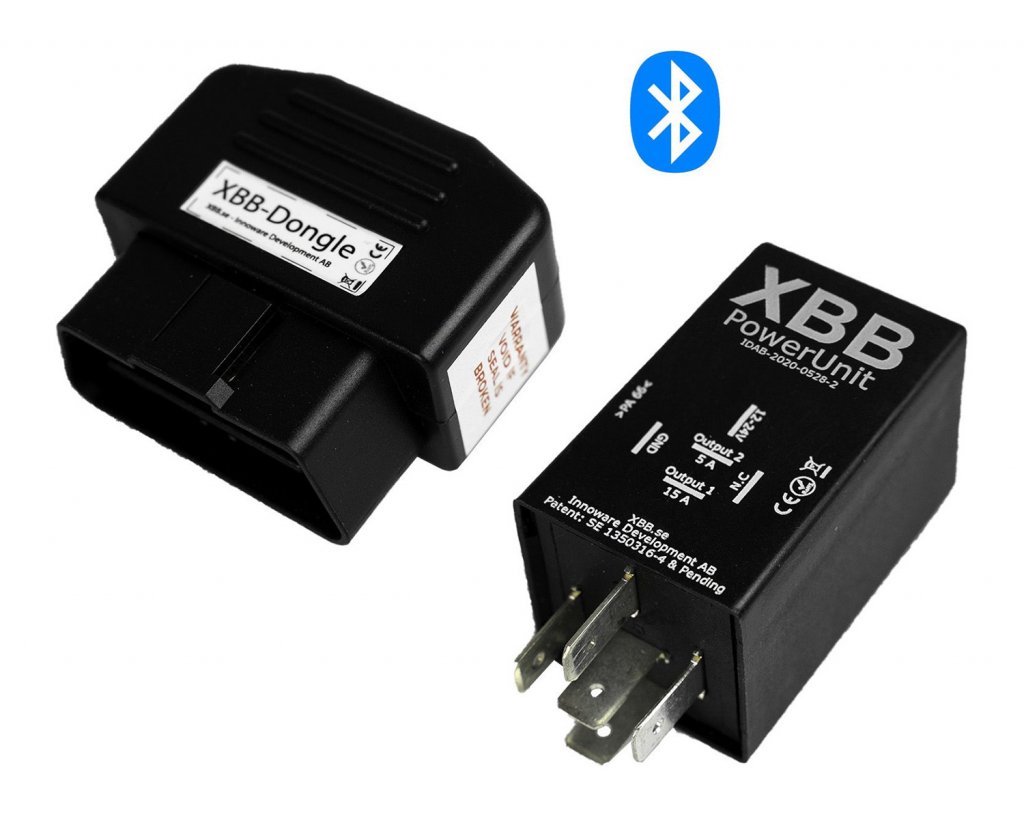

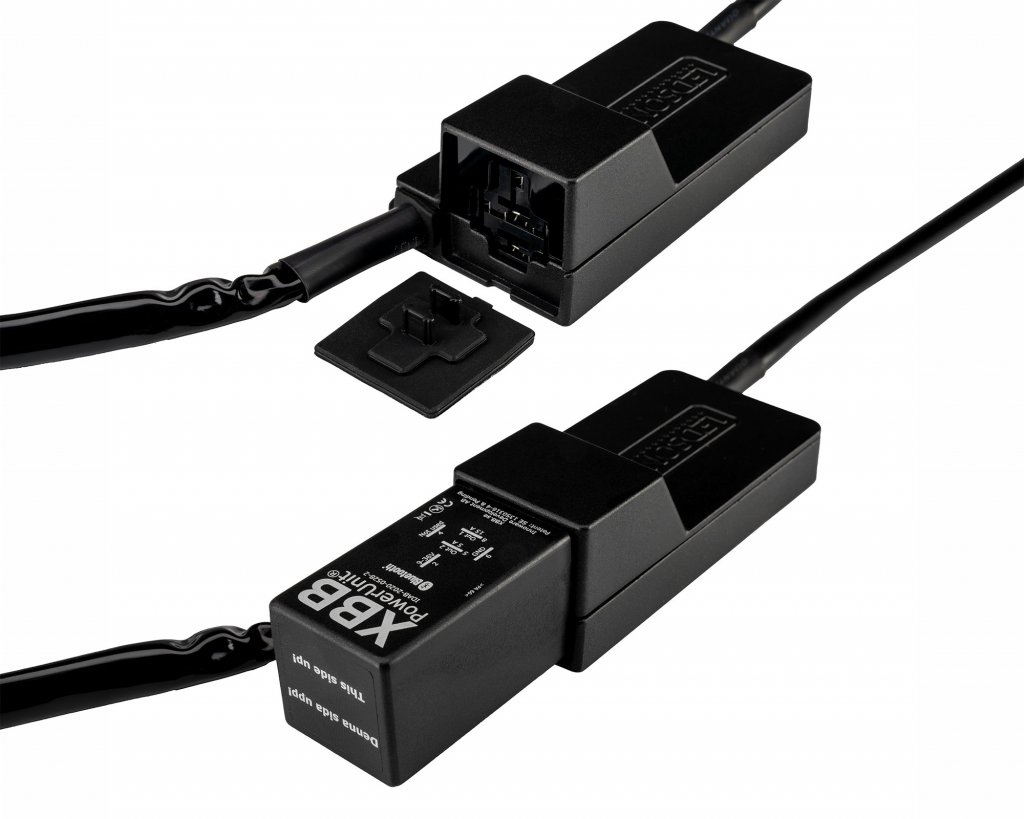

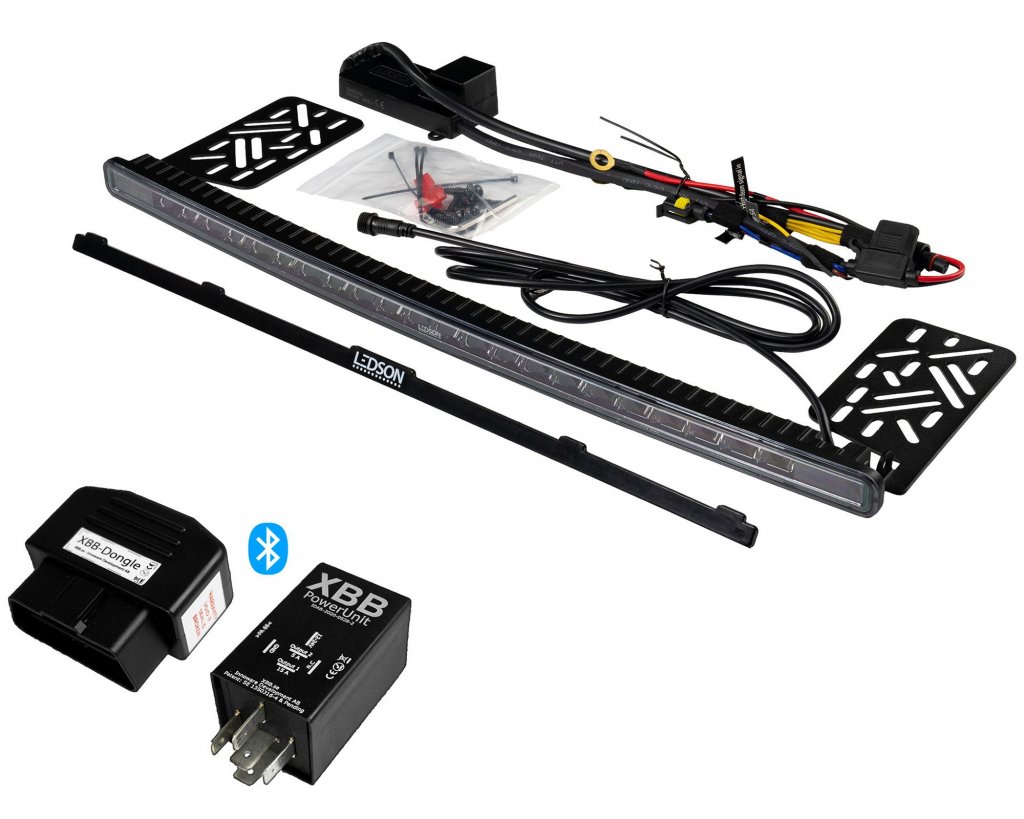

The delivery includes the LEDSON Blade 20.5" LED bar, XBB-kit (Dongle and PowerUnit), control unit with adapted cabling (170 cm), license plate brackets, locking strip, hex screws with washers, self-drilling screws, and installation instructions. The package contains all necessary components for wireless high beam signal reading and direct battery connection on 12V vehicles.

The package provides discreet vehicle integration and reliable high beam enhancement optimized for demanding Nordic road conditions.


Documents:
attachment Assembly Instructions for Item 1360203 - Swedish
attachment Assembly Instructions for Item 1360203 - English

Manufacturer: Ledson

Ledson

Warranty: 36 Months

Origin: Country of origin: Sweden Sweden
