Reversing Camera & Brake Light Volkswagen Transporter T5 from 2010-2015

  • Reversing Camera & Brake Light Volkswagen Transporter T5 from 2010-2015
  • Reversing Camera & Brake Light Volkswagen Transporter T5 from 2010-2015
  • Reversing Camera & Brake Light Volkswagen Transporter T5 from 2010-2015
  • Reversing Camera & Brake Light Volkswagen Transporter T5 from 2010-2015
  • Reversing Camera & Brake Light Volkswagen Transporter T5 from 2010-2015
Item ID:  75002-2350
€257
Incl. VAT

Which kit do you want?

€257
Not available
€475
Not available
Available
Made to order | ~4–6 weeks delivery time
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Made to order | ~4–6 weeks delivery time
Product Description:

This complete reversing camera system is custom-fit for Volkswagen Transporter T5 from 2010-2015 and eliminates blind spots behind the commercial vehicle. The system combines an integrated camera module with a digital TFT-LCD color monitor, providing the driver with a full overview and a wide image reproduction with a 122-degree wide-angle for reversing and precision maneuvering.

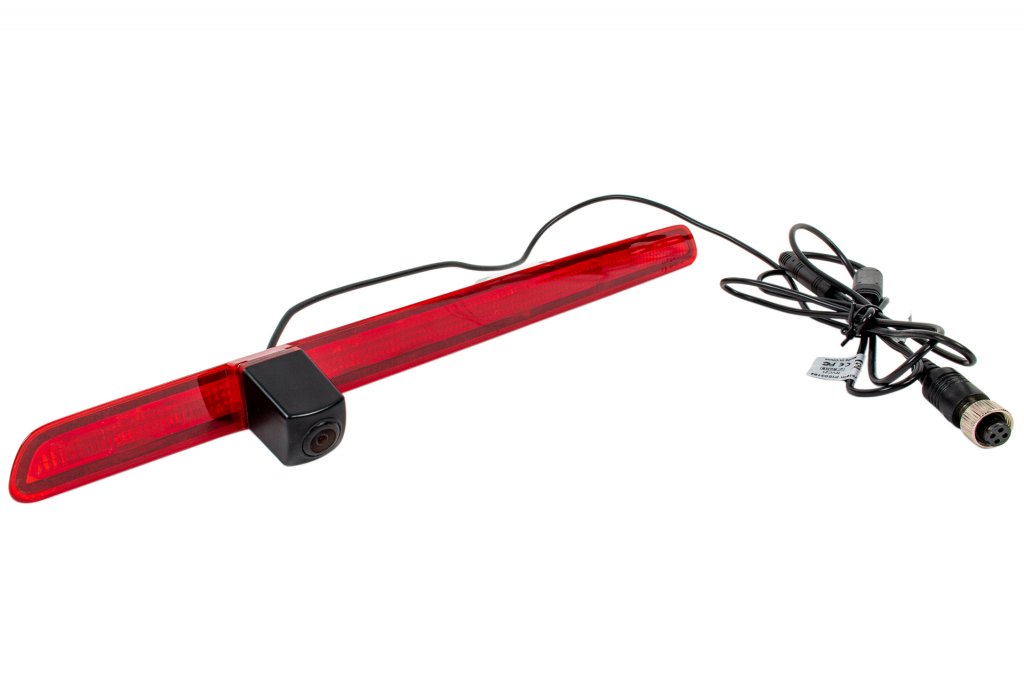

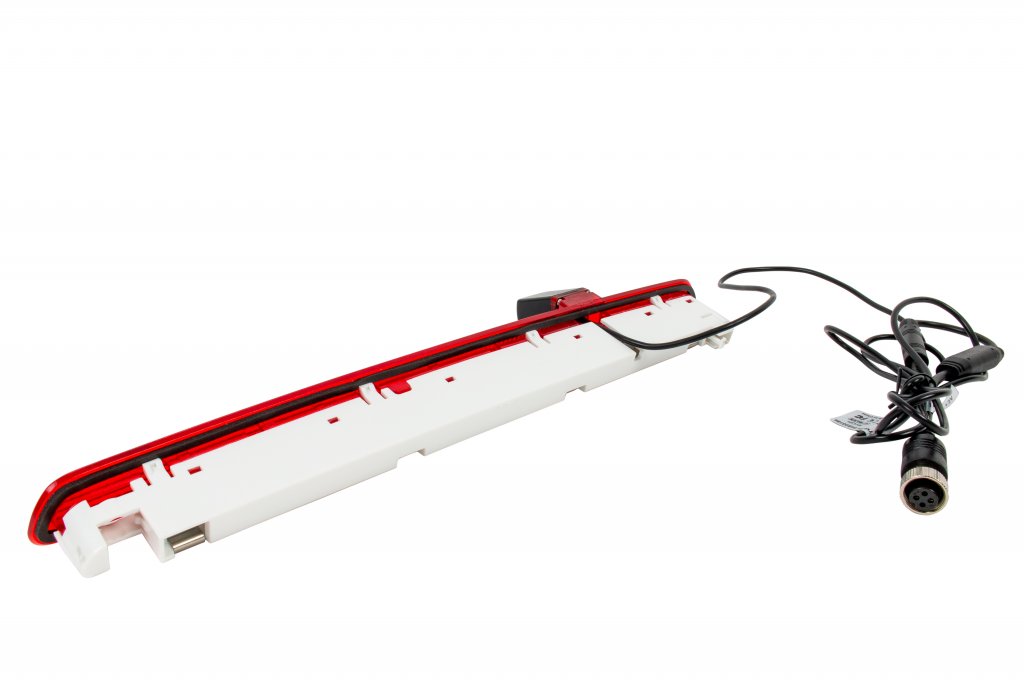

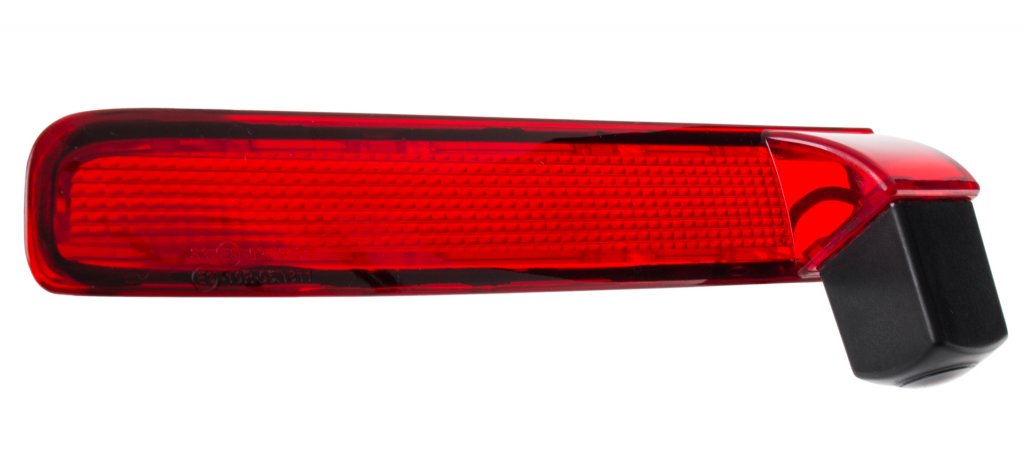

Installation is done by replacing the vehicle's existing third brake light with a unit featuring an integrated brake light and camera. The design preserves your Volkswagen Transporter T5's original lines without the need for drilling holes in the bodywork.

  • When purchasing only the reversing camera, a 10-meter cable with a 4-pin connector and an adapter for RCA connection are included.
  • For vehicles with sensitive electrical systems, a power resistor or relay control may be required.

Reversing Camera System for Volkswagen Transporter T5 – Clear Overview

The camera part is based on a 1/3" CMOS image sensor with f/2.8 aperture and IR technology for reliable visibility in the dark. The unit is designed for Nordic climates with an ingress protection rating of IP69K against moisture and high-pressure washing, as well as vibration resistance of 10 G. The included color screen handles temperatures between -20 and +60 degrees and has built-in trigger control for direct activation when reverse gear is engaged.

Technical specifications for reversing camera system for Volkswagen Transporter T5

  • Fitment: Volkswagen Transporter T5 from 2010-2015
  • Camera type: Combined brake light and reversing camera module
  • Image sensor: 1/3" CMOS
  • Aperture: f/2.8
  • Wide angle: 122 degrees
  • Night vision: IR technology
  • Ingress Protection (camera): IP69K
  • Vibration resistance: 10 G
  • Voltage range (camera): 12 V (12–24 V when connected to monitor)
  • Screen type: Digital TFT-LCD color monitor
  • Screen dimensions (incl. bracket): Width 249 mm x Height 108 mm x Depth 39 mm
  • Voltage range (screen): 10–32 V
  • Camera connections: 2 pcs
  • Cable connection: 4-pin (4-pin)
  • Temperature range (screen): -20 to +60 °C
  • Control: Trigger control and remote control

What's included in the delivery?

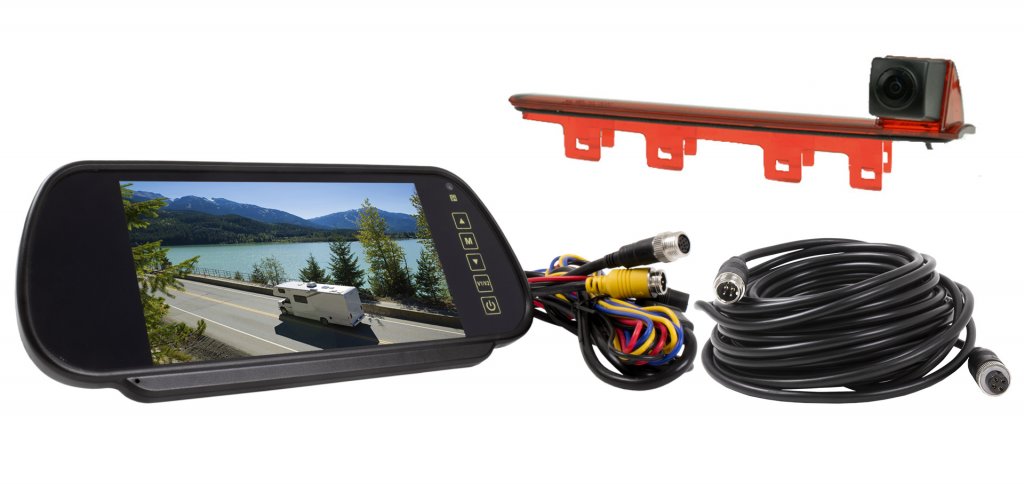

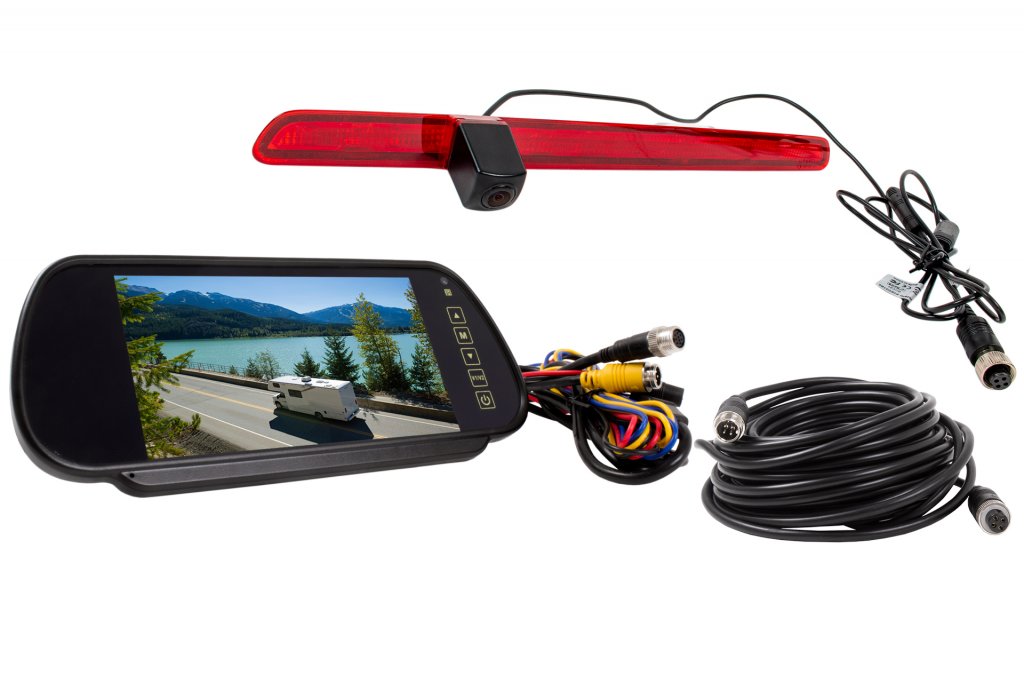

The complete package includes a model-specific brake light module with integrated reversing camera, digital TFT-LCD color monitor with mounting bracket, extension cable, and remote control

A reliable camera system for your Volkswagen Transporter T5


Fits the following car models:

Volkswagen Transporter T5 Facelift from 2010-2015

Model year from 2010-2015

Volkswagen Transporter T5 Facelift from 2003-2009 Volkswagen Transporter T5 Facelift from 2010-2015 Volkswagen Transporter T5 Facelift from 2016-2019

Generation / Body code:

  • T5 Facelift

Engine:

  • CNG
  • Diesel
  • Petrol

Body type:

  • Caravelle
  • Multivan
  • Pickup
  • Van

Length:

  • Short (L1) - 4892 mm
  • Long (L2) - 5292 mm

Warranty: 1-year warranty

Installation time: approx. 240 min

Origin: Origin China China
