XBB Dongle & PowerUnit Peugeot Expert from 2016-2024 - Easy CAN-bus installation

Item ID: 1540-3600

€232

Incl. VAT

Which variant do you want?

XBB Dongle only + 1 Power Unit (relay)

1540-3600

€232

Available

XBB Kit (Cabling with 1 x DT output for e.g. LED ramp)

1540-3601

€290

Available

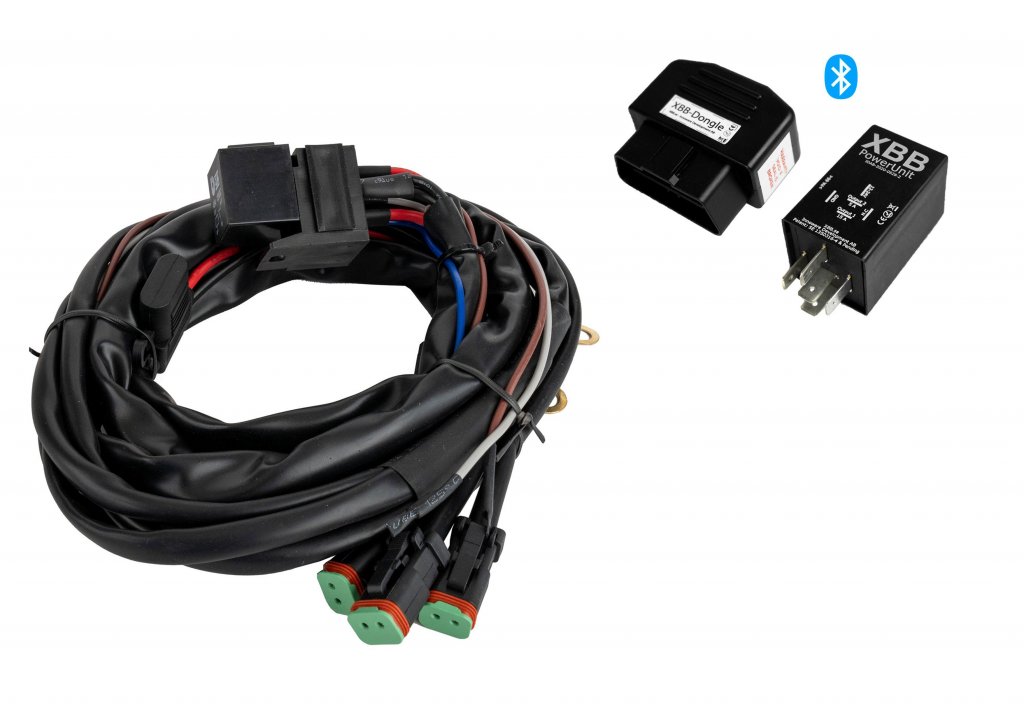

XBB Kit (Cabling with 3 x DT outputs for e.g. 3 extra lights)

1540-3604

€319

Available

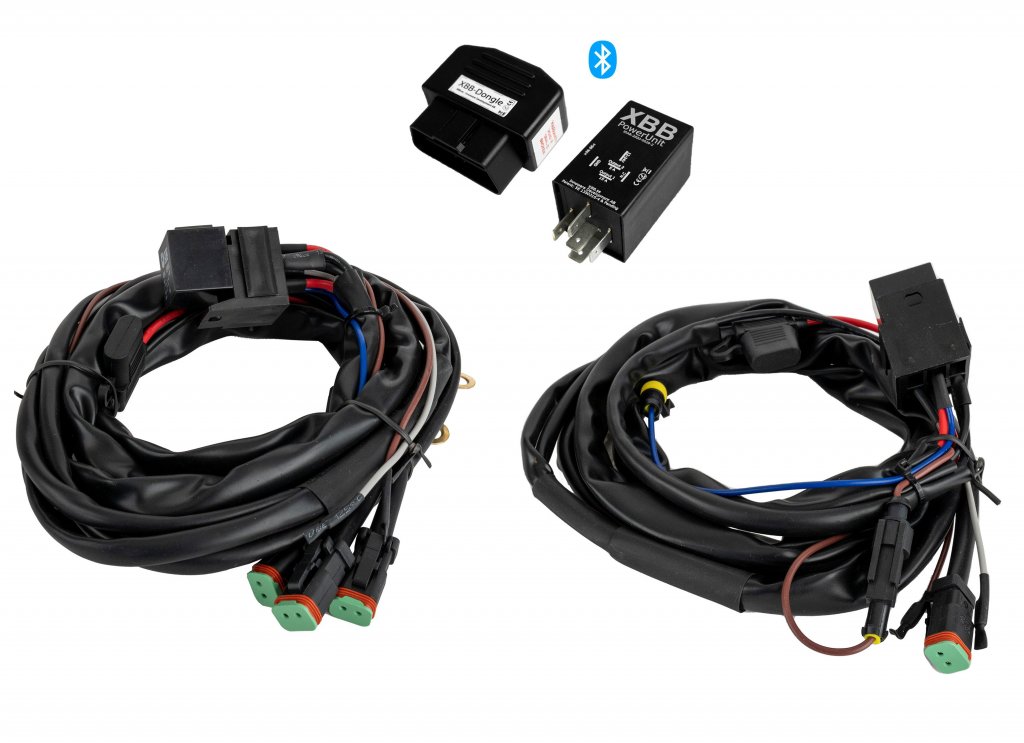

XBB Kit (Cabling with 4 x DT outputs for e.g. 4 extra lights)

1540-3603

€377

Available

In stock at external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 1-4 business days

Product Description:

Here you will find an incredibly smooth XBB Dongle and PowerUnit auxiliary light connection from Swedish XBB for Peugeot Expert from 2016-2024. It is an innovative solution for super easy installation where communication between the relay and the high beam signal occurs completely wirelessly via Bluetooth.

XBB Dongle and PowerUnit auxiliary light connection Peugeot Expert

With the XBB Dongle and PowerUnit auxiliary light connection Peugeot Expert, installation time is down to about 15 minutes. You avoid time-consuming searching for Canbus cables and do not need to run any cables through the firewall into the engine compartment. The transmitter unit (Dongle) is mounted in the car's OBDII socket and communicates wirelessly with the receiver relay (PowerUnit).

Installation of XBB Dongle and PowerUnit Peugeot Expert

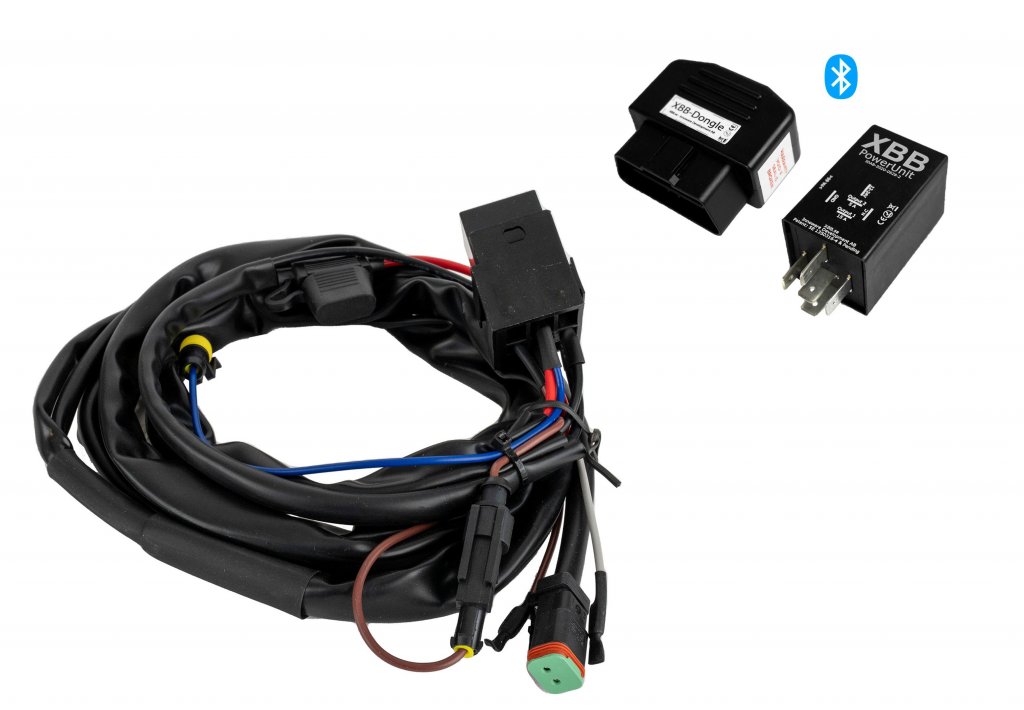

The kit is complete (except for the auxiliary lights/LED bar itself) and consists of:

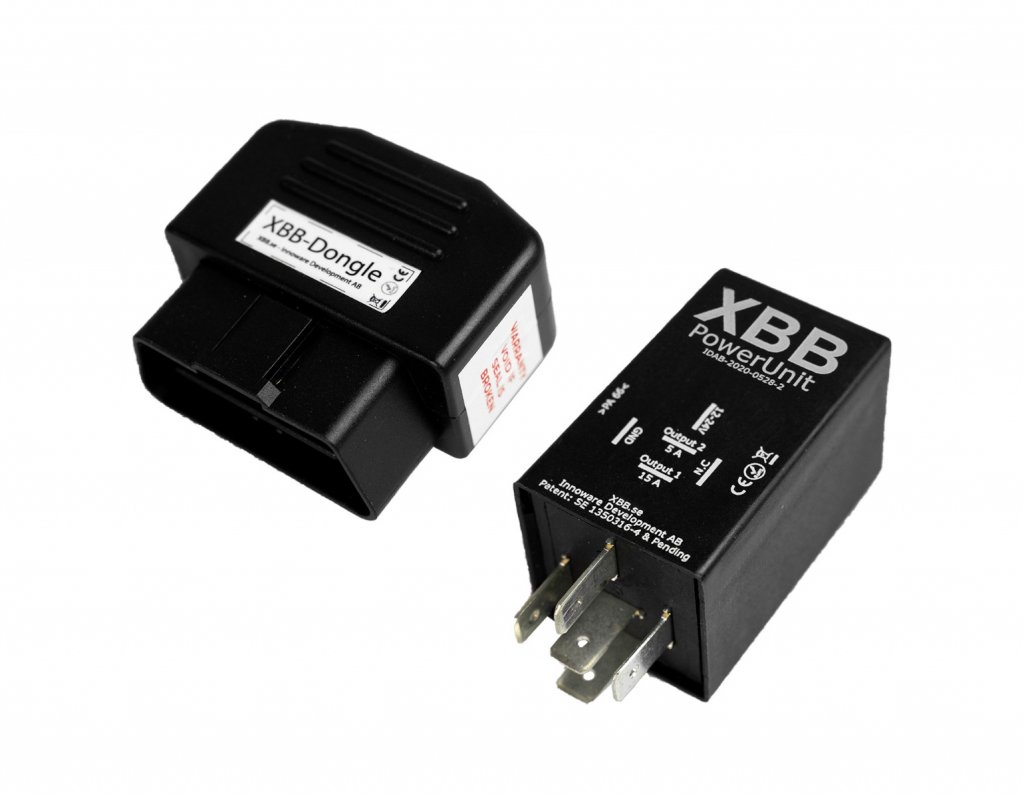

OBD-II transmitter (XBB Dongle)
Receiver relay (XBB PowerUnit)
Cabling for 1, 3 or 4 DT outputs depending on choice.

How to install (complete quick guide here):

Before installation: Download the free app XBB Configurator for Android or Xbb Configurator for iPhone and ensure that your vehicle is compatible.

Mount the transmitter unit (XBB Dongle) in the vehicle's diagnostic socket (OBDII), usually under the steering wheel.
Mount relay wiring at the battery or fuse box. The XBB PowerUnit is inserted into the relay holder.
Pull and connect the DT connector to the LED bar/auxiliary lights.
Start the XBB Configurator app, which guides you to pair the devices.
Done!

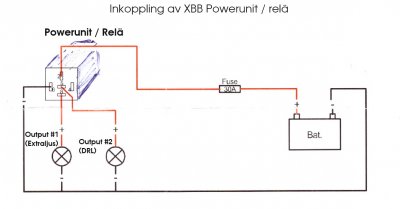

Outputs on Receiver Relay (PowerUnit):

Output no. 1 (max 15A, 180W at 12V) for auxiliary lights / LED bar
Output no. 2 (max 5A, 60W at 12V) for position lights / reverse lights (optional)

You avoid splicing into the car's electrical system as the signal goes via Bluetooth. XBB Dongle and PowerUnit auxiliary light connection Peugeot Expert makes installation safe and easy.

Technical specification:

Operating voltage: 9-36V
Outputs: 1x15A, 1x5A
Loads:
- For 1 output: Max 13A/156W (at 12V)
- For 3 outputs: Max 39A/468W (at 12V)
- For 4 outputs: Max 52A/624W (at 12V)
