Boxer high beam signal (Peugeot) 2007-

Item ID: 8113-100

Sorry - this product is currently not avaiable for purchase.

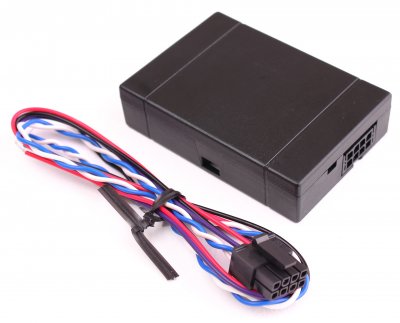

Interface for connecting auxiliary lights to Peugeot Boxer from 2007- with CANBUS system. Provides +12 V when the high beam is switched on.

Wiring:

Function control

Next to the connector there is a hidden LED that indicates the status of the connection:

LED flashes red: Contact with CAN BUS and checks vehicle status.
LED lights up green: Contact with CAN BUS and the vehicle is identified.
LED is red: Contact with CAN BUS but vehicle is not identified. Check the connection points against the instructions above.
LED not lit: No contact with CAN BUS, probable cause "pole reversal" CAN HI to LO and vice versa, or poor power supply.

NOTE! The power supply to the interface must be disconnected when changing the connection point.

Peugeot Boxer from 2007-2013
