Extra light package Lazer LED ramp kit for Iveco Daily from 2019-2022

Extra light package Lazer Iveco Daily

Item ID: 3603-830

€945

Incl. VAT

Which LED light bar do you want?

Lazer Triple-R 750 Gen. 2 - 9240 lumens

3603-830

€945

Available in external warehouse | Ships within 1-4 business days

Lazer Triple-R 750 Elite Gen. 2 - 10136 lumens

3603-830E

€1 140

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

.

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

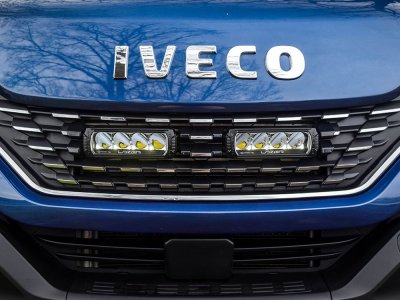

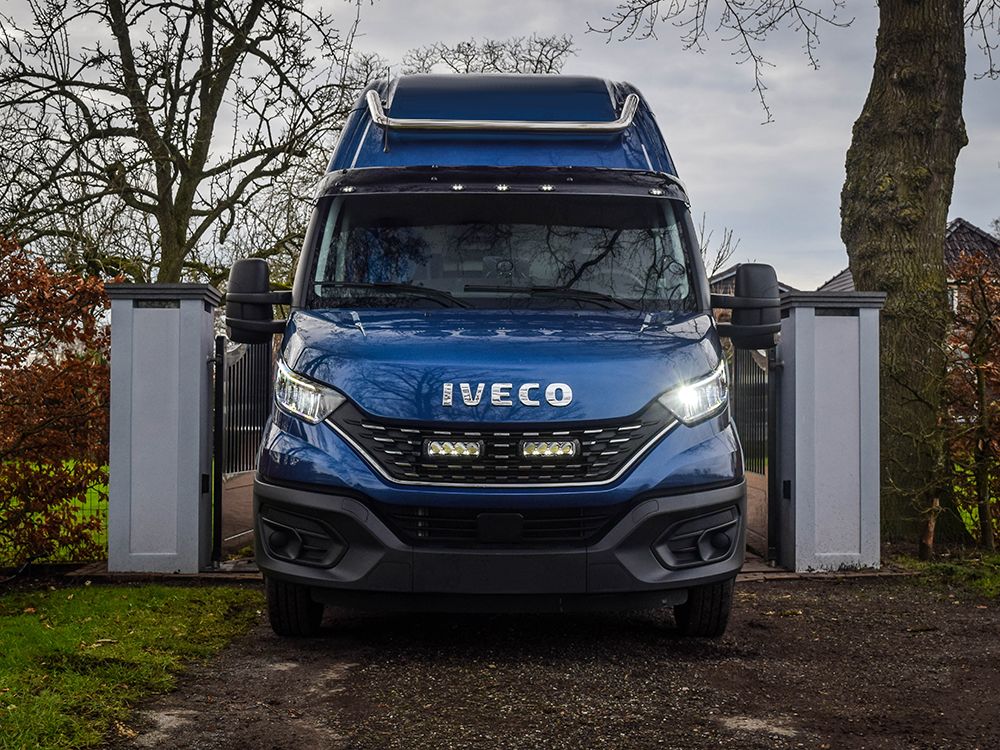

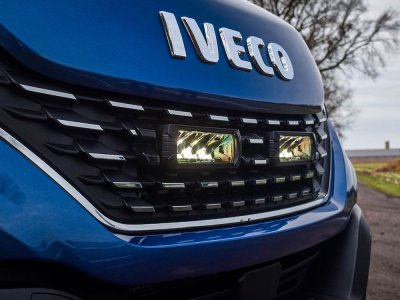

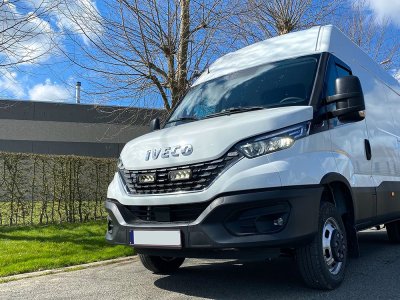

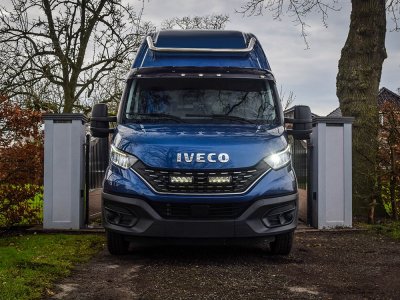

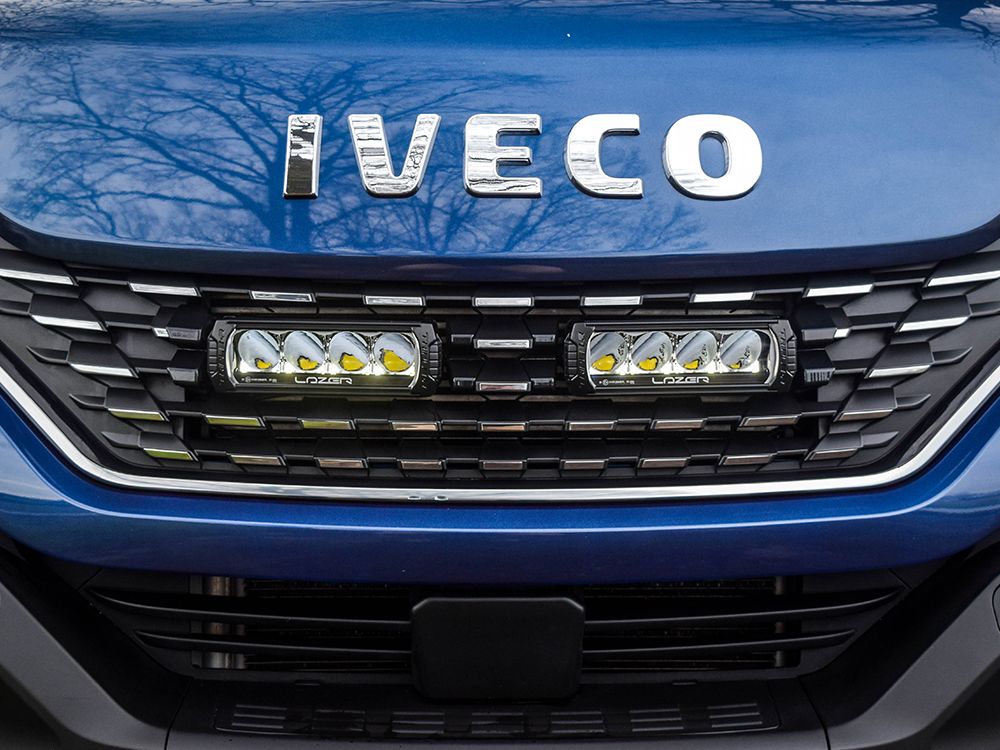

Complete auxiliary light kit containing everything you need for installation in the upper grill of Iveco Daily from 2019-2022.

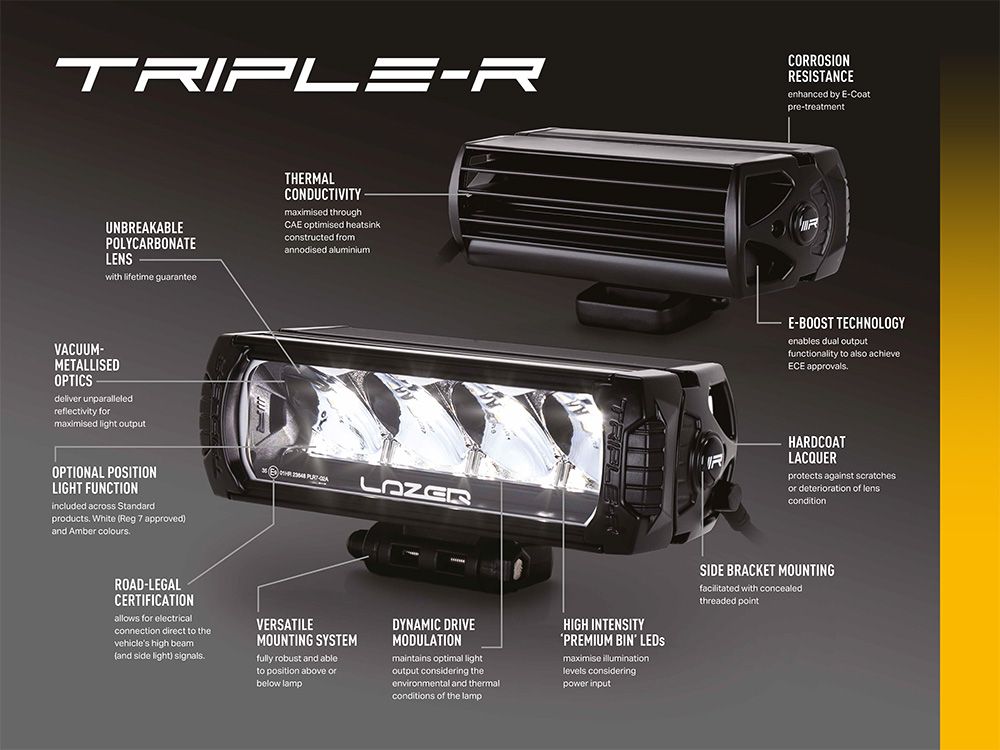

Complete extra light package Lazer Iveco Daily containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

Extra light package Lazer Iveco Daily

Triple-R 750	Gen2	Elite Gen2
Voltage range	10-32V	10-32V
Luminous flux	9240 lm	10136 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 4 pcs	2 x 4 pcs
Position light	Yes, White/Orange	No, no, no
Power output	88 W	104 W
Load (at 14.4V)	6,2 A	7,2 A
Certification
Reference number	2 x 35	N/A (2 x 12.5 E-marked mode)
High beam	ECE R112	ECE R112
Position light (White)	ECE R7	N/A

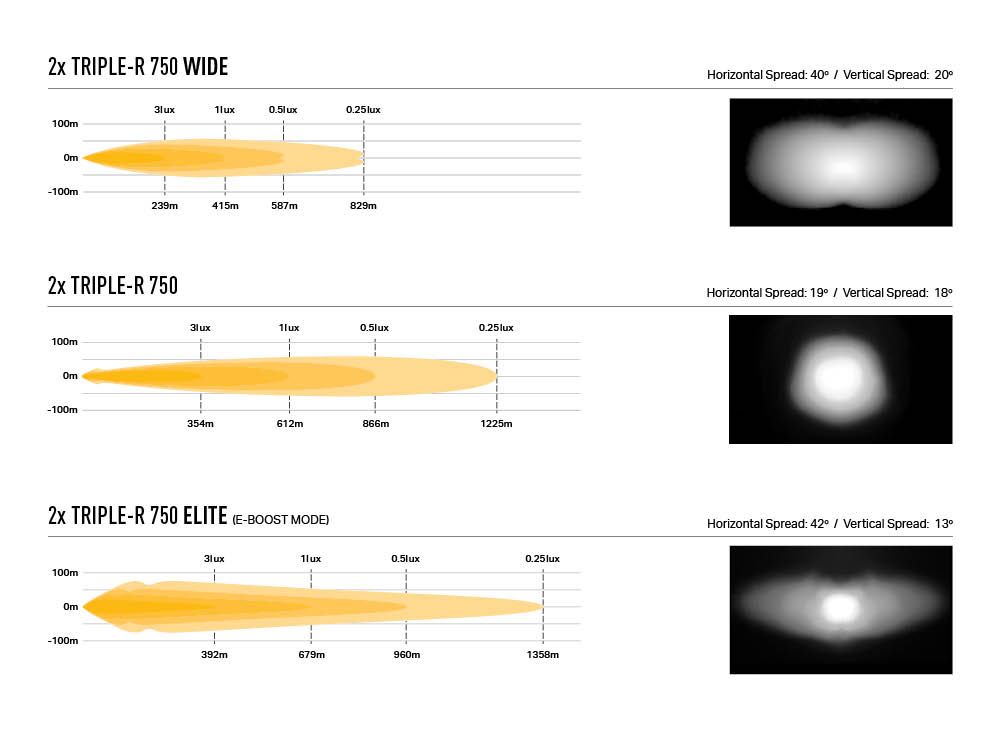

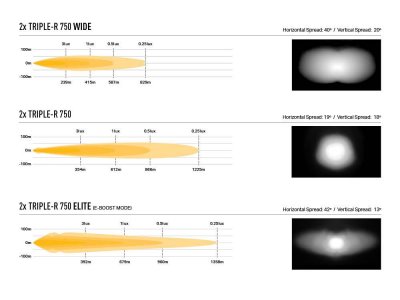

Luminous flux
Horizontal light angle	19 degrees	42 degrees
Range (1 lux)	612 meters	679 meters
Range (0.25 lux)	1225 meters	1358 meters

Installation

Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

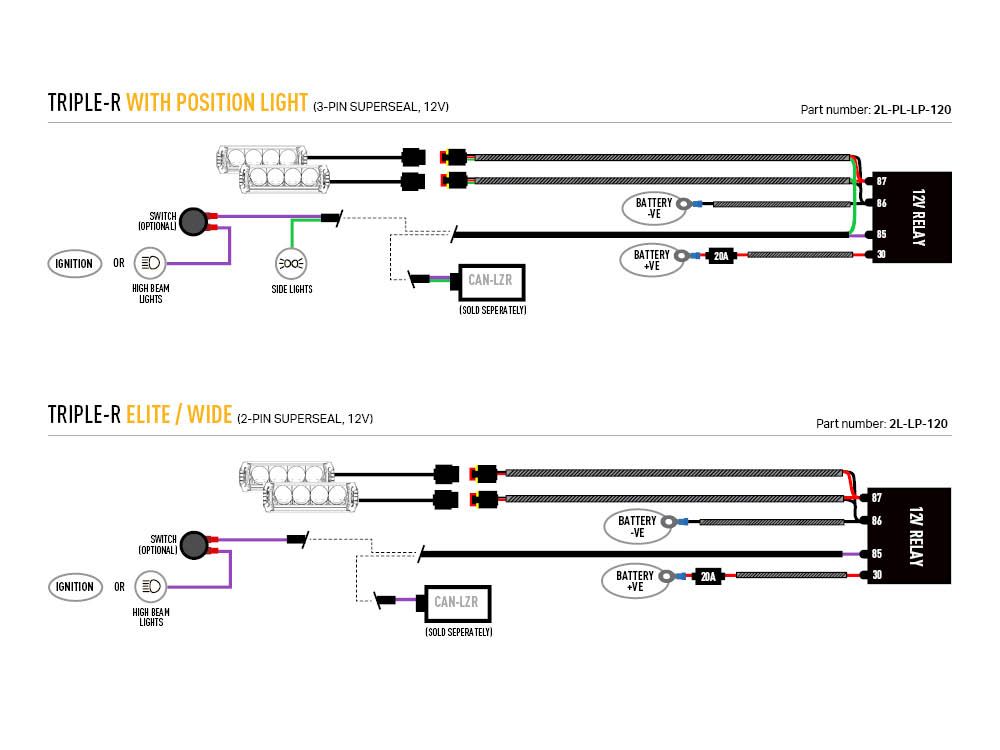

Wiring

Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.

What is included in the extra light kit Lazer Iveco Daily

2 pcs Lazer Triple-R 750 Gen2

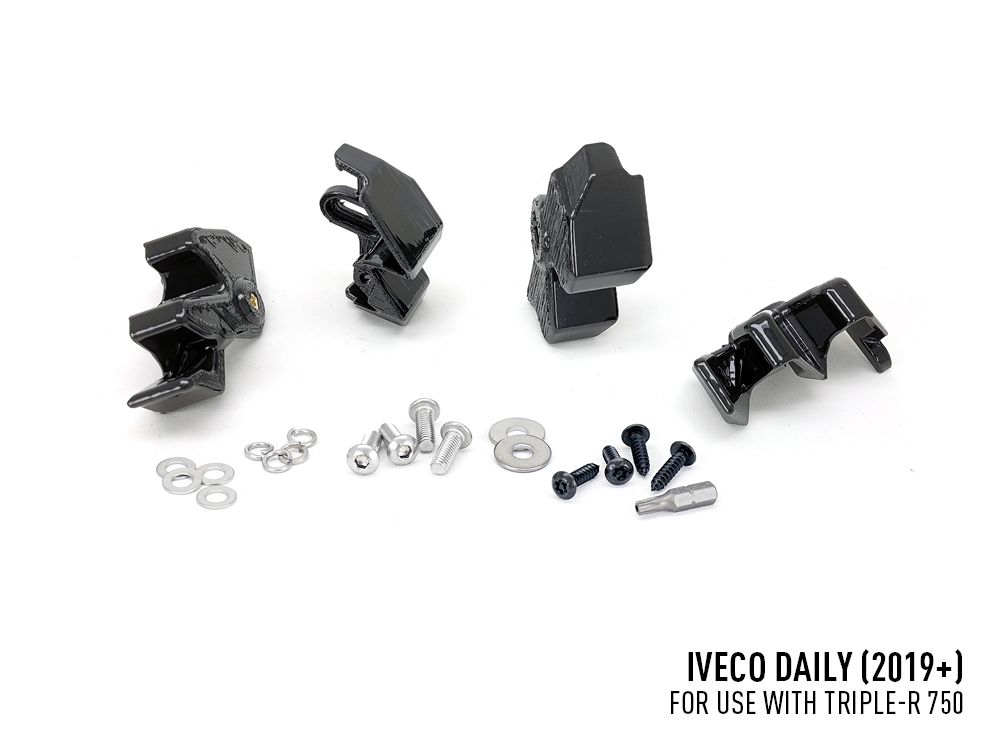

Mounting details
Relay kit
Mounting instructions

Lazer Iveco Daily extra light kit is delivered as a complete kit

Documents:
attachment

attachment

Mounting description for led light bar 3603-830
