Auxiliary Light Bracket for 4 Lights Isuzu D-Max from 2026-

Item ID: 37007-4340

€1 067

Incl. VAT

Which variant would you like?

Matte Silver

37007-4340

€1 067

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

37007-4340-O

€1 067

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

37007-4340-S

€1 067

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

37007-4340-S80

€1 067

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

37007-4340-V

€1 067

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

This model-specific auxiliary light bracket for the Isuzu D-Max from 2026- onwards provides a solid platform when mounting driving lights at the front. The light bar features four fixed, welded mounting tabs accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tubing and features a durable powder-coated finish designed to withstand stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Isuzu D-Max, the bar mounts securely to the vehicle's structural frame for optimal strength.

Auxiliary Light Bracket - Model-Specific and Stable Mounting

The auxiliary light bar is fitted using custom brackets where mounting brackets attach directly to the vehicle's crash beam to ensure maximum rigidity and load capacity. The bar is also designed for vehicles equipped with camera systems, allowing the grille camera to be relocated effortlessly onto the light bar. Detailed step-by-step installation instructions for your Isuzu D-Max are provided in the mounting manual attached as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the auxiliary lights must be secured at the top using the included model-specific support stays.

Mounting and procedure: Mounts directly to the vehicle's crash beam using model-specific brackets. Please note that the front bumper must be removed during installation.

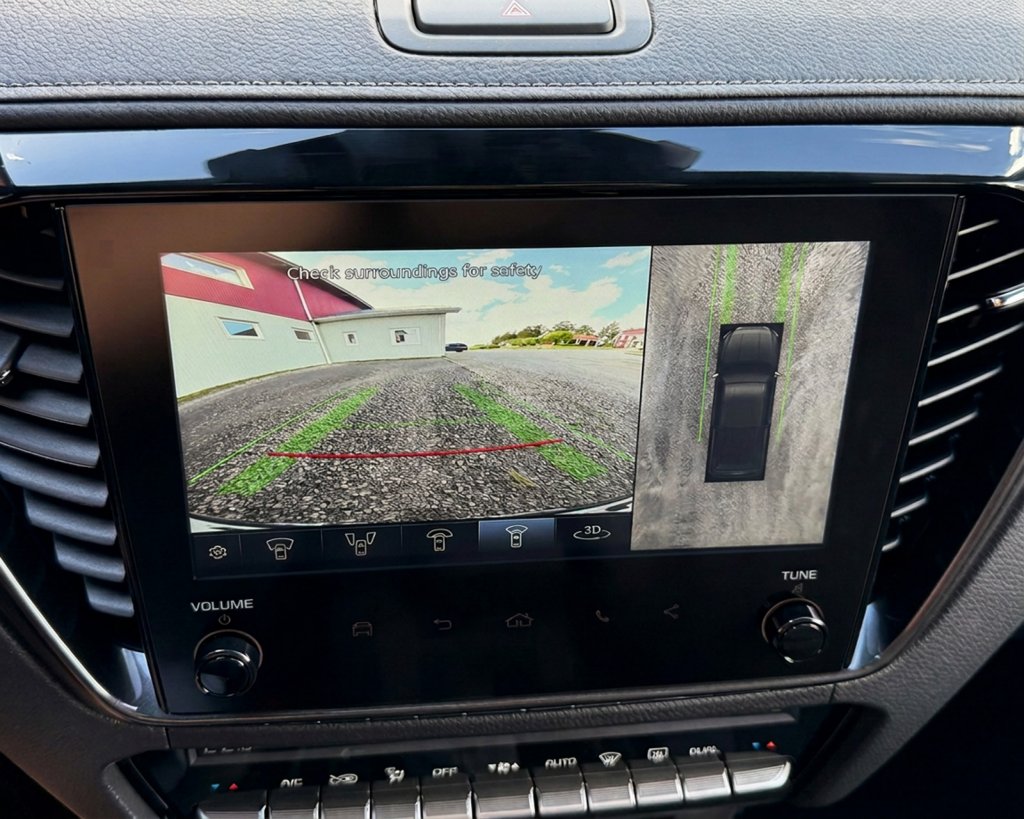

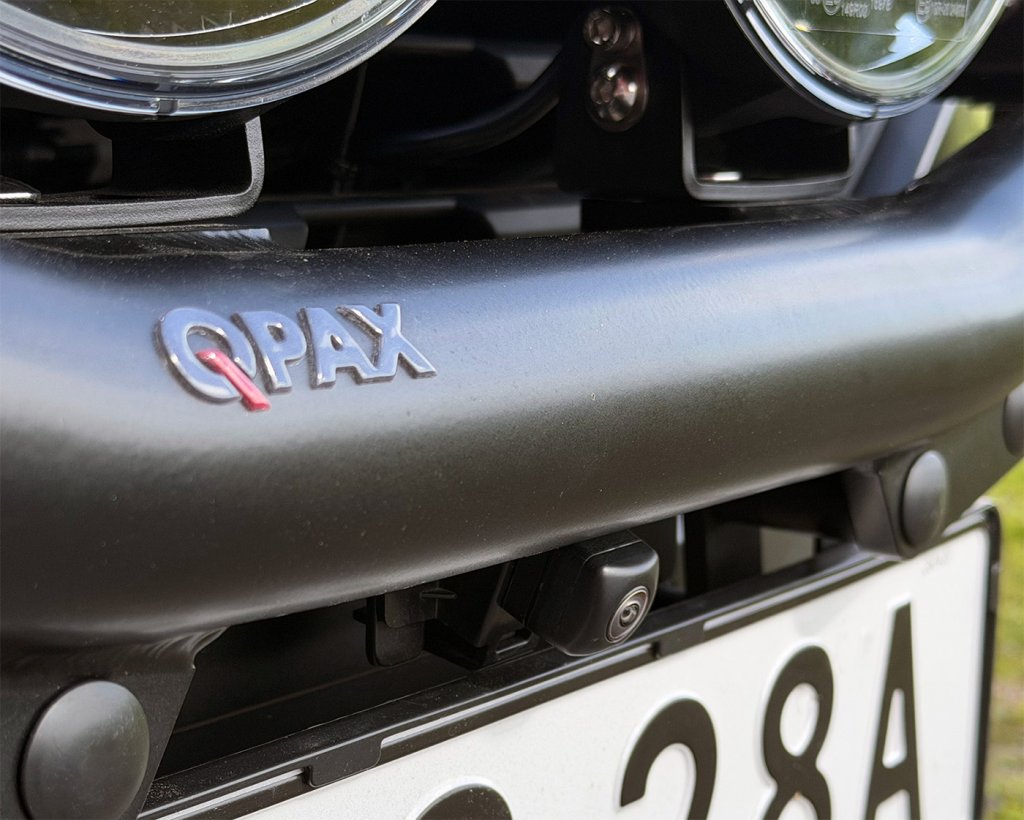

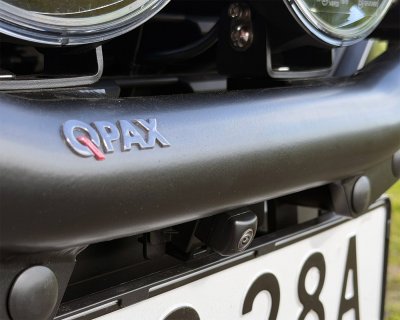

Full 360° camera compatibility: Compatible with the vehicle's factory-fitted 360° camera system. The grille camera is relocated forward and mounted directly to the bar to maintain its field of view.
Parking sensor handling: Any front parking sensors obstructed by mounted lights must be disabled using the included sensor covers.
Stabilisation and max weight requirements: Recommended maximum weight is 2.5 kg per auxiliary light. The included model-specific support stays must always be used.

Choose Your Variant for Isuzu D-Max

Five available colours (powder coated)

The light bracket can be ordered in five different colours to match the paintwork or trim of your Isuzu D-Max:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Understated matte black finish.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Product variant: E63-1
Material: Aluminium
Tube diameter: 60 mm
Total width: 1019 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max light weight: 2.5 kg each
Mounting: Bracket mounted to crash beam – front bumper removed during installation (prepared for front grille camera relocation, see PDF manual)

What's Included in the Box?

Supplied as a complete kit tailored for the Isuzu D-Max, containing:

Auxiliary light bar in 60 mm powder-coated aluminium (prepared for 360° camera)
Model-specific mounting kit with crash beam brackets
Model-specific top support stays for auxiliary lights
Sensor blocking covers for parking sensors
Mounting instructions (included in box and available as downloadable PDF)

A durable, custom-fit solution for the Isuzu D-Max from 2026- providing rock-solid mounting and an optimal light pattern for four auxiliary driving lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Isuzu D-Max 2026-
