Light Bar for 4 Auxiliary Lights Maxus T90 EV from 2022-

Item ID: 45004-4340

€822

Incl. VAT

Which variant would you like?

Matte Silver

45004-4340

€822

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

45004-4340-O

€822

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

45004-4340-S

€822

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

45004-4340-S80

€822

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

45004-4340-V

€822

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

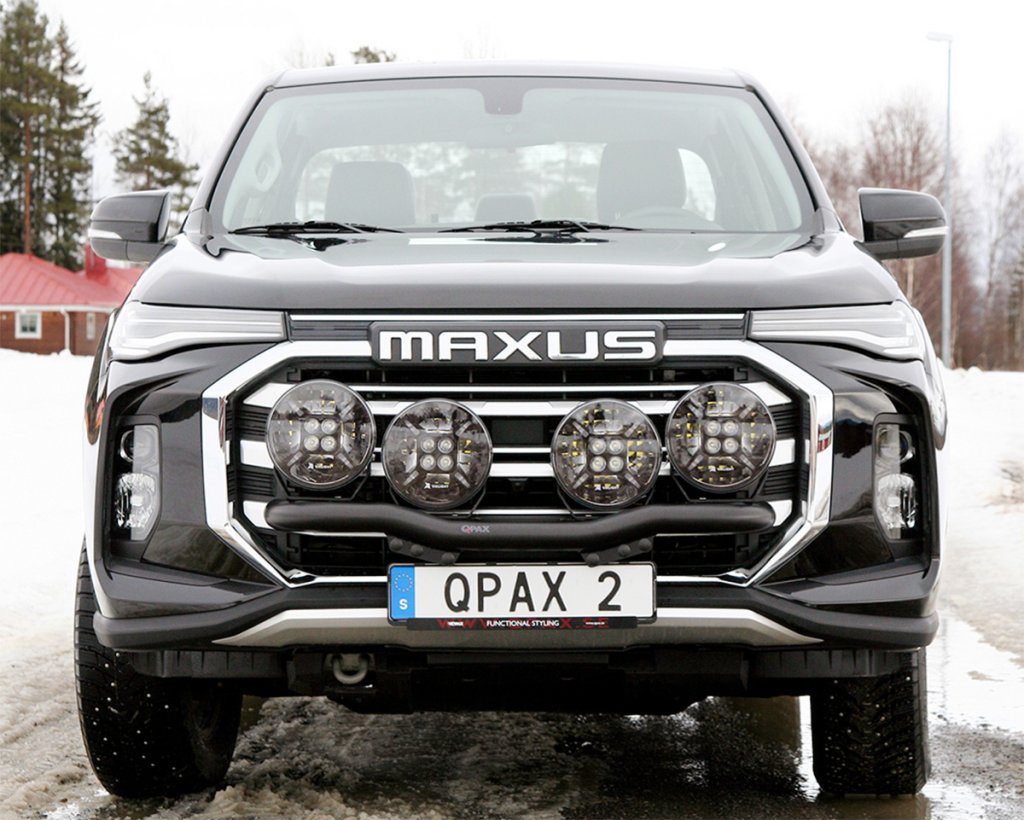

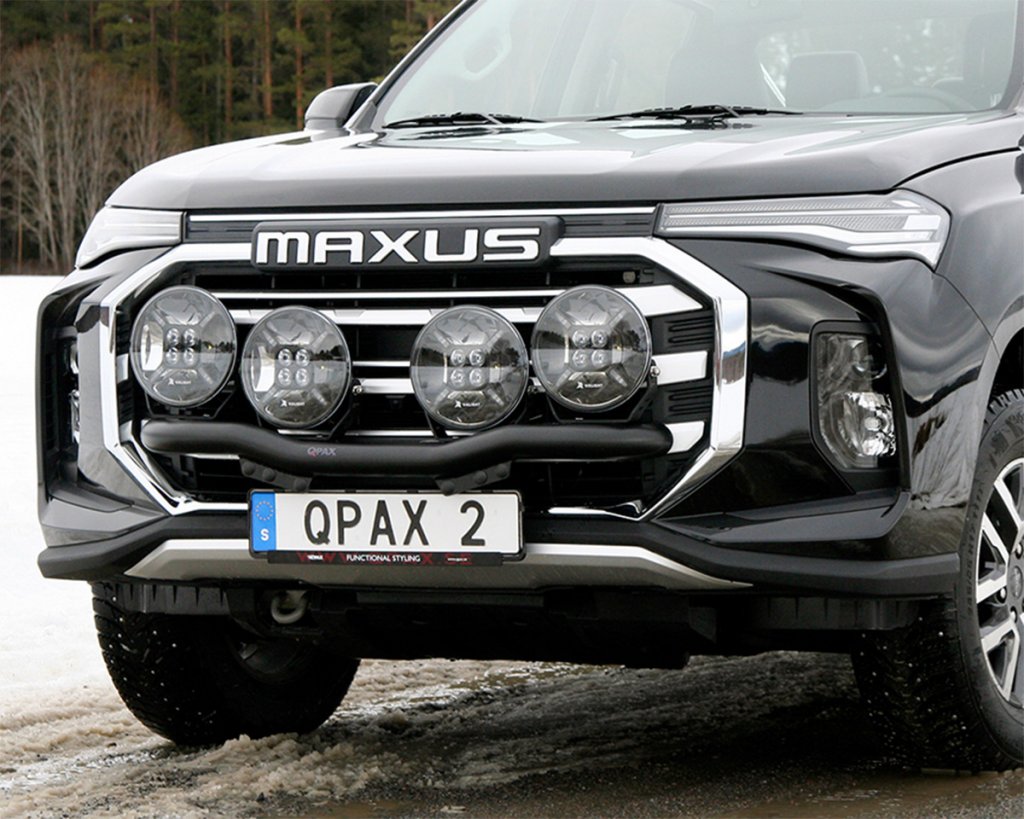

This vehicle-specific light bar for the Maxus T90 EV from 2022- provides a stable platform when you want to mount auxiliary driving lights to the front of your vehicle. The bar is equipped with four fixed, welded mounting tabs accommodating a total of four driving lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tube and features a durable powder-coated finish designed to withstand stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Maxus T90 EV, the bar mounts securely to the vehicle's structural frame for optimal strength.

Auxiliary Light Bar - Gentle Q-GRIP Mounting Around the Crash Beam

The light bar installs using QPAX's proven Q-GRIP system, clamping securely around the vehicle's crash beam to provide vibration-free mounting without unnecessary modification or damage to the front fascia. Detailed step-by-step instructions for installation on your Maxus T90 EV are included in the assembly guide available as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the driving lights must be braced at the top using the included stay bars.

Mounting and attachment: Clamps firmly around the vehicle's crash beam with the QPAX Q-GRIP system.
Radar and 360° camera: The auxiliary lights can be adjusted sideways to maintain a clear line of sight for any grille-mounted radar and to minimize obstruction of the front 360° camera. If the lights need to be spaced further apart, extension brackets are available as an accessory (part no. 98605).
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilizing stays must always be used.

Choose Your Variant for Maxus T90 EV

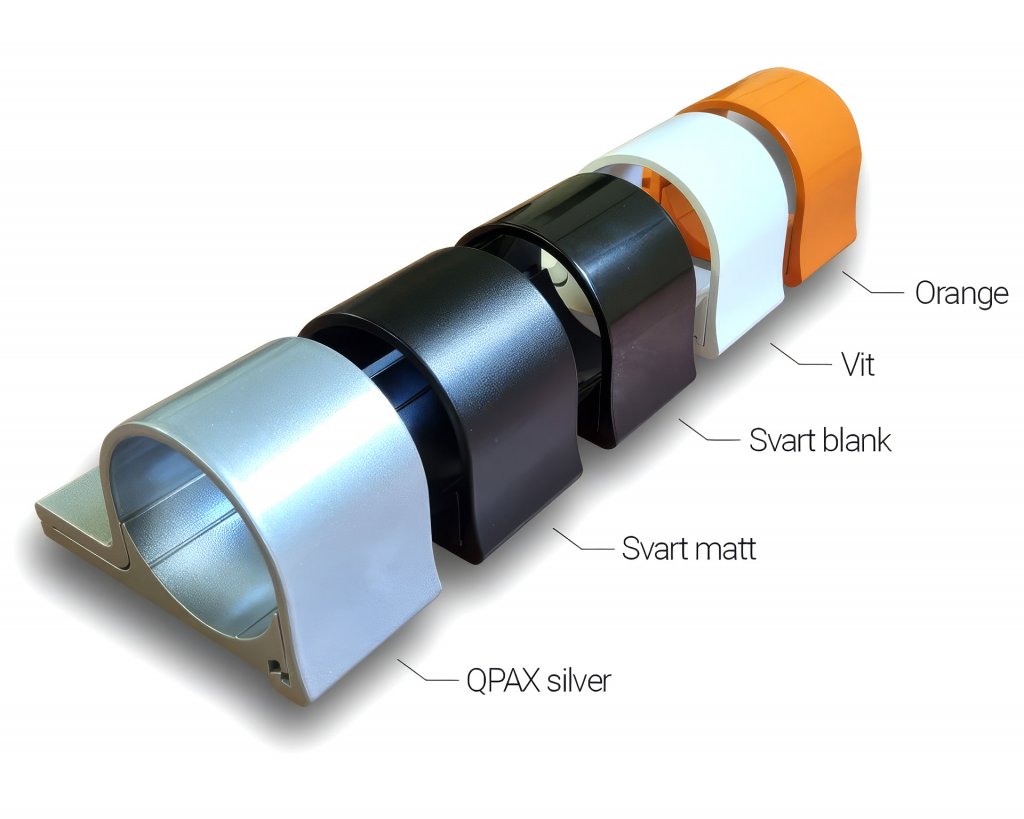

Five available colours (powder coating)

The auxiliary light bar can be ordered in five different colours to match the paintwork or accents of your Maxus T90 EV:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Discreet matte black finish.
Black (gloss 80): Gloss black finish with an 80 gloss level.
White (RAL9016): Powder-coated finish in white RAL 9016.
Orange (RAL2008): Powder-coated finish in orange RAL 2008.

Technical Specifications

Product variant: E63-1
Material: Aluminium
Tube diameter: 60 mm
Total width: 1019 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting tabs: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max light weight: 2 kg each
Mounting system: QPAX Q-GRIP clamp around crash beam (see PDF mounting instructions)

What's Included?

Supplied as a complete kit tailored for the Maxus T90 EV, including:

Auxiliary light bar in 60 mm powder-coated aluminium
Vehicle-specific mounting kit (Q-GRIP for crash beam)
Stabilizing stay bars for driving lights
Installation instructions (included in box and available as downloadable PDF)

A durable, custom-fit solution for the Maxus T90 EV from 2022- delivering a stable mount and optimal light pattern for four auxiliary driving lights.
