Auxiliary Light Kit Lazer Isuzu D-Max from 2026-

Item ID: 37006-831

€716

Incl. VAT

Which variant would you like?

Linear 6

37006-831

€716

In stock at external warehouse | Ships within 1-4 business days

Linear 6 Elite

37006-831E

€892

In stock at external warehouse | Ships within 1-4 business days

Linear 6 Elite+

37006-831EP

€1 032

In stock at external warehouse | Ships within 1-4 business days

Available

In stock at external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 1-4 business days

Product Description:

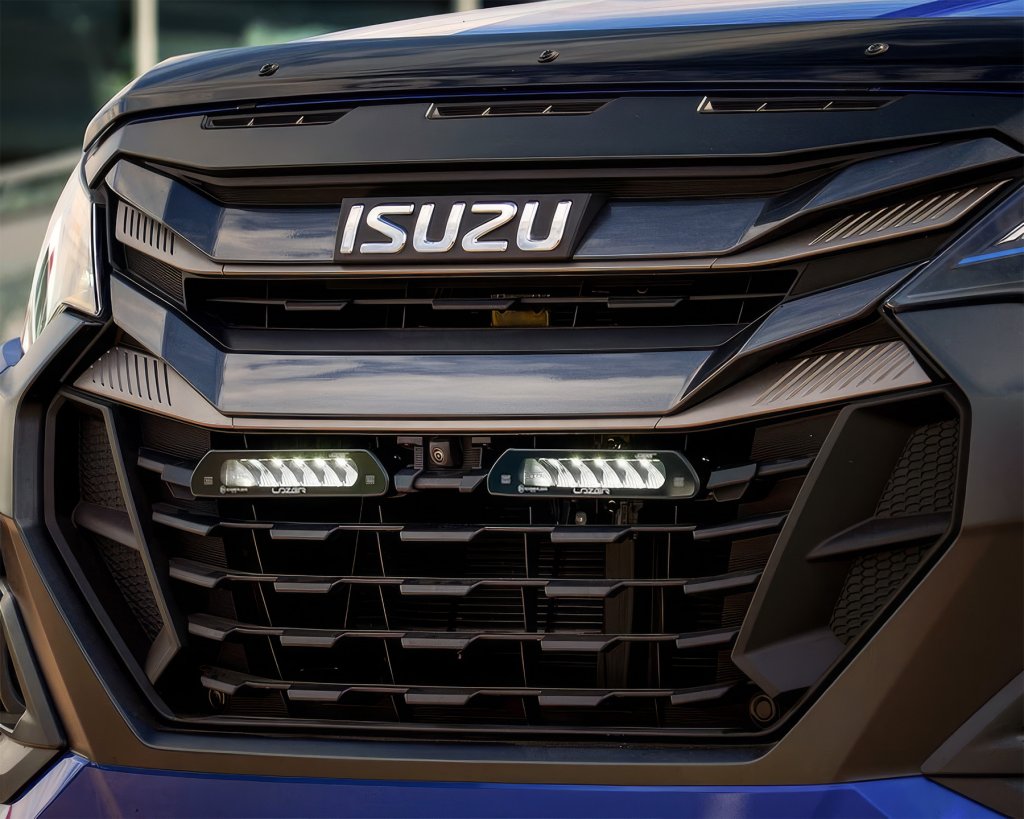

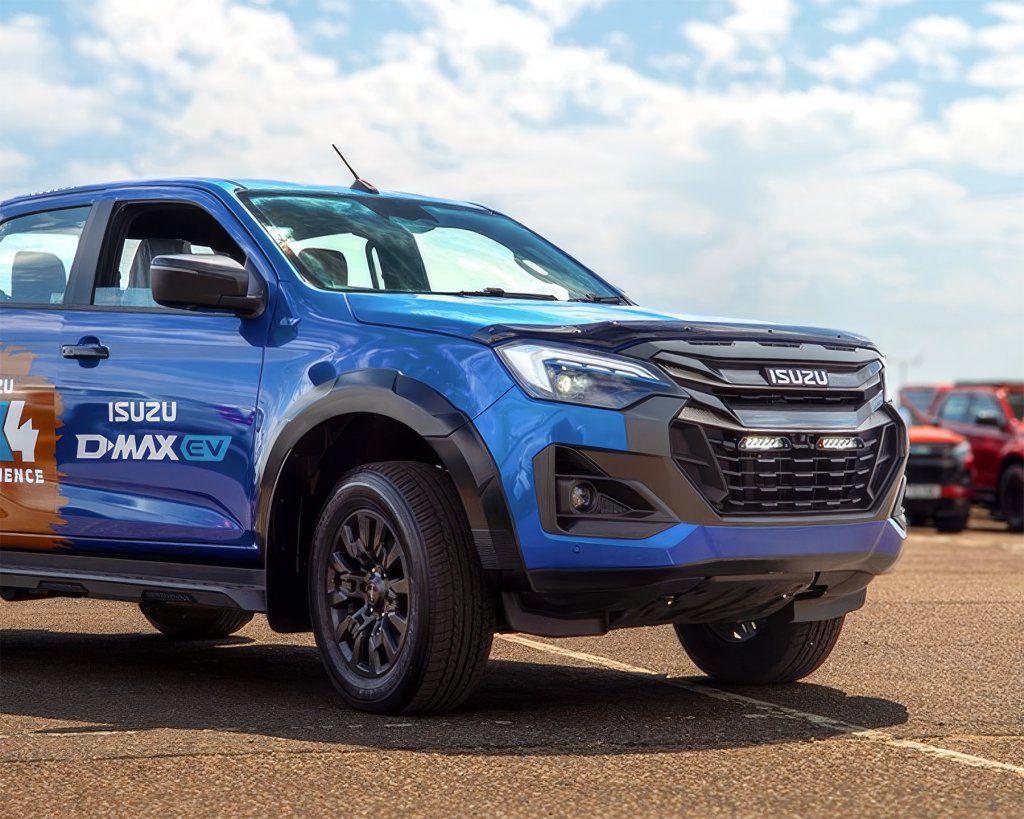

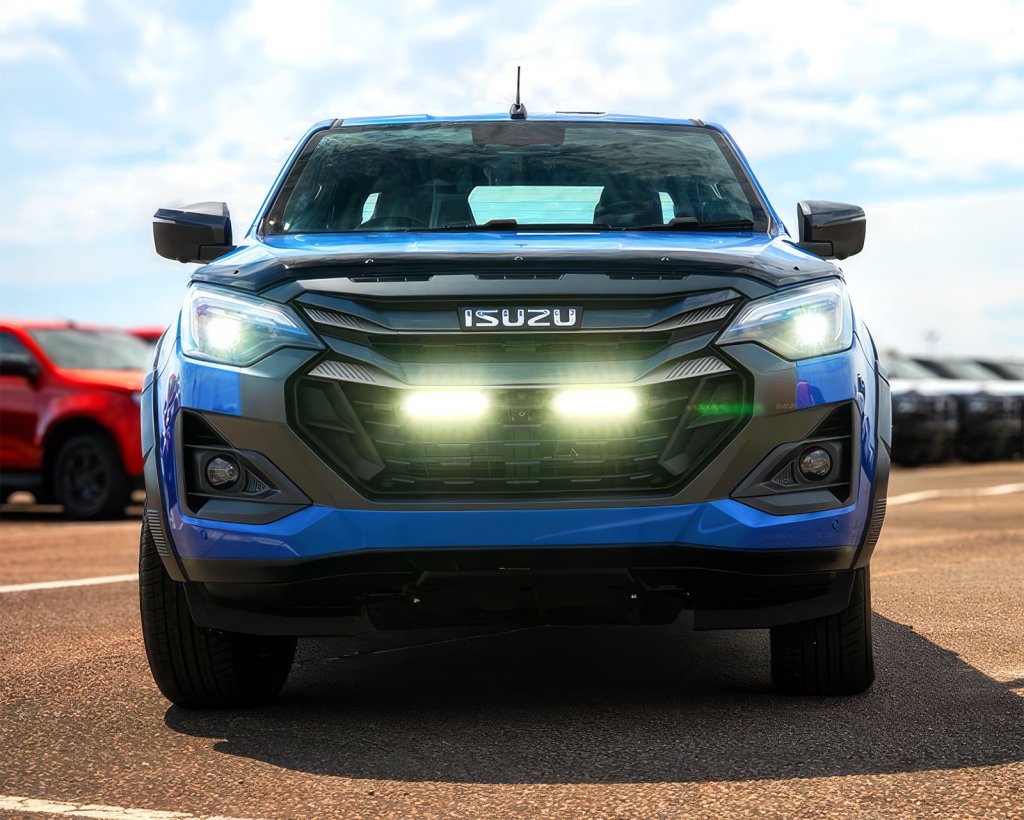

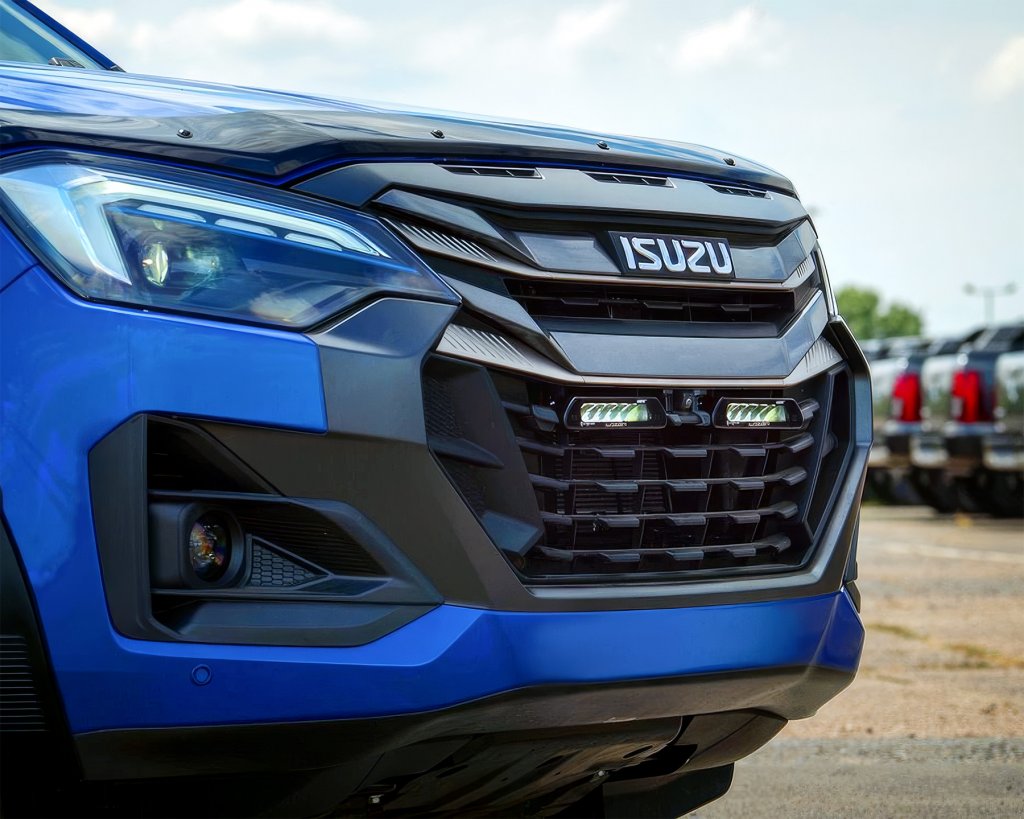

Complete auxiliary light kit for Isuzu D-Max from 2026- - designed to fit directly into the car's grille and provide a stylish, factory-installed look.

Auxiliary Light Kit Lazer Isuzu D-Max: The package includes 2 Lazer Linear 6 light bars (standard or Elite version depending on the chosen model) as well as all necessary mounting details such as 3D‑printed brackets, relay kit, wiring, and clear instructions. Installation takes approximately 60 minutes and requires some modification of the grille using the included cutting templates for a precise and quality-assured flush mounting.

Auxiliary Light Kit Lazer Isuzu D-Max

Linear 6	Standard	Elite	Elite+
Voltage	10-32V	10-32V	10-32V
Luminous Flux	4500 lm	8100 lm	10200 lm (Boost) / 5000 lm
Color Temperature	5000 K	5000 K	5000 K
Number of LEDs	2 x 6 pcs	2 x 12 pcs	2 x 18 pcs (12 white / 6 yellow)
Position Light	No	No	No
Power	42 W	84 W	96 W (Boost) / 48 W
Load (at 14.4V)	2.92 A	5.8 A	7.2 A (Boost) / 3.6 A
Certification
Reference Number	2 x 12.5	2 x 17.5	2 x 12.5 (Low Power)
High Beam	ECE R112	ECE R112	ECE R149 (Low Power)
Light Output
Horizontal Beam Angle	56 degrees	64 degrees	84 degrees
Range (1 lux)	349 meters	398 meters	424 meters (Boost) / 300 meters
Range (0.25 lux)	698 meters	796 meters	849 meters (Boost) / 600 meters

Mounting

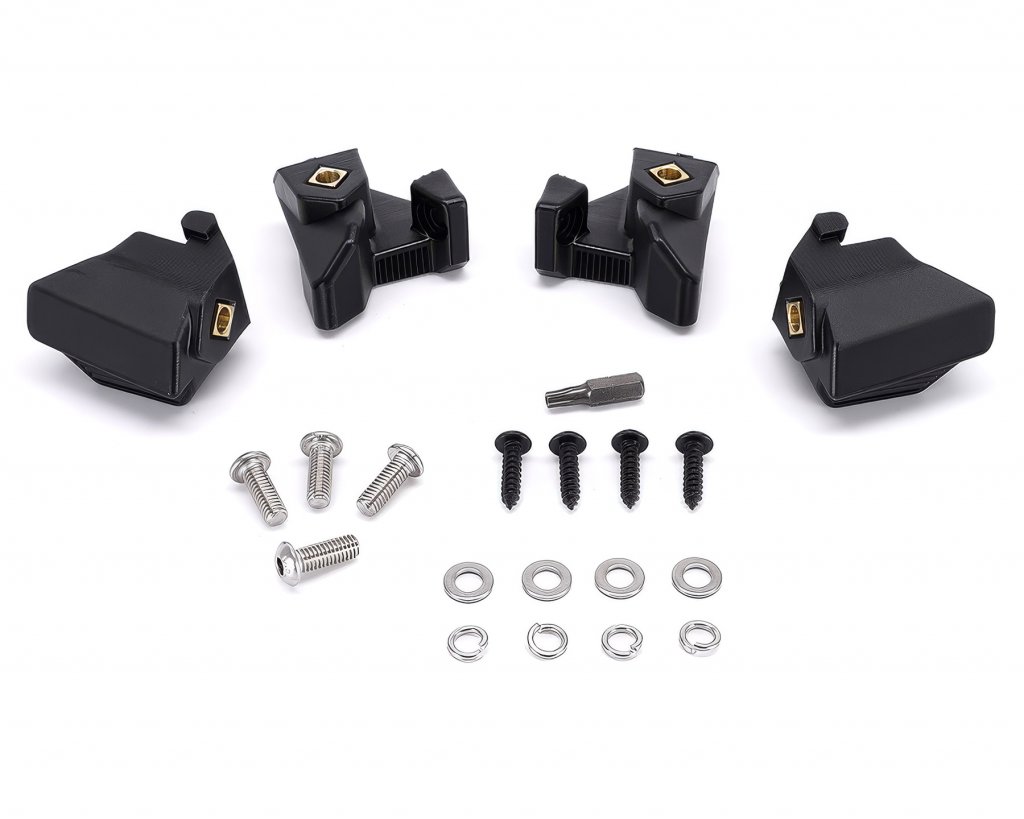

Mounting requires modification of the car's grille. The mounting kit includes 3D-printed cutting templates for precise installation. The LED light bars are then mounted with accompanying 3D-printed mounting brackets.

Wiring

Depending on your car's equipment level and headlights, a separate CANBUS interpreter may be needed to extract the high beam signal to the relay kit. This is not included in the kit but is purchased separately.

Auxiliary Light Kit Lazer Isuzu D-Max

What's included in the Lazer Auxiliary Light Kit Isuzu D-Max

2 Lazer Linear 6 light bars
Mounting details
Relay kit
Mounting instructions

Auxiliary Light Kit Lazer Isuzu D-Max is delivered as a complete set

Documents:
attachment

Product Information: Linear 6
attachment

Product Information: Linear 6 Elite
attachment

Product Information: Linear 6 Elite+
attachment

Installation Instructions for Linear 6 Isuzu D-Max 2026-
