Grille kit Lazer Triple-R 750 Ford E-Transit Custom 2023-

Item ID: 26007-832

€1 069

Incl. VAT

Which variant would you like?

2x Triple-R 750

26007-832

€1 069

Available in external warehouse | Dispatched within 1-4 working days

2x Triple-R 750 Elite

26007-832E

€1 292

Available in external warehouse | Dispatched within 1-4 working days

2x Triple-R 750 with Strobe function

26007-832B

€1 555

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

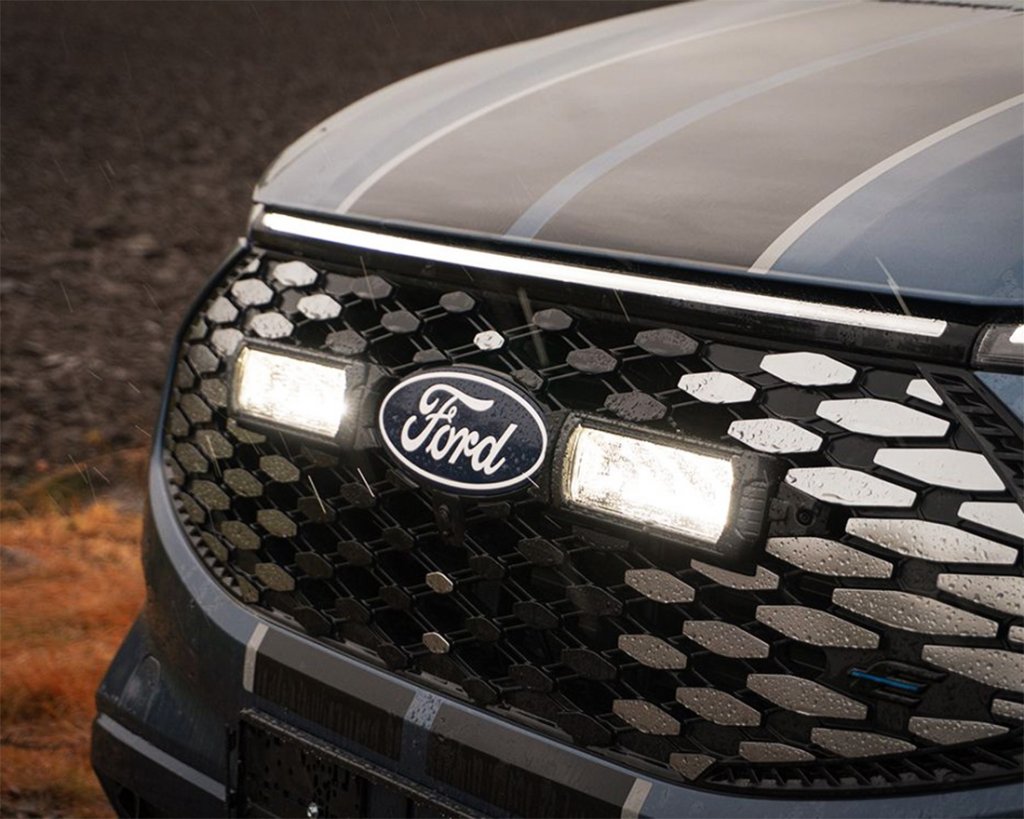

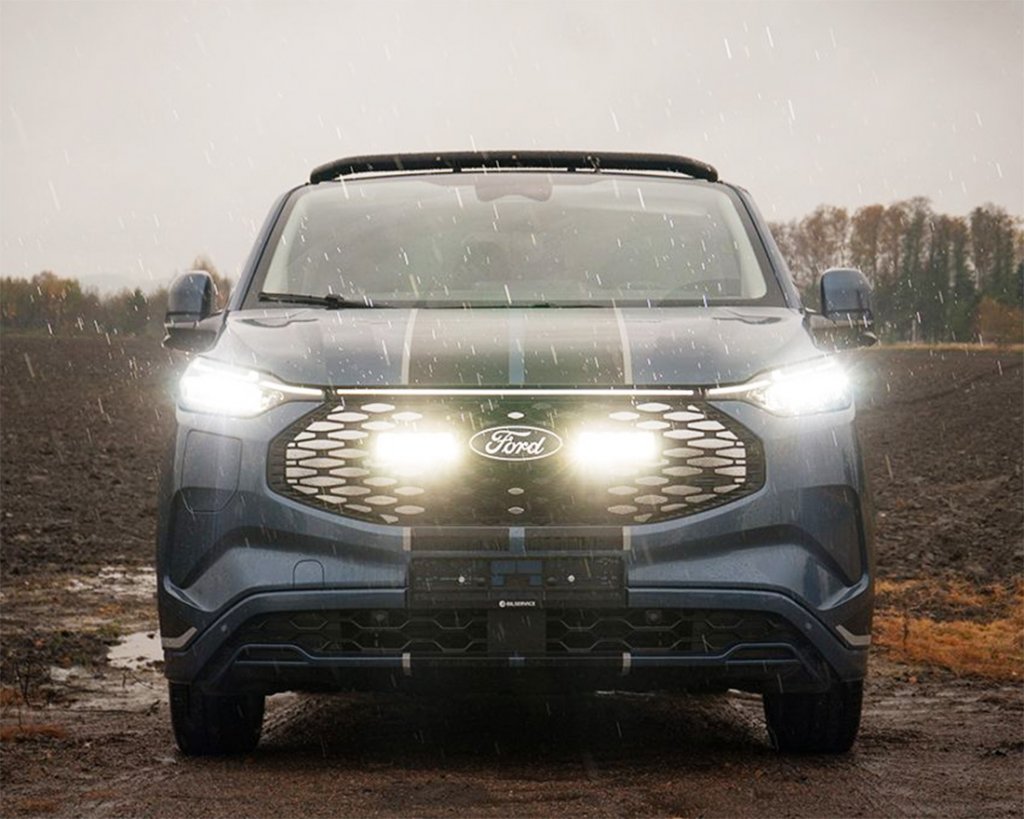

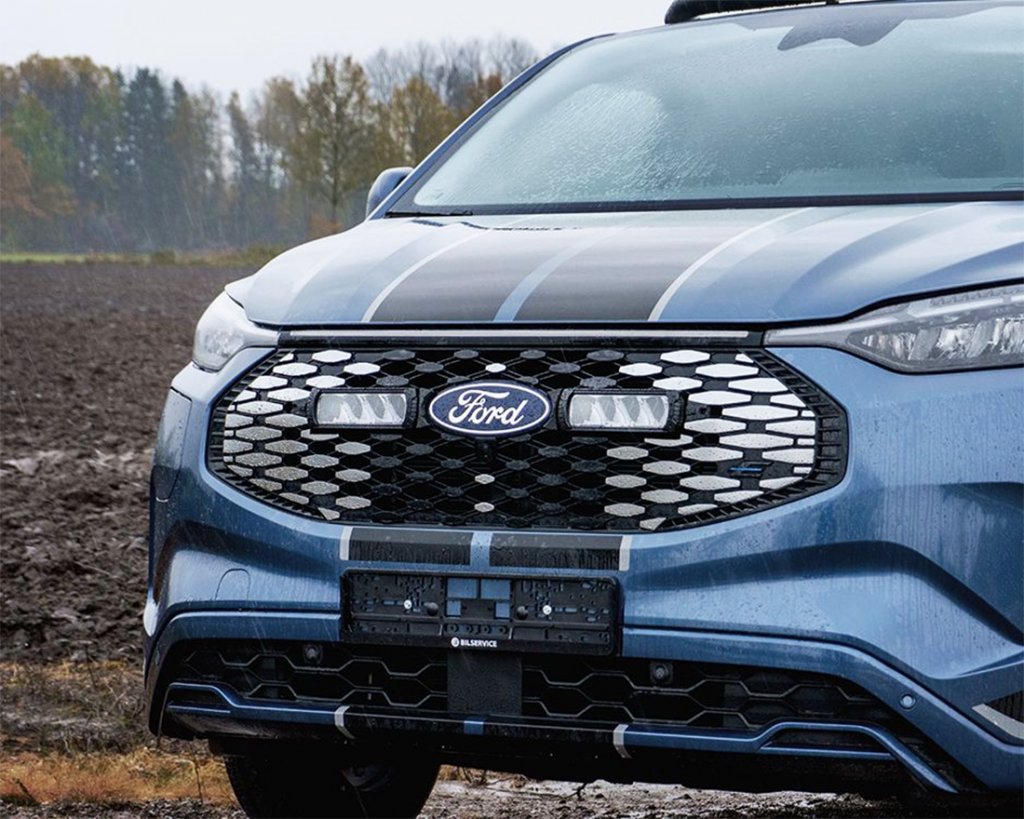

Complete auxiliary light kit containing everything you need for installation on Ford E-Transit Custom from 2023 onwards.

Complete grille kit Lazer Ford Transit Custom containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.

Grille kit Lazer Ford E-Transit Custom

Triple-R 750	Gen2	Elite Gen2
Voltage range	10-32V	10-32V
Luminous flux	9240 lm	10136 lm
Color temperature	5000 K	5000 K
Number of LEDs	2 x 4 pcs	2 x 4 pcs
Position light	Yes, White/Orange	No
Power output	88 W	104 W
Load (at 14.4V)	6,2 A	7,2 A
Certification
Reference number	2 x 35	N/A (2 x 12.5 E-marked mode)
High beam	ECE R112	ECE R112
Position light (White)	ECE R7	N/A

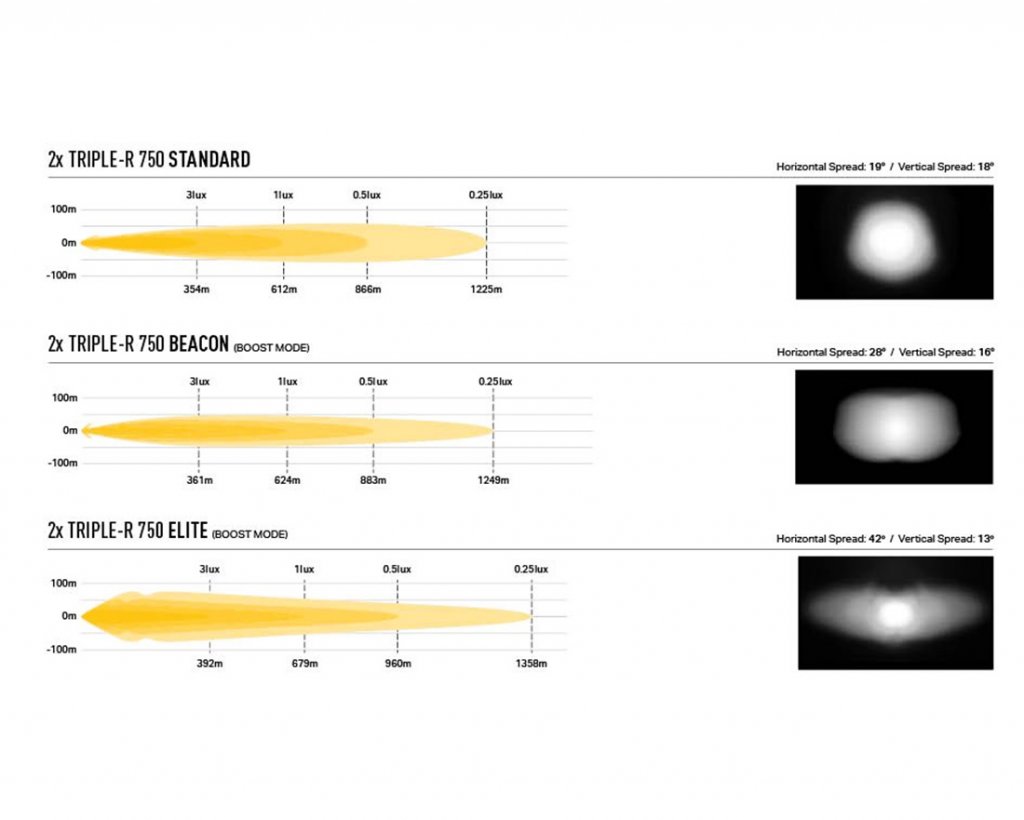

Luminous flux
Horizontal light angle	19 degrees	42 degrees
Range (1 lux)	612 meters	679 meters
Range (0.25 lux)	1225 meters	1358 meters

Installation

The installation requires modification to the vehicle's grille. The kit includes 3D-printed cutting templates for a precise fit. The LED bars are then installed using the provided 3D-printed mounting brackets.

Wiring

Depending on your car's equipment level and headlights, a separate CANBUS interface might be needed to obtain the high beam signal for the relay harness. This is not included in the kit and is purchased separately.

What's included in the Lazer auxiliary light package for Ford E-Transit Custom

2 x Lazer Triple-R 750 Gen2

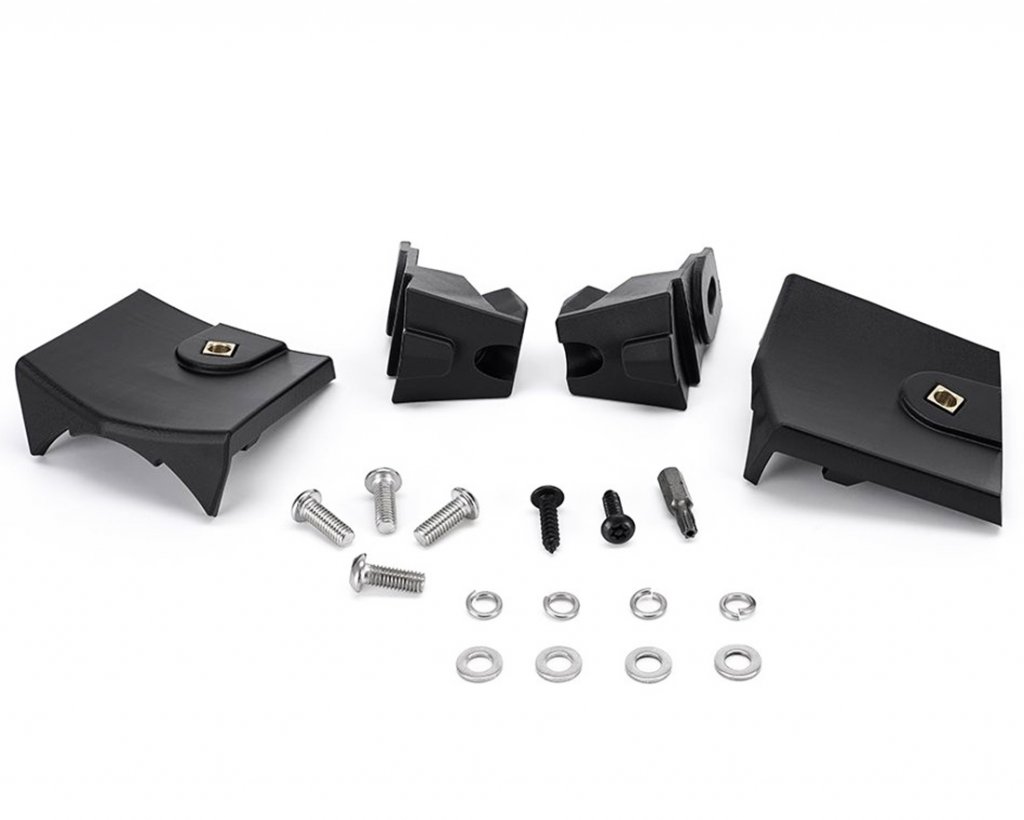

Mounting hardware

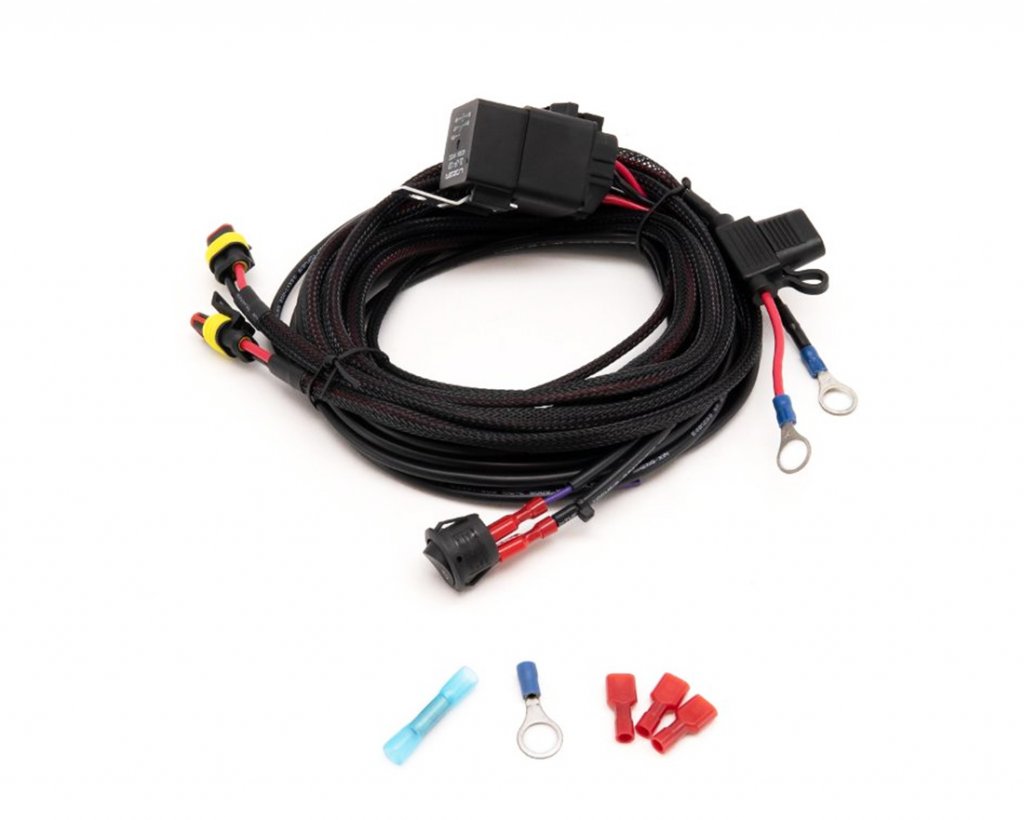

Wiring harness
Installation instructions

The Lazer auxiliary light package for Ford Transit Custom is delivered as a complete kit.
