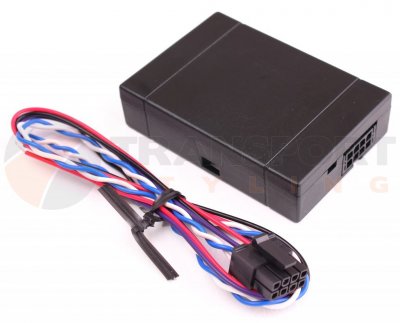

High beam signal for Citroën Jumper 2007-/2014- with CANBUS system

Item ID: 8113-100

Sorry - this product is currently not avaiable for purchase.

Interface for connecting auxiliary lights to Citroën Jumper from 2007- with CANBUS system. Provides +12 V when the high beam is switched on.

Wiring:

Function control

Next to the connector there is a hidden LED that indicates the status of the connection:

LED flashes red: Contact with CAN BUS and checks vehicle status.
LED lights up green: Contact with CAN BUS and the vehicle is identified.
LED is red: Contact with CAN BUS but vehicle is not identified. Check the connection points against the instructions above.
LED not lit: No contact with CAN BUS, probable cause "pole reversal" CAN HI to LO and vice versa, or poor power supply.

NOTE! The power supply to the interface must be disconnected when changing the connection point.

Citroën Jumper from 2007-

Citroën Jumper from 2014-
