Auxiliary Light Bracket for 4 Lights Toyota RAV4 2019-2025

Item ID: 70035-4340

€661

Incl. VAT

Which variant would you like?

Matte Silver

70035-4340

€661

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

70035-4340-O

€661

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

70035-4340-S

€661

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

70035-4340-S80

€661

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

70035-4340-V

€661

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

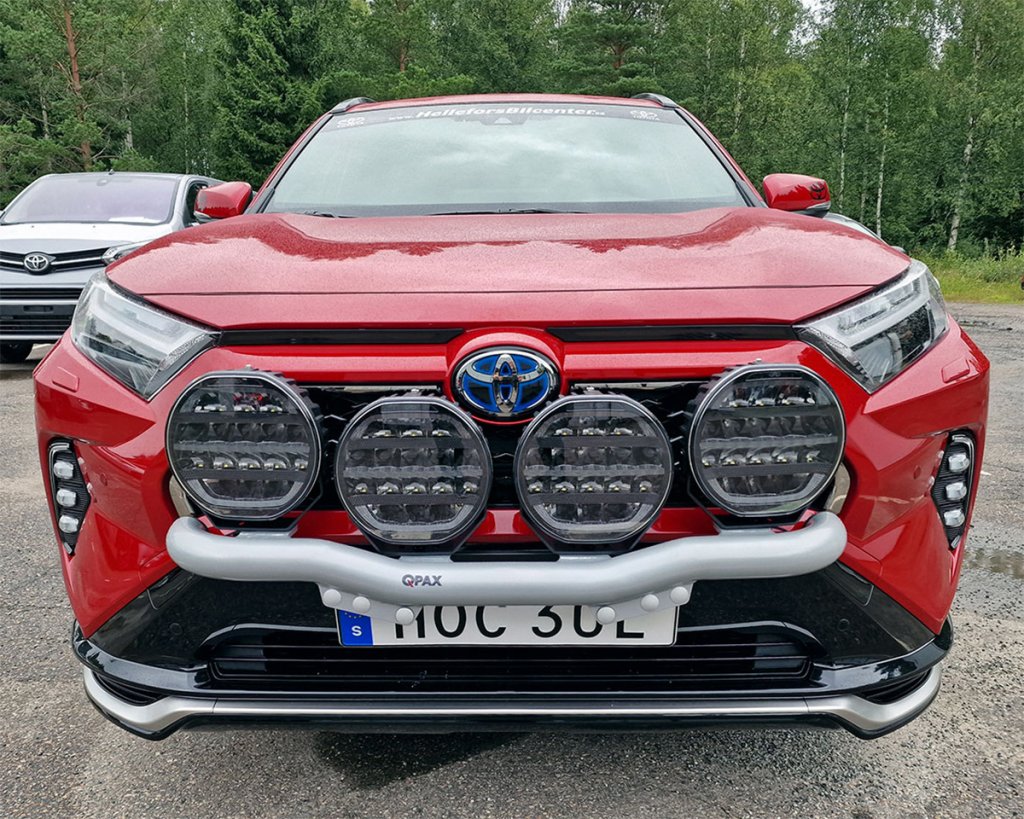

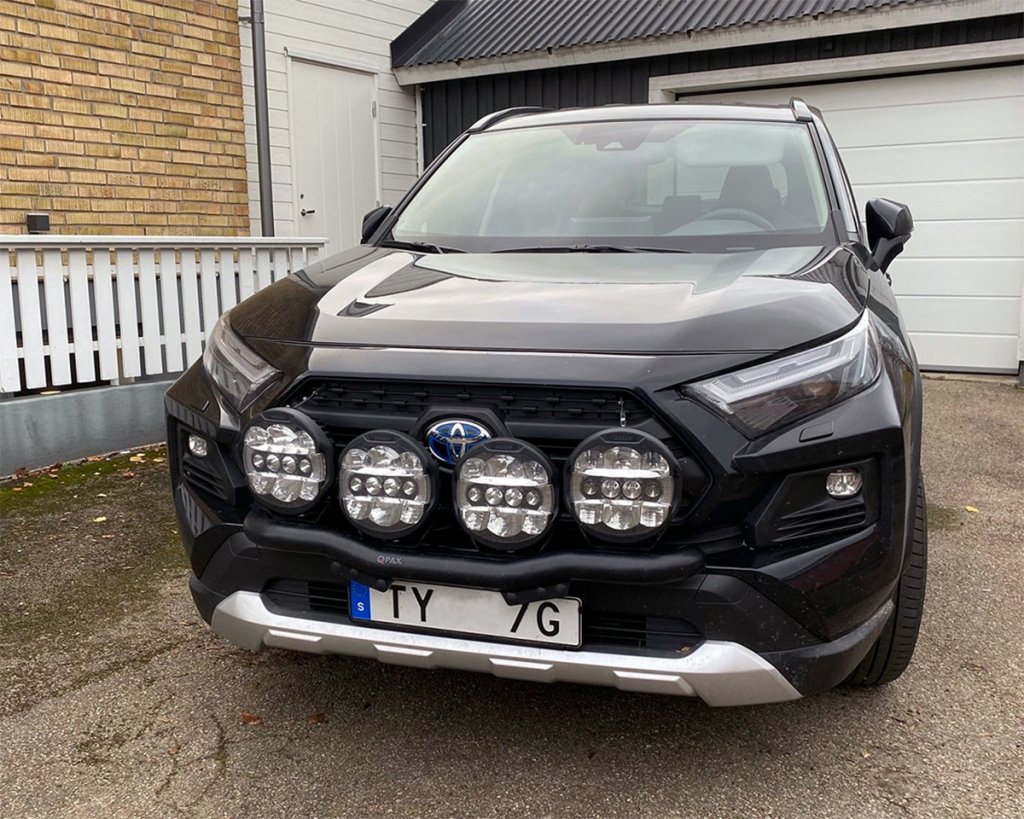

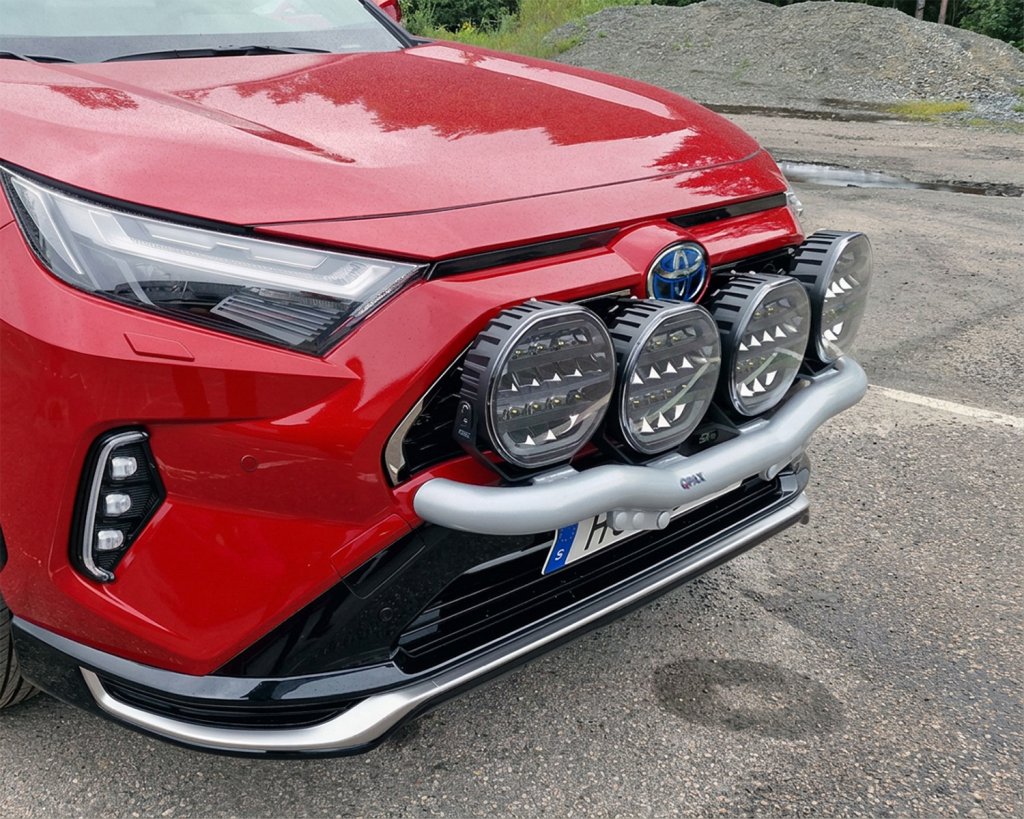

This model-specific auxiliary light bracket for the Toyota RAV4 from 2019-2025 provides a sturdy platform when you want to mount driving lights on the front. The bar is equipped with four fixed, welded mounting tabs that accommodate a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminum tubing and features a durable powder coating that withstands stone chips, road salt, and harsh Nordic climates. The bar is specifically engineered for your Toyota RAV4 and securely anchored to the vehicle's load-bearing structure for optimal strength.

Auxiliary Light Bracket - Model-Specific and Stable Mounting

The auxiliary light bar is mounted using tailored brackets where attachment is made directly to the vehicle's crash bar for the highest possible stability and load capacity. Detailed step-by-step instructions for installation on your Toyota RAV4 can be found in the mounting instructions attached as a PDF here on the product page. To ensure a stable and vibration-free beam pattern on uneven roads, the lights should be stabilized at the top using the included support struts.

Mounting and attachment: Installed securely directly onto the vehicle's crash bar.
Radar compatibility and lamp adjustment: The installation does not interfere with the safety radar in the Toyota emblem (verified during testing with, e.g., Seeker Quantum Ø220 mm). The two middle auxiliary lights must be adjusted outward as far as possible from the emblem. If mounting driving light models that risk obstructing the radar, sideways relocation adapters are available as an option (see related items).
Impact on front camera: On models equipped with a front emblem camera, the camera's field of view will be blocked by the auxiliary lights.
Stabilization requirements and maximum weight: Recommended maximum weight is 2 kg per light. The included stabilization struts must always be used.

Choose Your Variant for Toyota RAV4

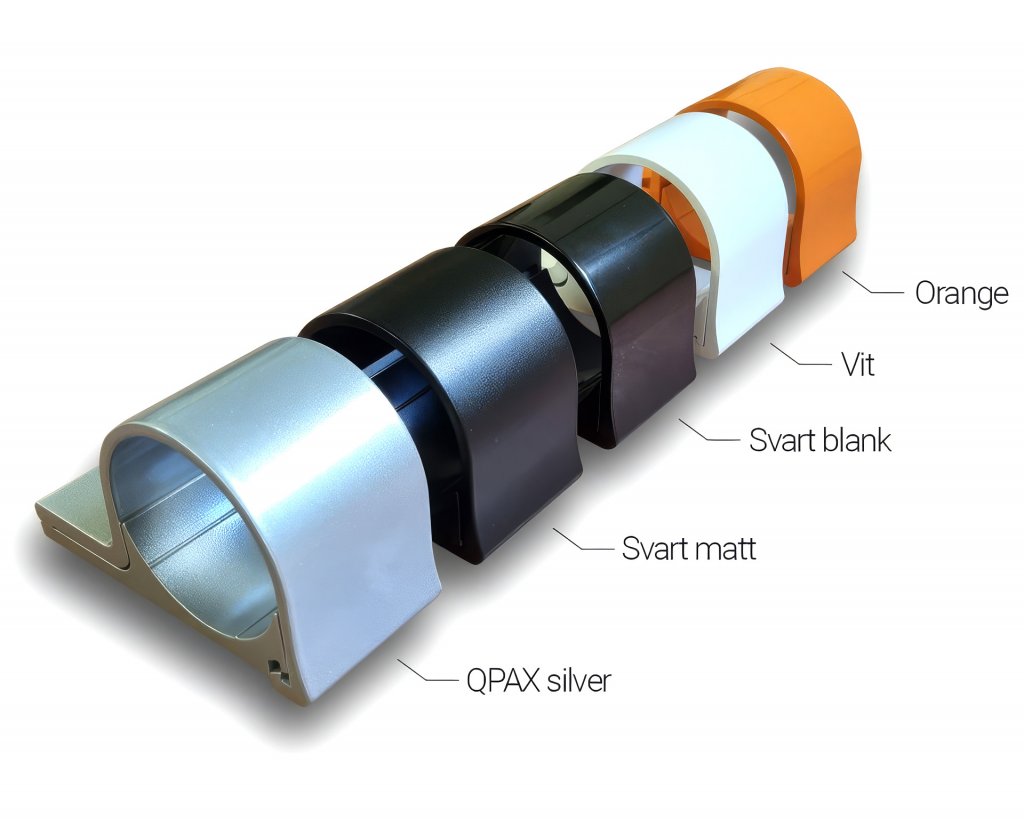

Five available colors (powder coating)

The auxiliary light mount can be ordered in five different finishes to match the paintwork or other details of your Toyota RAV4:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Discreet matte black surface.
Black (gloss 80): Glossy black finish with gloss level 80.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical Specifications

Material: Aluminum
Tube diameter: 60 mm
Surface treatment: Powder coating
Number of mounting points for auxiliary lights: 4 pcs
Fixed/adjustable mounting tabs: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting: Attached directly to the car's crash bar (see PDF mounting instructions)

What is included in the package?

Delivered as a complete kit tailored for the Toyota RAV4 containing:

Auxiliary light bracket in 60 mm powder-coated aluminum
Model-specific mounting kit for crash bar
Stabilization struts for auxiliary lights
Mounting instructions (included and available as a downloadable PDF)

A durable, custom-fit solution for the Toyota RAV4 from 2019-2025 that ensures a stable installation and optimal light distribution for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Toyota RAV4 2019–2025
