Auxiliary Light Bracket for 4 Lights Ford Custom from 2023-

Item ID: 26007-4340

€897

Incl. VAT

Which variant would you like?

Matte Silver

26007-4340

€897

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

26007-4340-O

€897

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

26007-4340-S

€897

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

26007-4340-S80

€897

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

26007-4340-V

€897

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

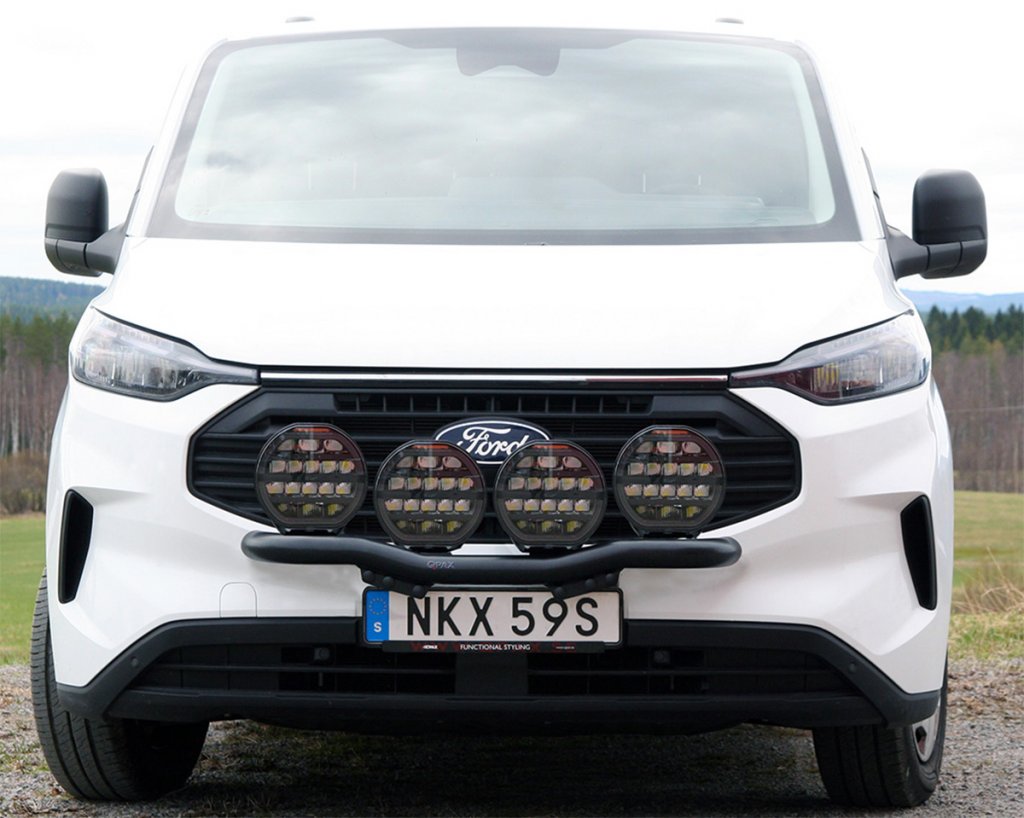

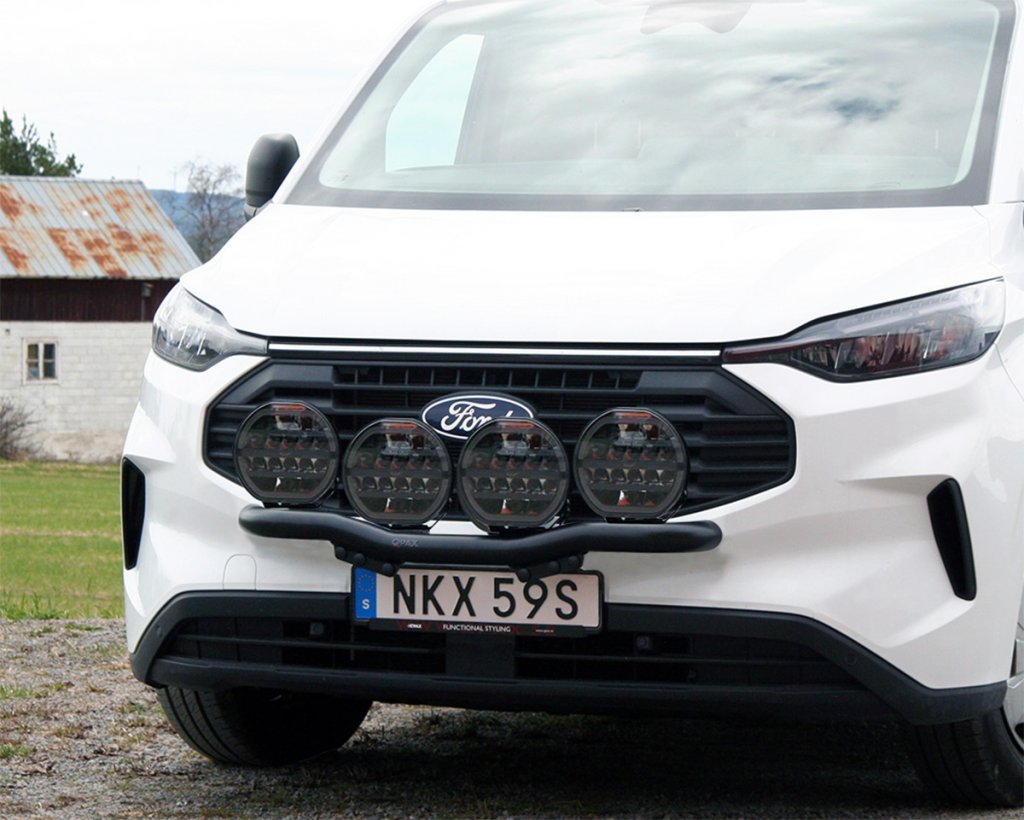

This vehicle-specific auxiliary light bracket for Ford Custom from 2023- provides a sturdy platform when mounting auxiliary driving lights at the front. The bar features four fixed, welded mounting tabs accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tube and features a durable powder-coated finish designed to withstand stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Ford Custom, the bar mounts securely to the vehicle's load-bearing structure for optimal strength and rigidity.

Auxiliary Light Bracket - Vehicle-Specific and Non-Invasive Q-GRIP Mounting

The light bracket is installed using vehicle-specific mounting brackets, where attachment mounts directly to the lower crash beam using QPAX's proven Q-GRIP system for a solid, non-invasive installation. Detailed step-by-step instructions for installation on your Ford Custom are available in the mounting manual attached as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, top-mount stabilisation is required using the included support stays.

Mounting and attachment: Installed from the vehicle's lower crash beam using the QPAX Q-GRIP system.
Sensors and radar compatibility: Parking sensors closest to the number plate need to be masked using the Nonsens covers (included in delivery). The vehicle's radar is not affected by the bracket or installed auxiliary lights.
Stabilisation and weight limits: Recommended maximum weight is 2 kg per auxiliary light. The included stabiliser stays must always be used.

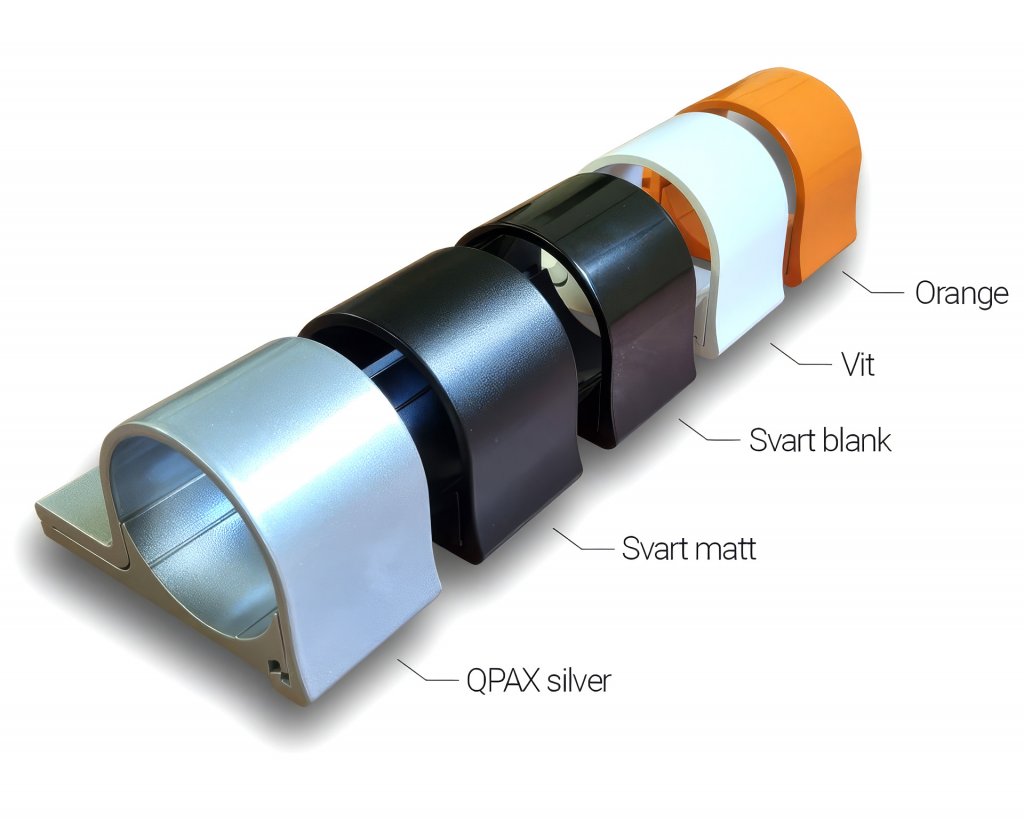

Choose Your Finish for Ford Custom

Five available colours (powder coating)

The auxiliary light bracket can be ordered in five different colours to match the paintwork or trim of your Ford Custom:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Discreet matte black surface.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Mounting tab type: Fixed (welded)
Max light diameter: 240 mm
Recommended max weight per light: 2 kg/pc
Mounting system: QPAX Q-GRIP to lower crash beam (see PDF mounting instructions)

What's Included?

Supplied as a complete kit tailored for Ford Custom containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Vehicle-specific mounting kit (Q-GRIP for lower crash beam)
Stabiliser support stays for auxiliary lights
Nonsens sensor covers for parking sensors
Mounting instructions (included and available as a downloadable PDF)

A durable and custom-tailored solution for Ford Custom from 2023- that delivers secure mounting and an optimal light beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Ford Custom 2023-
