Auxiliary light BMW 5 Series F10/F11 2010-2017

Item ID:  1208-2400
€106
Incl. VAT
Available
Available in external warehouse | Shipped within 2-7 working days
.
Select options
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 2-7 working days
Product Description:

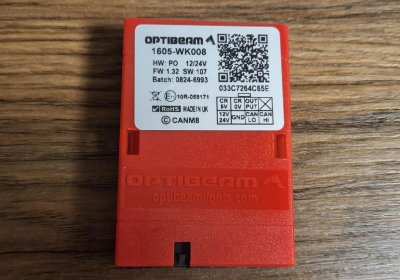

Convenient CANBUS interface for connecting extra lights BMW 5 Series (F10/F11) from 2010-2016. The CANBUS interface works just as well if you instead want to install a led ramp or other extra lighting in front.

Canbus interface - Extra light BMW 5 Series

The CANBUS interface provides the control signal to your external relay set, which causes the auxiliary lights to start together with the car's main beam. If the car is equipped with adaptive main beam, this function will also be included in the auxiliary lights or the handrail.

Installation of the BMW 5 Series auxiliary lights is specific to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

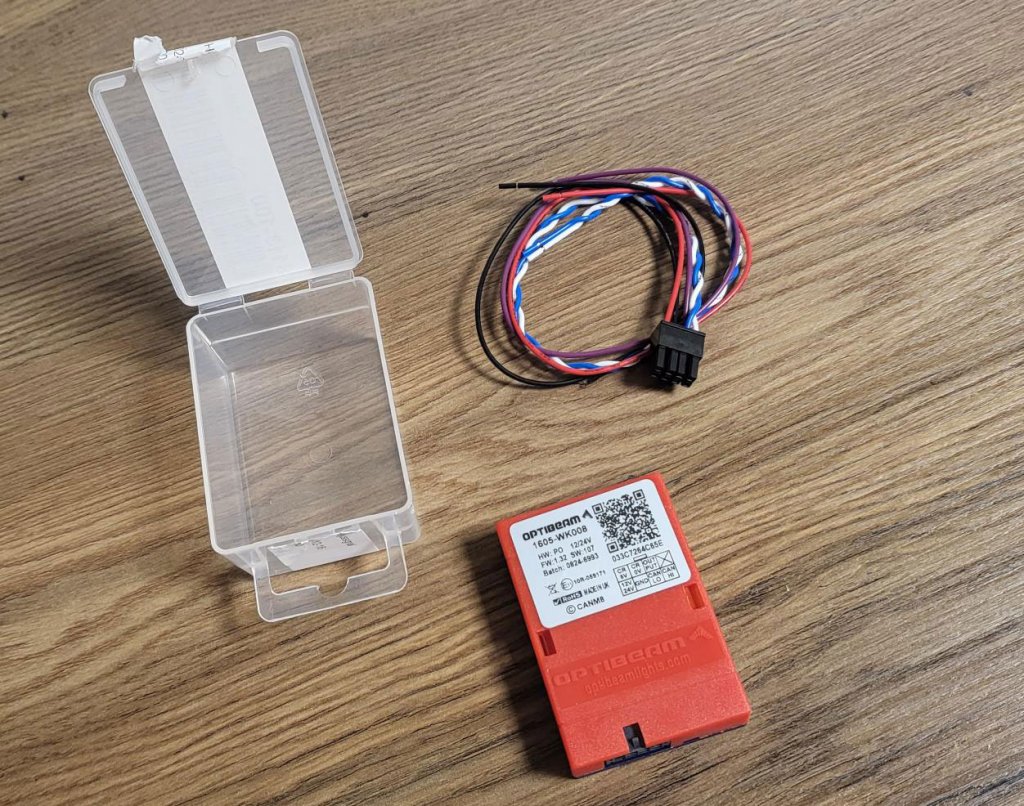

From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.
Supplied individually


Documents:
attachment Mounting desciption for canbus interface 1208-2400

Fits the following car models:

BMW 5-series from 2010-2017

Cars manufactured from May 2010 to May 2017

BMW 5-series Touring from 2008-2009 BMW 5-series Touring from 2010-2016 BMW 5-series Touring from 2017-

Engine:

  • Gasoline
  • Diesel
  • Hybrid

Body:

  • Then (F10). fa-check-circle" style="color:green" aria-hidden="true"> Luxury Line
  • Sport Line
  • M-Sport

Assembly time: about 60 minutes

Warranty: 1 year warranty
