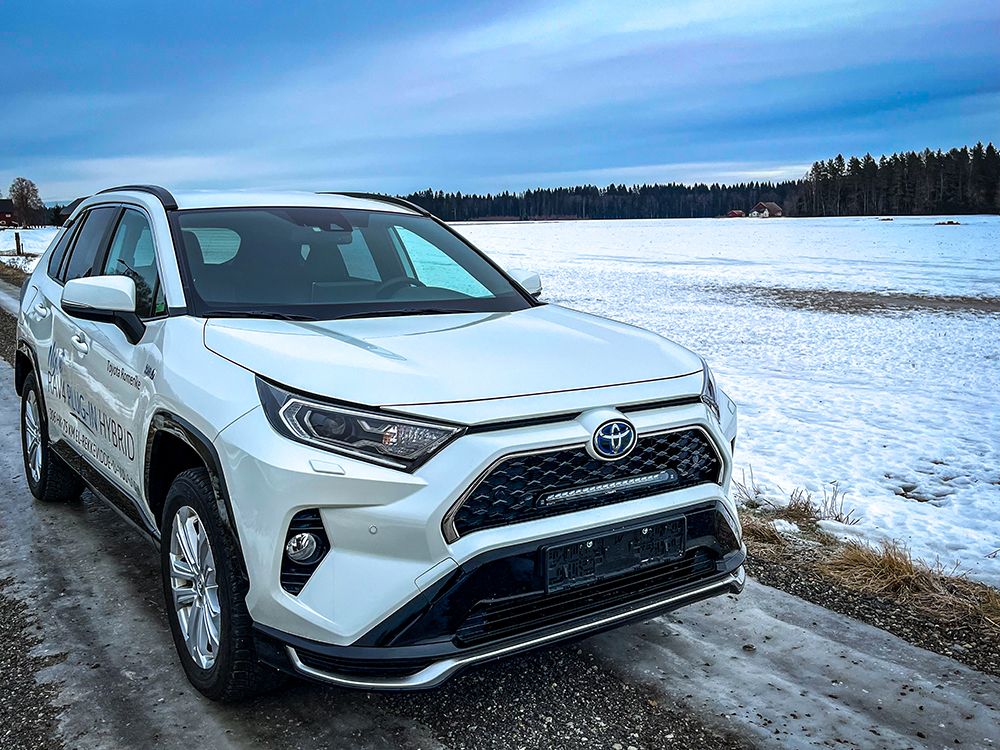

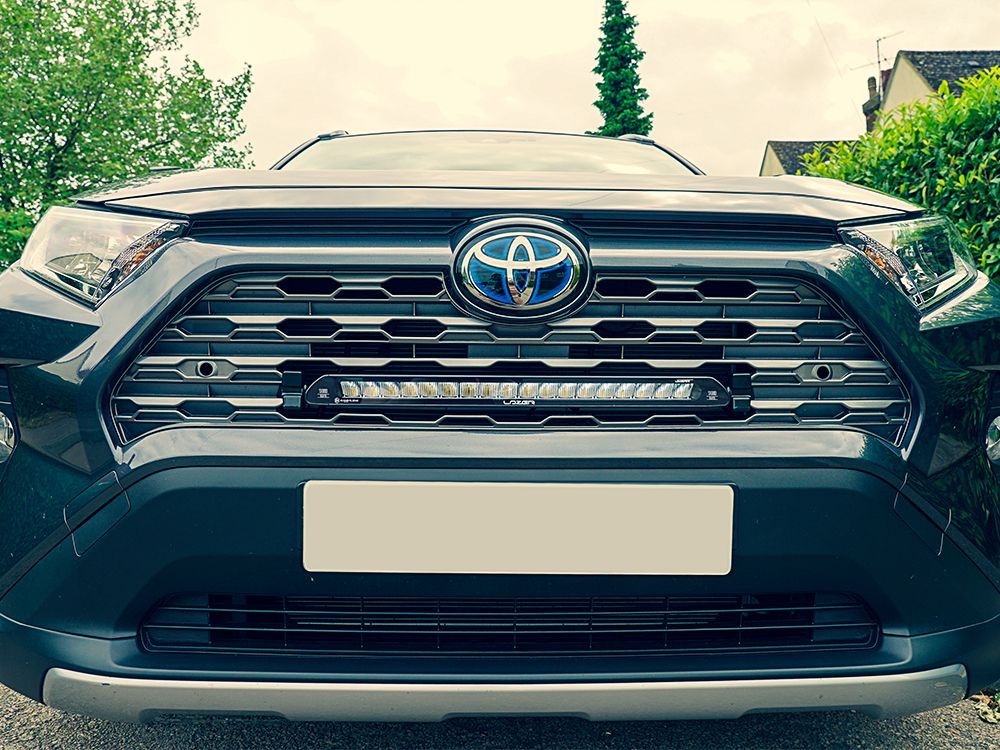

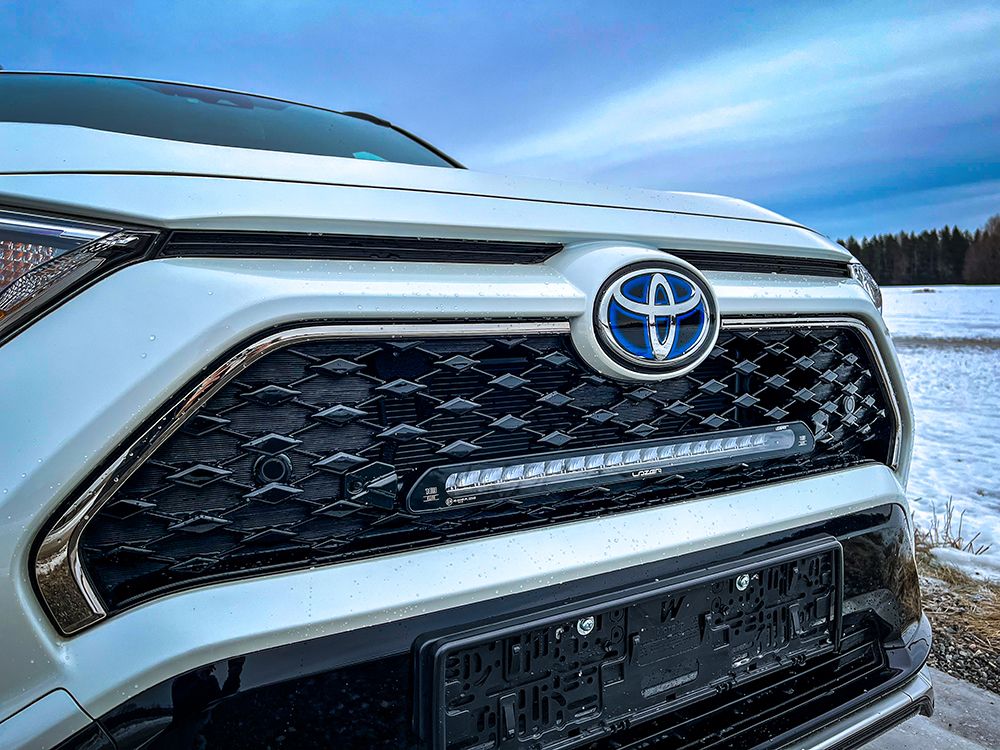

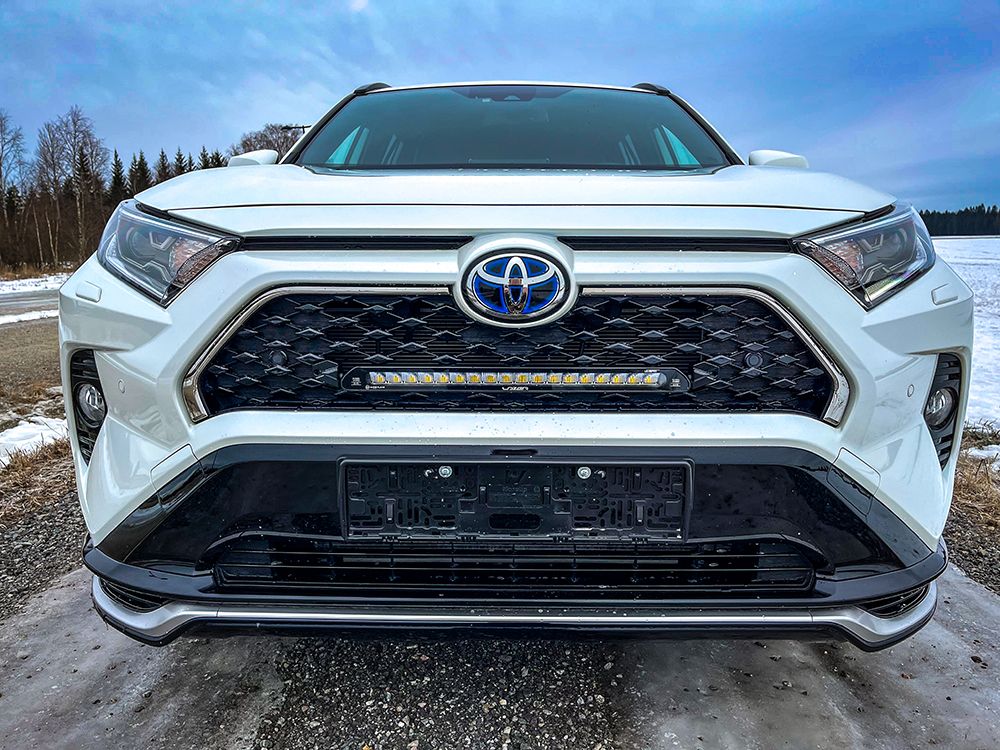

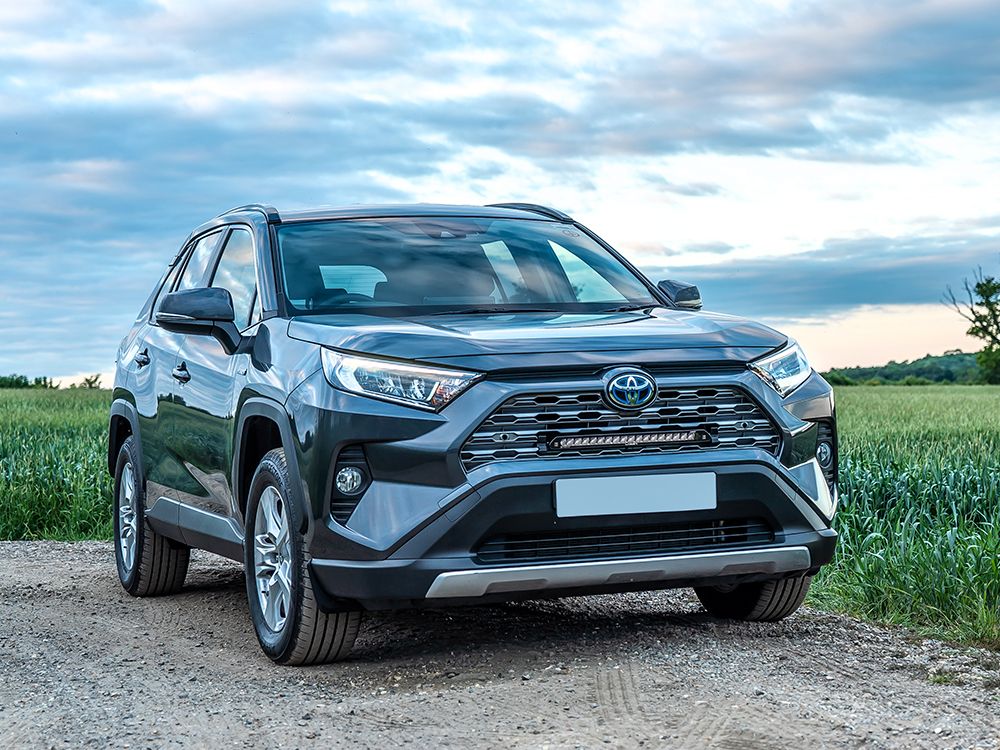

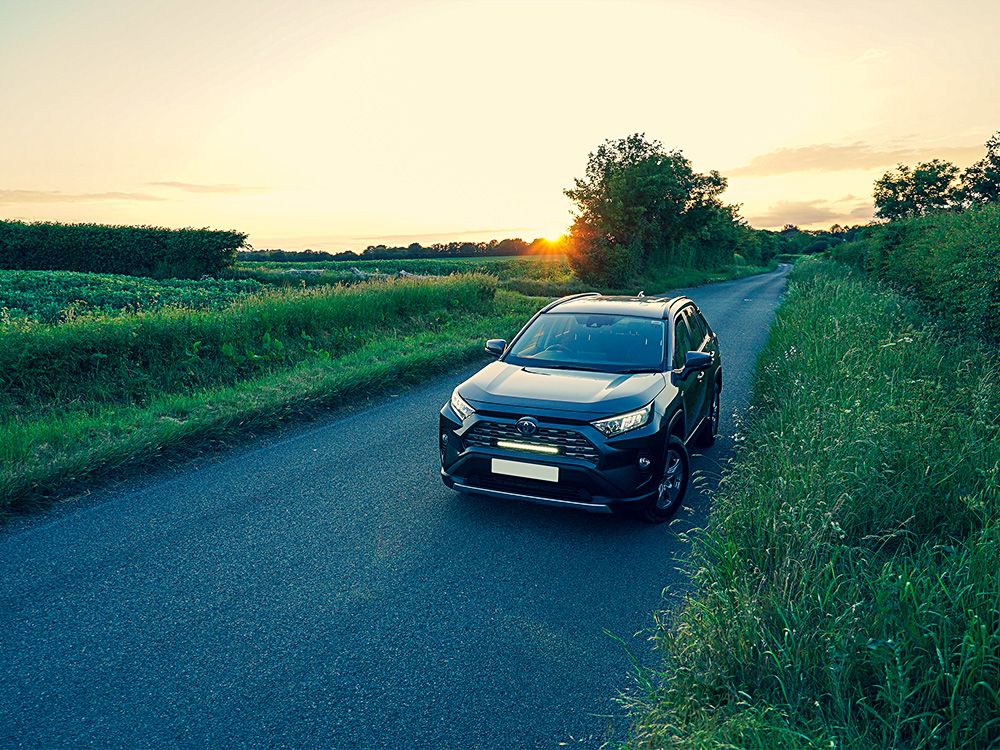

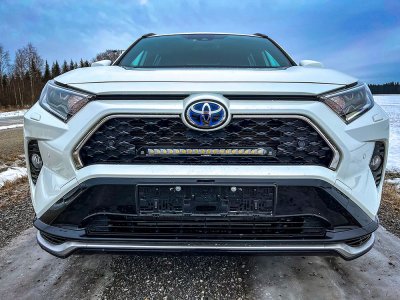

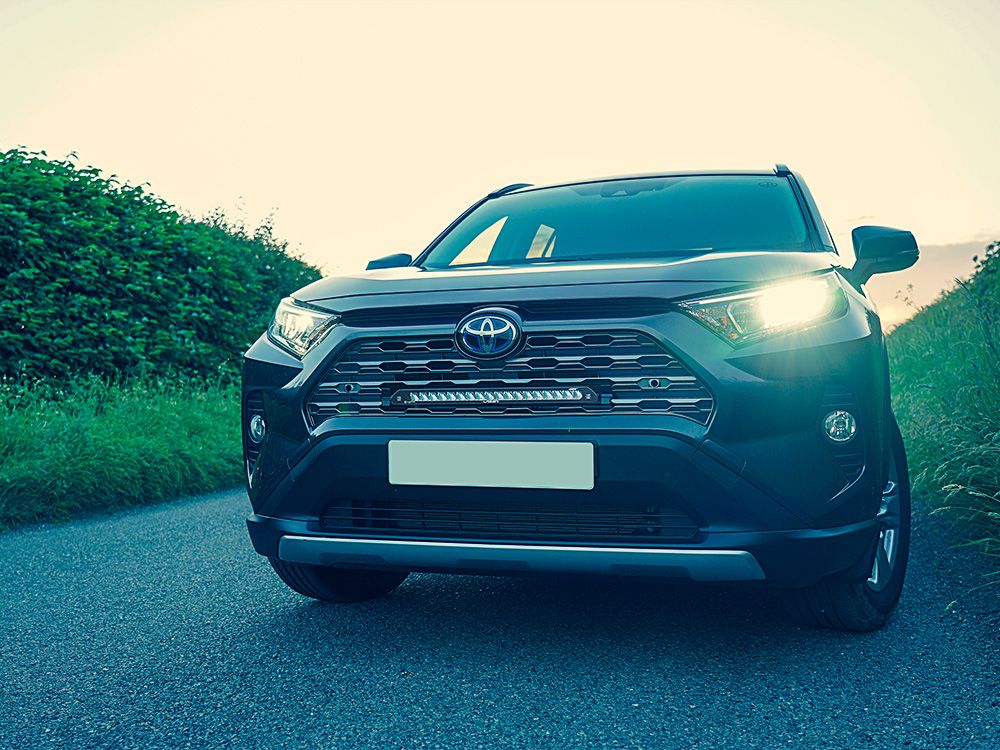

Complete auxiliary light kit containing everything you need for installation in the upper grill of Toyota RAV4 from 2019 onwards.
Complete extra light package Lazer Toyota RAV4 containing model-specific 3D printed mounting parts together with relay kit and Lazer ramp Linear 18. You choose whether you want the Lazer Linear 18, or the Elite model for longer range and increased power.
Extra light package Lazer Toyota RAV4
| Linear 18 | Standard | Elite |
| Voltage range | 10-32V | 10-32V |
| Luminous flux | 6750 lm | 13500 lm |
| Color temperature | 5000 K | 5000 K |
| Number of LEDs | 18 pcs | 36 pcs |
| Position light | No. No. | No, no, no |
| Power output | 63 W | 130 W |
| Load (at 14.4V) | 4,4 A | 9 A |
| Certification | | |
| Reference number | 30 | 2 x 25 (2 x 10 E-marked mode) |
| High beam | ECE R112 | ECE R112 |
| Luminous flux | | |

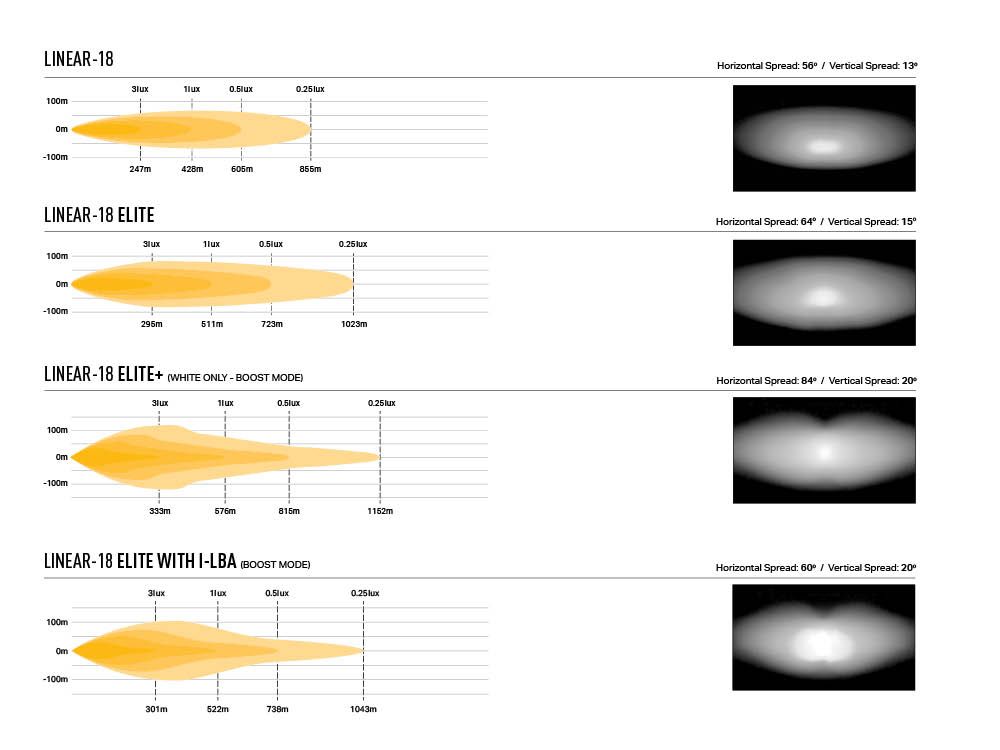

| Light angle horizontal | 56 degrees | 64 degrees |

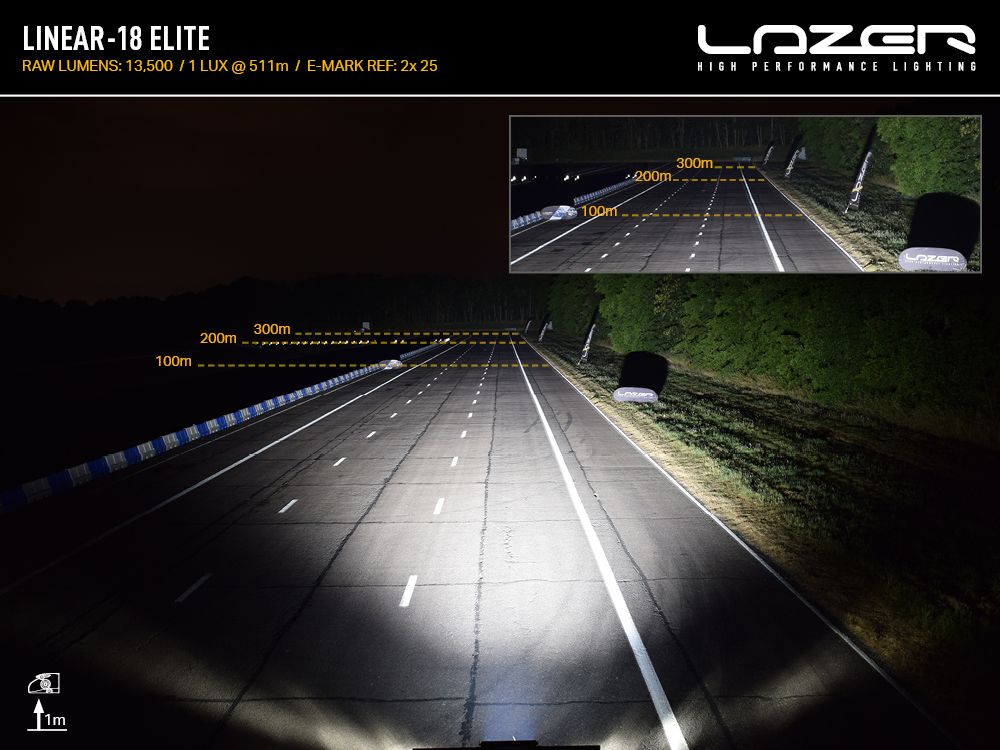

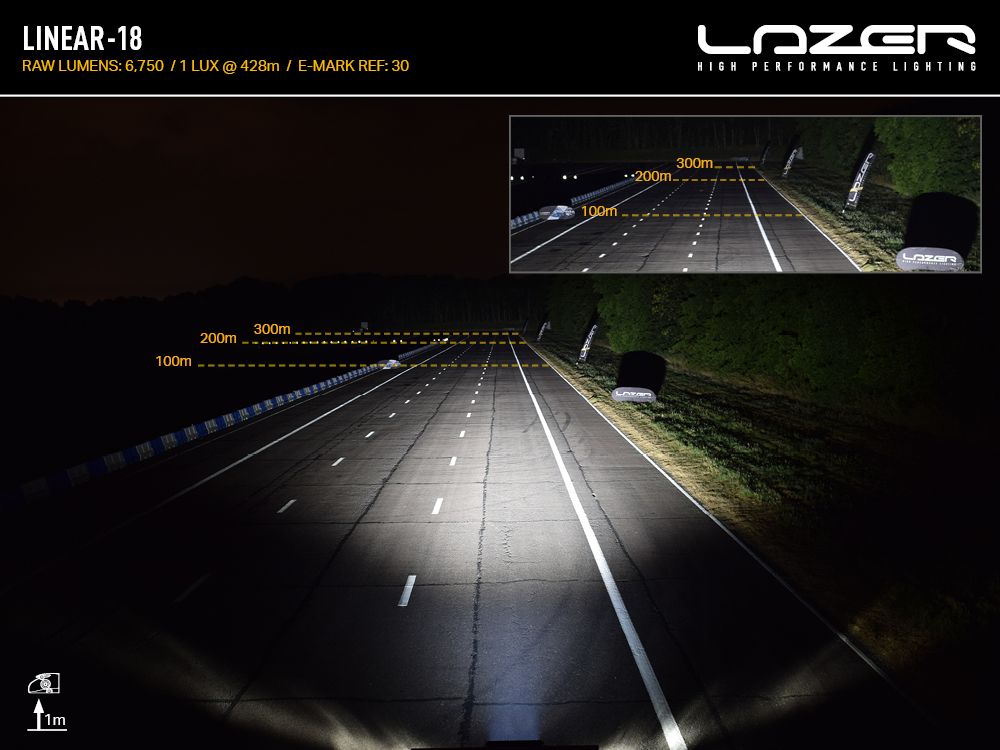

| Range (1 lux) | 428 meters | 511 meters |
| Range (0.25 lux) | 855 meters | 1023 meters |
Installation

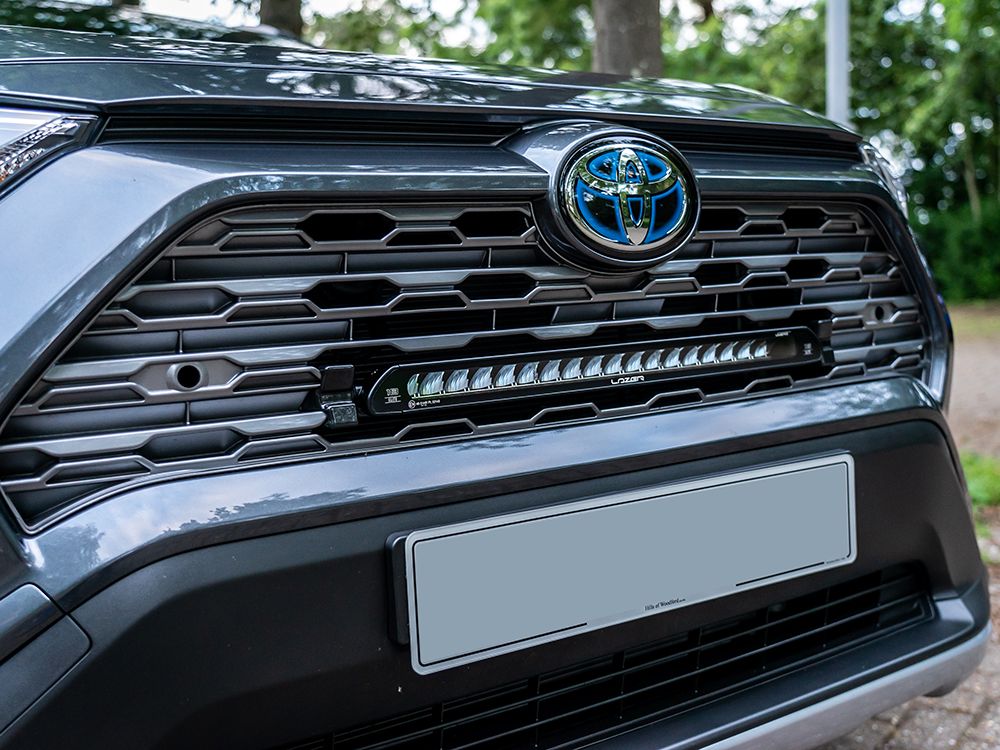

- Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

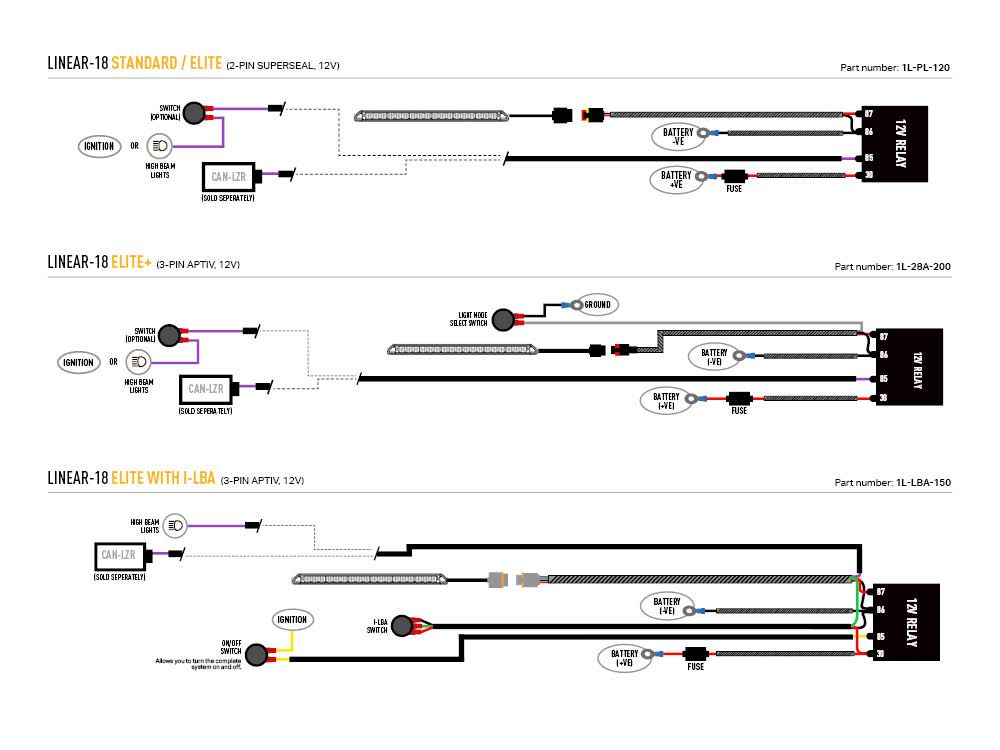

Wiring
- Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.
What is included in the extra light kit Lazer Toyota RAV4
- 1 piece Lazer Linear 18

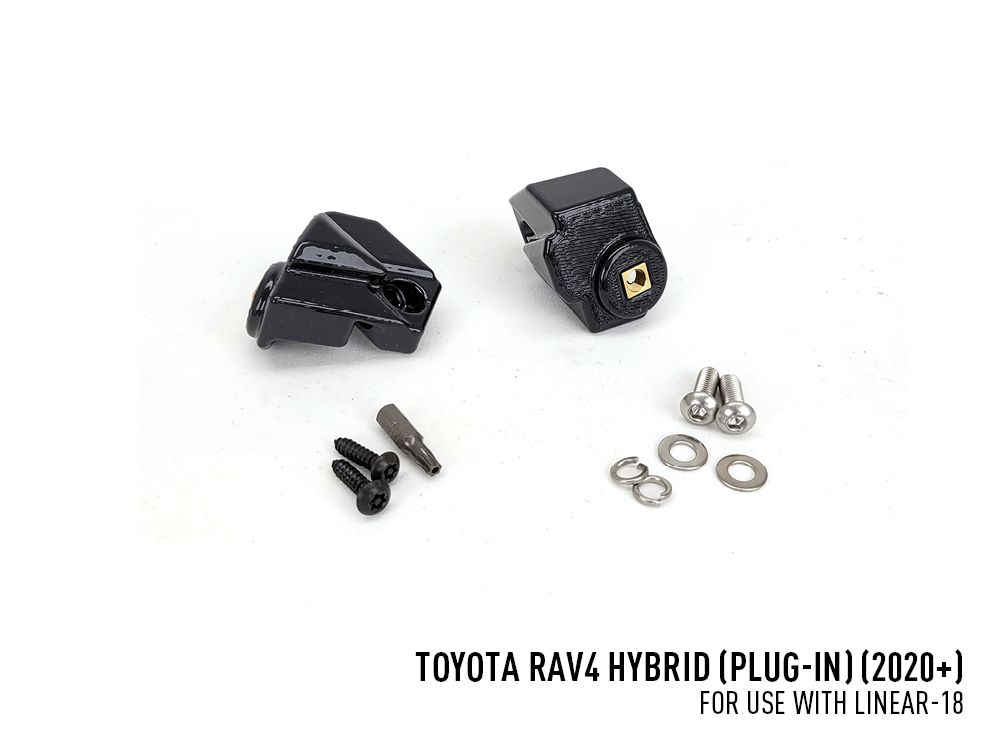

- Mounting details

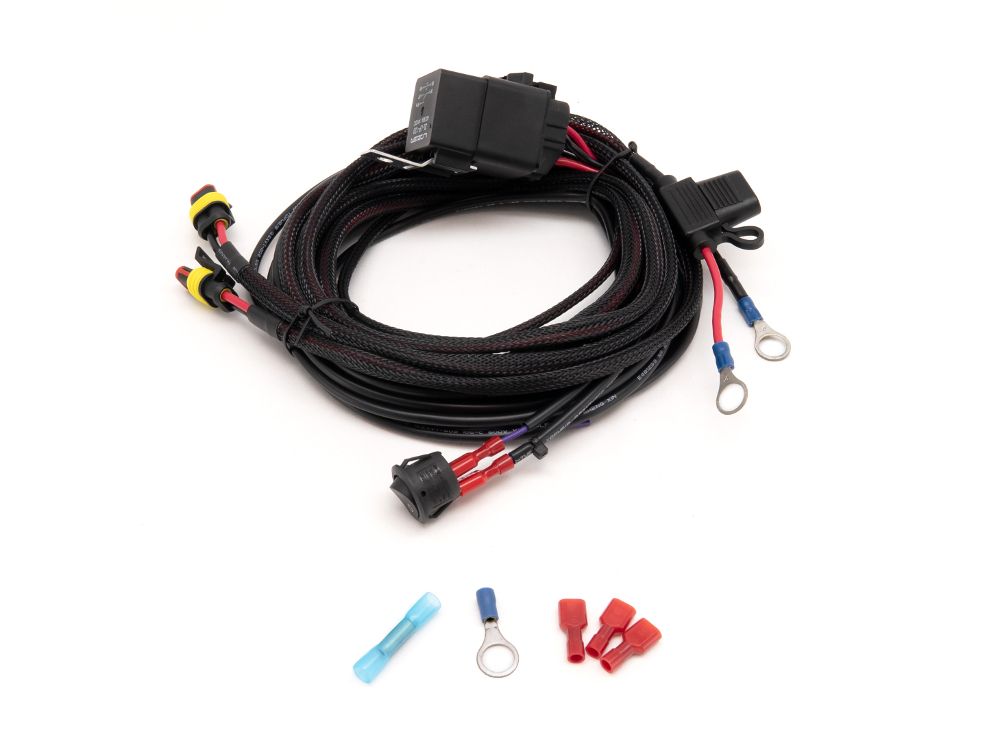

- Relay kit
- Mounting instructions
Extra light kit Lazer Toyota RAV4 is delivered as a complete kit
