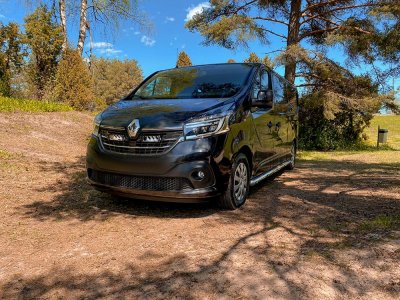

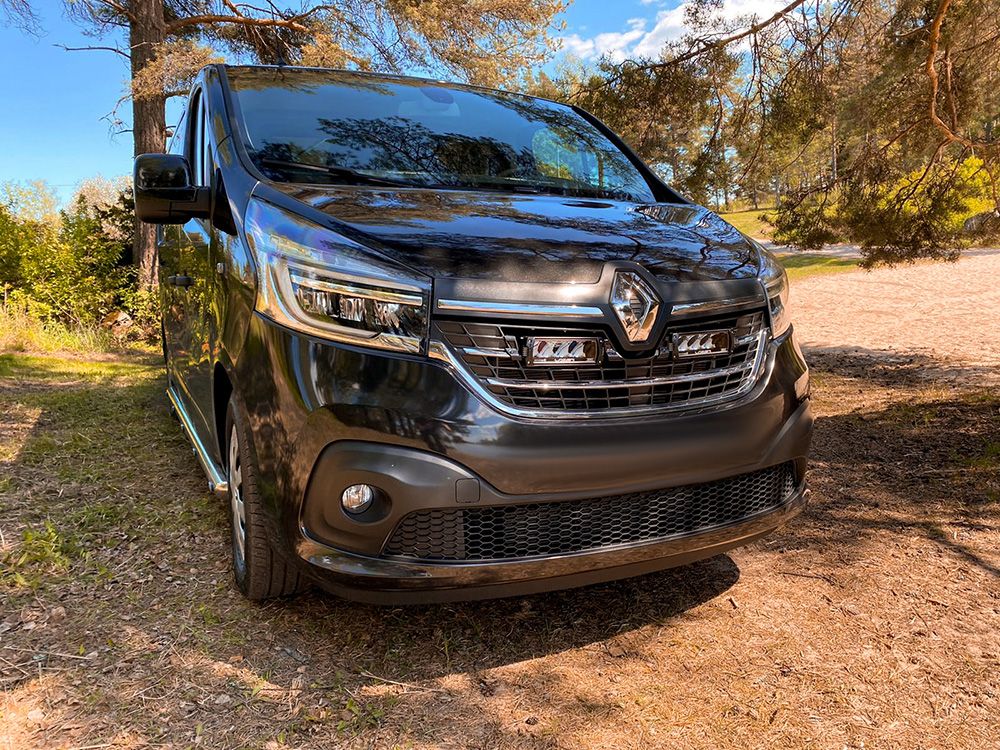

Complete auxiliary light kit containing everything you need for installation in the upper grill of Renault Trafic from 2019-2022.
Complete extra light package Lazer Renault Trafic containing model-specific 3D printed mounting parts together with relay kit and Lazer ramps Triple-R 750. You choose whether you want the Lazer Triple-R 750, or the Elite model for longer range and increased power.
Lazer Renault Trafic extra light kit
| Triple-R 750 | Gen2 | Elite Gen2 |
| Voltage range | 10-32V | 10-32V |
| Luminous flux | 9240 lm | 10136 lm |
| Color temperature | 5000 K | 5000 K |
| Number of LEDs | 2 x 4 pcs | 2 x 4 pcs |
| Position light | Yes, White/Orange | No, no, no |
| Power output | 88 W | 104 W |
| Load (at 14.4V) | 6,2 A | 7,2 A |
| Certification | | |
| Reference number | 2 x 35 | N/A (2 x 12.5 E-marked mode) |
| High beam | ECE R112 | ECE R112 |
| Position light (White) | ECE R7 | N/A |
| Luminous flux | | |

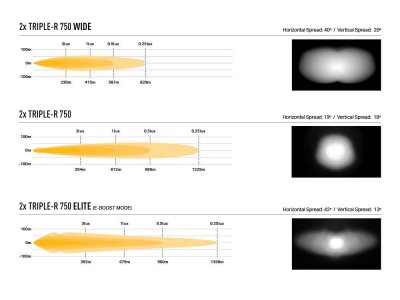

| Horizontal light angle | 19 degrees | 42 degrees |

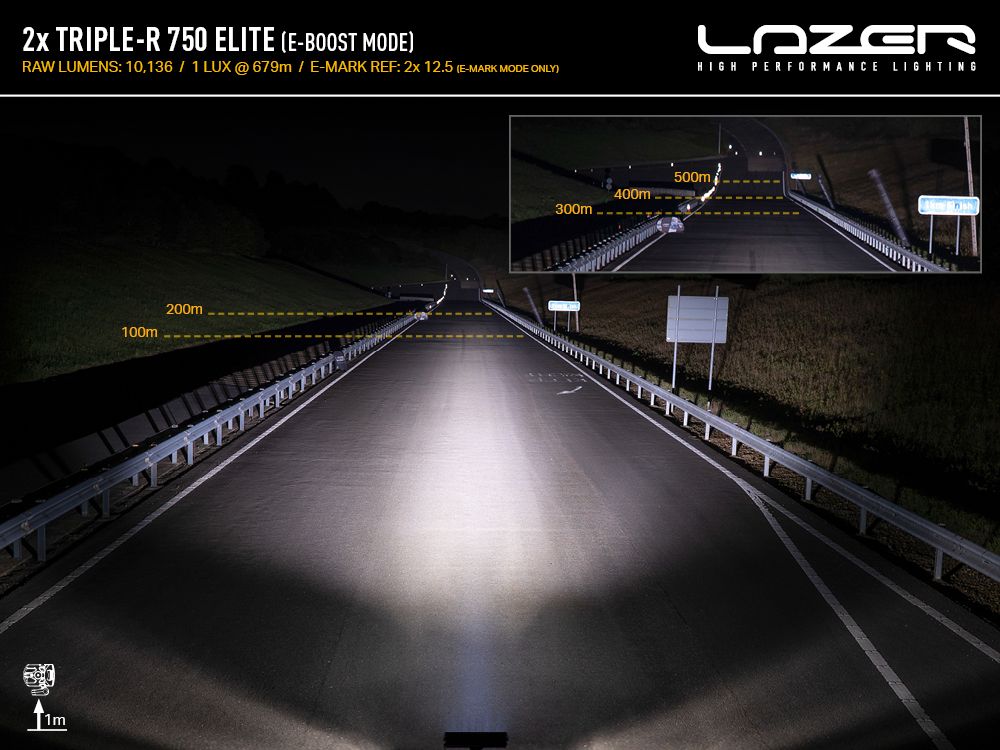

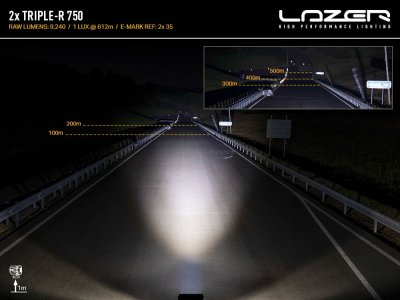

| Range (1 lux) | 612 meters | 679 meters |
| Range (0.25 lux) | 1225 meters | 1358 meters |
Installation

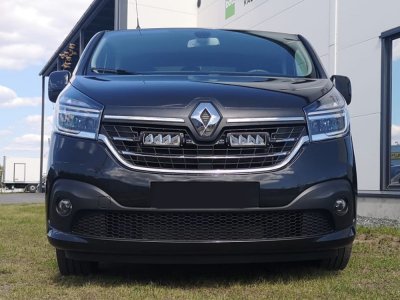

- Installation requires damage to the upper grill of the vehicle. The mounting kit includes 3D printed cutting templates for precise mounting. The LED ramps are then mounted with the corresponding 3D printed mounting brackets.

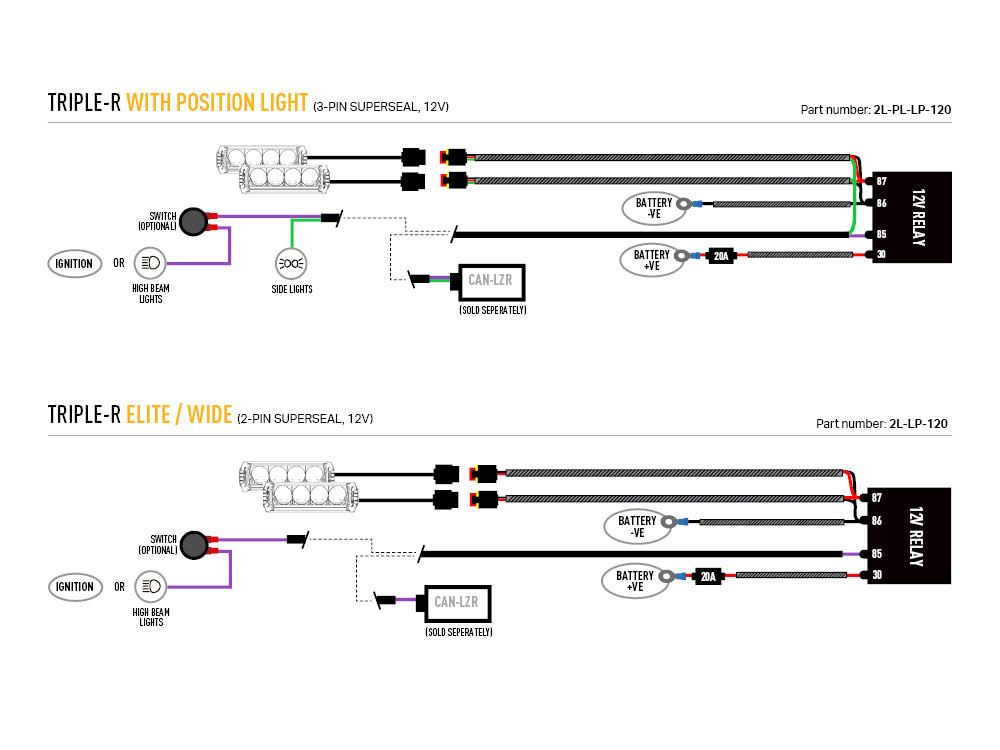

Wiring
- Depending on your car's equipment level and front headlights, a separate CANBUS interpreter may be needed to get the high beam signal to the relay kit. This is not included together in the kit, but is purchased separately.
What is included in the Lazer Renault Trafic auxiliary light kit

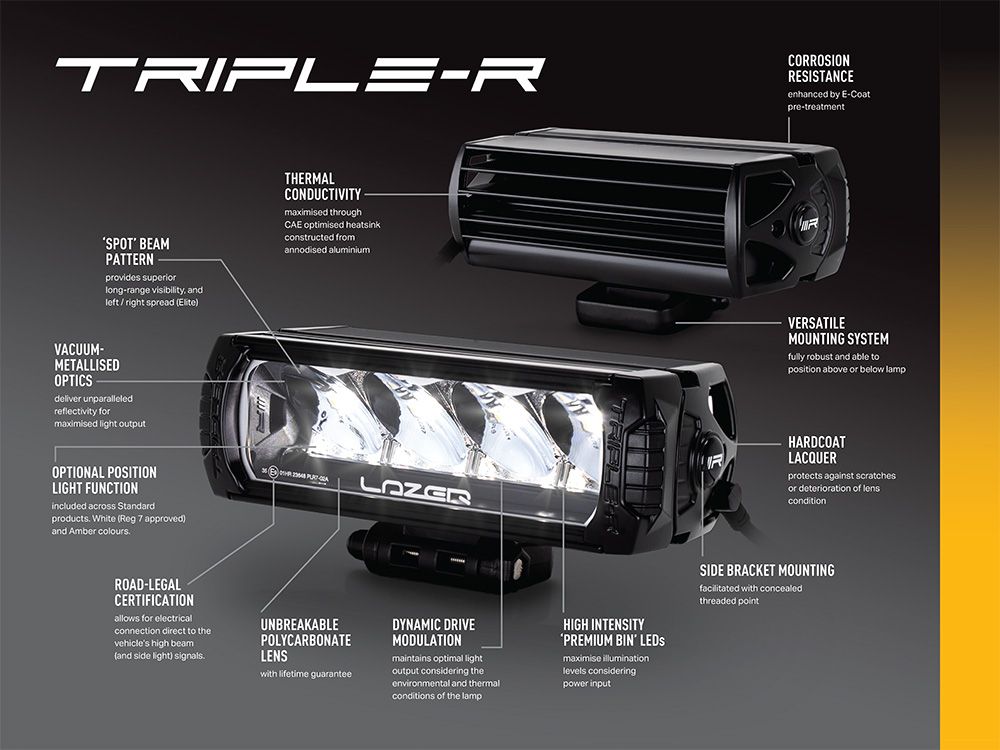

- 2 pcs Lazer Triple-R 750 Gen2

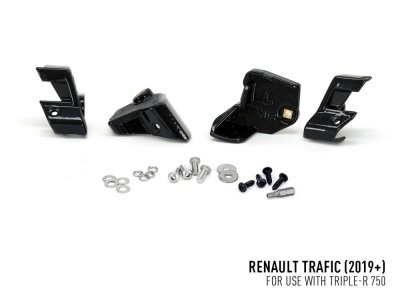

- Mounting details
- Relay kit
- Mounting instructions
Lazer Renault Trafic extra light kit is delivered as a complete kit
