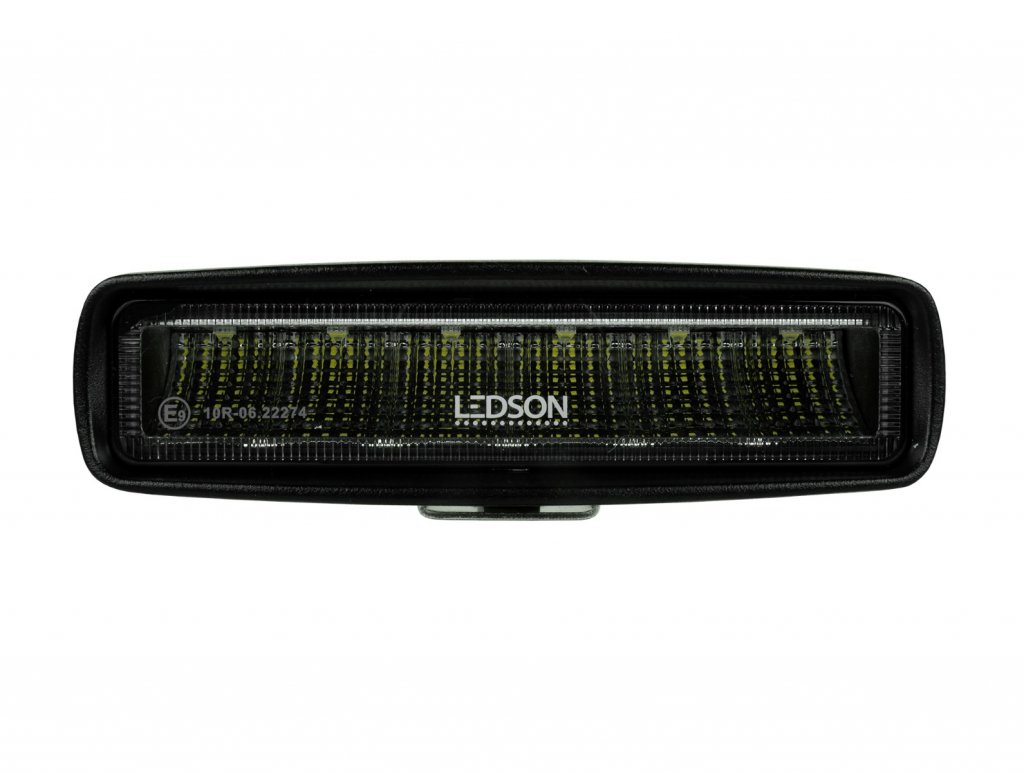

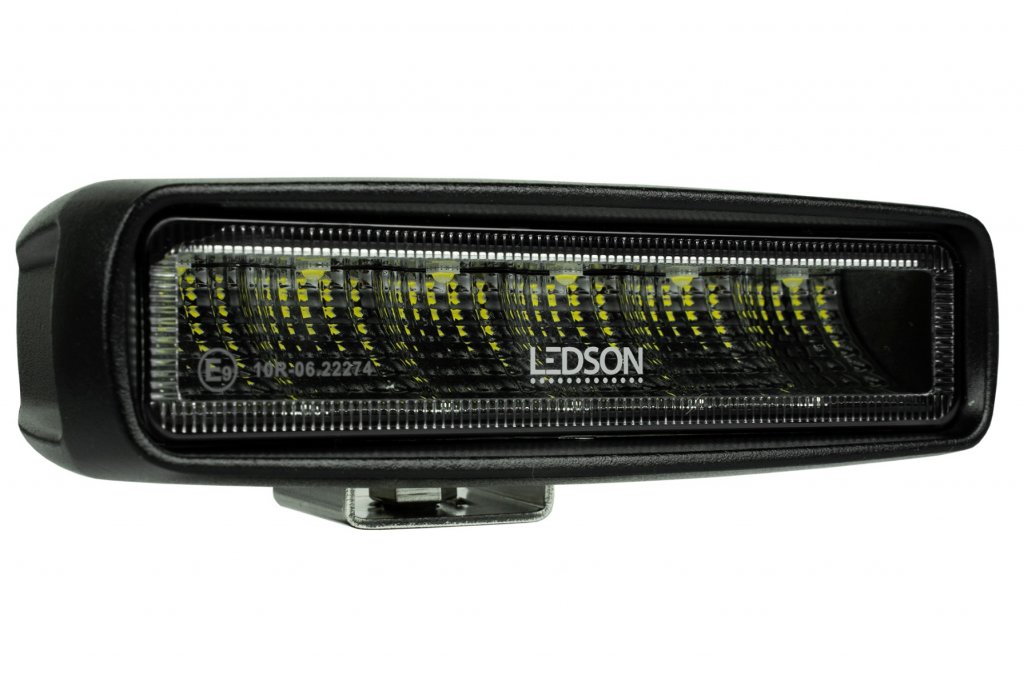

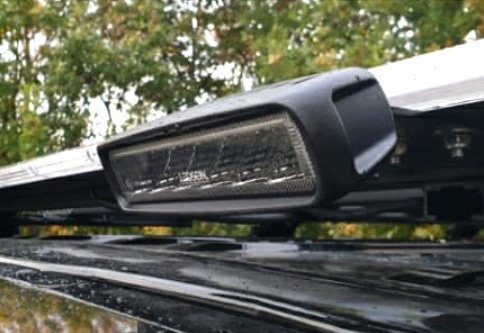

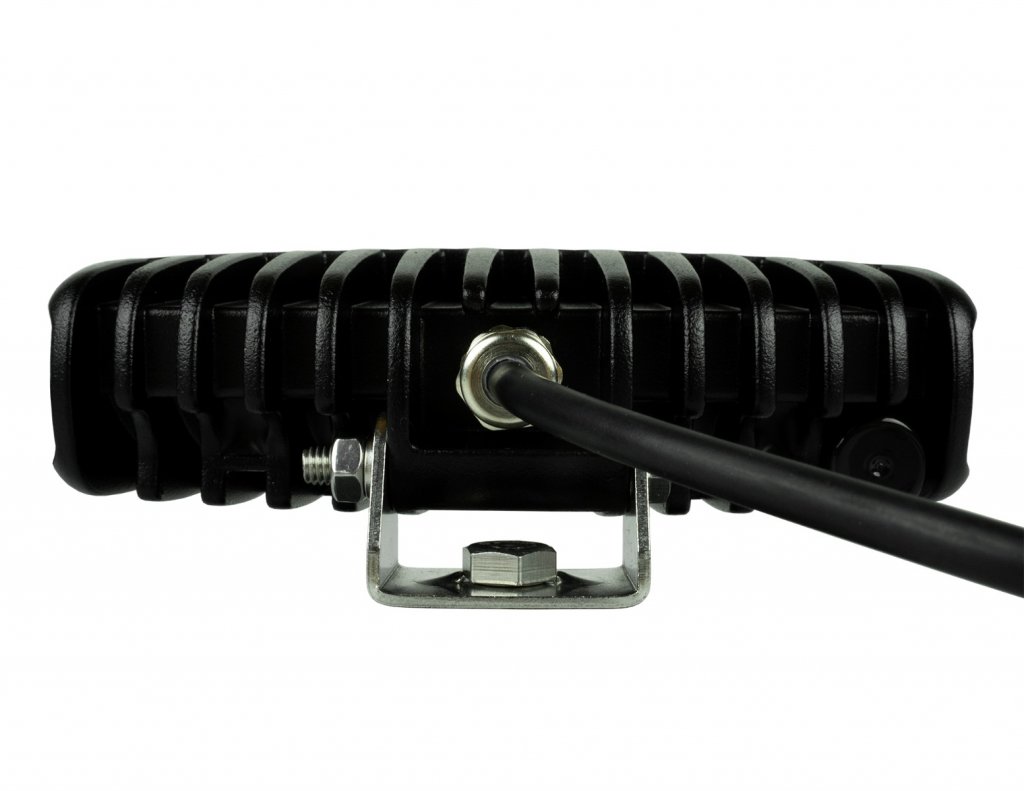

LEDSON Raptor 30F is designed for surface mounting. A discreet appearance while providing a bright backlight or work light. The range is 54 m at 1 lux brightness.

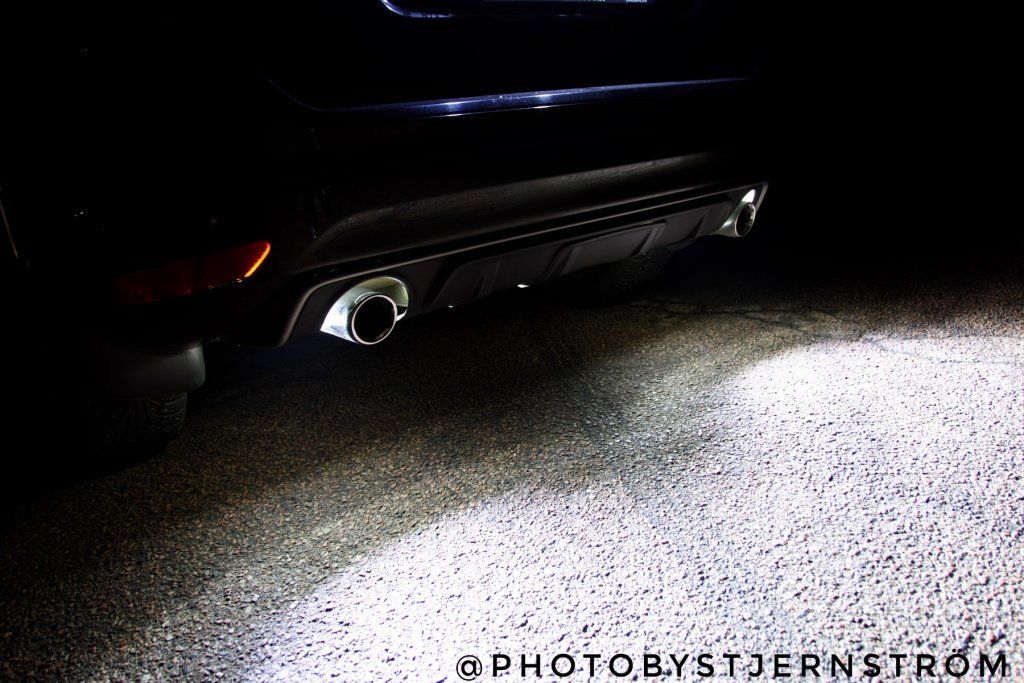

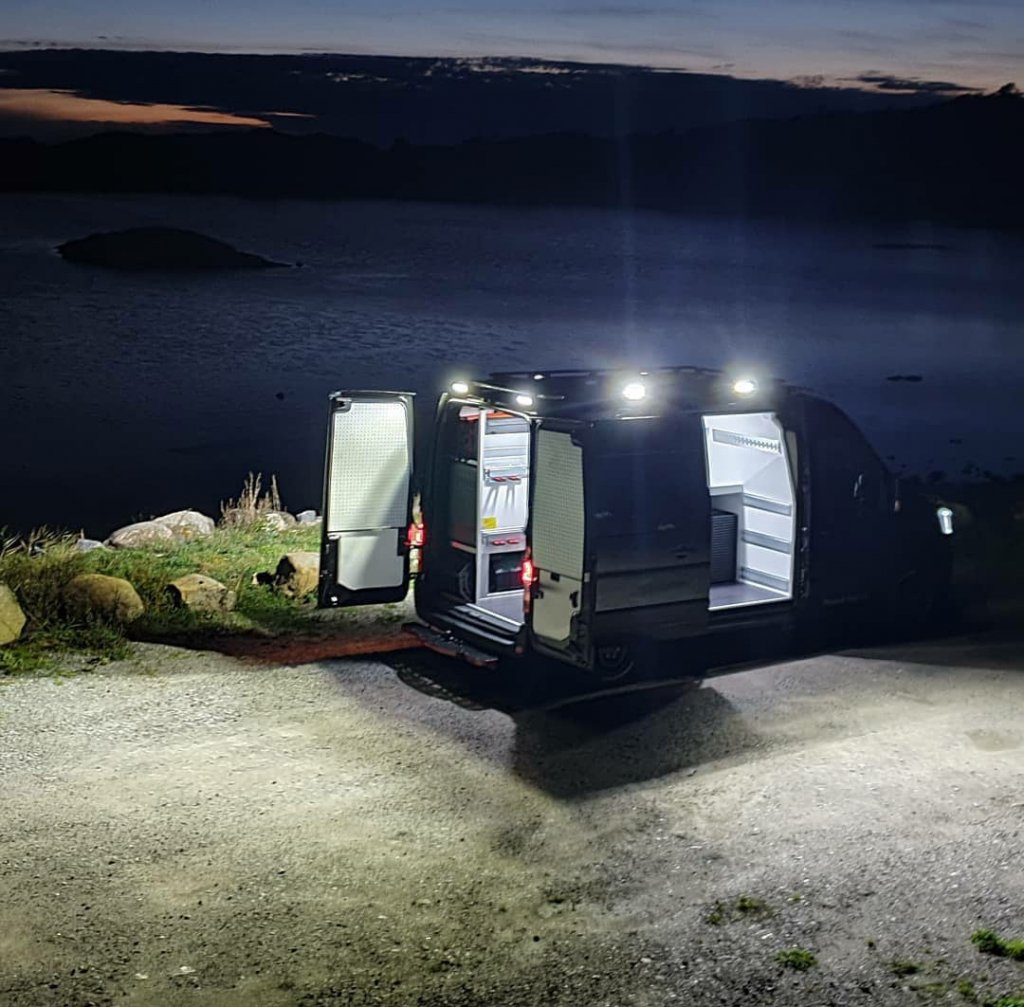

Can be used both as a reversing light or as a work light DT cable included.
E-approved: ECE R148 - Approved for use as a reversing light.
- Wide light pattern (flood)
- ECE R148 (previously R23) - Approved as a reversing light
- ECE R10 (EMC protected)
- 2520 theoretical lumens, 2259 actual lumens
- Cool white light (5700K)
- 6 inches
- 6 x 5 W Osram LED (total 30W)
- IP67 (water/dust proof)
- 10-32 V
Dimensions & weight
- Width: 158 mm
- Height: 48 mm (incl. bracket)
- Depth: 63 mm
- Weight: 470 grams
- Cable length: 420 mm
Supplied individually
- The DT connector must not be cut, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.
