LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam

  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
  • LEDSON Helix Task/Backlight with built-in flashlight - 32W, wide beam
Item ID:  33492418
€95
Incl. VAT
Available
Available in external warehouse | Ships within 1-4 business days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days
Product Description:

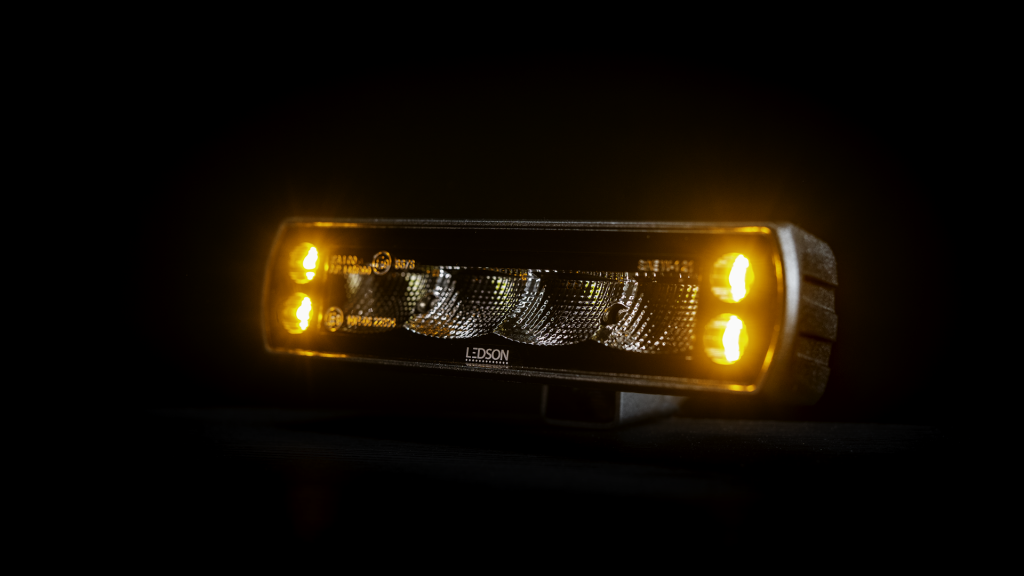

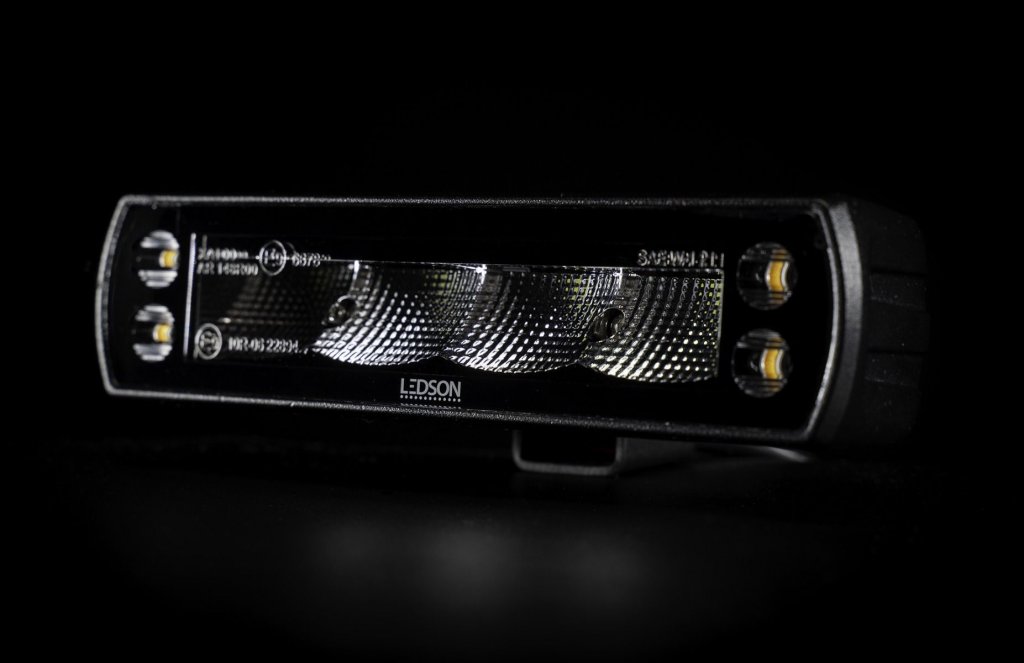

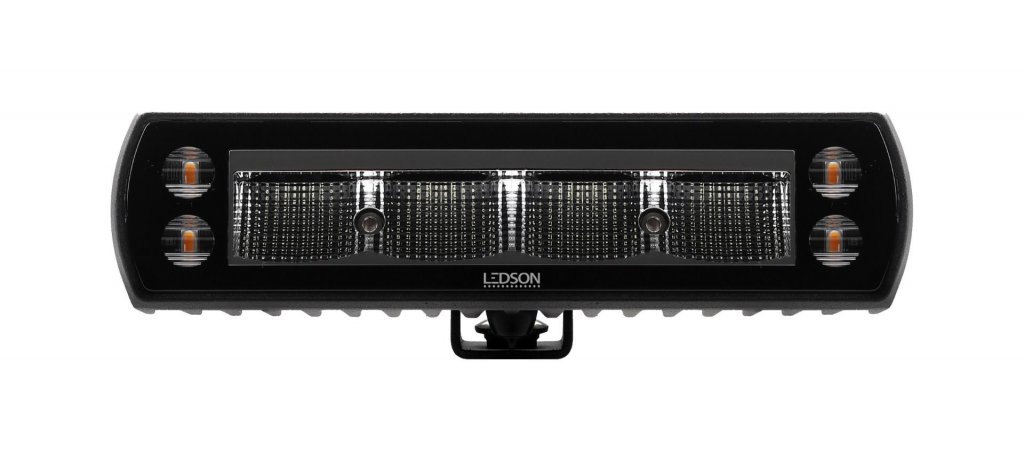

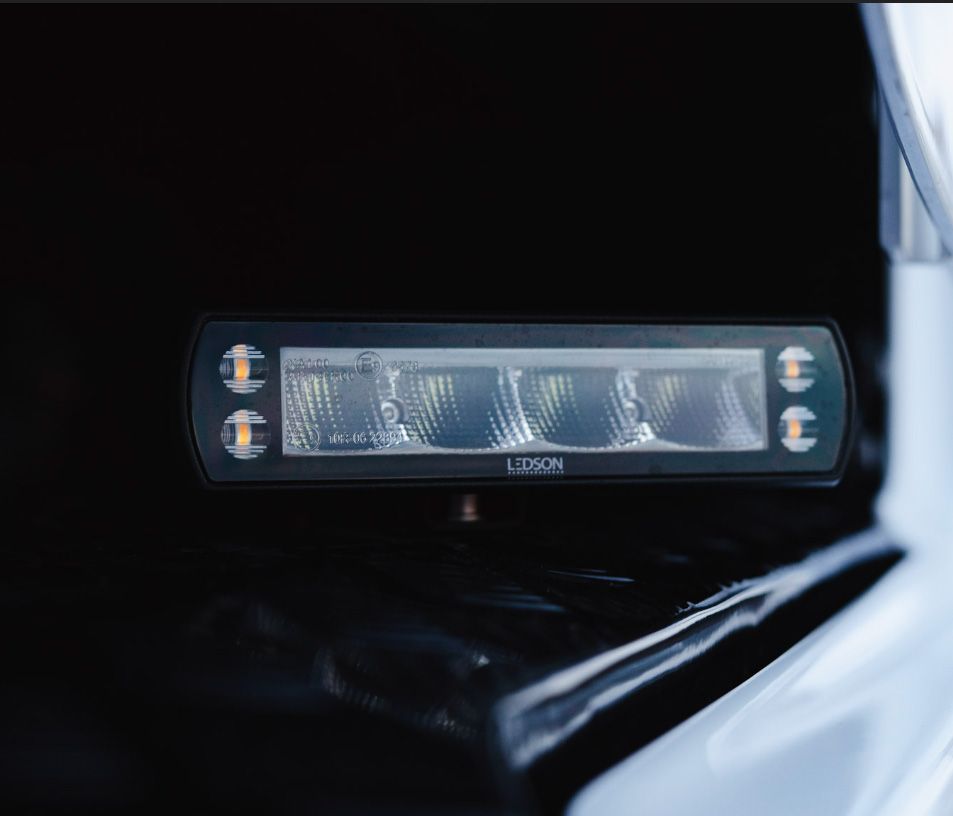

LEDSON Helix is an E-marked reversing light that, in addition to lighting up properly behind you, also has an approved flash light. With two functions in one product, you save space on the vehicle and simplify your installation!

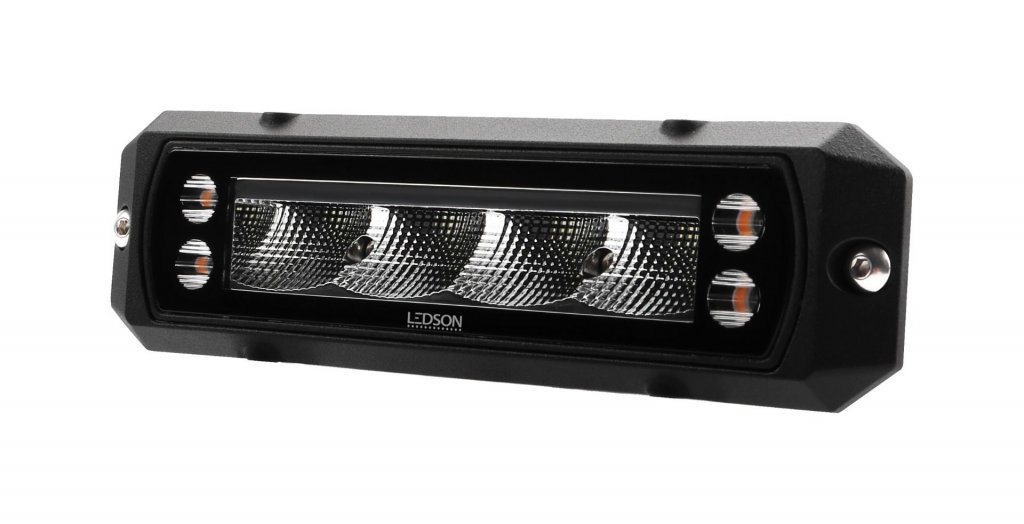

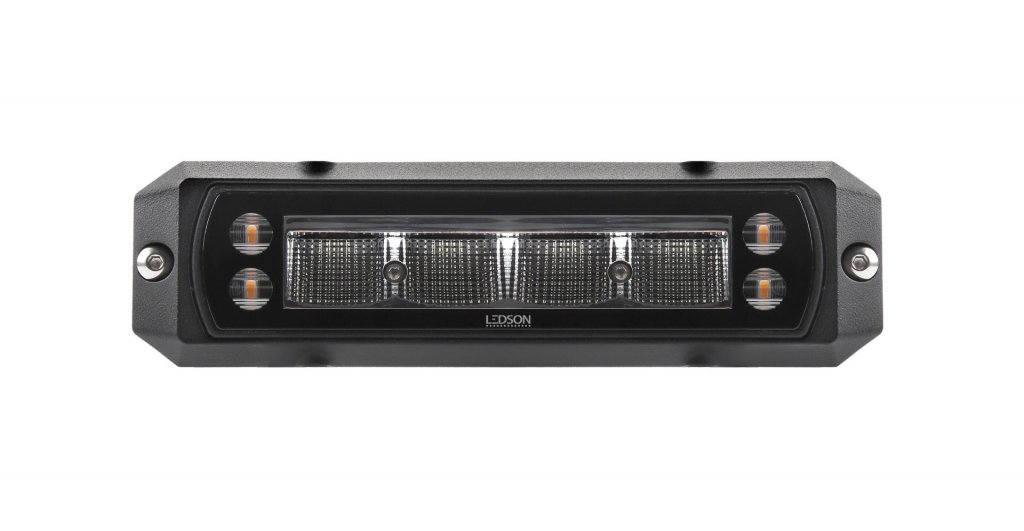

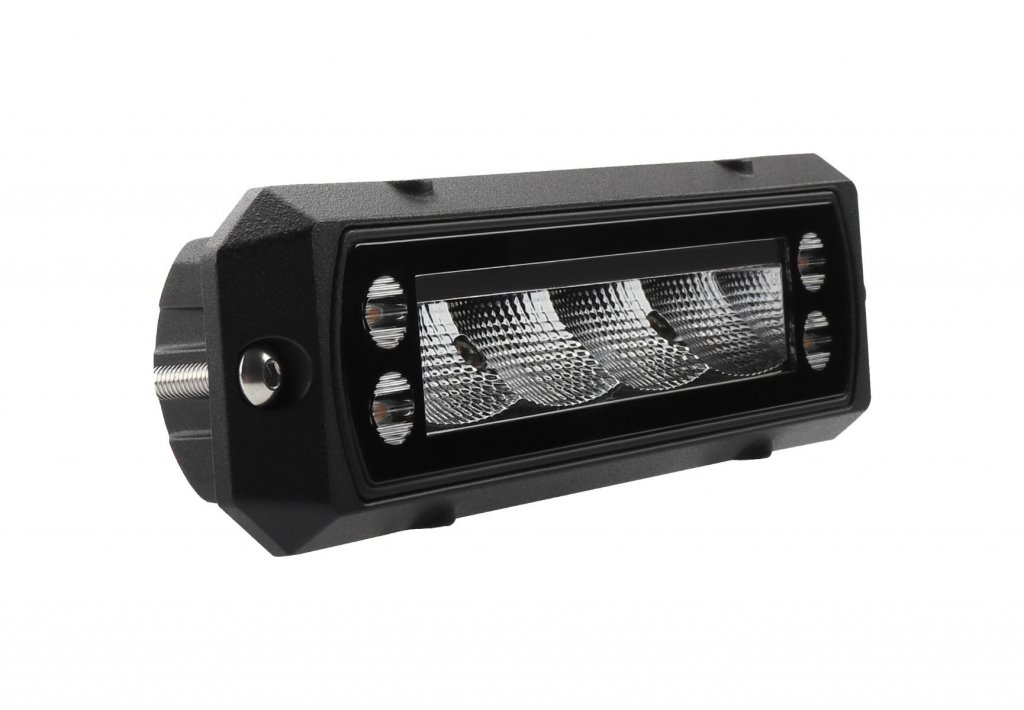

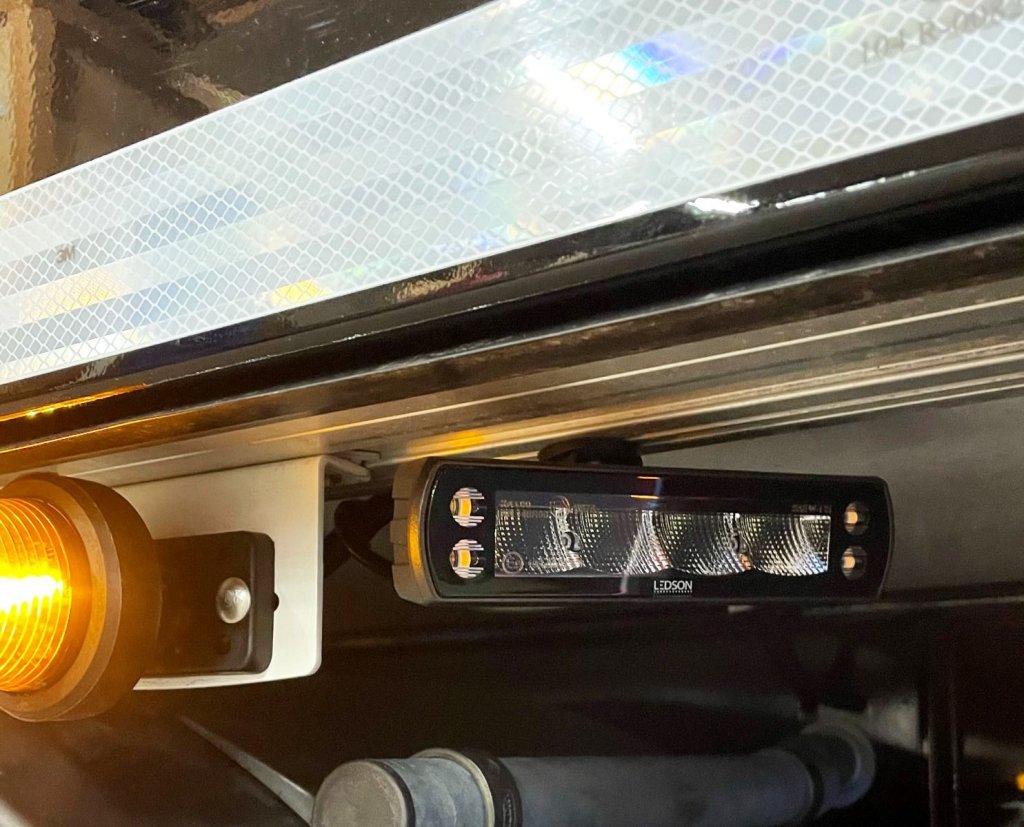

Helix can be mounted standing, hanging or recessed.

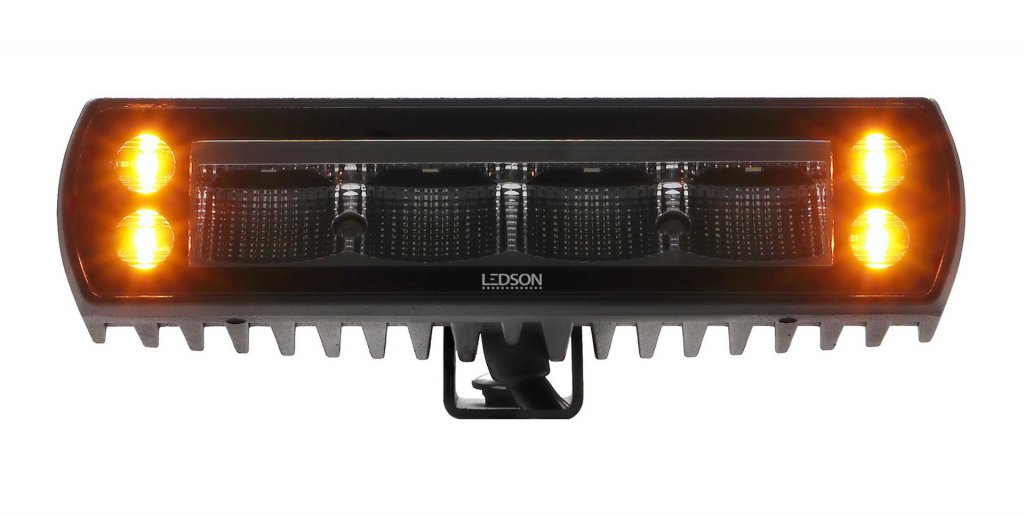

  • E-marked reversing light equipped with approved flashing light
  • ECE R23, R65, R10, CISPR25 class 3

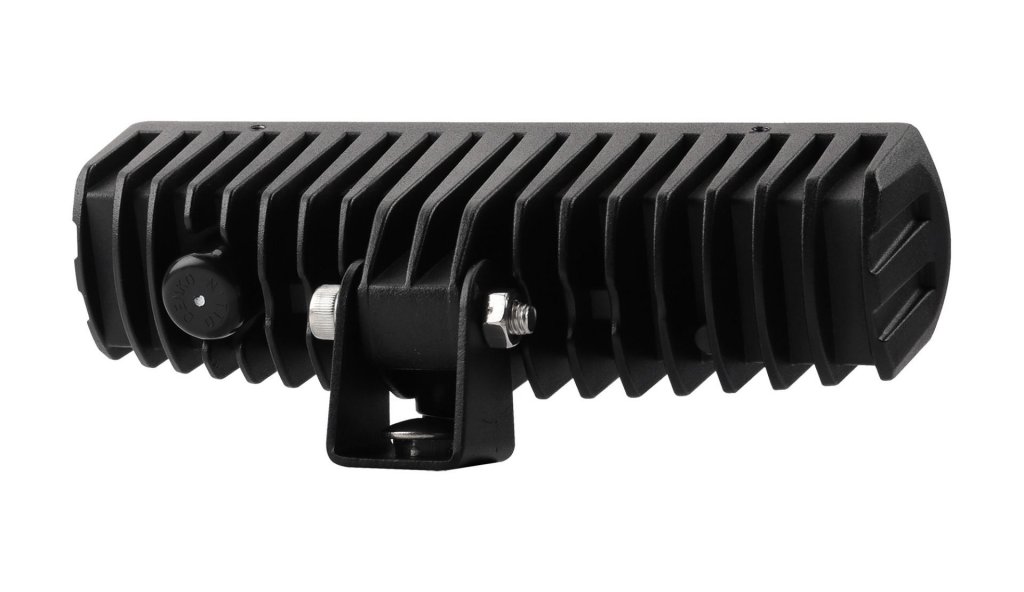

  • Includes bracket for vertical / hanging & recessed mounting

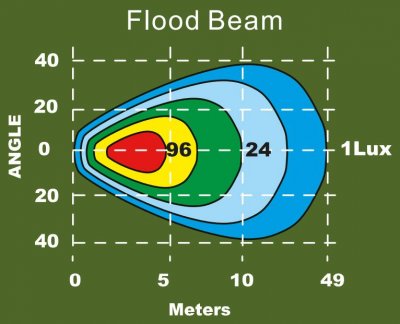

  • Flood light pattern (wide light)
  • Lumens: 3200 (theoretical), 2700 (actual)
  • Side reflecting optical system

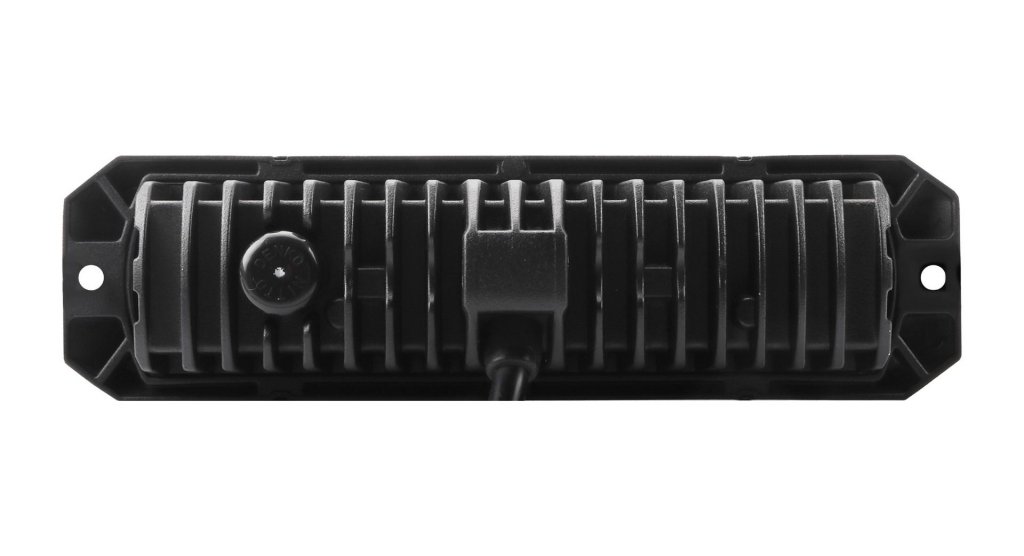

  • Electronic thermal management
  • Cool white light (6000K)

Technical data

  • 4 x 8 W LED (reversing light) + 4 x 3 W LED (flash light)
  • Load 1.9 A at 12 V and 1 A at 24 V
  • IP69K (water/dust proof)
  • Voltage 9-36 V
  • Fitted 4-pin DT connector on cable to prevent moisture ingress
  • Includes DT female connector

Dimensions & weight

  • Width: 164 mm
  • Height: 41 mm excl. bracket
  • Depth: 61 mm
  • Cable length: 30 cm
  • Weight: 393 g

Installation instructions for cables (detailed installation instructions included)

  • Red: reversing light (+)
  • Black: Reversing light (- earth)
  • Yellow: Warning/flash light (+)
  • Green: Sync (+) Connection when using several lights simultaneously
  • The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Supplied individually
