CISPR25 Class 4 & R10 rated LED work light gives it an extremely strong EMC protection! Bug Eye lens, IP68/IP69K, Electronic Thermal Management (ETM), 3102 actual lumens provide 1 lux at 64 meters. Or 103 lux at 5 meters!
With an attractive design that definitely does not harm the overall impression!
Features include
- Bug Eye lens
- EMC secured CISPR25 Class 4 & R10
- 60° river light image (wide light)
- Lumens: 3650 (theoretical), 3102 (actual)
- Cool white light (6000K)
- Range 128 m (0.25 lux), 64 m (1 lux)
Technical data
- 24 x 1.5 W Lumiled LEDs
- IP68 & IP69K: water/dust proof, hot water and chemical resistant
- 2.2 A at 12 V and 1.1 A at 24 V
- Electronic Thermal Management (ETM)
- Aluminum housing
- Polycarbonate lens
- Built-in DT switch
Dimensions & weight
- Width: 107 mm
- Height: 100 mm (129 mm incl. bracket)
- Depth: 48 mm
- Weight: 496 grams

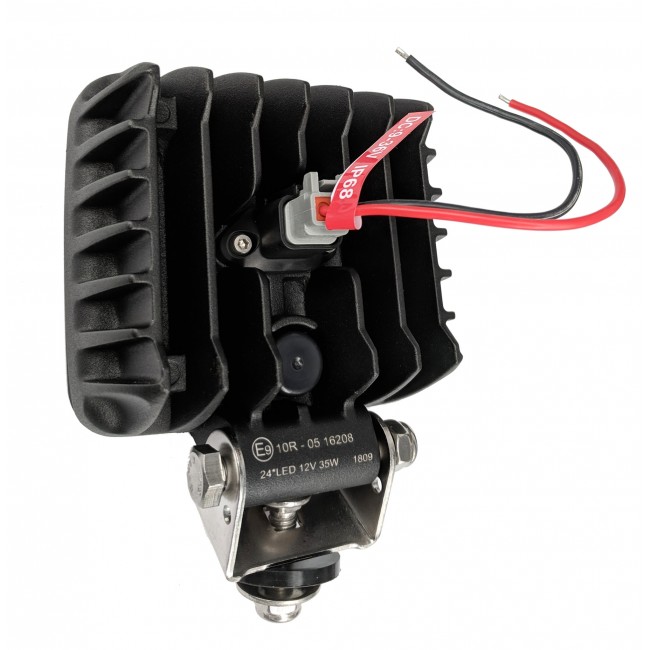

Installation instructions for the cables (detailed installation instructions included in the package)
- Red: Plus (+)
- Black: Minus (-)
Delivered individually
