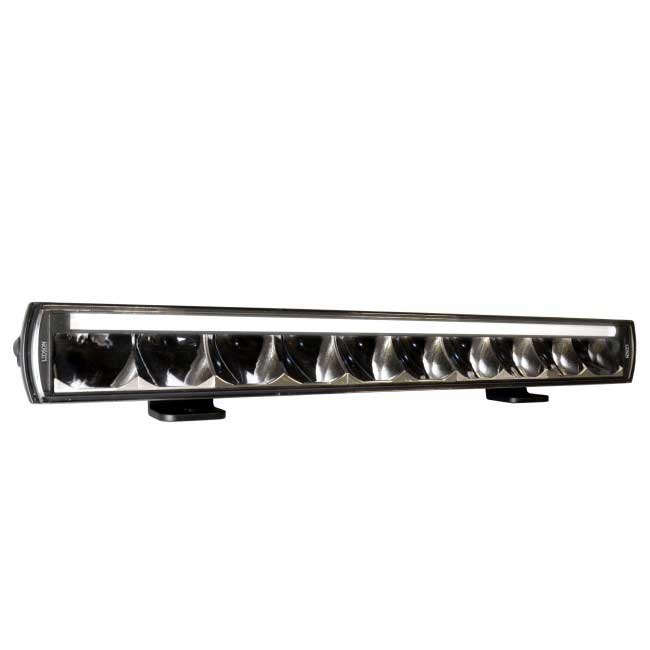

LEDSON Titan LED Ramp - 516 mm (20.5"), 100W, 10-30V | With position light

LEDSON Titan LED Ramp 516 mm (20.5")

Item ID: 33491010

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

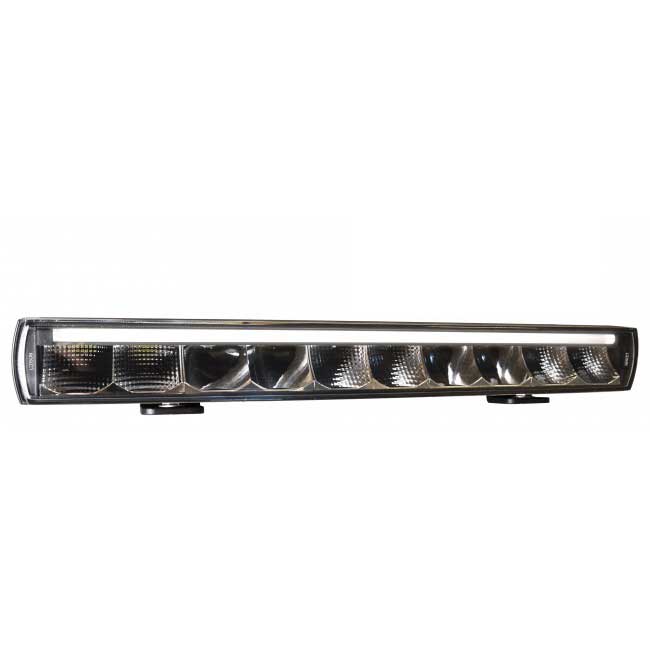

LEDSON TITAN DRIVE

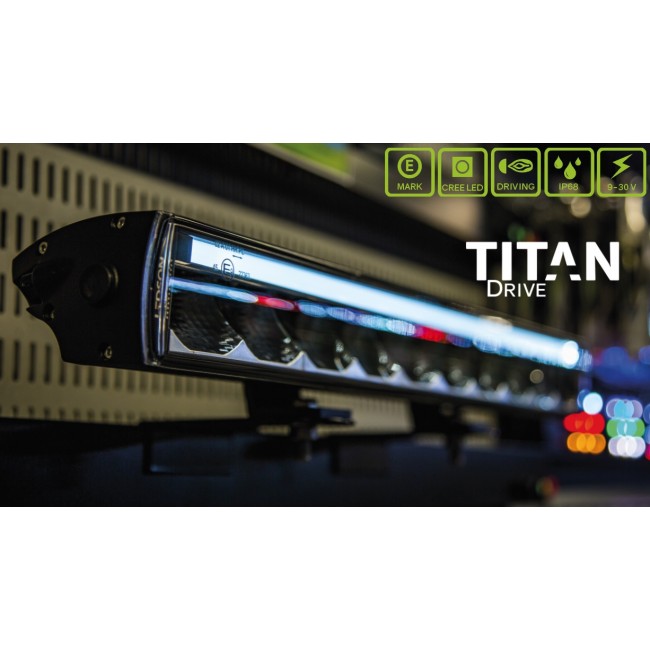

Titan Drive is for those who want a solid and stylish LED ramp that is E-marked ECE R112/R7 and enhances the car's low/high beam image in an optimal way thanks to its Driving beam light image. As a big plus, it is equipped with a position light that emits a soft but distinctive light.

In short, it makes you look good during the day and good at night!

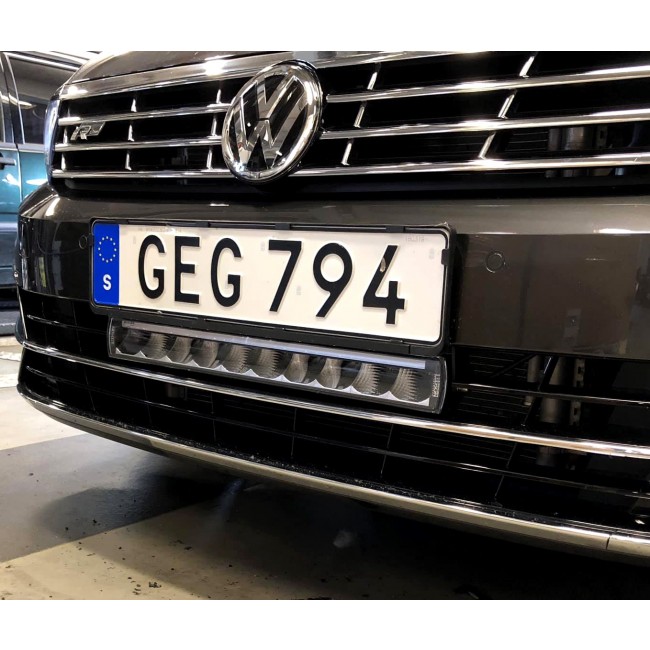

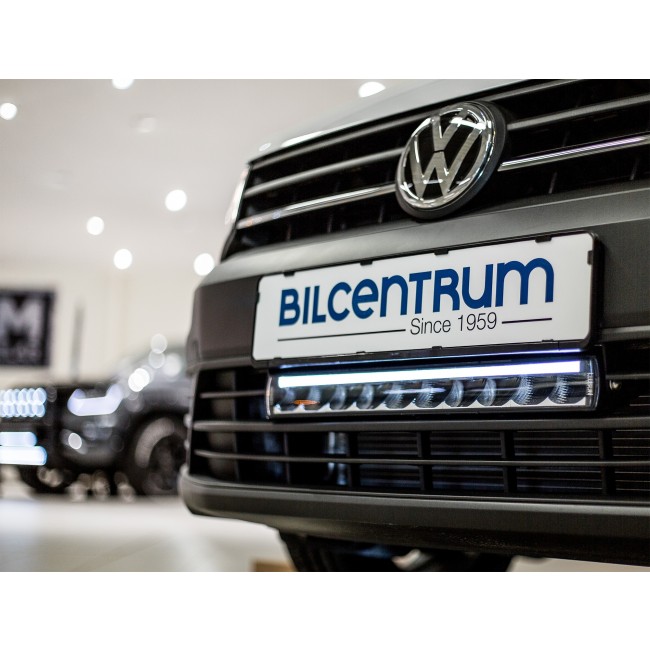

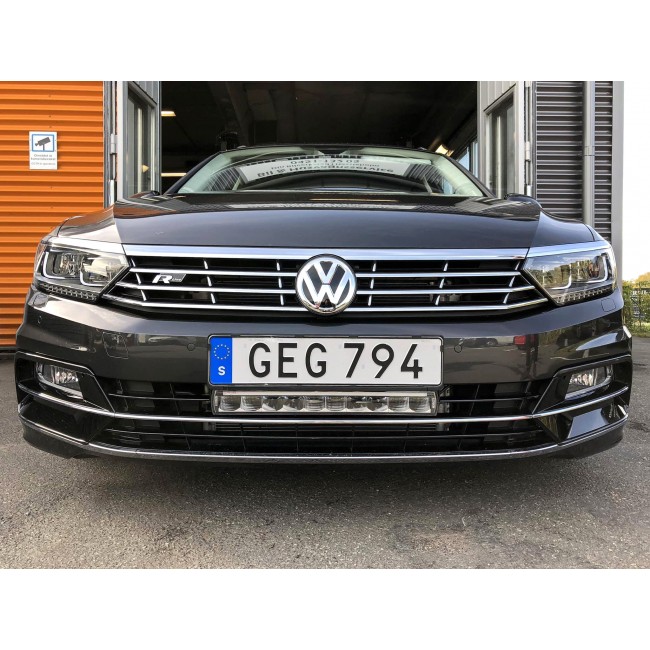

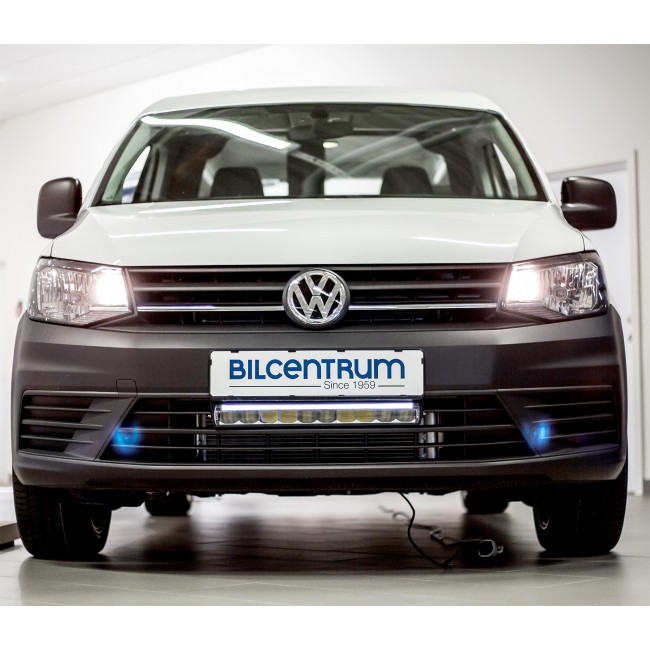

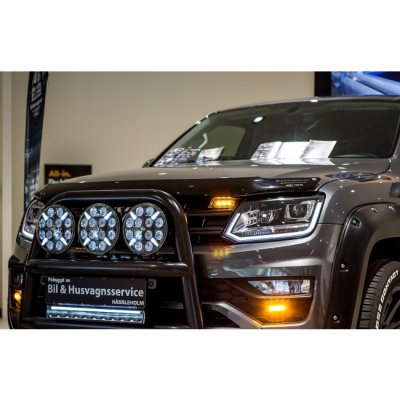

Titan comes with 3 different mounting options! Easily place above or below the license plate:

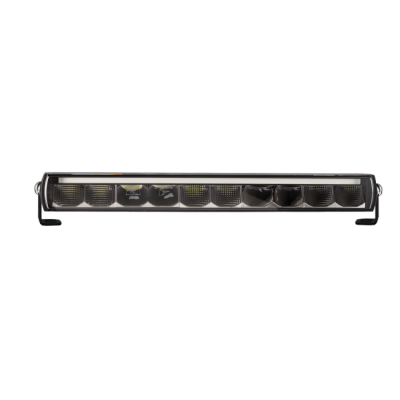

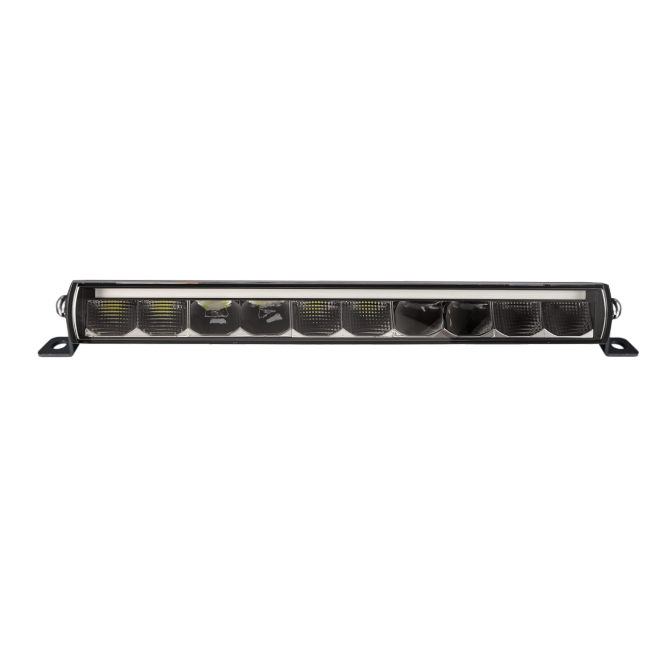

Side mounted legs that rotate around their own axis to angle the ramp

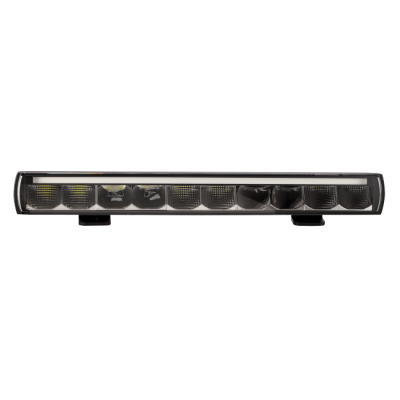

Standing sliding, rear-mounted brackets that adjust along the entire length of the ramp for highly flexible mounting

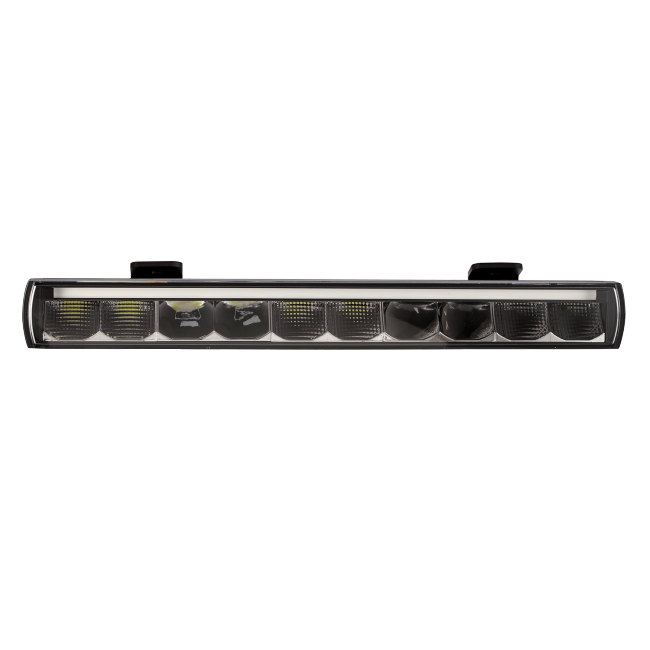

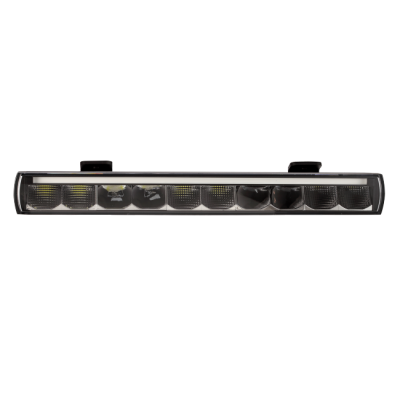

Hanging sliding rear-mounted brackets that can be adjusted along the entire ramp for a very flexible installation

Characteristics

E-marked (ECE 112, approved as an auxiliary light with reference number 45), and E-marked R7 (approved position light)
EMC-protected ECE R10 (does not disturb the radio)

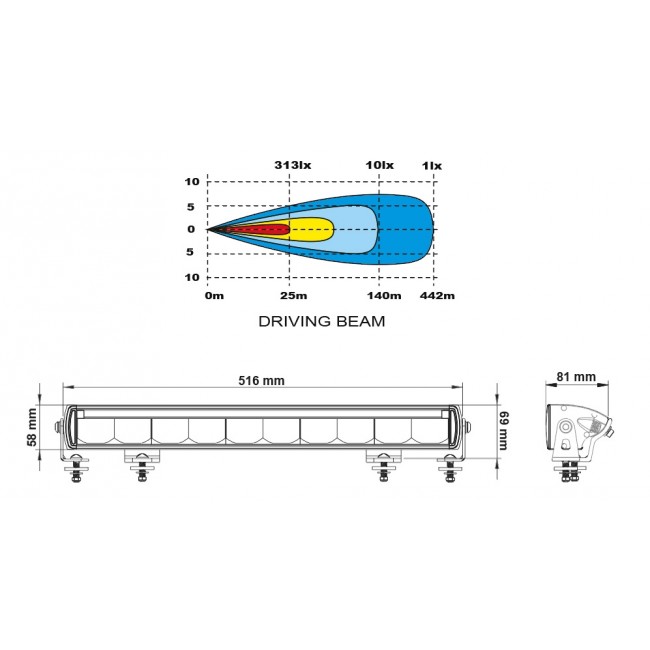

"Driving beam" light pattern (wide and oblong)
9500 lumens (theoretical), 8075 lumens (actual)
Color temperature 6500K (cool white)
Driving range 885 m (0.25 lux), 442 m (1 lux)
Range Spot 1154 m (0.25 lux), 577 m (1 lux)
3 x brackets: standing sliding, hanging sliding, side mounted legs

Technical data

100 W (10 x 10 W Cree LED)
IP68 (water/dust proof)

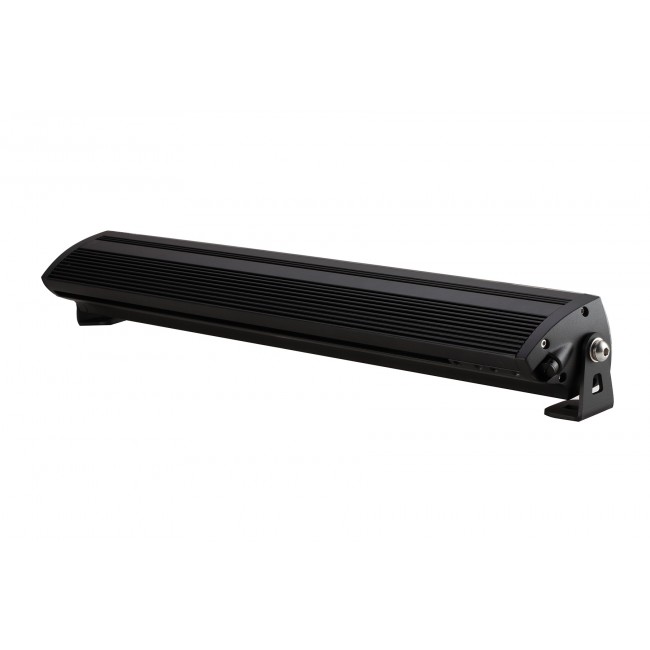

Aluminum housing and polycarbonate lens
Side reflective optics
Electronic thermal management
6.5 A at 12 V and 3.25 A at 24 V
Pressure equalization diaphragm

What is included in the package?

Titan Drive LED ramp
Side-mounted legs
Sliding brackets (standing/hanging)
Bolts and screws to fix the ramp to the appropriate surface
DT connector (3-pole)
Installation instructions

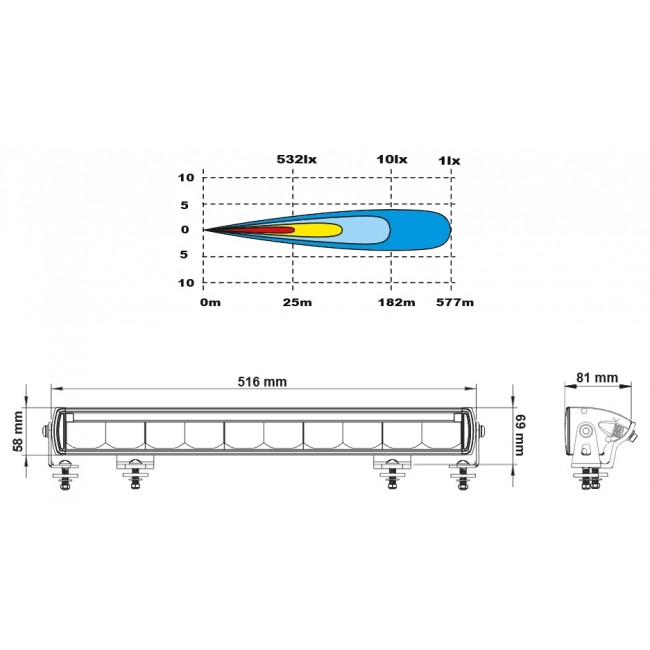

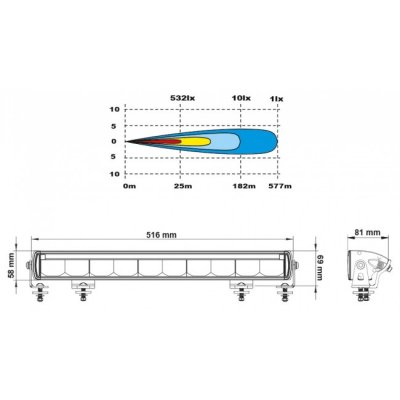

Dimensions of the ramp

Width: 516 mm
Height: 58 mm
Depth: 81 mm
Weight: 1.63 kg

The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Delivered individually
