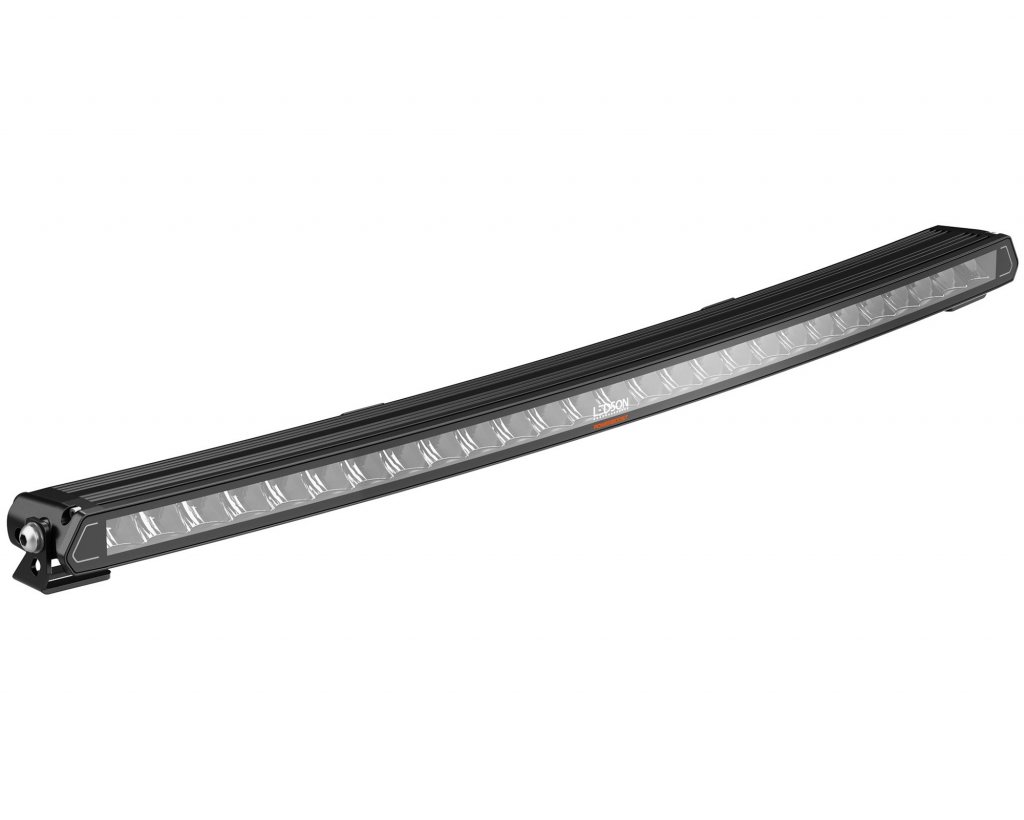

Enhance your driving experience with the EPIX31 Slim Curved LED Ramp 31" 162W, a premium lighting solution that combines an ultra-compact design with formidable output. Specifically engineered to match the natural curves of modern vehicle fronts, this 31-inch light bar offers a seamless and integrated appearance. The curved construction (approx. 7°) is not just about aesthetics; it naturally disperses light wider towards the sides of the road compared to straight bars, providing superior situational awareness in dark conditions.
Advanced Powerboost and Driving Beam Technology
The EPIX31 Slim Curved features the next generation of Powerboost technology. This pulse-controlled system allows you to easily switch between a street-legal E-approved mode and a high-intensity Powerboost mode for off-road or maximum visibility needs. When activated, the bar delivers a massive 11,000 actual lumens and reaches a distance of 572 meters at 1 lux. The Driving Beam pattern is meticulously calibrated to mimic and enhance your vehicle's factory high beams, ensuring a clean and effective light distribution without dark spots.
Technical Specifications and Features
- Design: Curved profile (approx. 7°) for universal fitment
- Light Pattern: Driving Beam with optimized width
- Range (Powerboost): 572 m @ 1 lux
- Range (E-mode): 462 m @ 1 lux
- Luminous Flux: 14,600 Theoretical / 11,000 Actual lumens (Powerboost)
- Wattage: 162W (27 x 6W LEDs)
- Color Temperature: 5000K (Neutral white)
- Voltage: 9-36V
- IP Rating: IP69K (Water and dust proof)
- Approval: E-marked R149 (ref. 50), R10 (EMC)

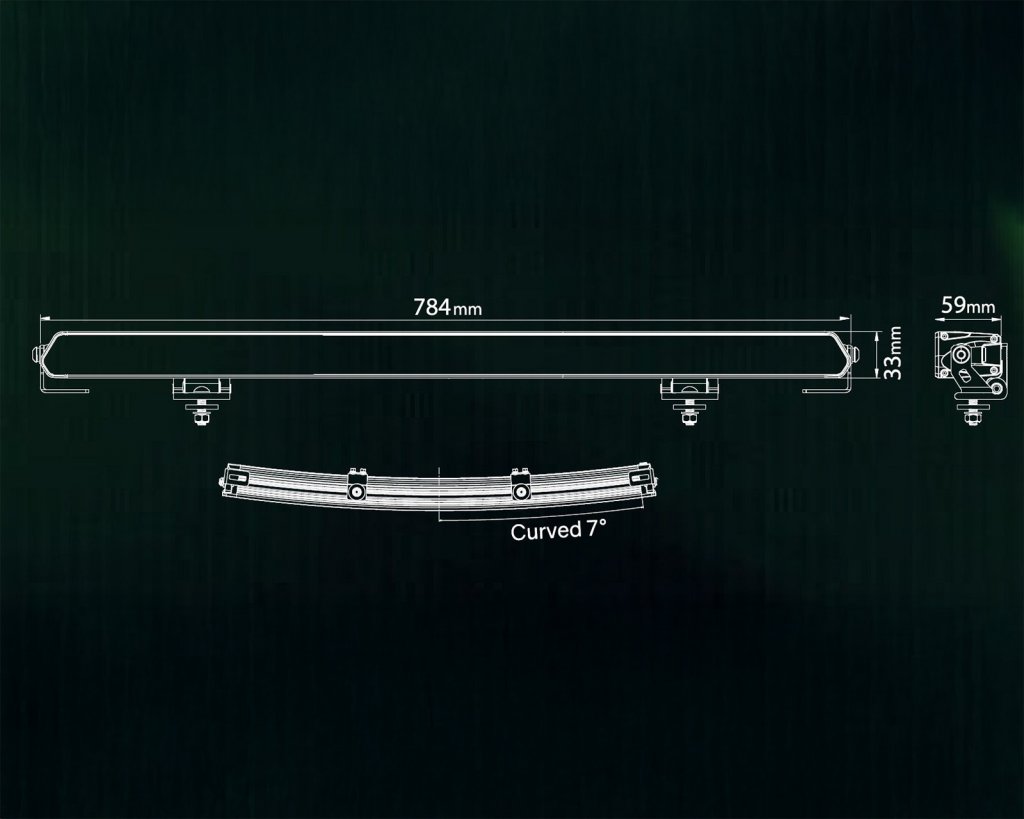

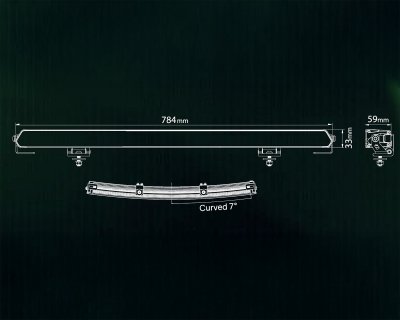

- Width: 784 mm
- Height: 33 mm
- Depth: 59 mm
- Housing: Aluminum with Polycarbonate lens
- Optics: Side-reflecting optics and pressure equalization membrane
- Thermal Management: Electronic heat control
- Connector: 2-pin DT connector included
The EPIX31 Slim Curved is built to withstand toughest environments, featuring a rugged aluminum housing and a durable polycarbonate lens. It comes with versatile mounting hardware for side or rear installation, making it a truly universal upgrade for any vehicle requiring high-performance lighting.
