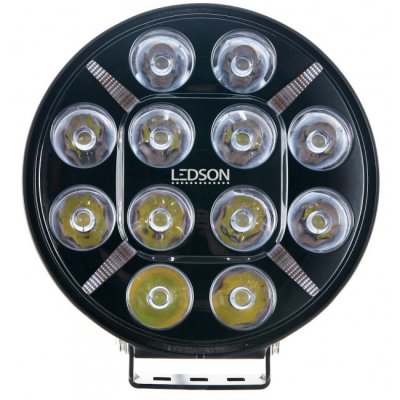

Castor7 LED Extra Light 180 mm (7") 60W

Castor7 LED Extra Light 180mm

Item ID: 33491205

Sorry - this product is currently not avaiable for purchase.

A distinctive 7" auxiliary light in modern black for those who want something crueler and tougher than the traditional "tamer" look of auxiliary lights today. Looks just as good resting as working! Comes with a full 24-month warranty

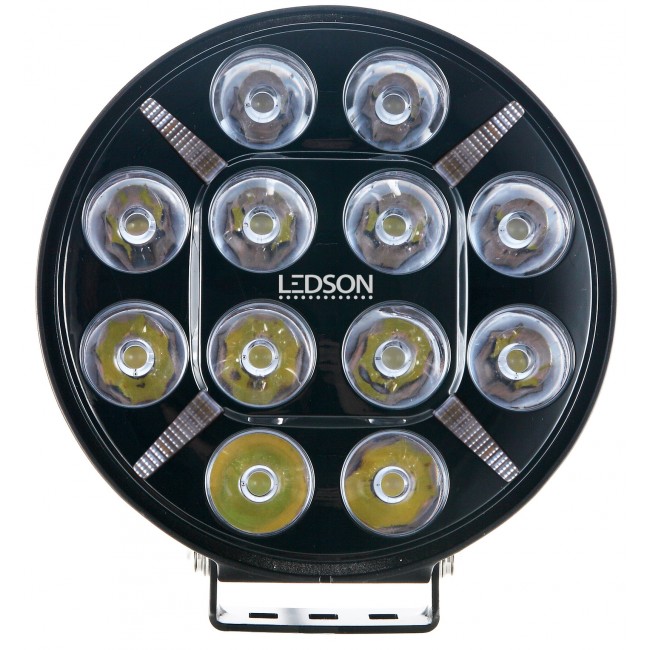

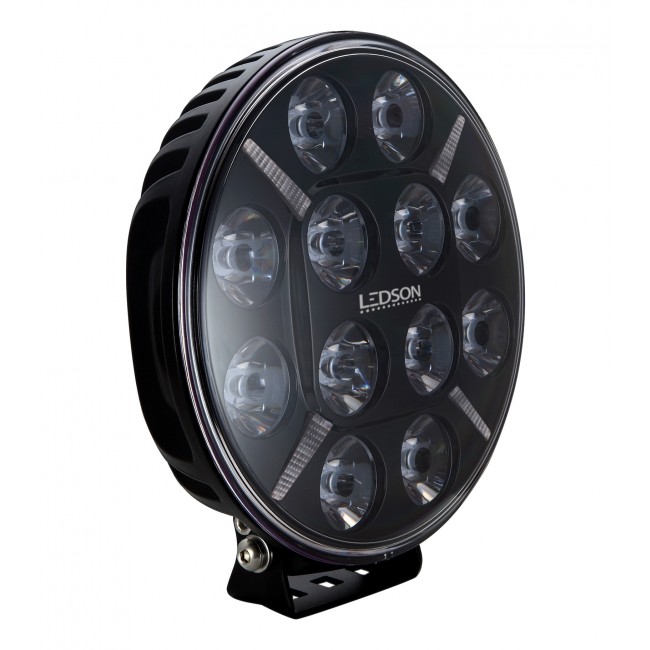

Tough black 7" LED auxiliary light with eye-catching position light!
E-marked (E8 ref.30), ECE R112 / R7 / R10
Equipped with TIR optical system (Total Inner Reflection)

Powerful LED auxiliary light with a diameter of 180 mm. The power is 60 W through 12 diodes of 5 W each. Actual luminous flux is measured at 4,590 lm.

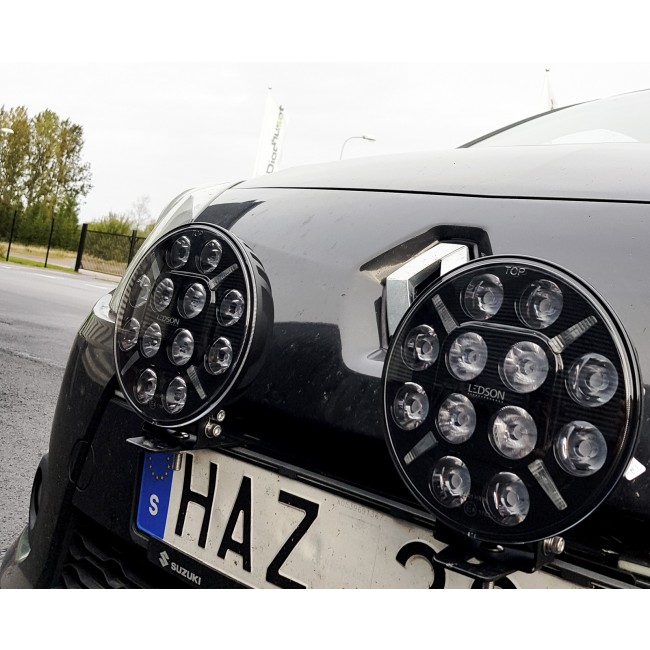

180 mm LED Auxiliary Light

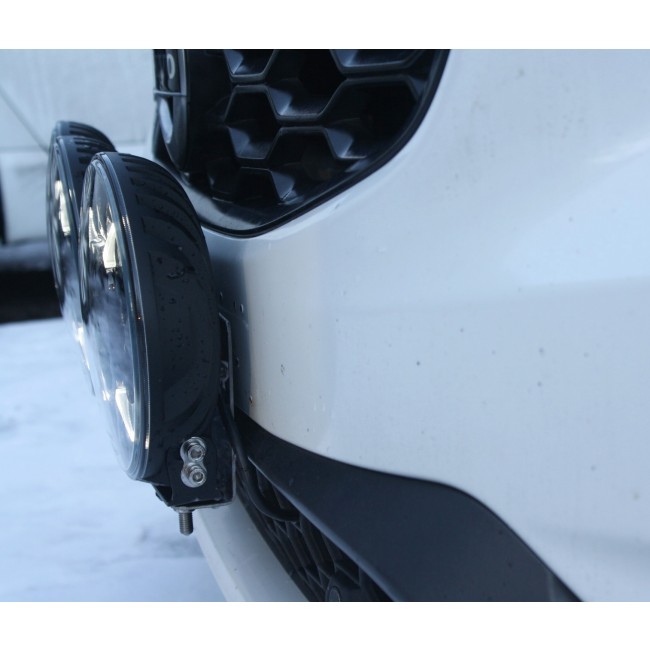

Bright 7 inch extra light with LED technology and strong bracket with included bolt. The depth is only 48 mm, which makes the extra light suitable for most applications.

Characteristics

E-marked (E8, ref. 30), ECE R112 / R7 / R10
EMC-proof (does not interfere with the radio)

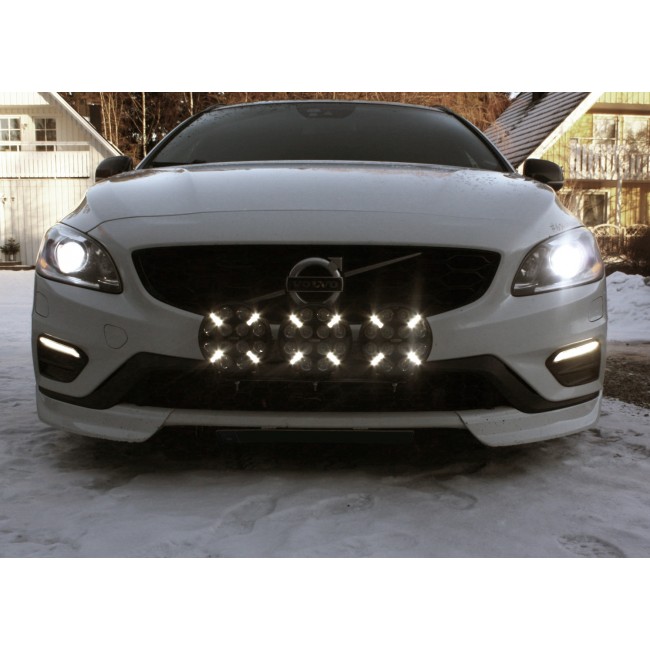

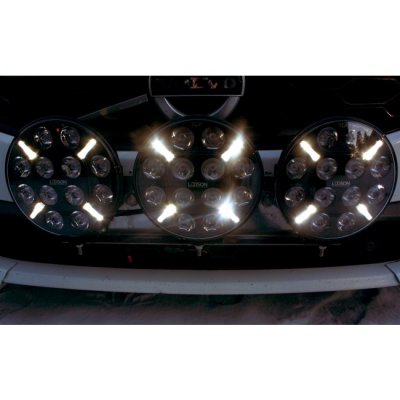

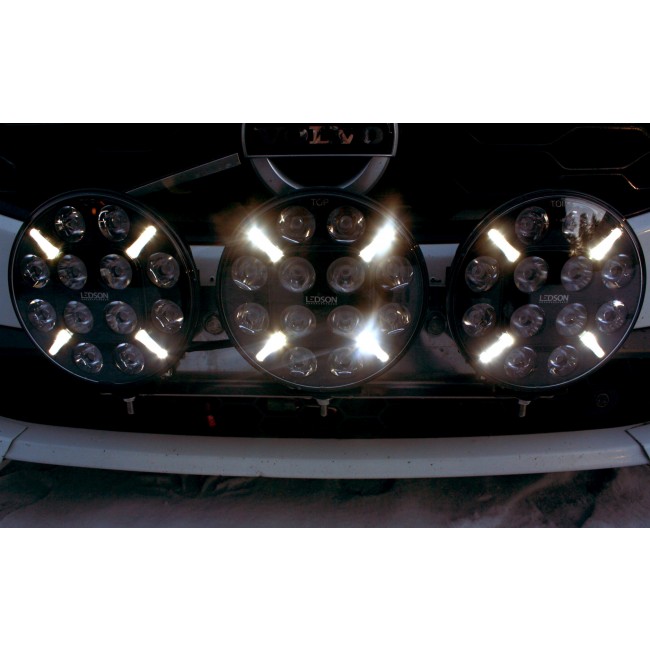

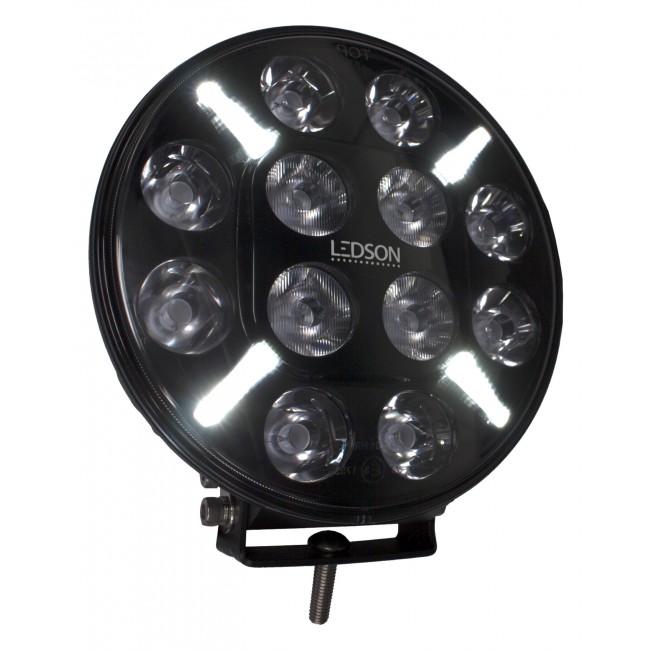

With position light (4 LEDs)

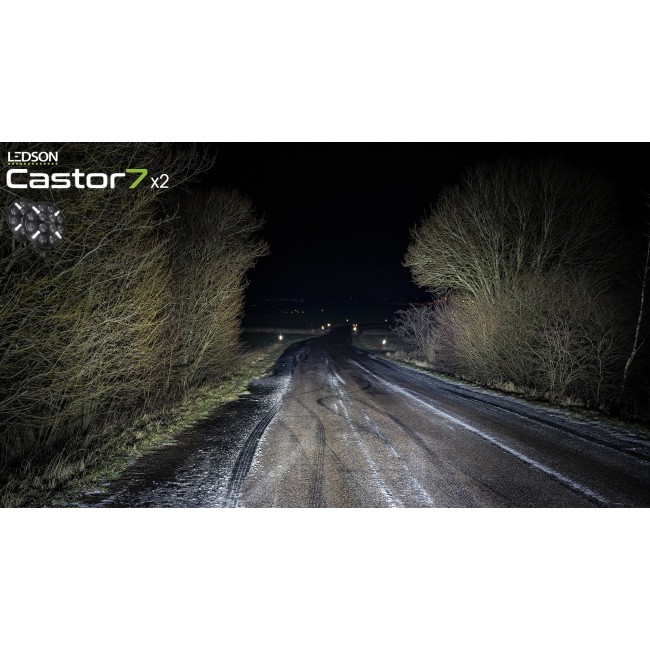

"Driving beam" light pattern (wide and oblong)
5400 lumens (theoretical), 4590 lumens (actual)
Range 760 m (0.25 lux), 380 m (1 lux)
Cool white light (6500 K)
TIR optical system (Total Inner Reflection)
Pressure equalization diaphragm
24 months warranty

Technical data

60 W (12 x 5 W LG Innotek LED)
Nominal power 50.4 W
IP68 (water/dust proof)
DT connector (included)
Electronic thermal management
Voltage 9-36 V
Load 4.2 A @ 12 V and 2.0 A @ 24 V

Dimensions and weight

Width: 180 mm
Height: 191.4 mm (incl. bracket)
Depth: 48 mm
Weight: 1.2 kg

What is included?

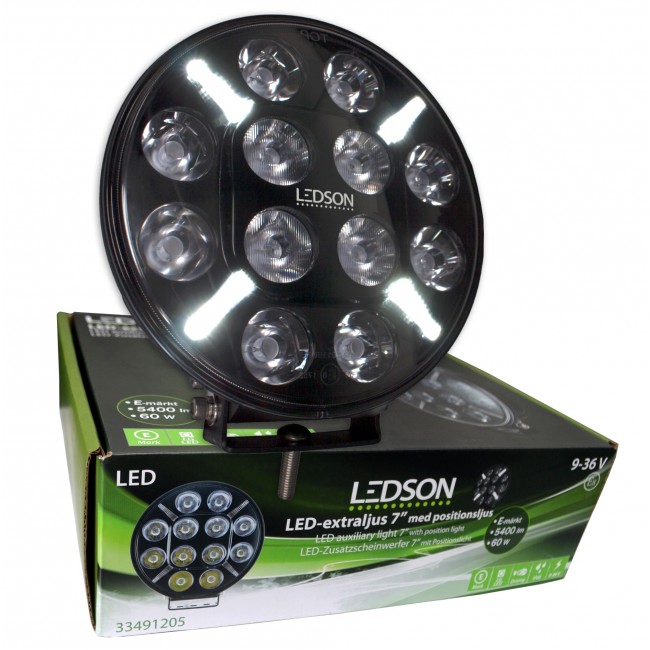

Castor7 LEDSON LED extra light 7"
Bolts and screws to fix the extra light with a centered fixing point
DT connector (3-pin)

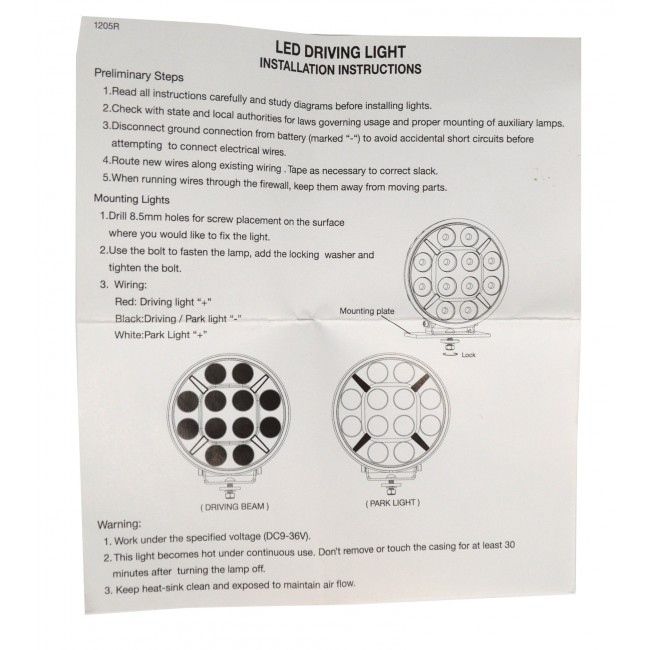

Installation instructions

Installation instructions for the cables (detailed installation instructions included in the package)

Red: Extra light (+)
Black: Extra light / Position light (- earth)
White: Position light (+)

The DT connector must not be cut off, as this increases the risk of moisture damage. Damage to the DT connector will void the warranty.
