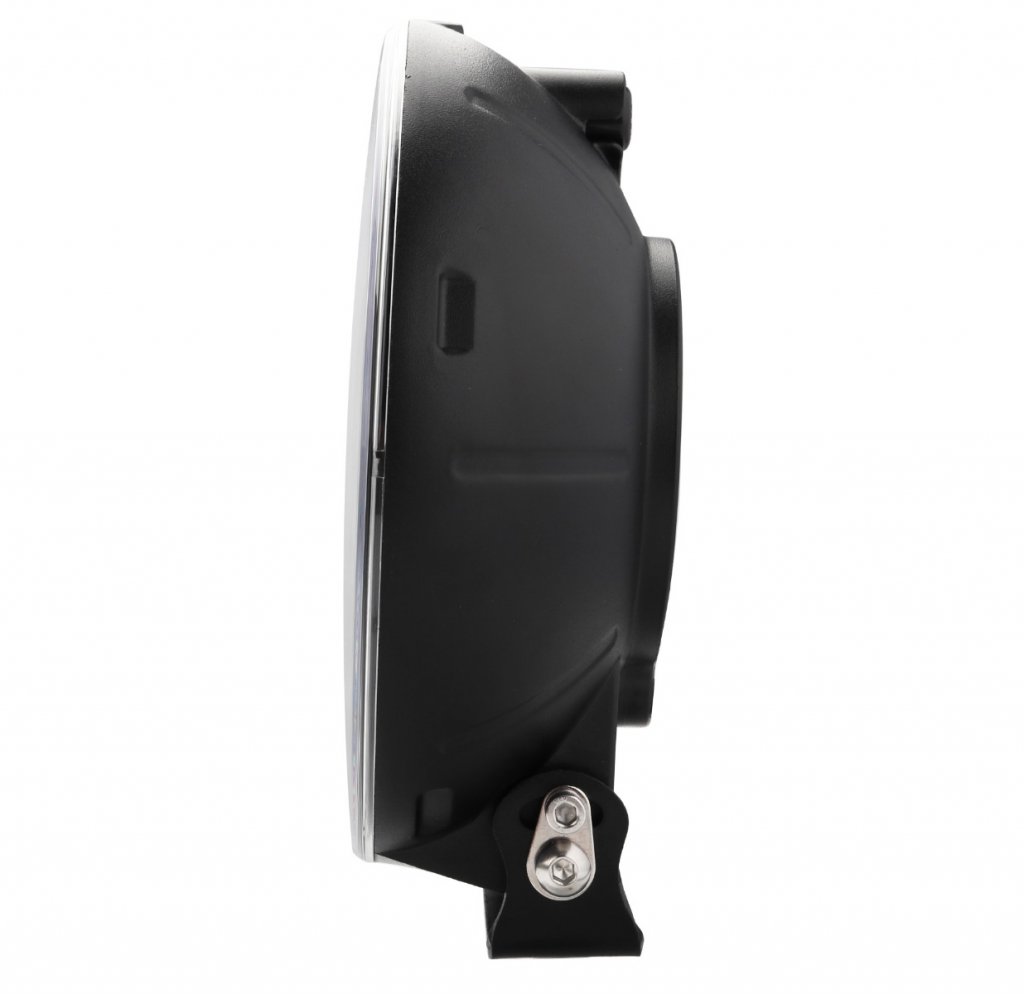

Sarox9 LED Extra Light 218 mm

Item ID: 33491220

€258

Incl. VAT

Which variant do you want?

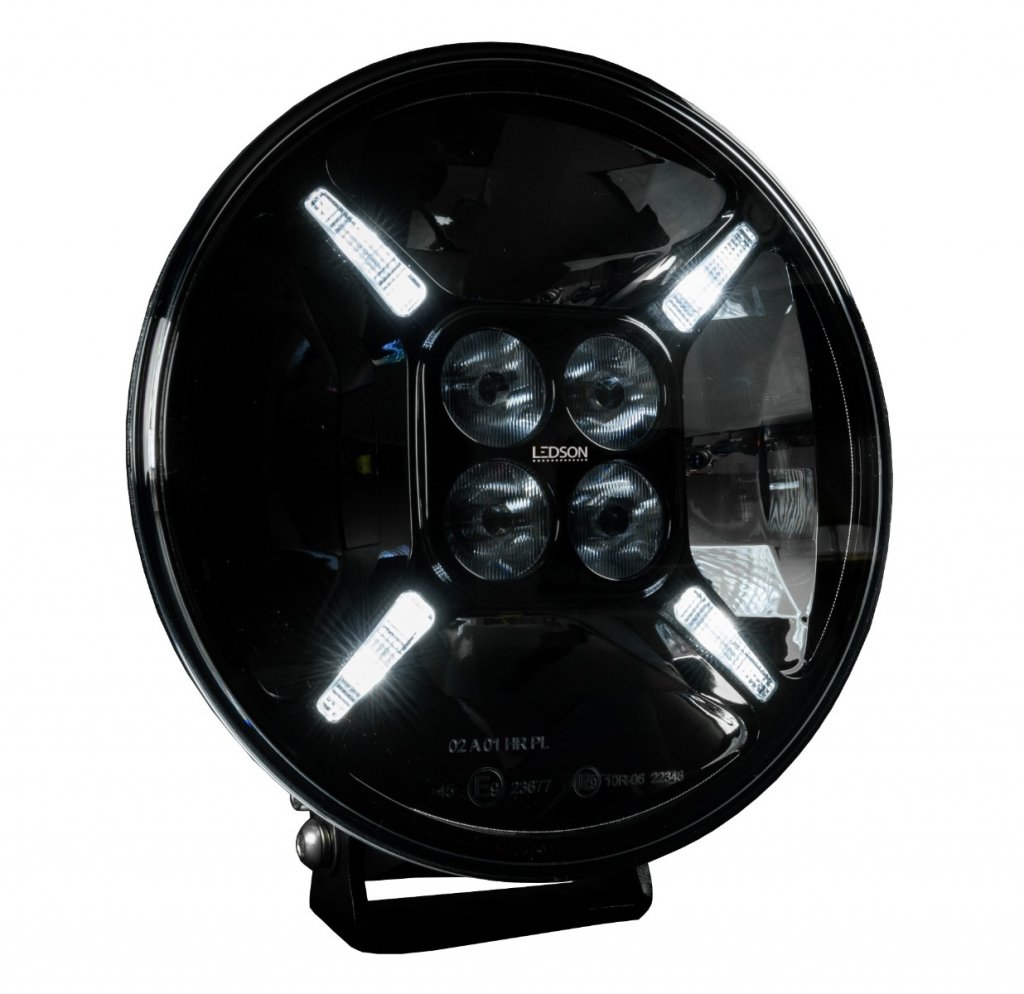

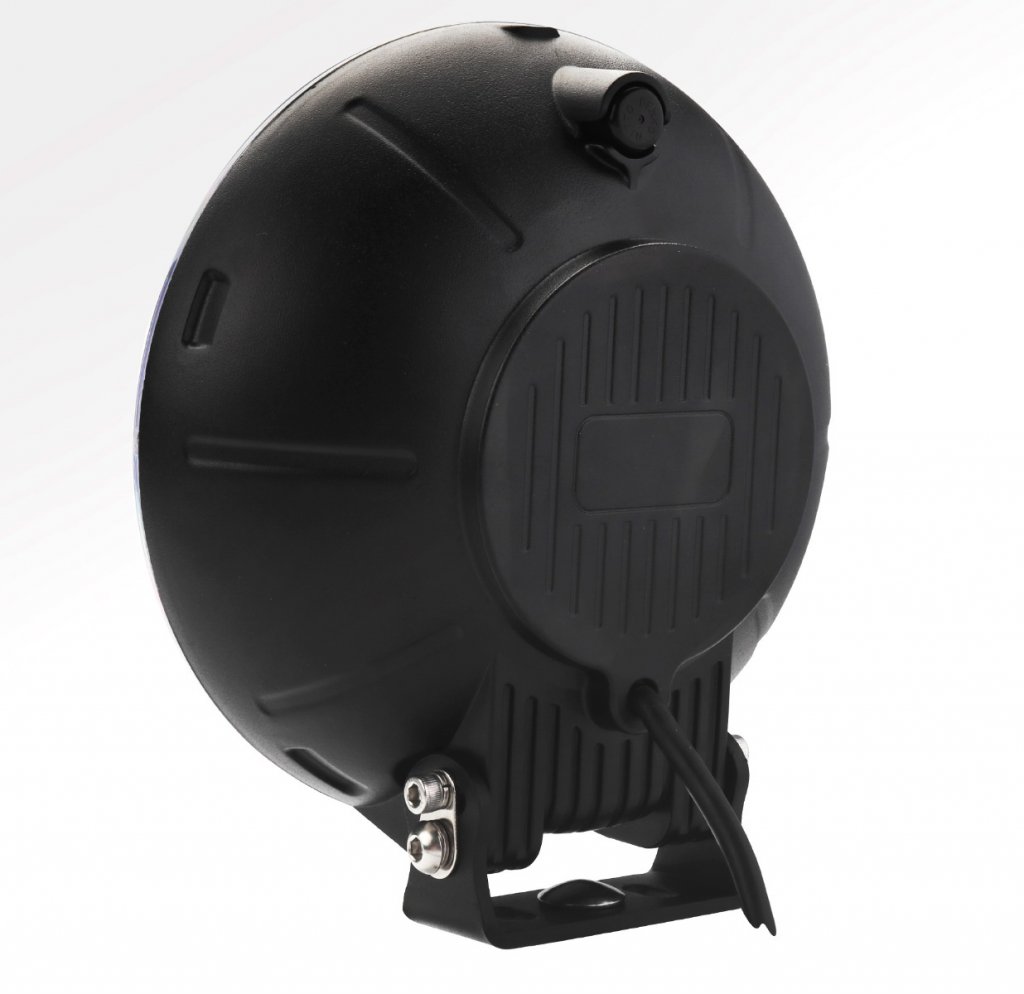

Black optics/black lamp housing

33491220

€258

Available in external warehouse | Ships within 1-4 business days

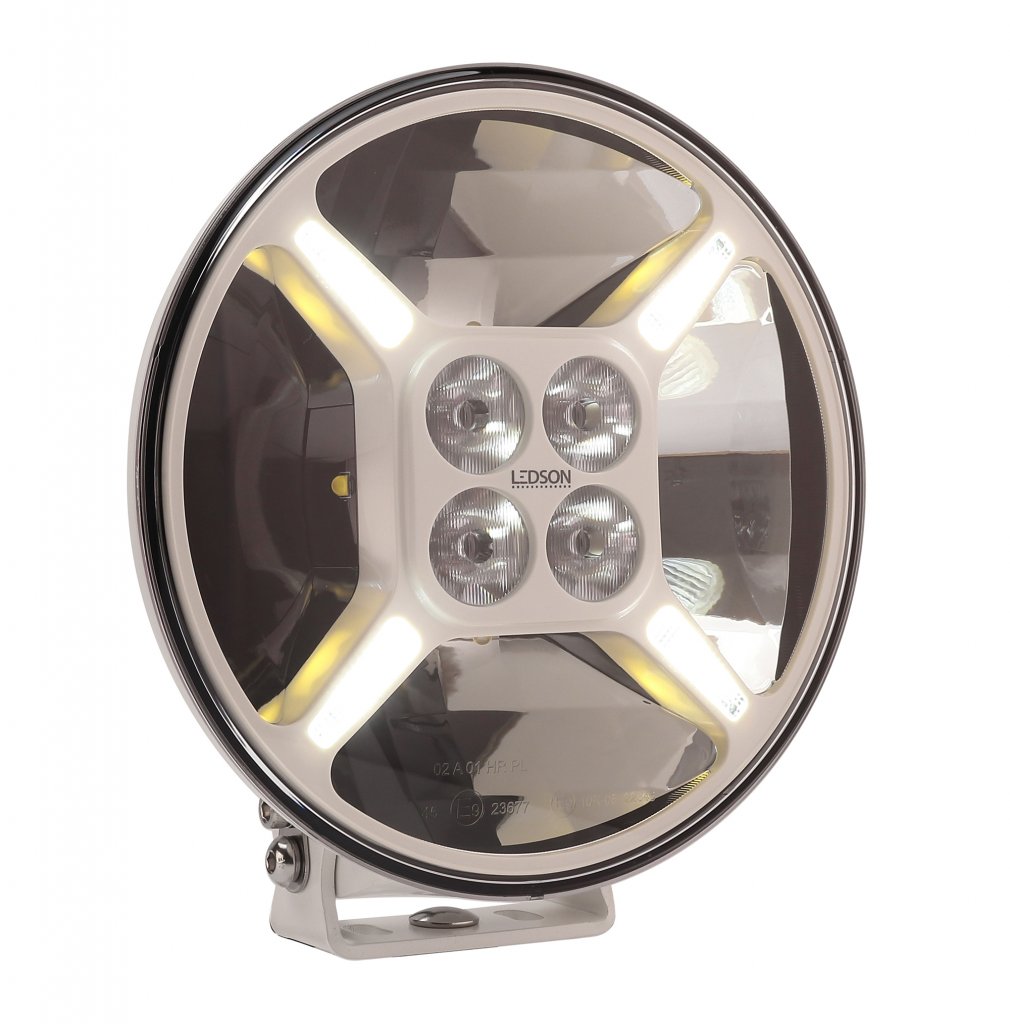

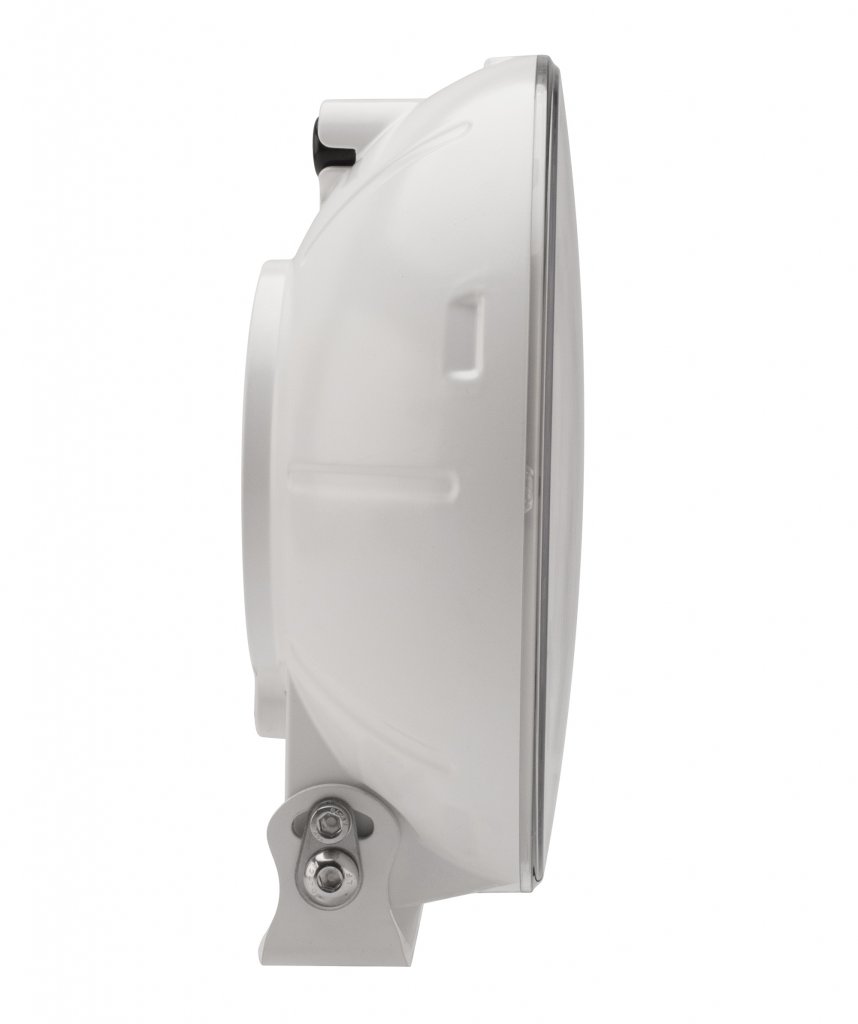

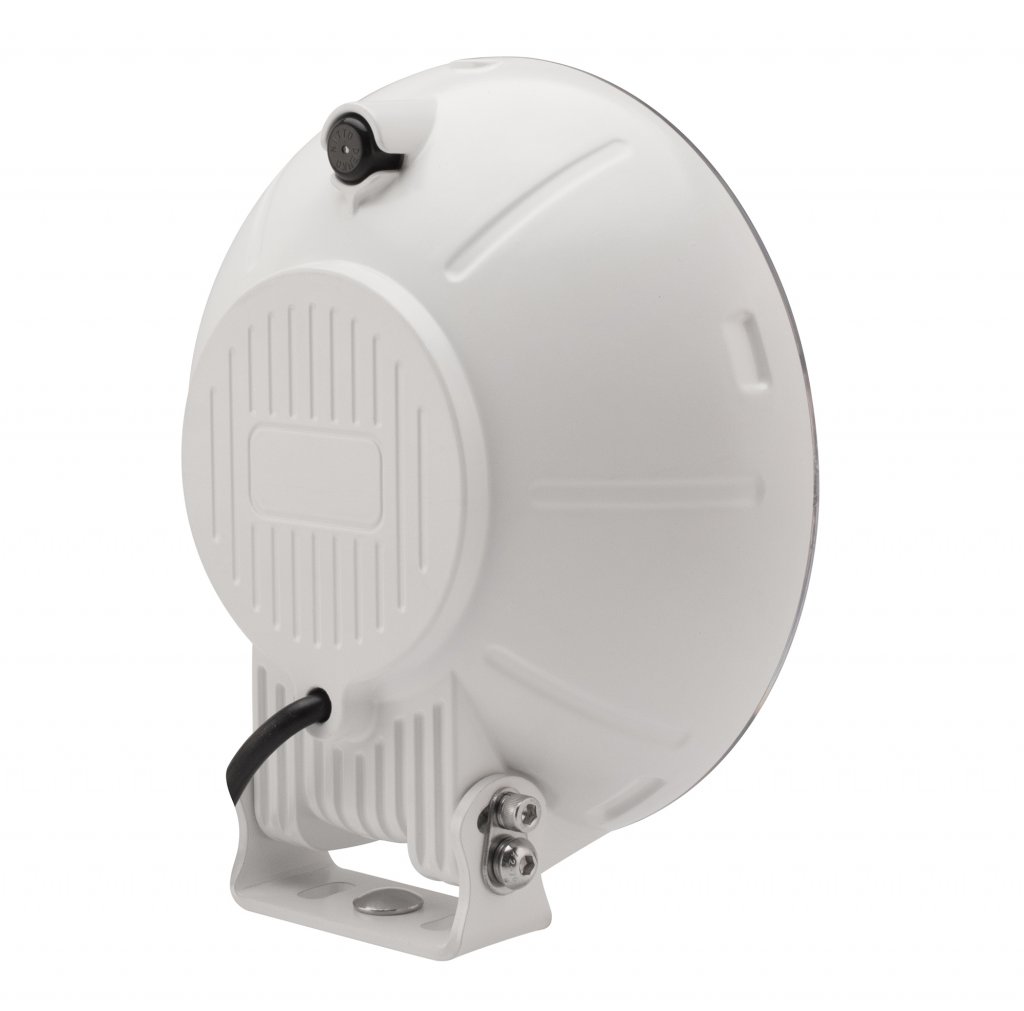

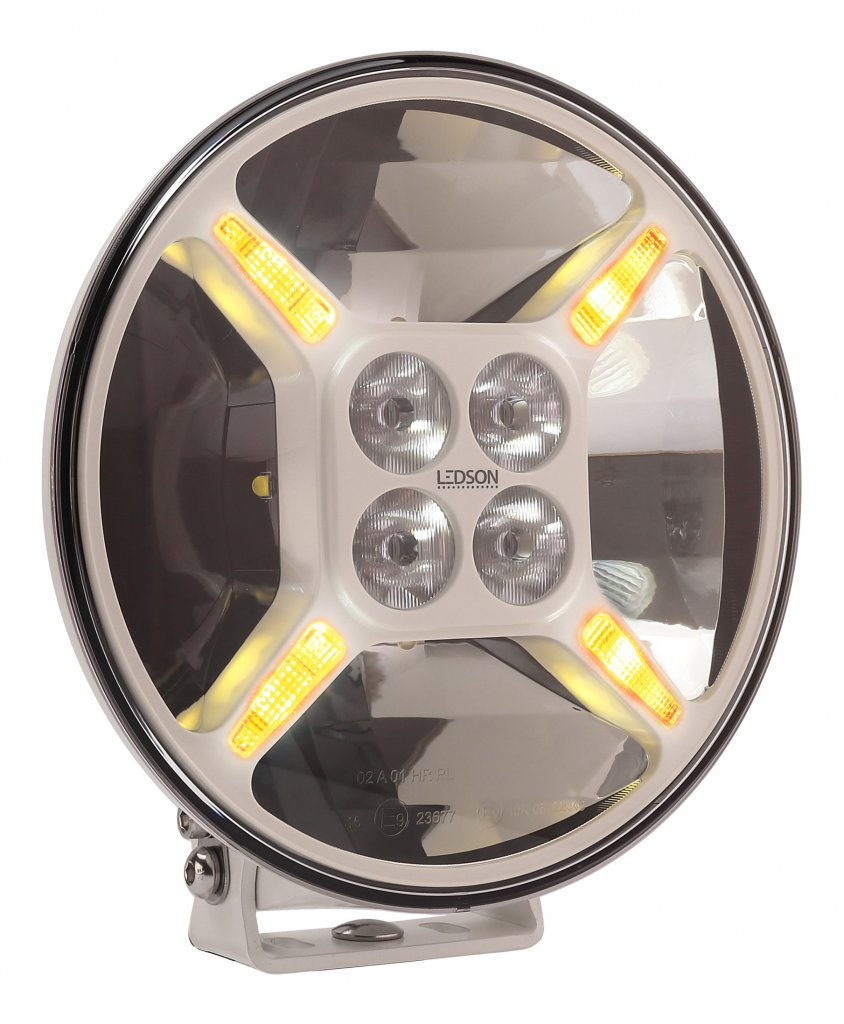

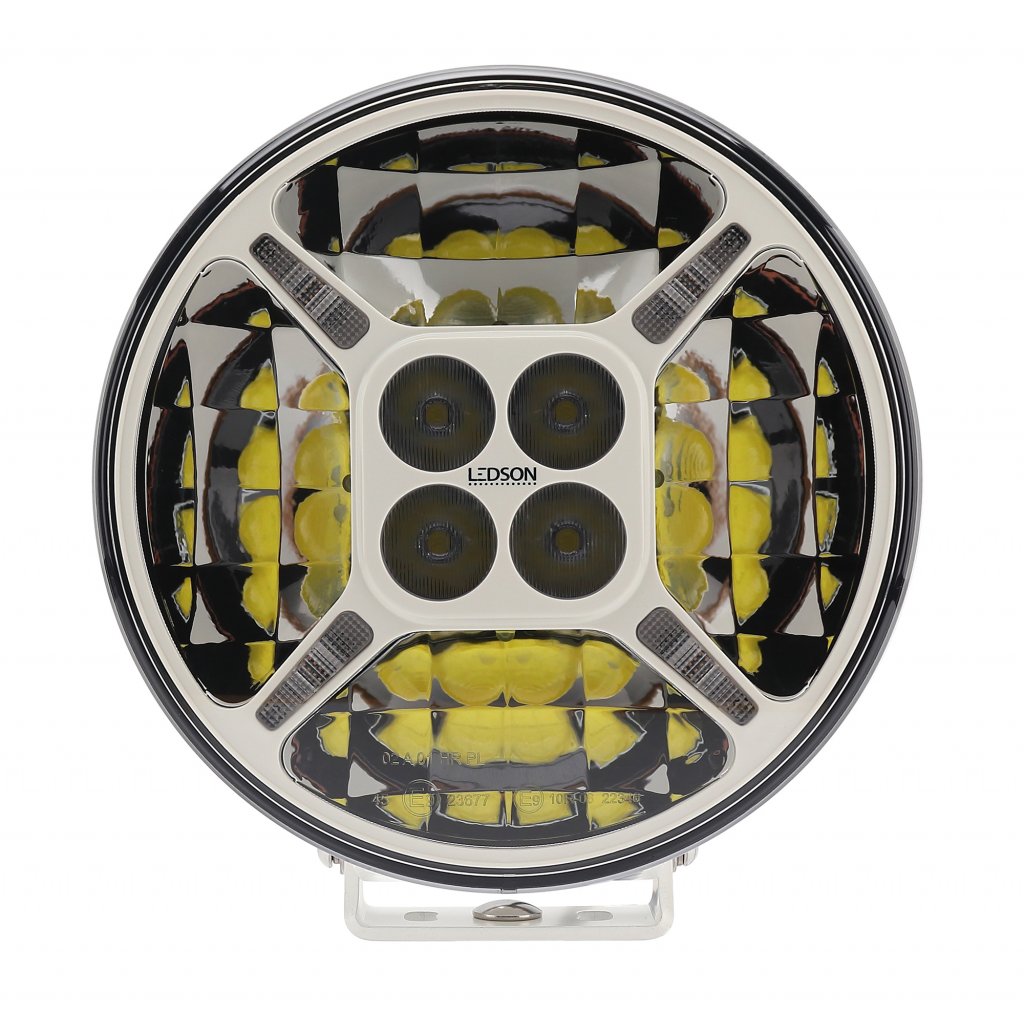

White optics/white lamp housing

33491221

€196

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

Sarox9's contemporary design is a neat combination of stylish and progressive, where the inside of the extra light impresses with quality components that make a big difference when you go out and drive in the dark:

1 lux at 469 meters
10200 actual lumens
IP68/IP69K encapsulation provides solid protection against harsh climates on our Nordic roads
ECE R112, R10, R7 e-markings
Membrane for automatic pressure equalization
Electronic thermal management for optimal LED performance and lifetime

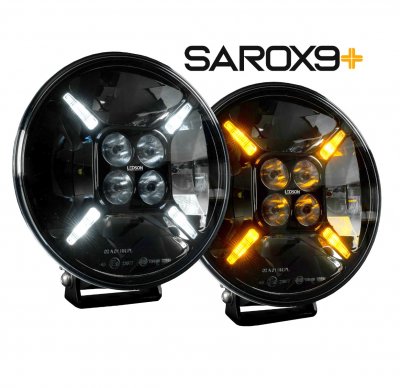

Sarox9+ has a combined light pattern (combo)

A combo light pattern is a mix between high beam (long distance) and flood light (short distance). Sarox9+ has diodes that reflect light both straight ahead and to the sides. This beam pattern is ideal if you want a lot of light close to the vehicle for the smaller roads, but still have the length to light up the road far ahead.

Sarox9 LED Auxiliary Light

Characteristics

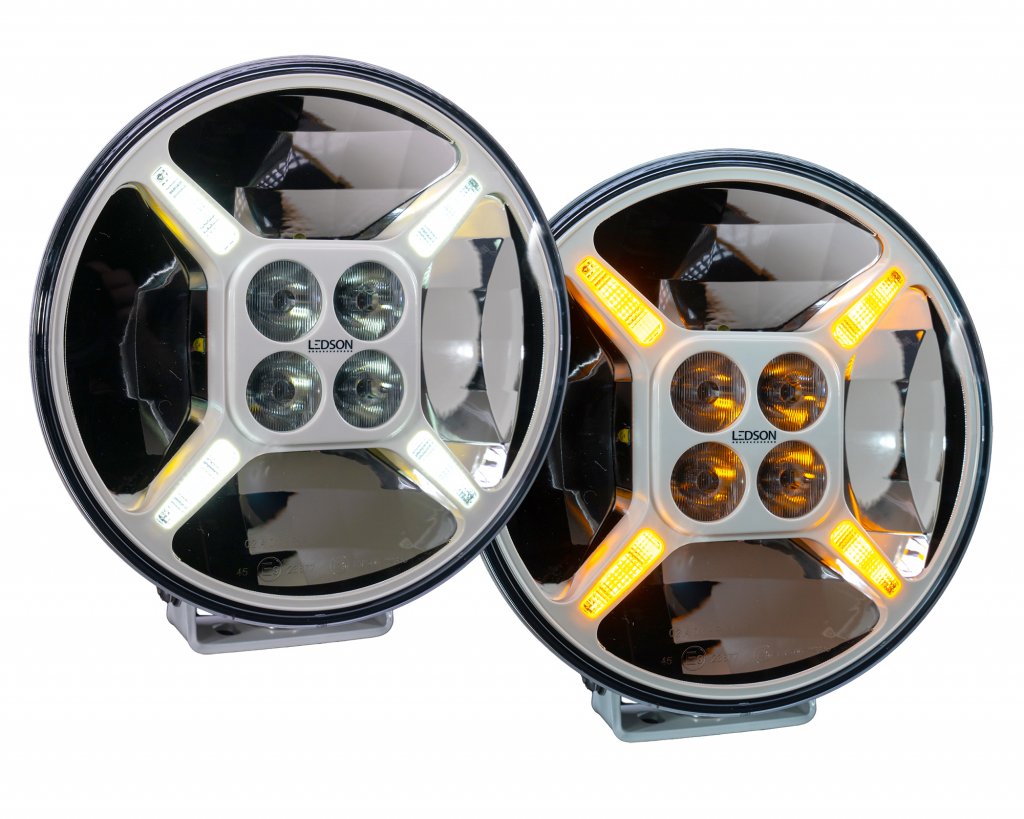

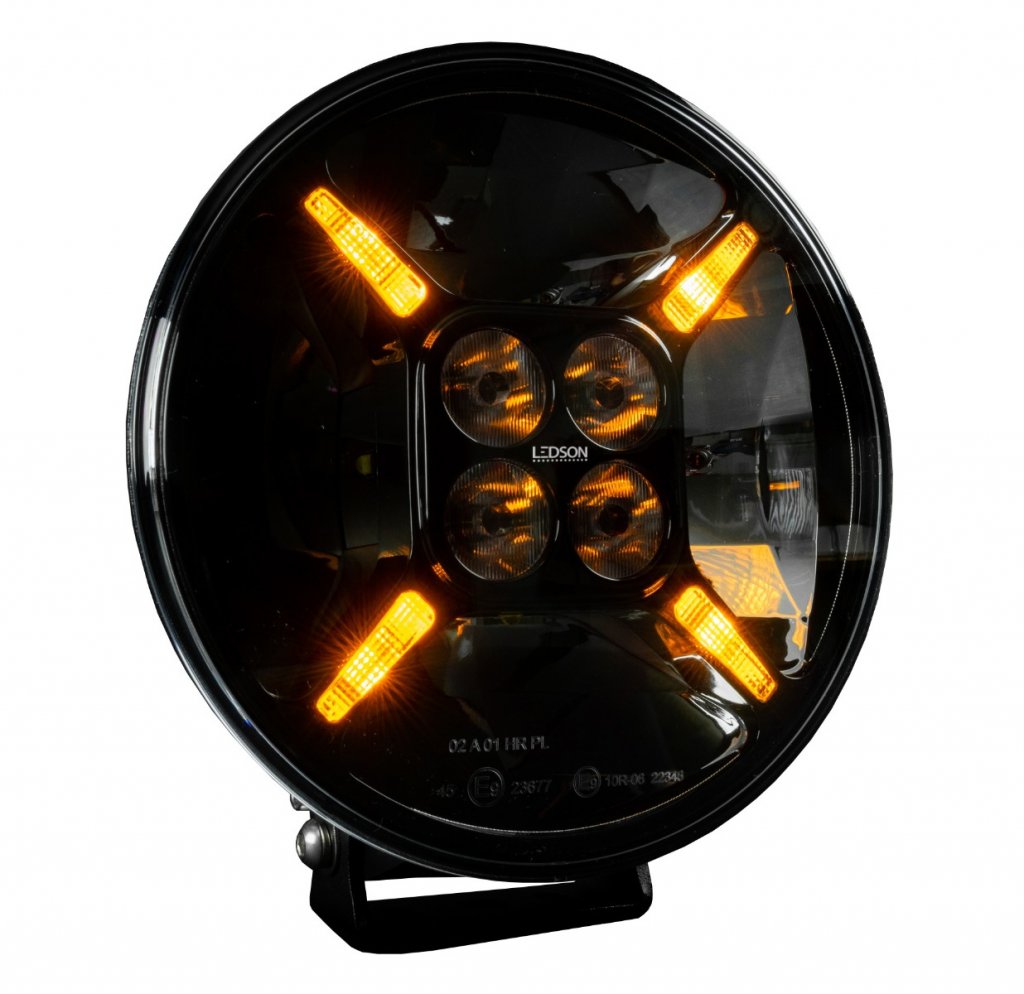

With position light, yellow-orange or xenon white (plug in the color you want)
Combo beam light pattern (a mix between spot and flood)
E-marked ECE R112 (Ref. 45), R10 / R7 (white position light)

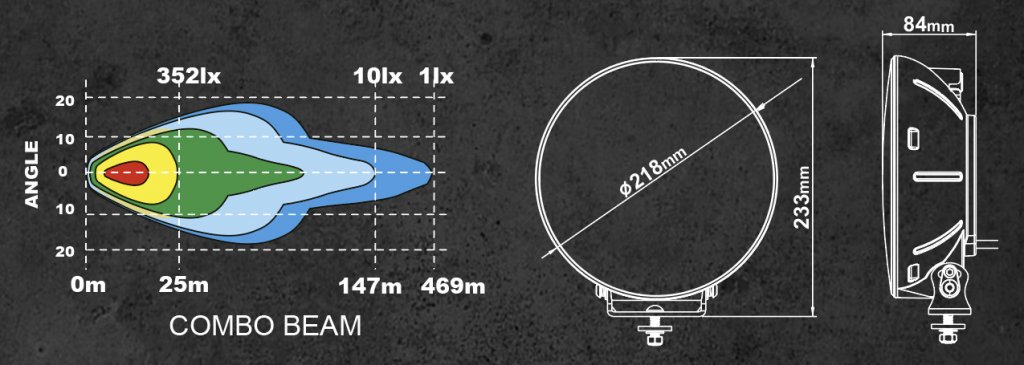

Range: 938 m (0.25 lux), 469 m (1 lux)
EMC-proof (does not interfere with radio)
12000 lumens (theoretical), 10200 lumens (actual)
Cool white light (5700K)
TIR (Total Inner Reflection) harnesses all light and minimizes spill light
ETM (Electronic Thermal Management) - adjusts the strength of the diodes depending on how hot they are for an optimal lifetime

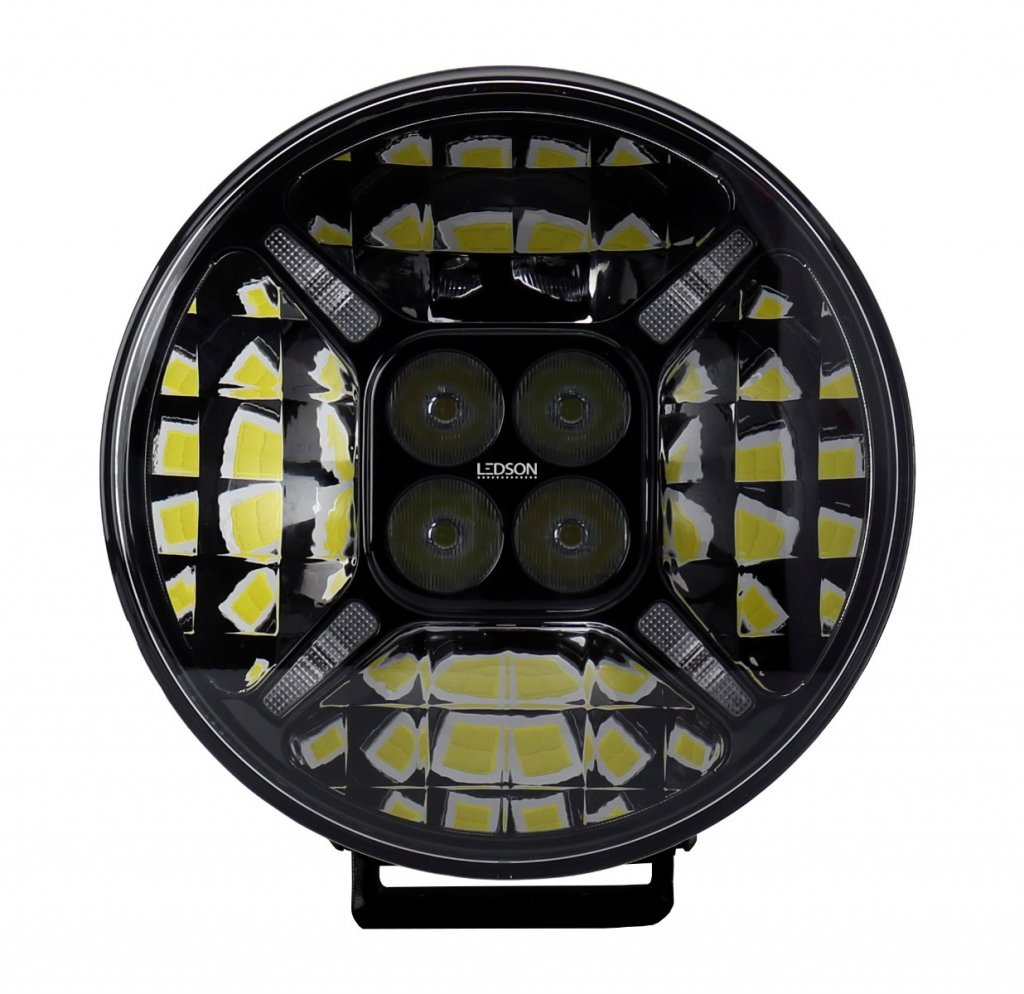

Side reflective optical system
Pressure equalization membrane
Aluminum heat sink
Adjustable stainless steel bracket
Lexan polycarbonate
Polycarbonate lens
24 months warranty

Technical data

120W (4 x 20W Cree LED + 4 x 10W Cree LED)
IP68/IP69K (water/dust tight)
DT connector 4 pin included
Voltage 9-36 V
Load high beam: 8.1A @ 12V and 4.4A @ 24V
Position light load: 0,9A

Dimensions & weight

Width: 218 mm
Height: 218 mm (233 mm incl bracket)
Depth: 84 mm
Cable length: 42 cm
Weight: 1.8 kg

What is included?

Ledson Sarox9+ LED extra light 9"
Bracket, bolts and screws to attach the extra light with either one or two fixing points
DT connector (4-pin)
Installation instructions

Installation instructions for the cables (detailed installation instructions included in the package)

Red: Extra light (+)
Black: Extra light / Position light (- earth)
White: Position light (+) for white position light
Yellow: Position light (+) for yellow/orange position light

The DT connector must not be cut off, as this increases the risk of moisture damage. Damage to the DT connector will void the warranty.
