LED Extra Light 178 mm (7") - 45 W, 4050 Lumen, 10-30V

LEDSON LED Extra Light 7" (178 mm) 45W

Item ID: 33303159

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

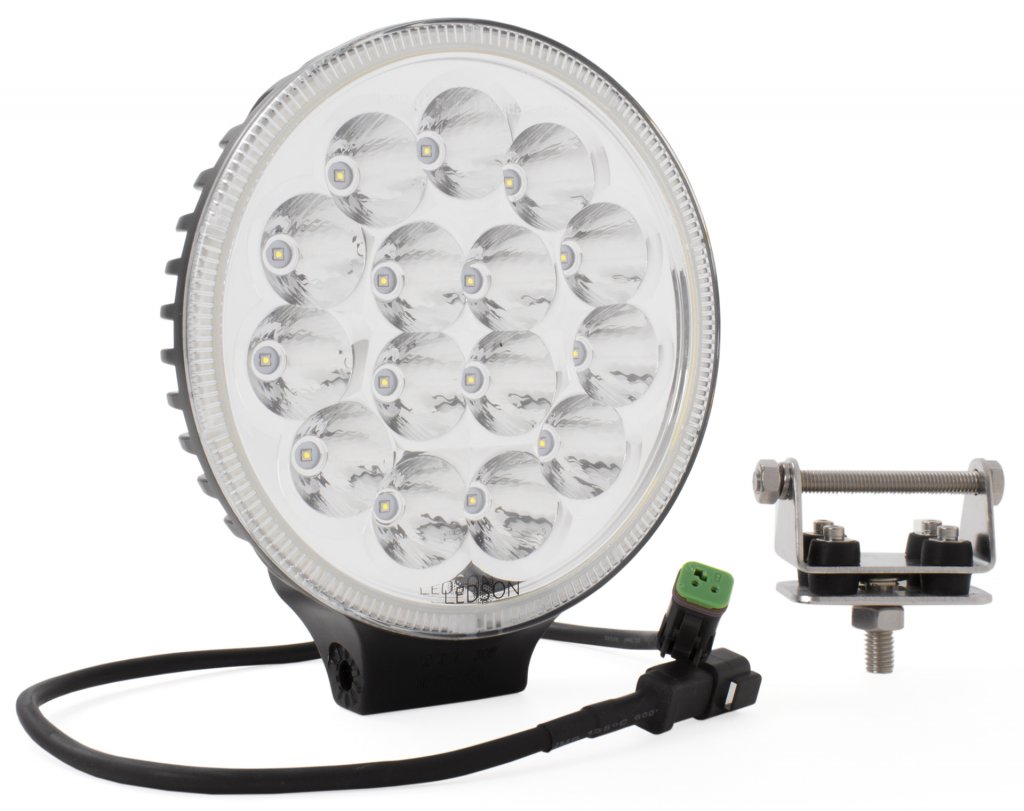

Super thin LED auxiliary light with a diameter of 178 mm (7").

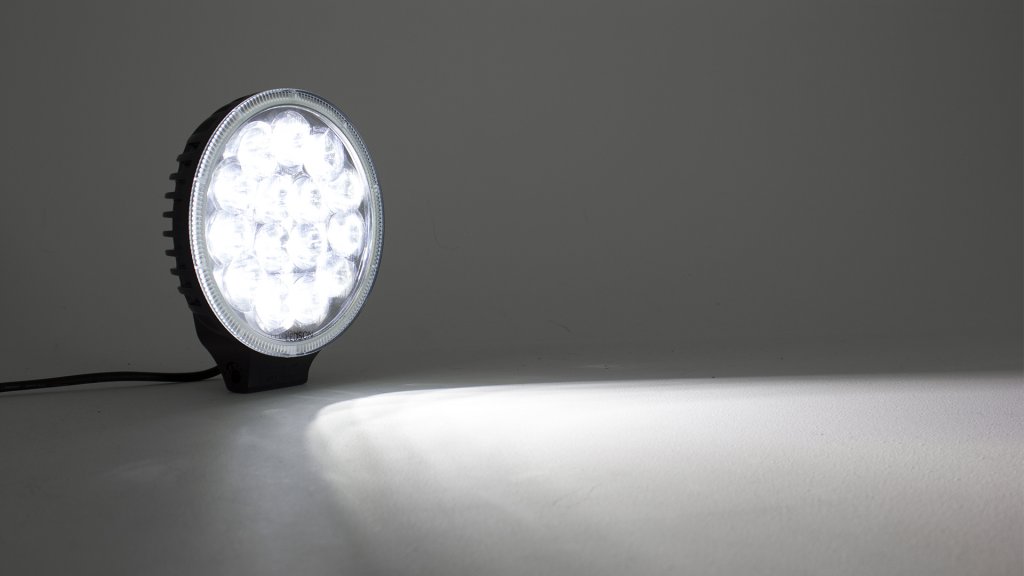

15 diodes from Osram of 3 W each give a total power of 45 W. The diodes together with well-built reflectors ensure that you get a proper addition to the high beam image with a full 4050 lumens.

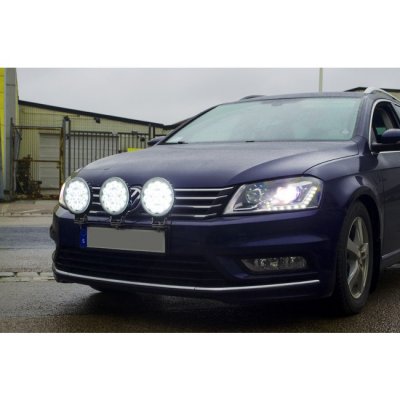

Extra light 7 inches

Specifications:

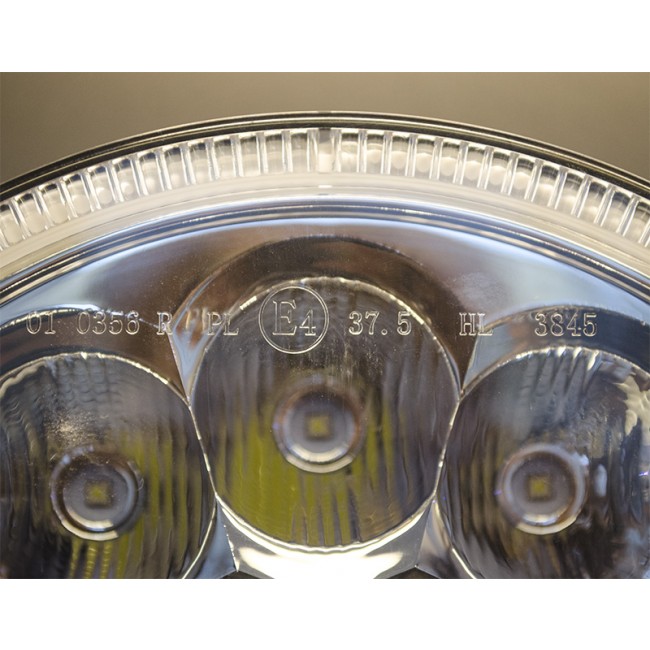

ECE R112, approved as an auxiliary light (ref. number 37.5)

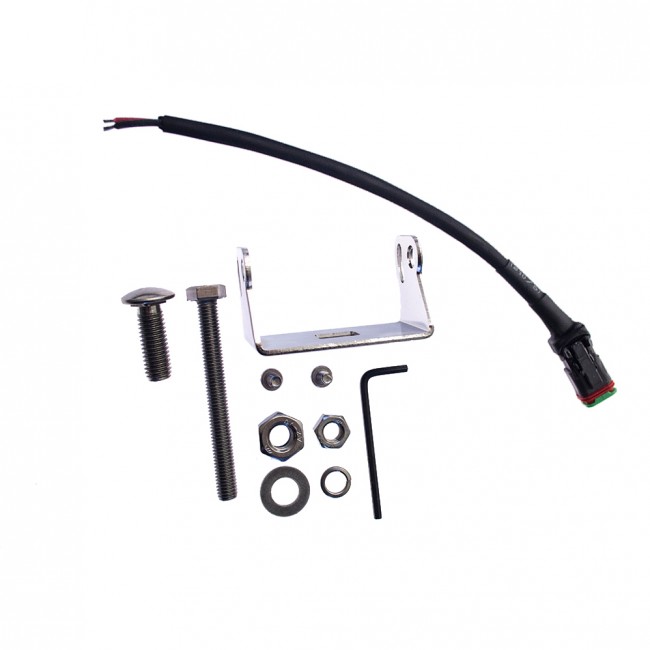

Brackets: two different brackets included
Light pattern: Driving Beam
DT connector included
EMC-protected
Voltage: 10-30V
Load: 2.6A @ 12V and 1.3A @ 24V
Power: 45W
Color temperature: 6000K (Cool white)

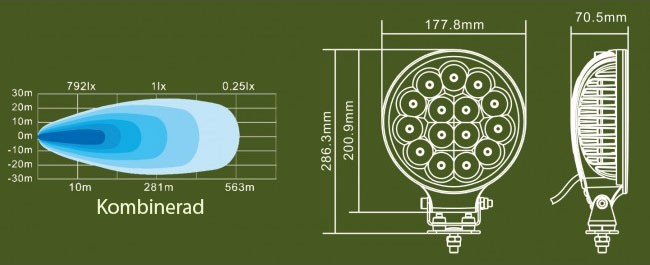

Range: 563m (0,25 lux)
Protection class: Dust and waterproof according to protection class IP67
Osram diodes: 15x3W
Power: 4050 lumens

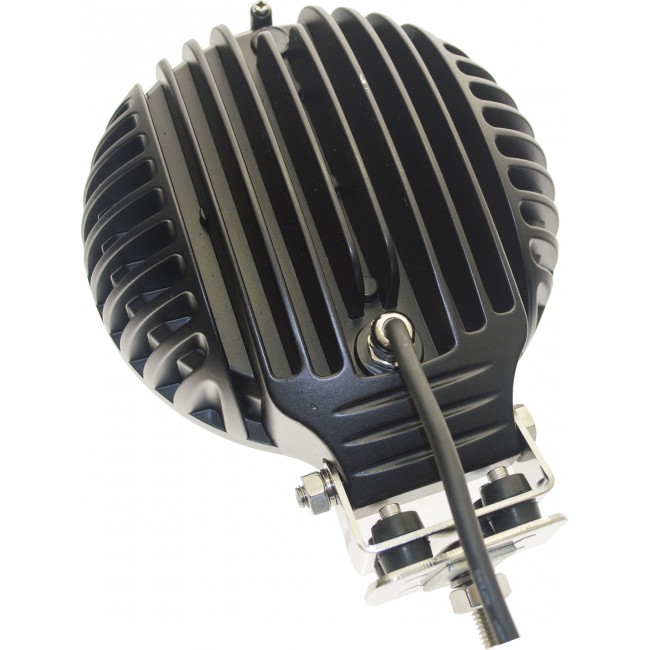

Housing: Aluminum housing

Dimensions and weight:

Height: 200,9mm (286,3 mm incl. bracket)
Width: 177,8 mm
Depth: 70,5 mm
Size: 7"
Weight: 1,7kg

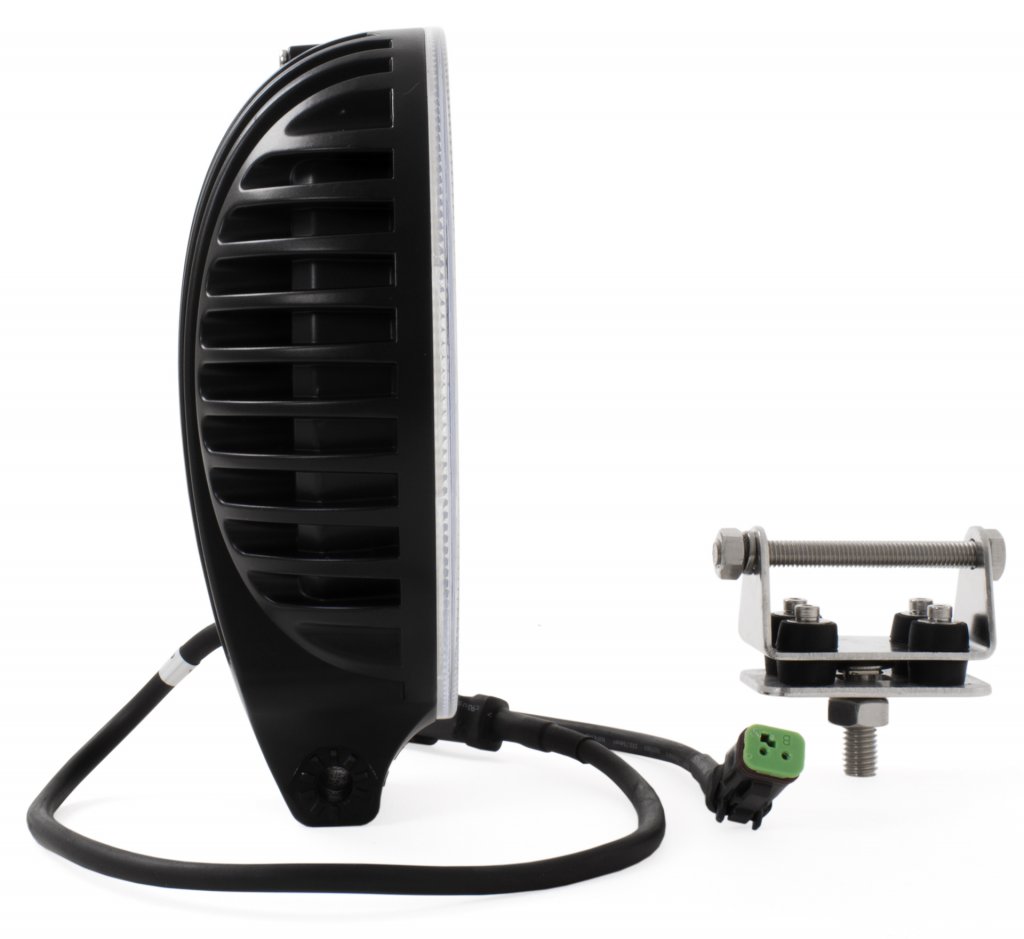

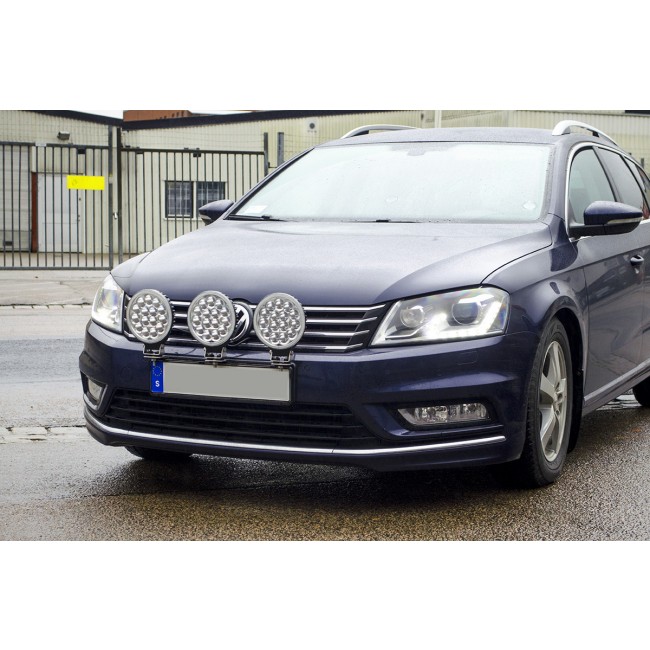

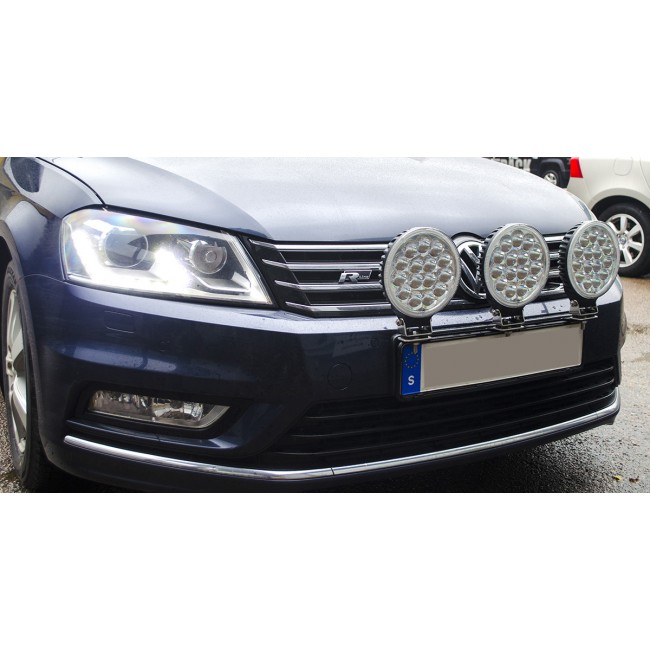

Can be mounted both vertically and horizontally thanks to the flexible stainless steel base.

The DT connector must not be cut off, as this increases the risk of moisture damage. The warranty is void if the DT connector is damaged.

Supplied individually.
