Magnetic holders for e.g. LED ramps

Item ID: 3346014

€78

Incl. VAT

Which model do you want?

Big

3346014

€78

Available in external warehouse | Dispatched within 1-4 working days

Small

3346013

€48

Available in external warehouse | Dispatched within 1-4 working days

Available

Available in external warehouse | Dispatched within 1-4 working days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Dispatched within 1-4 working days

Product Description:

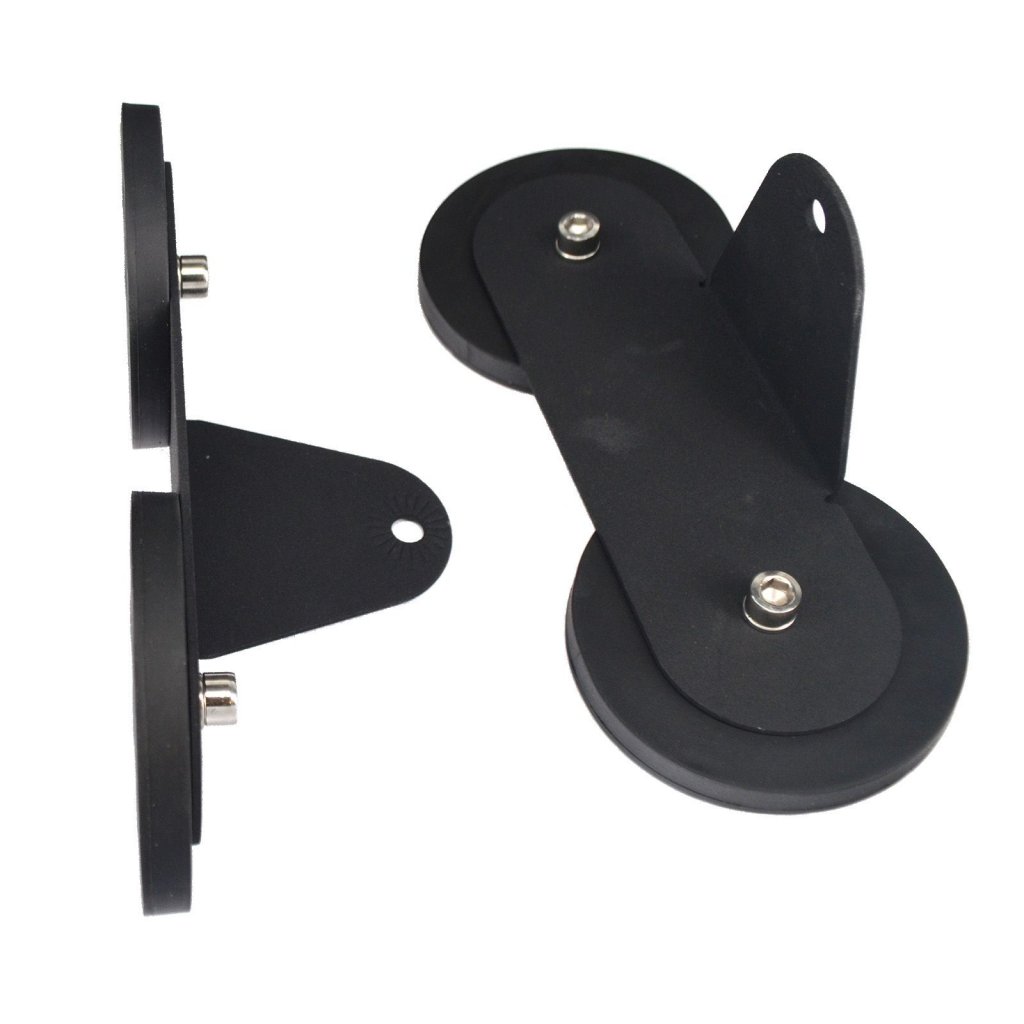

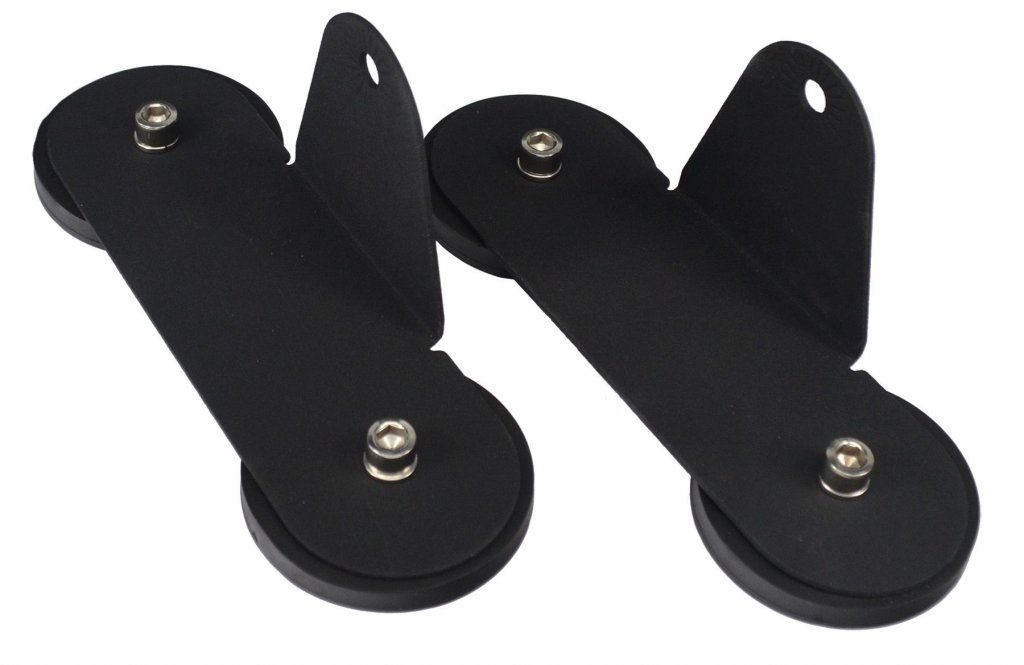

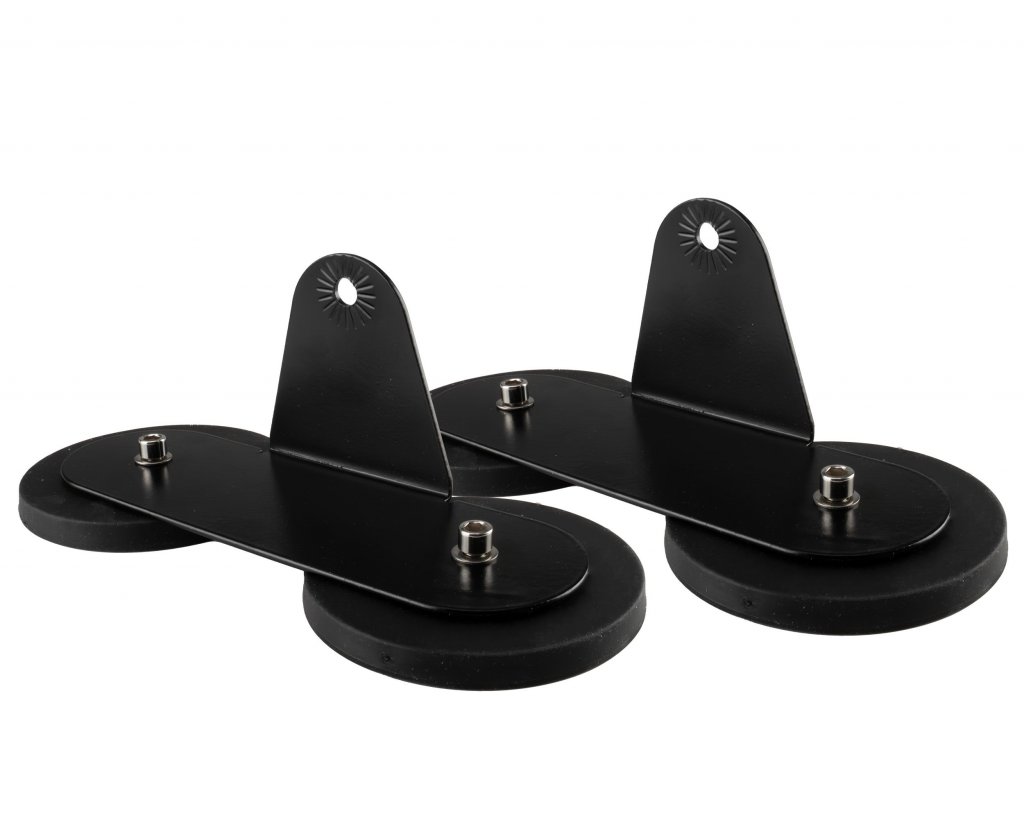

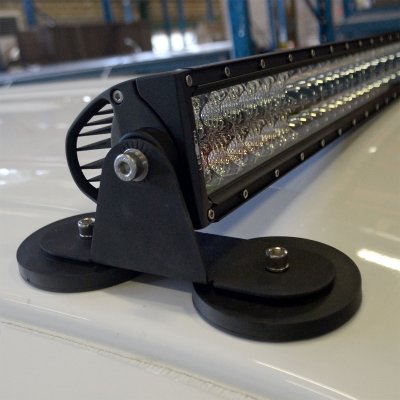

Magnetic holders for e.g. LED ramps

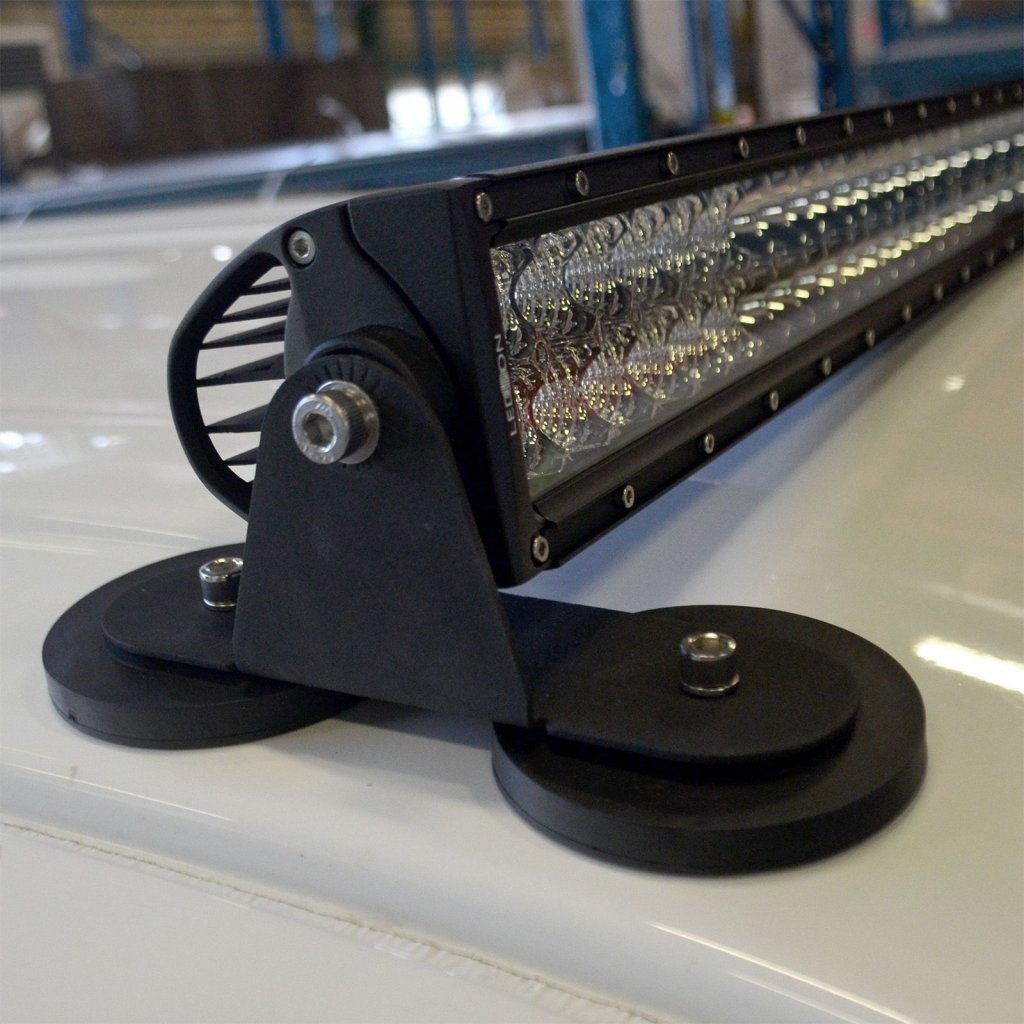

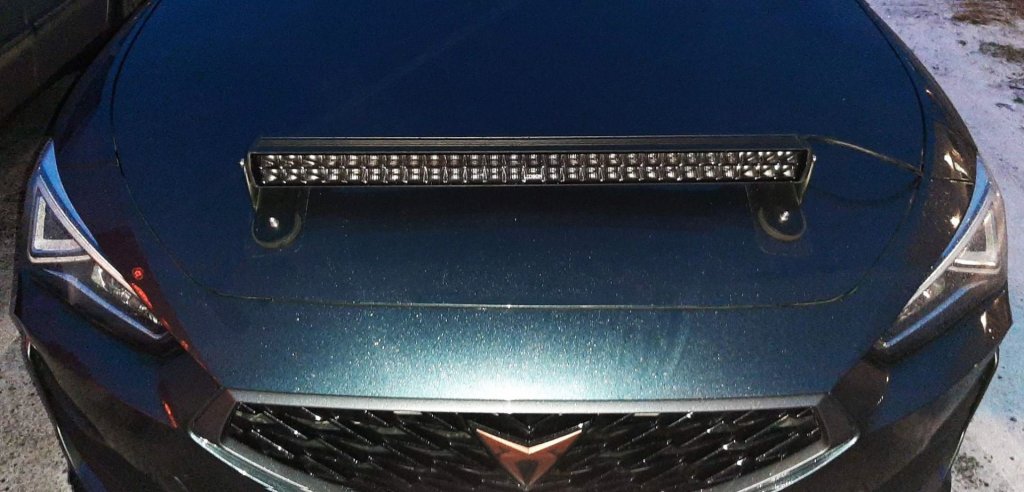

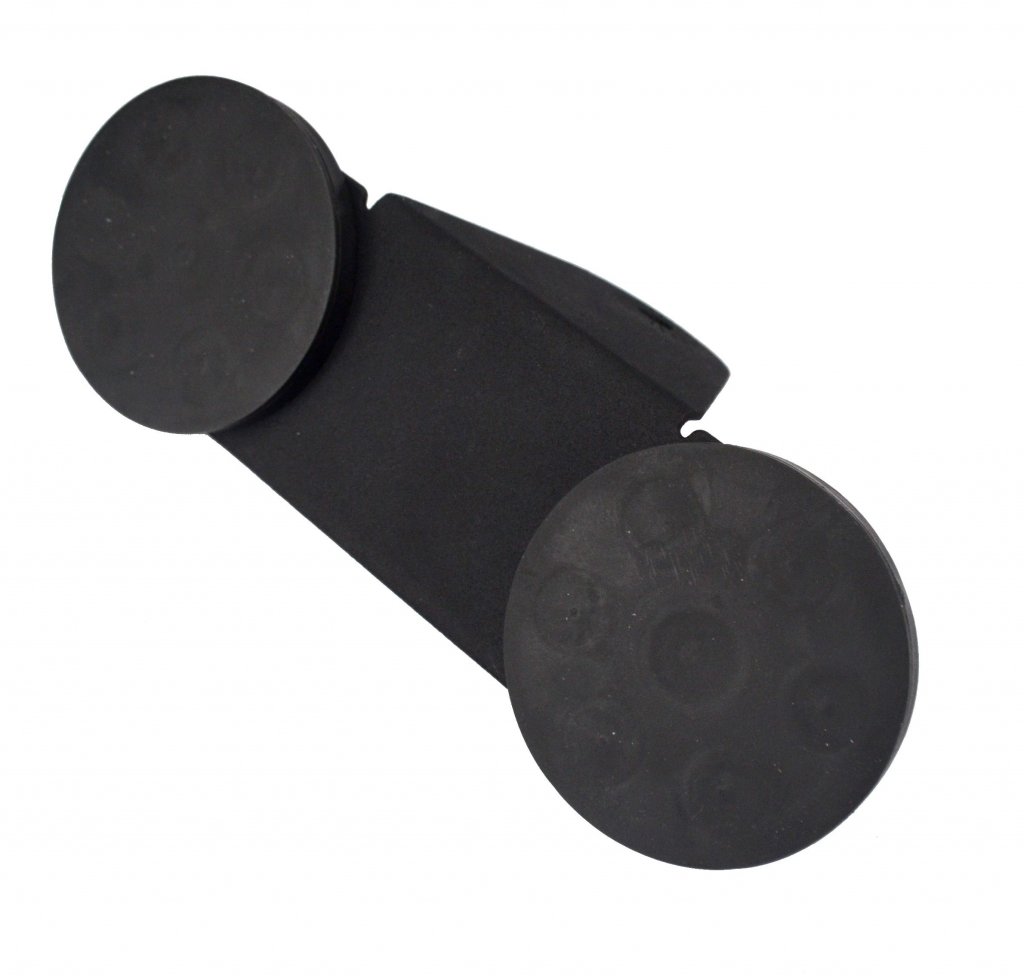

Sold in pairs, these magnetic holders are an excellent choice for mounting LED ramps, work lights or auxiliary lights - without having to drill or screw into the vehicle. The base of the holders is covered with rubber to protect the surface.

Which model you need - the smaller or the larger one - depends on the size and weight of the light, as well as the mounting location (for example, whether it is affected by air resistance). As a general guideline, the smaller model works for LED ramps up to 30 inches (around 80 cm and 4 kg). For larger ramps of around 41 inches (about 1 metre and 6 kg), the larger model is recommended. If you're not sure which one you need - choose the larger model.

Please note: Because each vehicle is different - for example, in terms of sheet thickness, paint and other surface conditions - and the size and weight of the lights vary, it is important to use common sense when installing them. You are responsible for ensuring that the installation is safe enough for the intended use. In some cases, the magnetic mounts may be insufficient and an alternative mounting solution may be both safer and more appropriate.

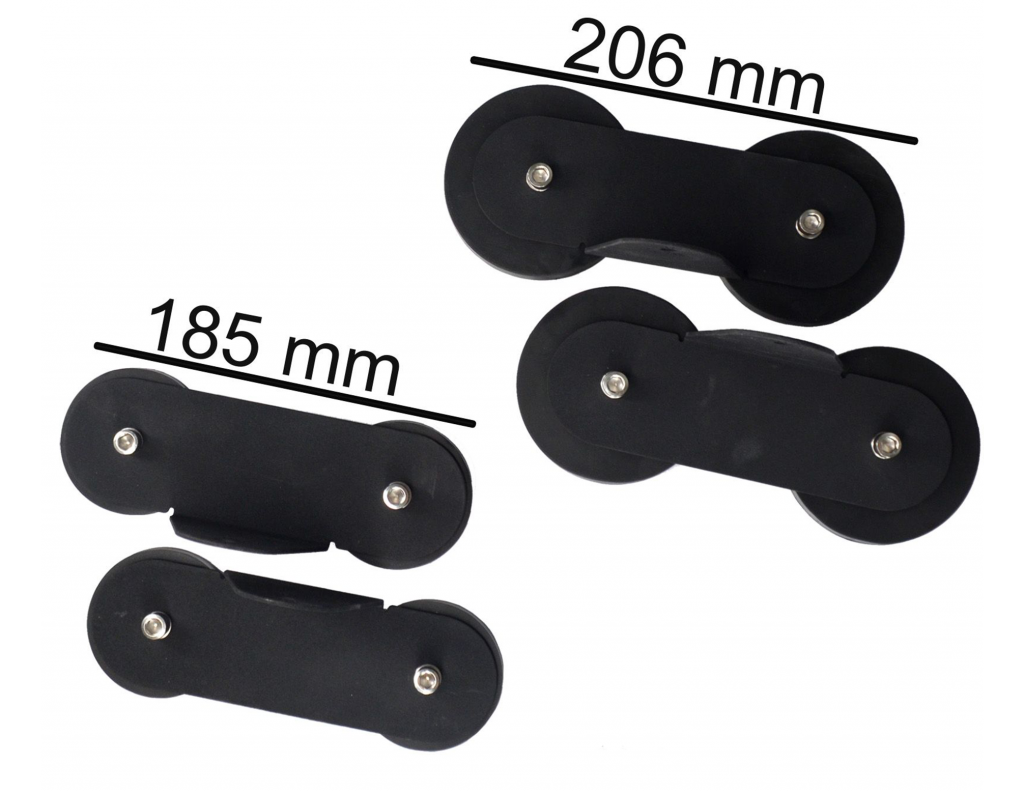

The difference between the models lies in the number of magnets per foot (the larger one has twice as many, giving higher magnetic strength) and the diameter of the foot - 8.7 cm for the larger model and 6.5 cm for the smaller one.

Small model (3346013):

Number of magnets: 12 pcs (6 pcs in each foot)
Foot diameter: 65 mm
Length: 185 mm
Width: 65 mm
Depth/height: 80 mm (from the feet to the top edge of the holder)
Distance to fixing point: 57 mm (from the plate on the feet to the centre of the hole)
Holes on the bracket are designed for M8 bolts

Large model (3346014):

Number of magnets: 24 pcs (12 in each foot)
Foot diameter: 87 mm
Length: 206 mm
Width: 87 mm
Depth/height: 80 mm (from the feet to the top edge of the holder)
Distance to fixing point: 57 mm (from the plate on the feet to the centre of the hole)
Holes on the bracket are designed for M8 bolts

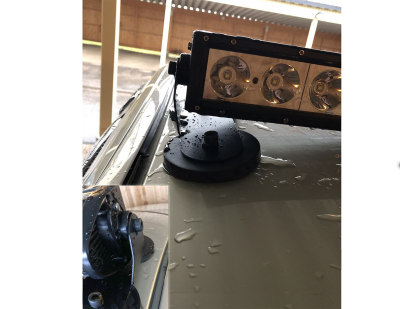

NOTE: When mounting on car roofs, the "ears" of the magnetic holders may bend due to the slope of the roof. This is normal. (See last example picture).
