Product Description:

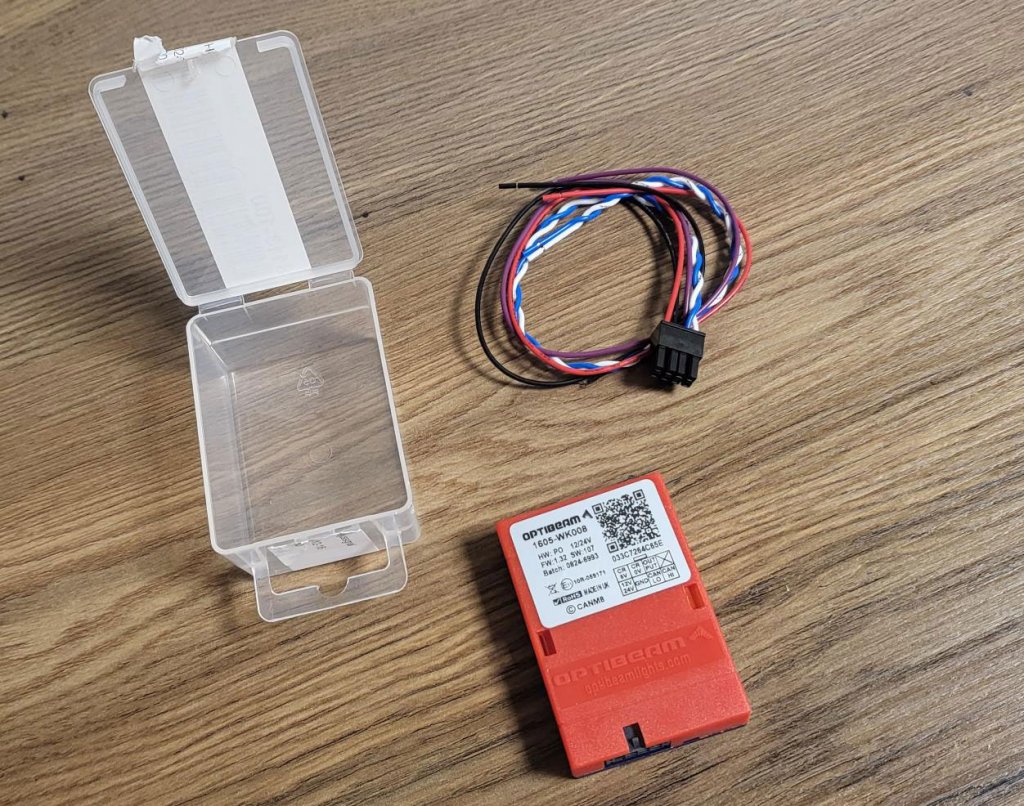

Flexible CANBUS interface for connecting extra lights Volkswagen Amarok from 2011-2020. The CANBUS interface works just as well if you instead want to install an LED ramp or other extra lighting in front.

Auxiliary light Volkswagen Amarok

The CANBUS interface provides the control signal to your external relay set, which means that your auxiliary lights Volkswagen Amarok are started together with the car's high beam. If the car is equipped with adaptive high beam, this function will also follow to the auxiliary lights / LED ramp.

The installation is done specifically for each individual car to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

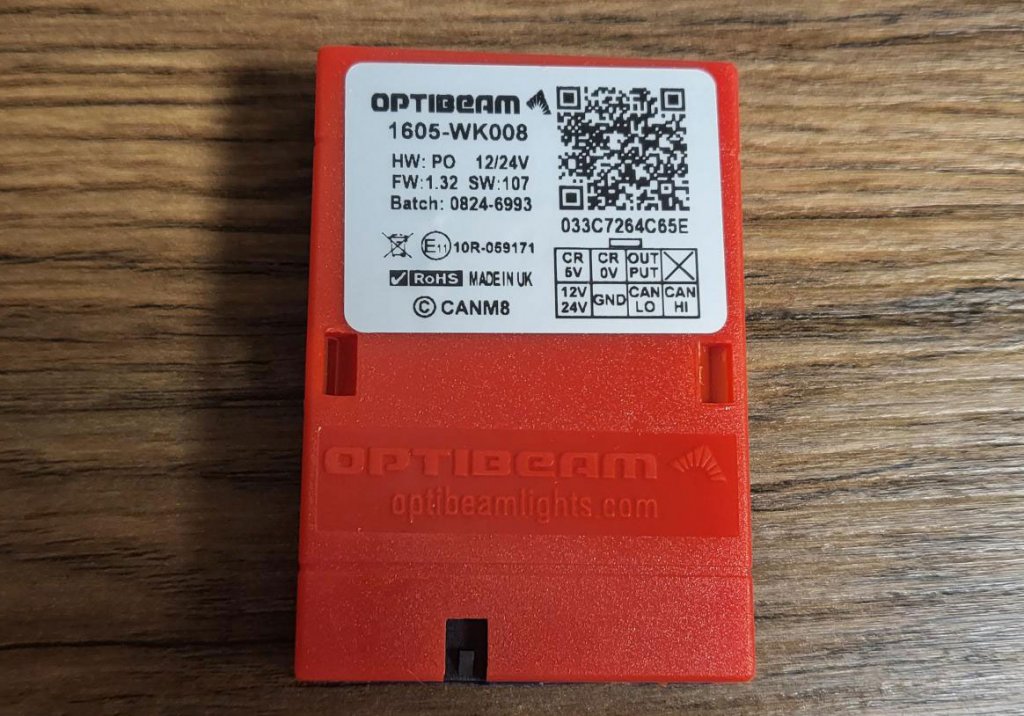

From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions can be found as an appendix below.
Canbus Extra Light Volkswagen Amarok is delivered individually


Documents:
attachment Mounting description for canbus interface 7535-2400

Fits the following car models:

Volkswagen Amarok from 2011-2020

2011, 2012, 2013, 2014, 2015 ,2016, 2017, 2018, 2019, 2020

Volkswagen Amarok from 2017-2020 Volkswagen Amarok from 2023 onwards

Engine:

  • Diesel

Body:

  • Pickup

Assembly time: about 60 minutes

Warranty: 1 year warranty
