Product Description:

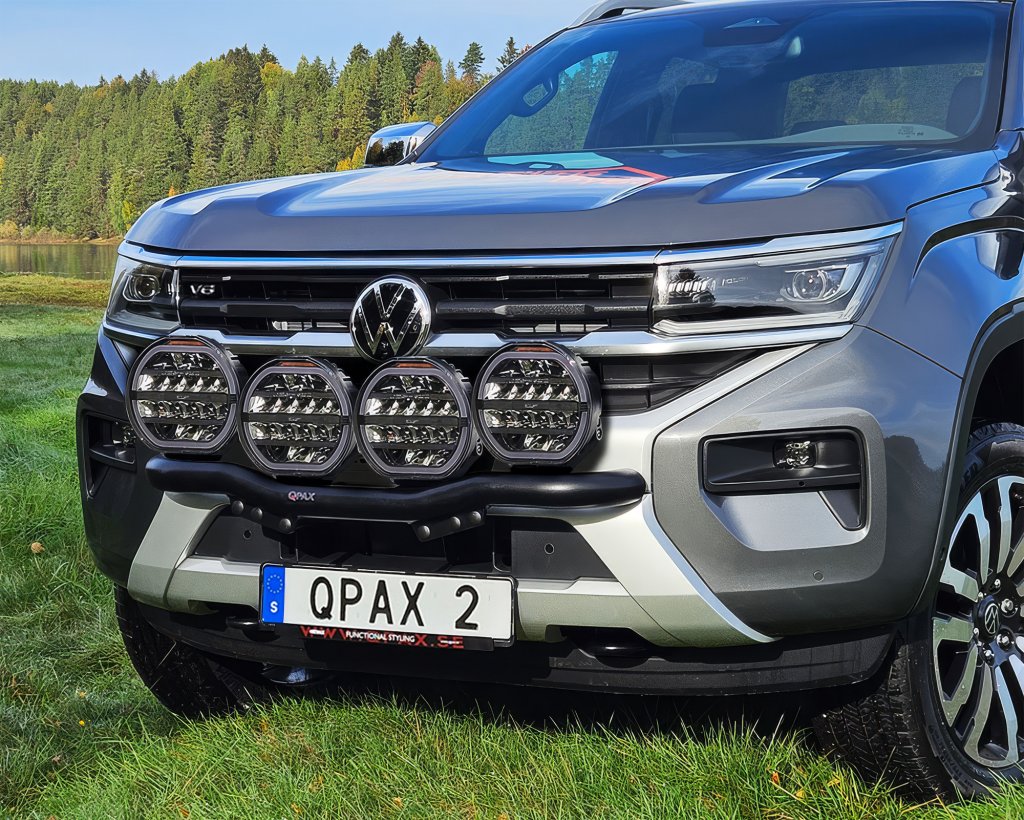

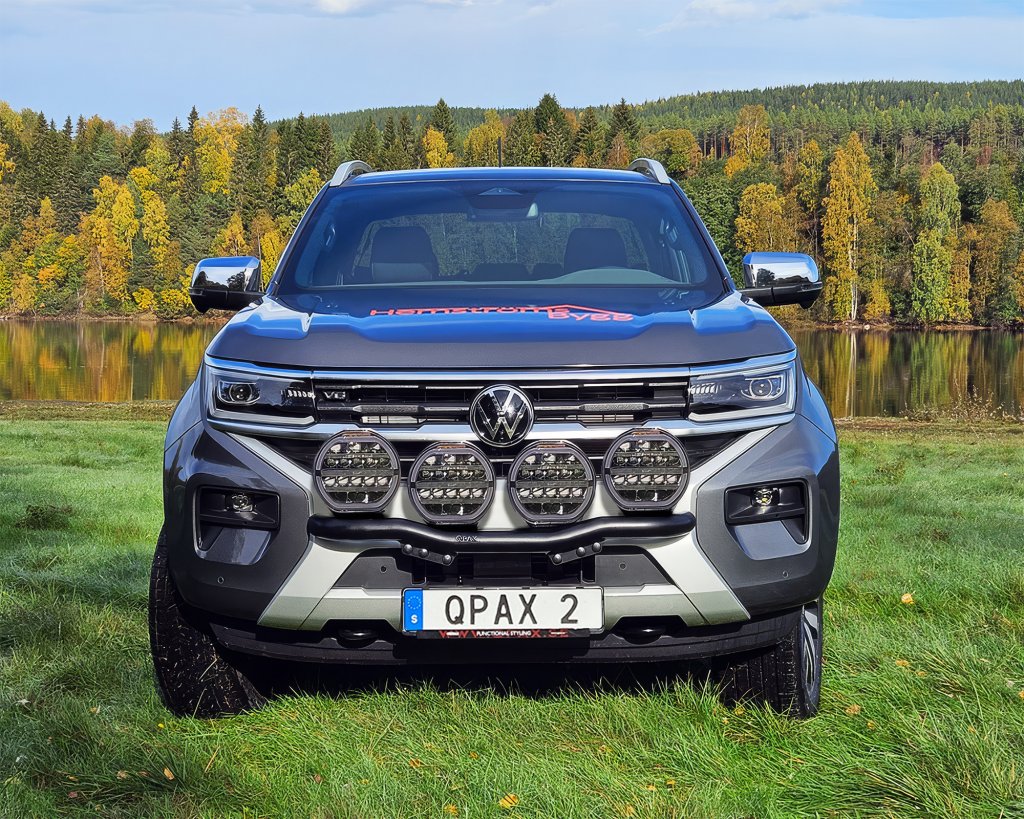

This vehicle-specific auxiliary light bracket for the Volkswagen Amarok from 2023 onwards provides a stable platform when mounting auxiliary driving lights at the front. The bar is equipped with four fixed, welded mounting points accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tubing and features a durable powder coating that resists stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Volkswagen Amarok, the bar is securely anchored to the vehicle's load-bearing structure for optimal strength and rigidity.

Auxiliary Light Bracket - Vehicle-Specific and Gentle Q-GRIP Mounting

The auxiliary light bracket is installed using custom-fit brackets where the mounting attaches to the lower crash beam using QPAX's proven Q-GRIP system for a firm, gentle installation. Detailed step-by-step installation instructions for your Volkswagen Amarok can be found in the mounting guide attached as a PDF on this product page. To ensure a stable, vibration-free light beam on uneven surfaces, the driving lights must be stabilized at the top using the included support struts.

Mounting and attachment: The assembly attaches directly to the vehicle's lower crash beam and installs via the QPAX Q-GRIP system.
Sensors and radar compatibility: The parking sensors closest to the registration plate are disabled using Nonsens blockers (included in the delivery). The vehicle's radar is not affected by the bracket or installed lights.

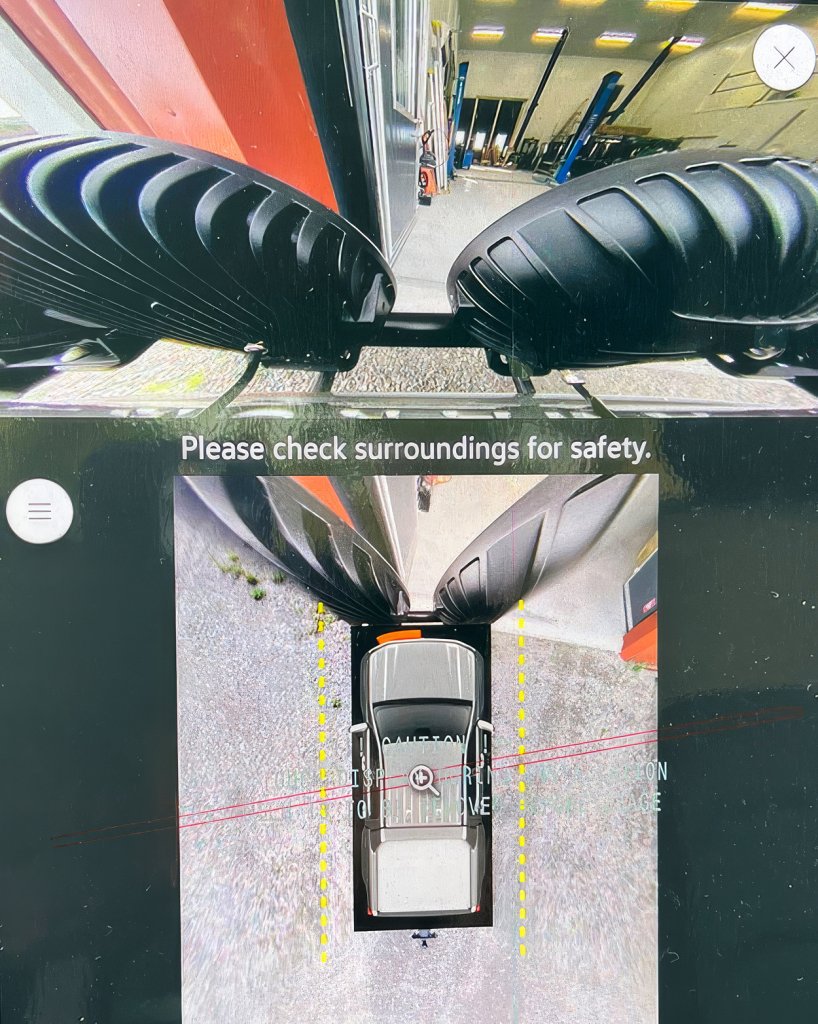

Impact on front camera: On models equipped with a front-view camera, visibility will be partially obstructed by the installation.
Stabilization requirements and maximum weight: Recommended maximum weight is 2 kg per light. The included stabilizing struts must always be used.

Choose Your Finish for Volkswagen Amarok

Five available colours (powder coated)

The auxiliary light bracket can be ordered in five different colours to complement the paintwork or accents of your Volkswagen Amarok:

Silver: Classic powder-coated silver finish.
Black Velvet (matte): Understated matte black finish.
Black (gloss 80): High-gloss black finish with gloss level 80.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting system: QPAX Q-GRIP to lower crash beam (see PDF installation guide)

What is Included?

Supplied as a complete kit tailored for the Volkswagen Amarok, including:

Auxiliary light bracket in 60 mm powder-coated aluminium
Vehicle-specific mounting kit (Q-GRIP for lower crash beam)
Stabilization struts for auxiliary lights
Nonsens blockers for parking sensors
Mounting instructions (included and available as a downloadable PDF)

A durable, custom-engineered solution for the Volkswagen Amarok from 2023- that delivers rigid mounting and an optimal beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Amarok 2023-
