Auxiliary light bracket for 4 lights Mercedes-Benz Vito from 2019-2024

Auxiliary Light Bracket for 4 Lights for Mercedes-Benz Vito from 2019-2024 | Qpax

Item ID: 47022-4340

€747

Incl. VAT

Which variant would you like?

Matte Silver

47022-4340

€747

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

47022-4340-O

€747

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

47022-4340-S

€747

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

47022-4340-S80

€747

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

47022-4340-V

€747

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

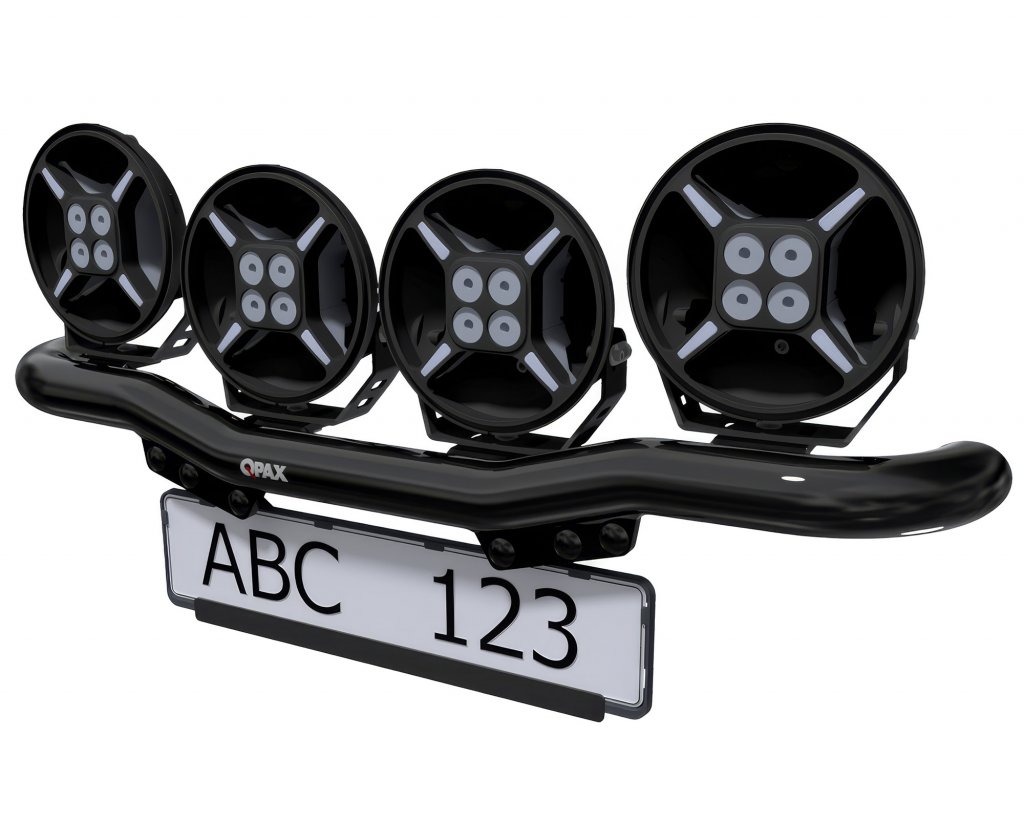

This model-specific auxiliary light bracket for Mercedes-Benz Vito from 2019-2024 provides a stable platform when you want to install auxiliary lights on the front. The bar is equipped with four fixed, welded mounting points accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. The bar is specifically engineered for your Mercedes-Benz Vito and anchors securely into the vehicle's load-bearing structure for optimal strength.

Auxiliary light bracket - Gentle Q-GRIP mounting to the crash beam

The auxiliary light bracket is installed using model-specific brackets where mounting attaches directly to the vehicle's crash beam using QPAX's proven Q-GRIP system for a rigid and stable fitment. Detailed step-by-step instructions for installation on your Mercedes-Benz Vito can be found in the mounting instructions attached as a PDF here on the product page. To ensure a stable and vibration-free beam pattern on rough roads, the auxiliary lights must be stabilized at the top using the included support struts.

Mounting and attachment: Mounts directly from the vehicle's crash beam using the QPAX Q-GRIP system.
Important note regarding towing eye: Please note that the bar's design and positioning blocks the vehicle's threaded socket for the towing eye.
Radar compatibility and lamp selection: Depending on the shape and size of the auxiliary lights, the radar in the Mercedes emblem may risk being obstructed. To ensure a clear view for the radar, the lights can be shifted outwards sideways using extension/offset brackets (accessory part no. 98605, which are also installed in the example picture).
Handling parking sensors: Any parking sensors closest to the license plate must be blanked off using Nonsens sensor covers (included in delivery).
Stabilization requirement and maximum weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilizer struts must always be used.

Choose your variant for Mercedes-Benz Vito

Five available colors (powder coating)

The auxiliary light bracket can be ordered in five different finishes to match the paintwork or other styling details on your Mercedes-Benz Vito:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Subtle matte black finish.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical specifications

Material: Aluminium
Tube diameter: 60 mm
Surface treatment: Powder coating
Number of mounting points for auxiliary lights: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per auxiliary light: 2 kg/pc
Mounting system: QPAX Q-GRIP against crash beam (see PDF mounting instructions)

What is included in the package?

Delivered as a complete kit tailored for Mercedes-Benz Vito containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit (Q-GRIP for crash beam)
Stabilizer struts for auxiliary lights
Nonsens sensor covers for parking sensors
Mounting instructions (included in package and available as downloadable PDF)

A durable, vehicle-specific solution for Mercedes-Benz Vito from 2019-2024 that provides stable mounting and an optimal beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Mercedes Vito 2019–2024
