Product Description:

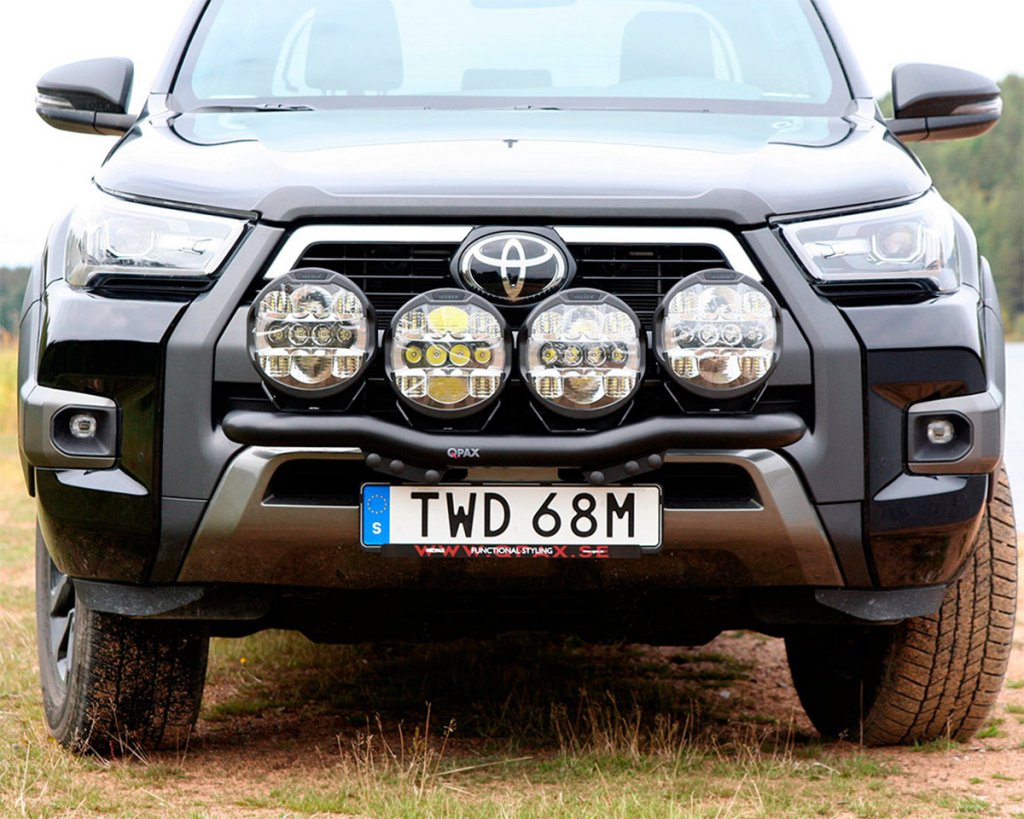

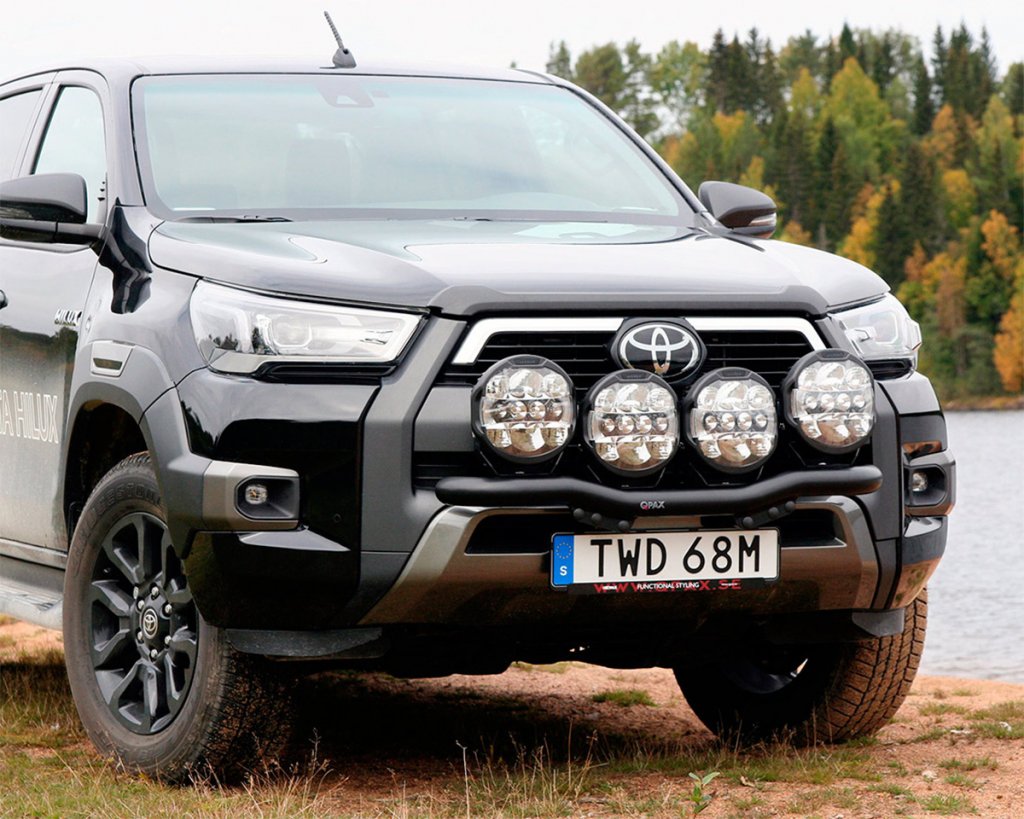

This model-specific auxiliary light bracket for Toyota Hilux from 2020-2026 provides a stable platform when mounting driving lights at the front. The light bar is equipped with four fixed, welded mounting tabs accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Toyota Hilux, the bar anchors securely to the vehicle's load-bearing structure for optimal strength.

Auxiliary Light Bracket - Gentle Q-GRIP Mounting Around the Crash Bar

The light bracket is mounted using QPAX's proven Q-GRIP system, where the mount clamps firmly around the vehicle's existing crash beam to ensure a vibration-free installation without unnecessary modifications to the front bumper. Detailed step-by-step instructions for installation on your Toyota Hilux can be found in the mounting instructions attached as a PDF here on the product page. To ensure a stable, vibration-free beam pattern on rough roads, the driving lights must be stabilized at the top using the included support struts.

Mounting and Attachment: Clamps directly around the crash beam using the QPAX Q-GRIP system.
Radar Compatibility: Fully compatible with models equipped with safety radar in the Toyota emblem.
Stabilization Requirements & Max Weight: Recommended maximum weight is 2 kg per light. Included stabilization stays must always be used.

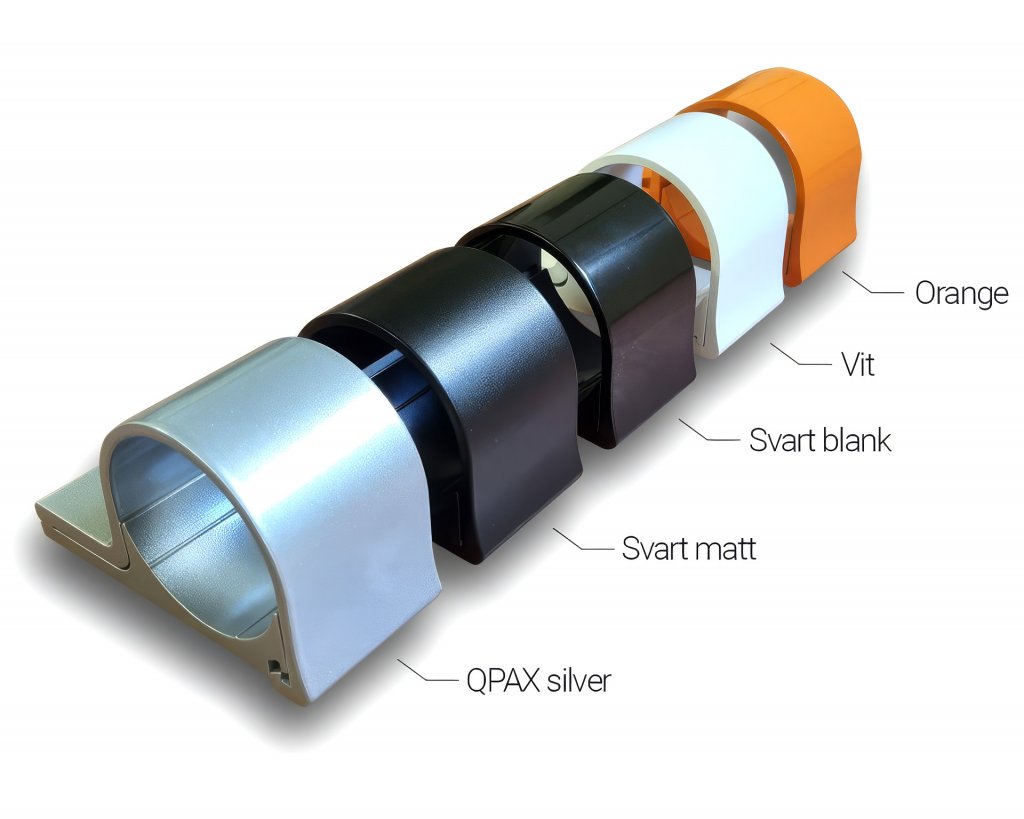

Choose Your Finish for Toyota Hilux

Five Available Colours (Powder Coating)

The auxiliary light bracket can be ordered in five different finishes to match the paint or other details of your Toyota Hilux:

Silver: Classic powder-coated silver finish.
Velvet Black (Matt): Discreet matte black surface.
Black (Gloss 80): Gloss black finish with an 80-gloss rating.
White (RAL9016): Powder-coated in White RAL 9016.
Orange (RAL2008): Powder-coated in Orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube Diameter: 60 mm
Surface Finish: Powder coating
Number of Light Mounts: 4 pcs
Mounting Tabs: Fixed (welded)
Max Auxiliary Light Diameter: 240 mm
Recommended Max Weight per Light: 2 kg each
Mounting System: QPAX Q-GRIP clamp mount around the crash beam (see PDF mounting instructions)

What's Included in the Box?

Supplied as a complete kit tailored for Toyota Hilux, containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit (Q-GRIP for crash bar)
Stabilizer stays for driving lights
Mounting instructions (included and available as a downloadable PDF)

A durable, custom-fit solution for Toyota Hilux from 2020-2026 that ensures a solid mount and an optimal beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Toyota Hilux 2020–2026
