Auxiliary Light Bracket for 4 Driving Lights Volkswagen Transporter T6.1 from 2019-2024

Item ID: 75004-4340

€756

Incl. VAT

Which variant would you like?

Matte Silver

75004-4340

€756

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

75004-4340-O

€756

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

75004-4340-S

€756

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

75004-4340-S80

€756

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

75004-4340-V

€756

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

This vehicle-specific auxiliary light bracket for Volkswagen Transporter T6.1 from 2019-2024 provides a rigid platform when mounting driving lights at the front. The bar is equipped with four fixed, welded mounting tabs that accommodate a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tubing and features a durable powder-coated finish resistant to stone chips, road salt, and harsh northern climates. The light bar is specifically engineered for your Volkswagen Transporter T6.1 and mounts securely to the vehicle's structural frame for optimal strength.

Auxiliary Light Bracket - Vehicle-Specific and Stable Mounting

The auxiliary light bar is mounted using custom-fit brackets where attachment is made with a bracket directly onto the vehicle's crash bar for maximum torsional rigidity and stability. Detailed step-by-step instructions for the installation on your Volkswagen Transporter T6.1 are provided in the installation guide available as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the driving lights must be stabilized at the top using the included stay bars.

Mounting and procedure: Mounted using brackets directly to the vehicle's crash beam. Note that the front bumper/grille must be removed during installation.

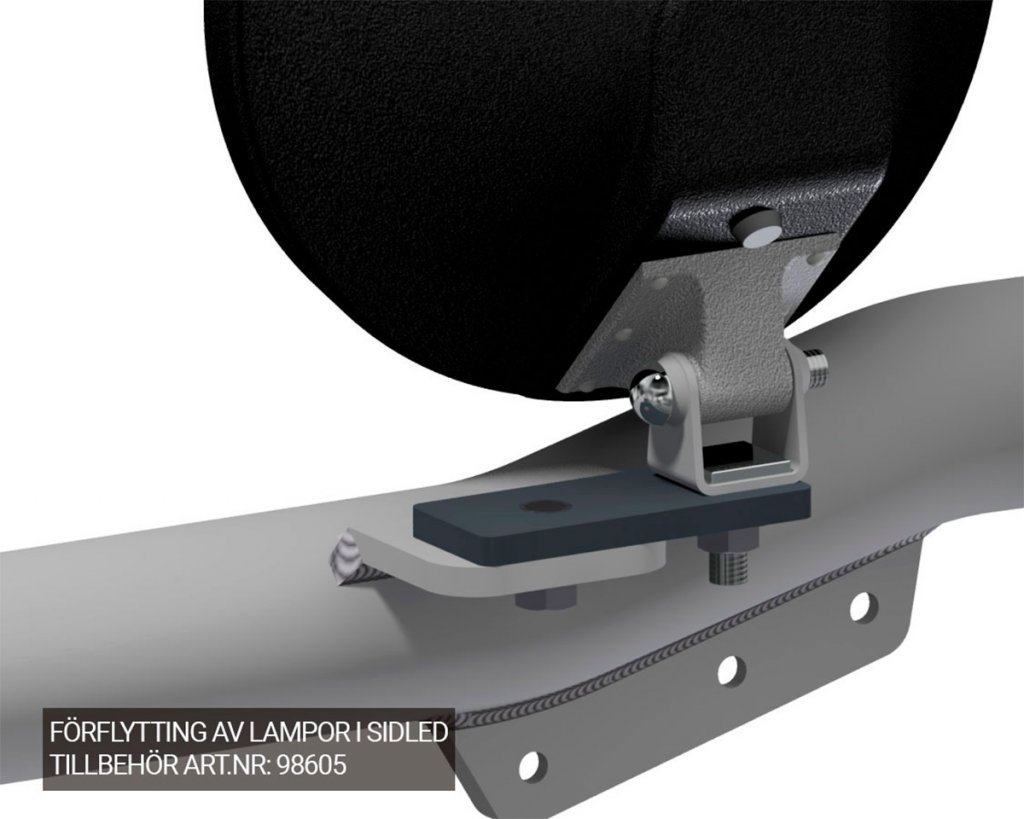

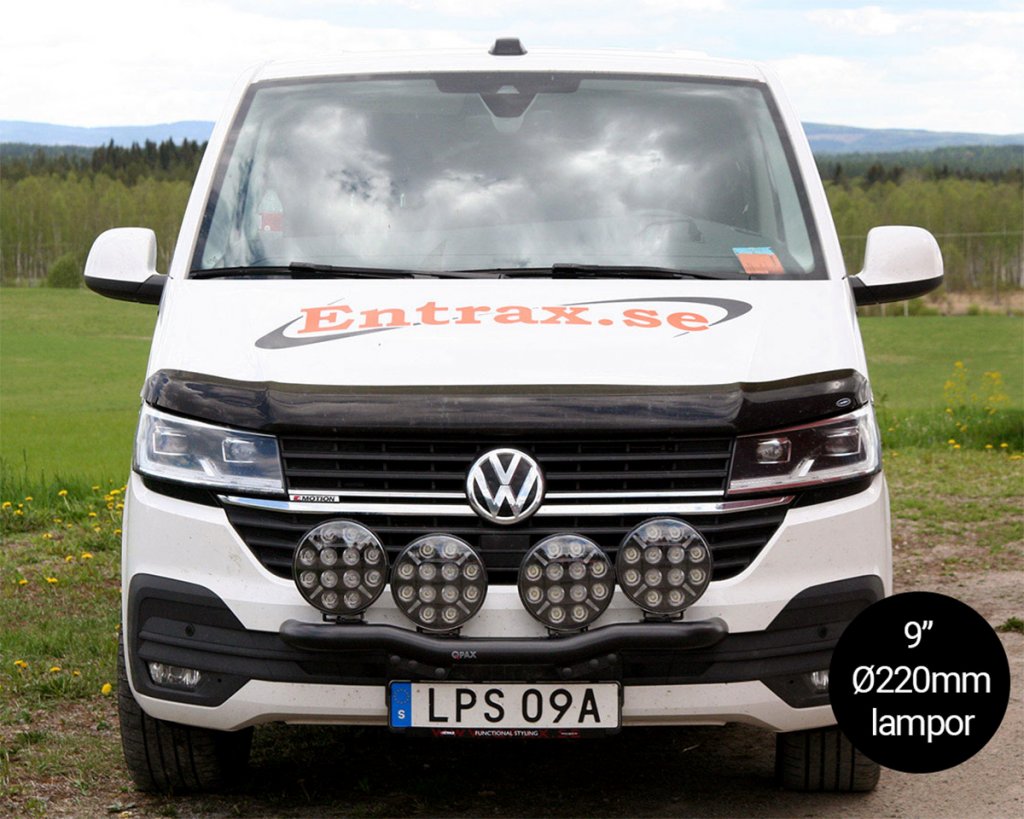

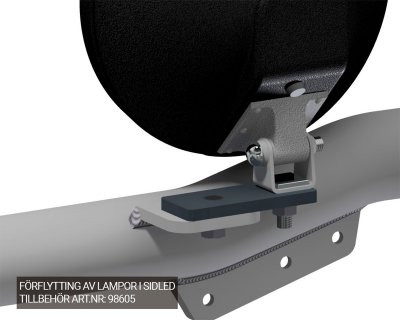

Radar compatibility and light adjustment: The installation does not interfere with the vehicle's radar located beneath the emblem (verified through testing with Ø220 mm LED driving lights, reference model Seeker NS9). To ensure a clear line of sight for the radar, the auxiliary lights must be adjusted as far outward from the center as possible via the adjustment screw on the lamp base. For other auxiliary light models, offset brackets (accessory 98605) are recommended to move the lamps outward and clear of the radar's field of view.
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilization struts must always be used.

Choose Your Variant for Volkswagen Transporter T6.1

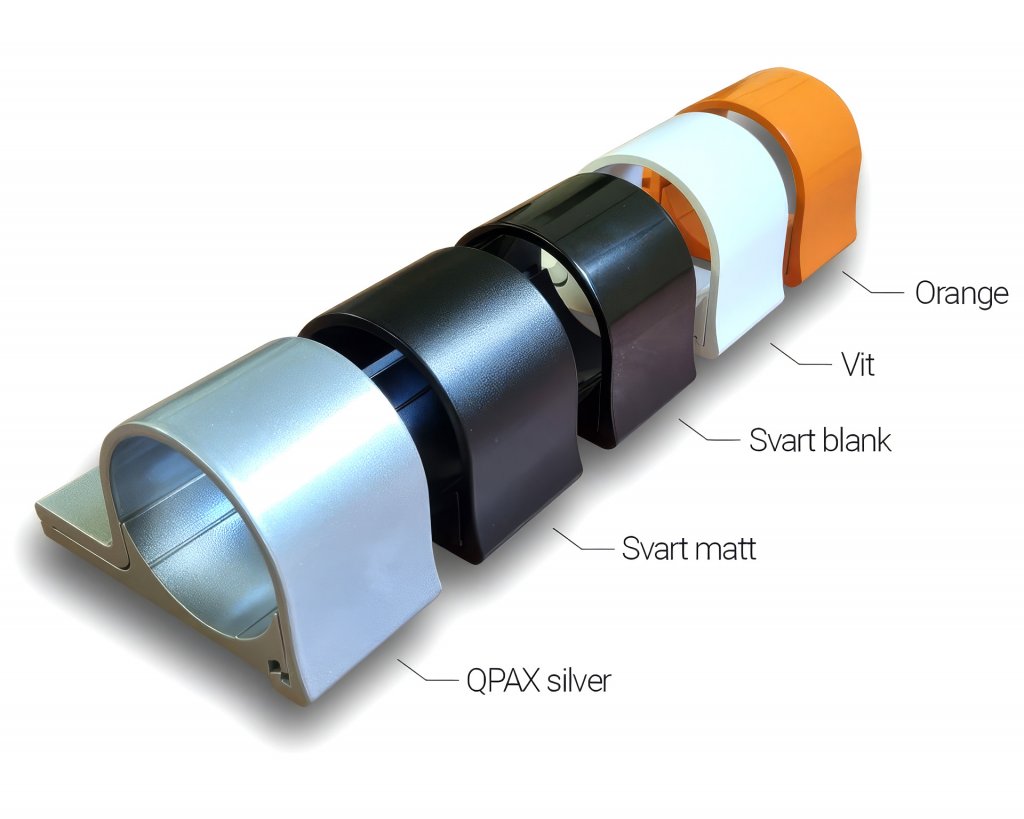

Five available colors (powder coating)

The auxiliary light bracket can be ordered in five different colors to match the paintwork or other exterior details of your Volkswagen Transporter T6.1:

Silver: Classic powder-coated silver finish.
Black Velvet (matte): Discreet matte black surface.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting: Bracket mounted to crash bar – front bumper removed during installation (see PDF installation manual)

What Is Included?

Supplied as a complete kit tailored for Volkswagen Transporter T6.1 containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit with crash bar brackets
Stabilization struts for auxiliary lights
Installation instructions (included and available as a downloadable PDF)

A durable, custom-fit solution for Volkswagen Transporter T6.1 from 2019-2024 providing a rigid mount and optimal light distribution for four driving lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Transporter T6.1 2019–2024
