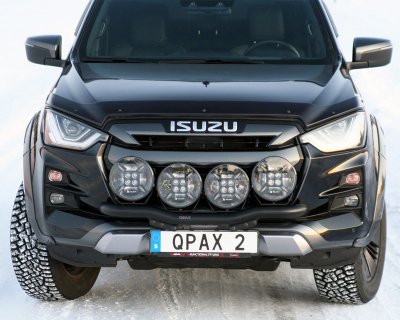

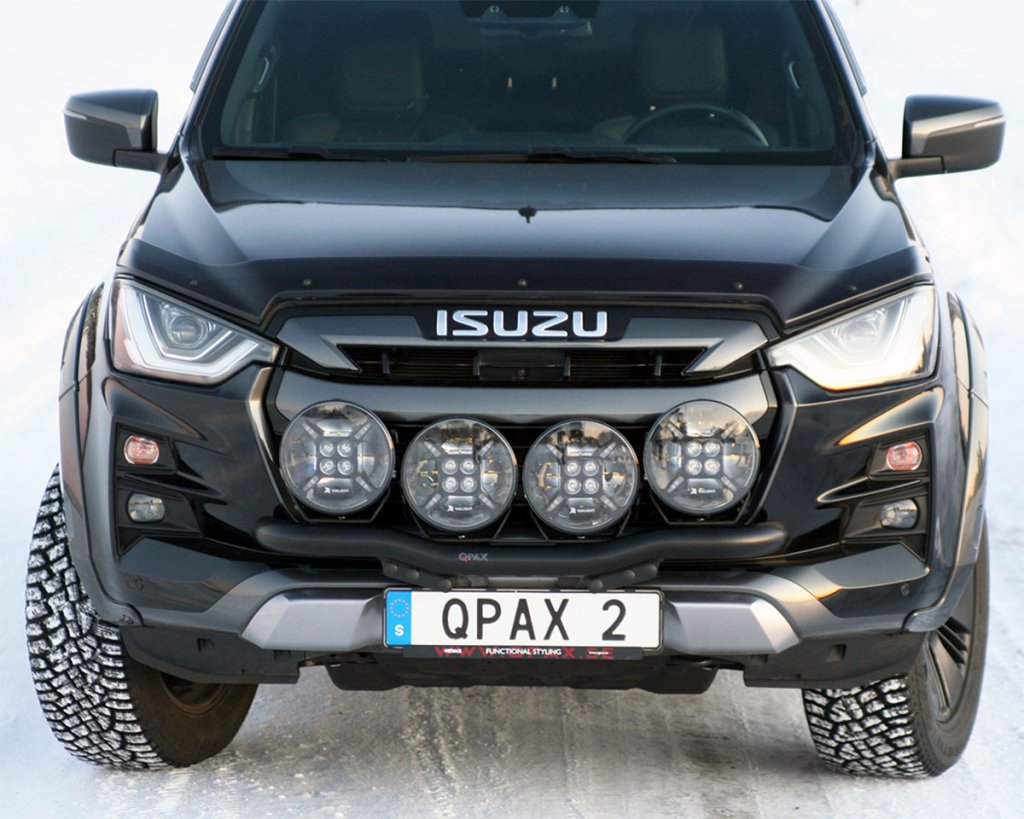

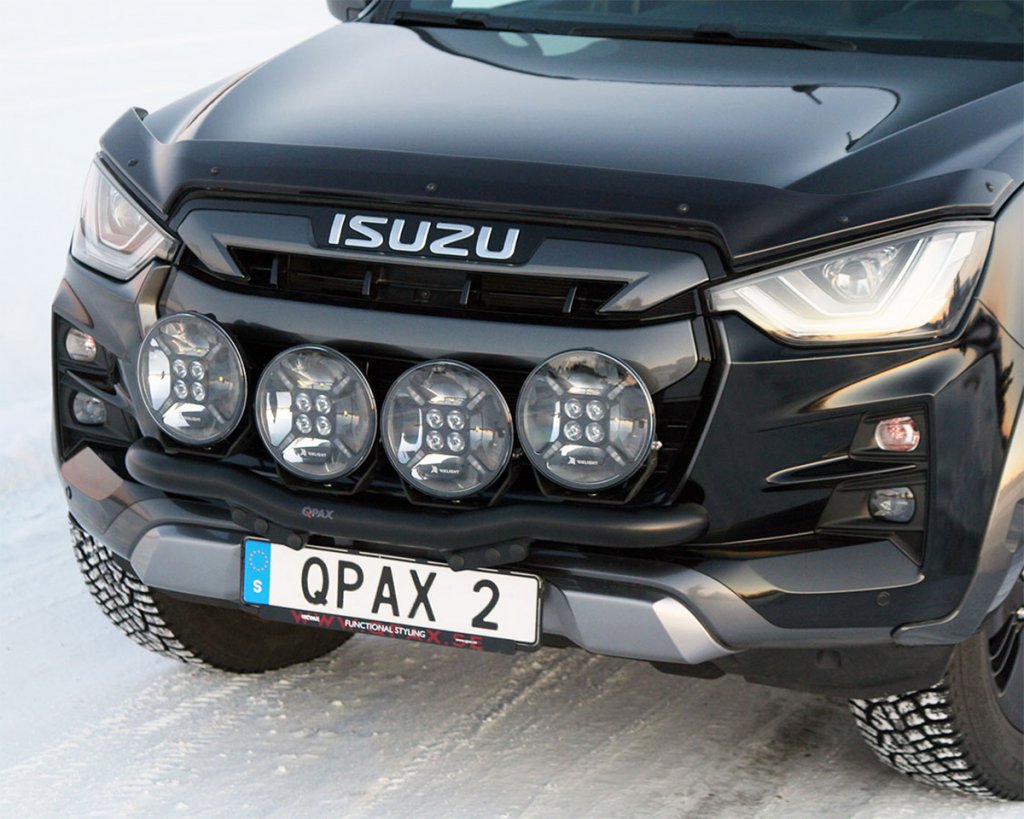

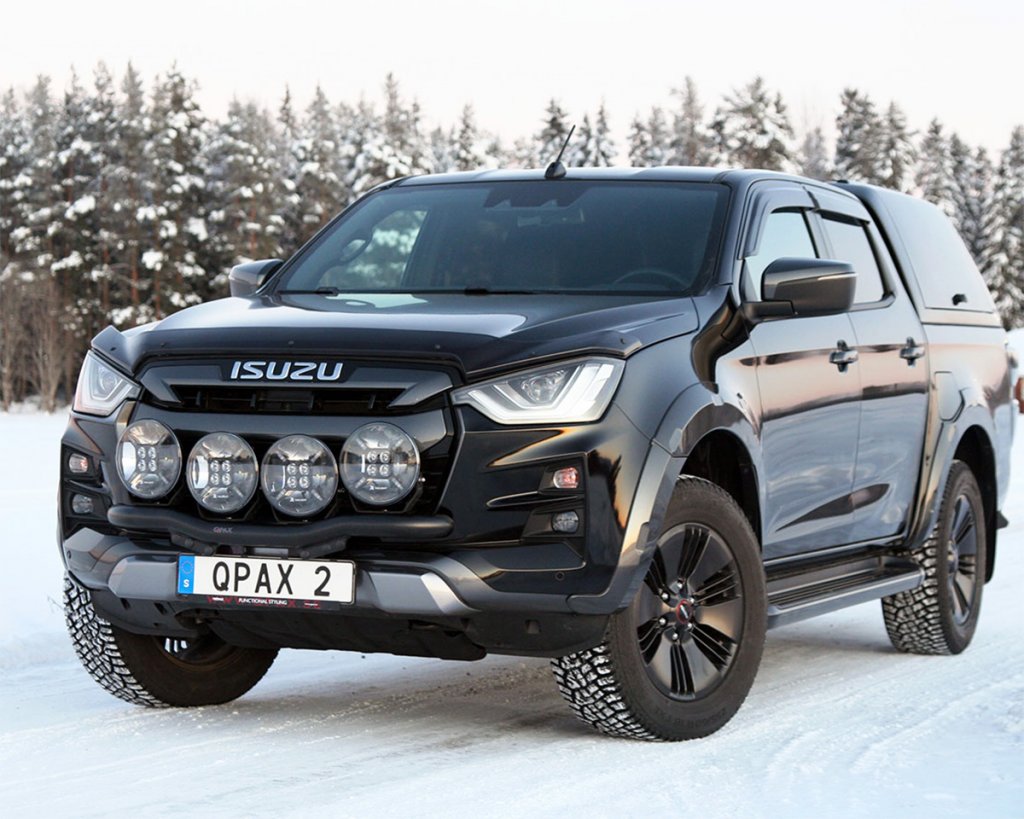

Auxiliary Light Bracket for 4 Lights Isuzu D-Max from 2020-2024

Item ID: 37005-4340

€869

Incl. VAT

Which variant would you like?

Matte Silver

37005-4340

€869

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

37005-4340-O

€869

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

37005-4340-S

€869

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

37005-4340-S80

€869

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

37005-4340-V

€869

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

This model-specific auxiliary light bracket for the Isuzu D-Max from 2020-2024 provides a sturdy platform for mounting driving lights on the front of your vehicle. The light bar is equipped with four fixed, welded mounting points accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. The bar is custom-engineered for your Isuzu D-Max and anchors securely into the vehicle's structural frame for optimal stability.

Auxiliary Light Bracket - Model-Specific and Stable Mounting

The auxiliary light bar is mounted using custom-engineered brackets where attachment is made directly to the vehicle's crash beam via mounting brackets for maximum torsional rigidity and load capacity. Detailed step-by-step instructions for installation on your Isuzu D-Max are provided in the installation manual attached as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the auxiliary lights must be stabilized at the top using the included stay bars.

Mounting and procedure: Mounted with custom brackets directly to the car's crash beam. Note that the front bumper needs to be removed during installation.
Handling parking sensors: Any parking sensors blocked by the installed auxiliary lights must be deactivated using Nonsens sensor blocker covers (included in delivery).
Stabilization requirements and maximum weight: Recommended maximum weight is 2 kg per light. Included stabilizer struts must always be used.

Choose Your Variant for Isuzu D-Max

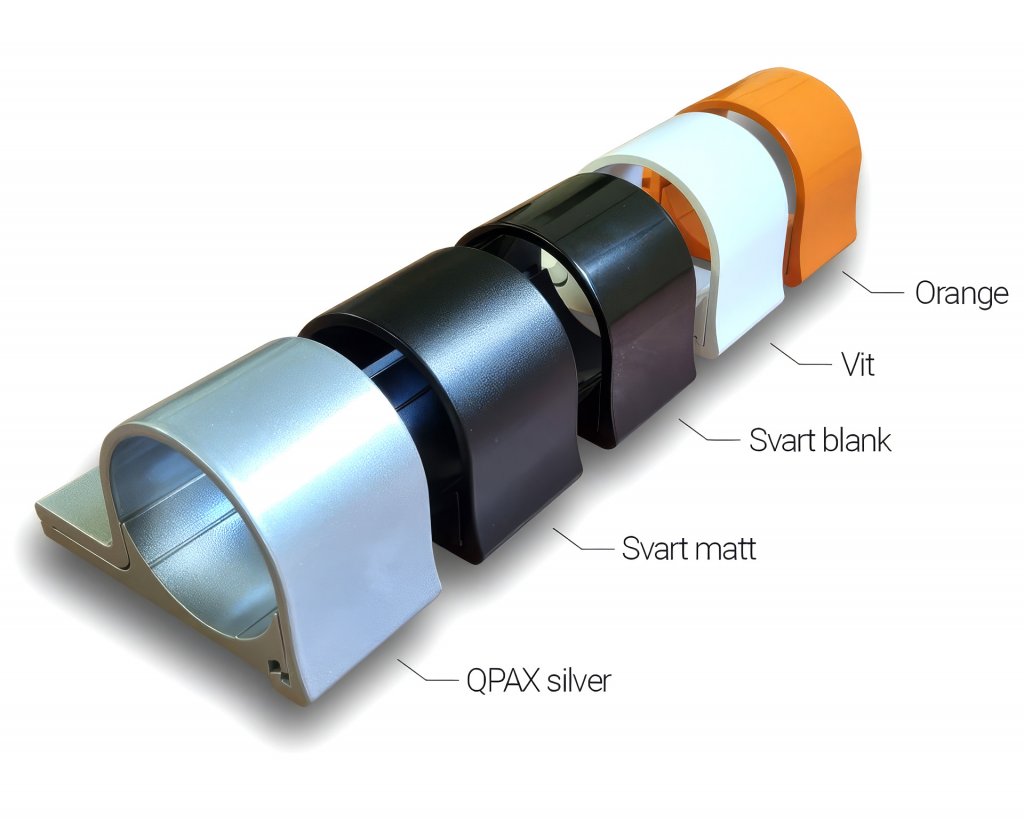

Five available colours (powder coating)

The auxiliary light bracket can be ordered in five different colours to match the paintwork or other exterior details on your Isuzu D-Max:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Understated matte black surface.
Black (gloss 80): Gloss black finish with a gloss level of 80.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical Specifications

Product variant: E63-1
Material: Aluminium
Tube diameter: 60 mm
Total width: 1019 mm
Surface finish: Powder coating
Number of light mounting points: 4
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting: Bracket mounted to crash beam – front bumper removed during installation (see PDF installation manual)

What is Included in the Delivery?

Supplied as a complete kit tailored for the Isuzu D-Max containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit with brackets for the crash beam
Stabilizer struts for auxiliary lights
Nonsens covers for parking sensors
Installation instructions (included and available as a downloadable PDF)

A durable and model-specific solution for the Isuzu D-Max from 2020-2024 providing stable mounting and an optimal light pattern for four auxiliary lights.
