Auxiliary Light Bracket for 4 Lights Ford Ranger Raptor from 2022 and Newer

Item ID: 26004-4341

€699

Incl. VAT

Which variant would you like?

Matte Silver

26004-4341

€699

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

26004-4341-O

€699

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

26004-4341-S

€699

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

26004-4341-S80

€699

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

26004-4341-V

€699

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

This model-specific auxiliary light bracket for the Ford Ranger Raptor from 2022 and newer provides a stable platform when mounting auxiliary driving lights at the front. The bar is equipped with four fixed, welded mounting points accommodating up to four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made from 60 mm aluminium tubing and features a durable powder-coated finish designed to withstand stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Ford Ranger Raptor, the bar secures firmly into the vehicle's load-bearing structure for optimal strength.

Auxiliary Light Bracket - Model-Specific and Stable Mounting

The light bracket mounts using vehicle-specific brackets where attachment is made directly to the vehicle's upper stabilizer bar for maximum stability and load capacity. Detailed step-by-step instructions for installation on your Ford Ranger Raptor are provided in the assembly instructions attached as a PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the driving lights must be stabilized at the top using the included support stays.

Mounting and attachment: Mounts directly to the vehicle's upper stabilizer bar.
Sensor and radar handling: Front inner parking sensors must be deactivated using the Nonsens covers (included in the delivery). Any safety radar located in the lower air intake remains fully functional and is not affected by the installation.

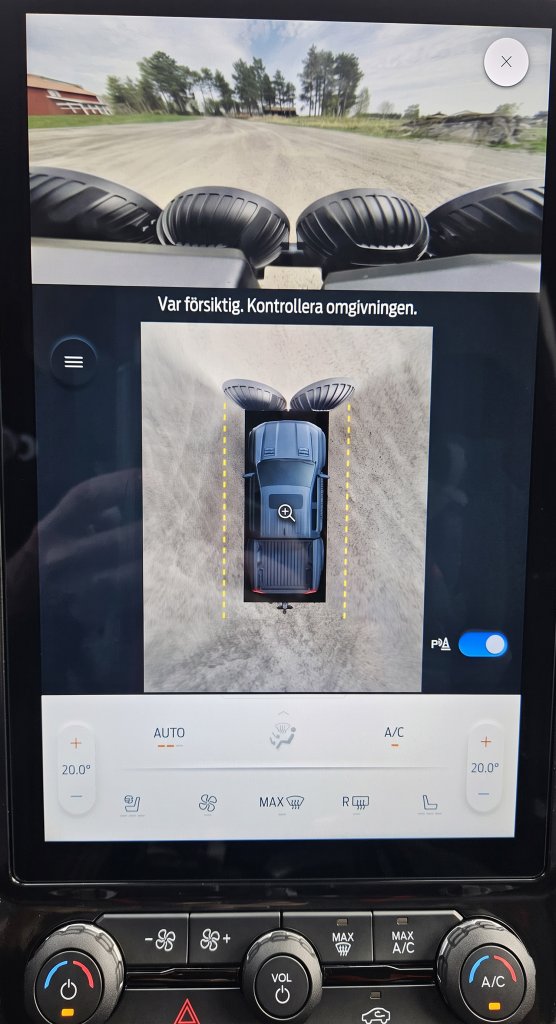

Impact on front camera: On models equipped with a front camera, the camera's field of view will be partially obstructed by the installation.
Stabilization requirements and maximum weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilizer stays must always be used.

Choose Your Variant for Ford Ranger Raptor

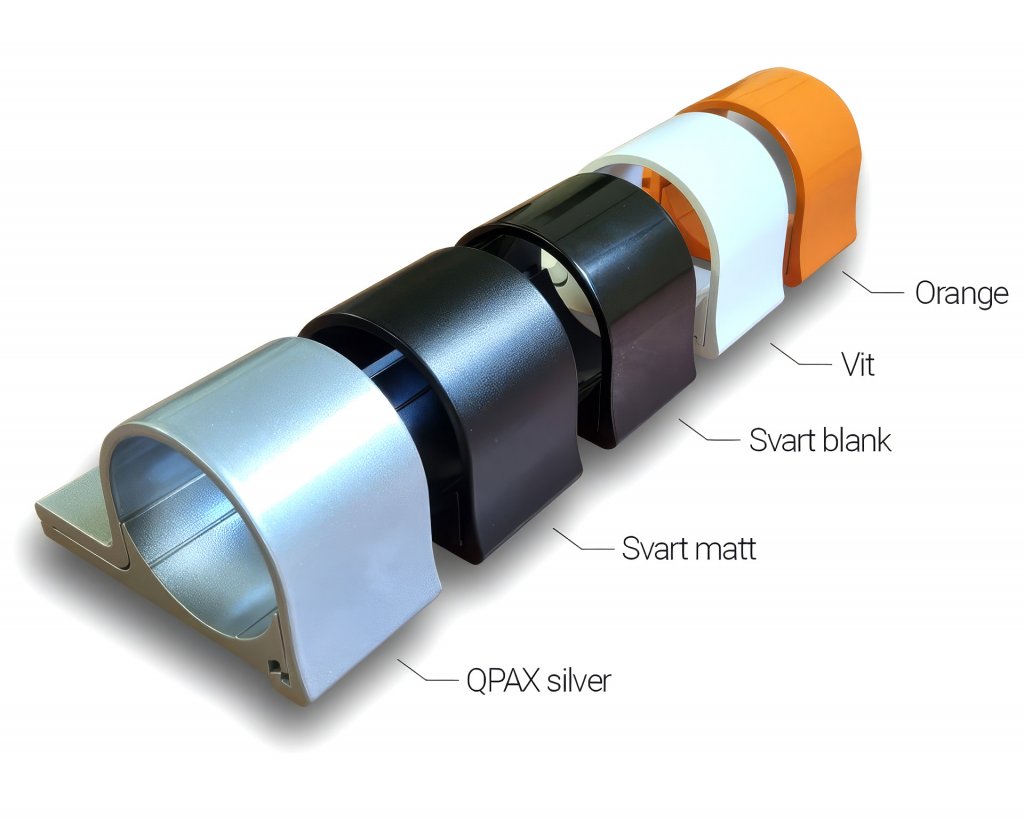

Five available colours (powder coating)

The auxiliary light bracket can be ordered in five different colours to match your Ford Ranger Raptor's paintwork or accents:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Subtle matte black surface.
Black (gloss 80): Glossy black finish with an 80 gloss rating.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm diameter
Recommended max weight per light: 2 kg each
Mounting: Attached to upper stabilizer bar (see PDF installation guide)

What is Included?

Delivered as a complete kit tailored for the Ford Ranger Raptor, containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Model-specific mounting kit for the upper stabilizer bar
Stabilizer stays for auxiliary lights
Nonsens blanking covers for parking sensors
Installation instructions (included in package and available as downloadable PDF)

A durable, custom-fit solution for the Ford Ranger Raptor from 2022 and newer, providing a rigid mount and optimal beam pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Ford Ranger Raptor 2022-
