Auxiliary Light Bracket for 4 Lights Ford Ranger from 2022-

Item ID: 26004-4340

€870

Incl. VAT

Which variant would you like?

Matte Silver

26004-4340

€870

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

26004-4340-O

€870

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

26004-4340-S

€870

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

26004-4340-S80

€870

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

26004-4340-V

€870

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

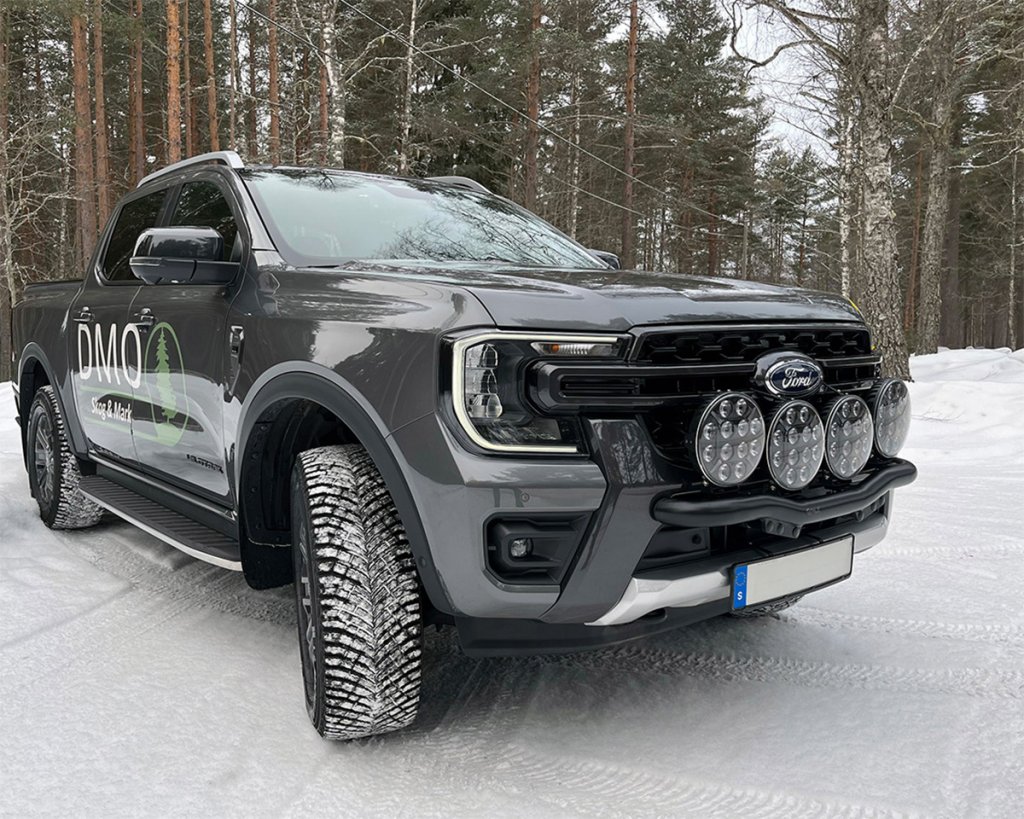

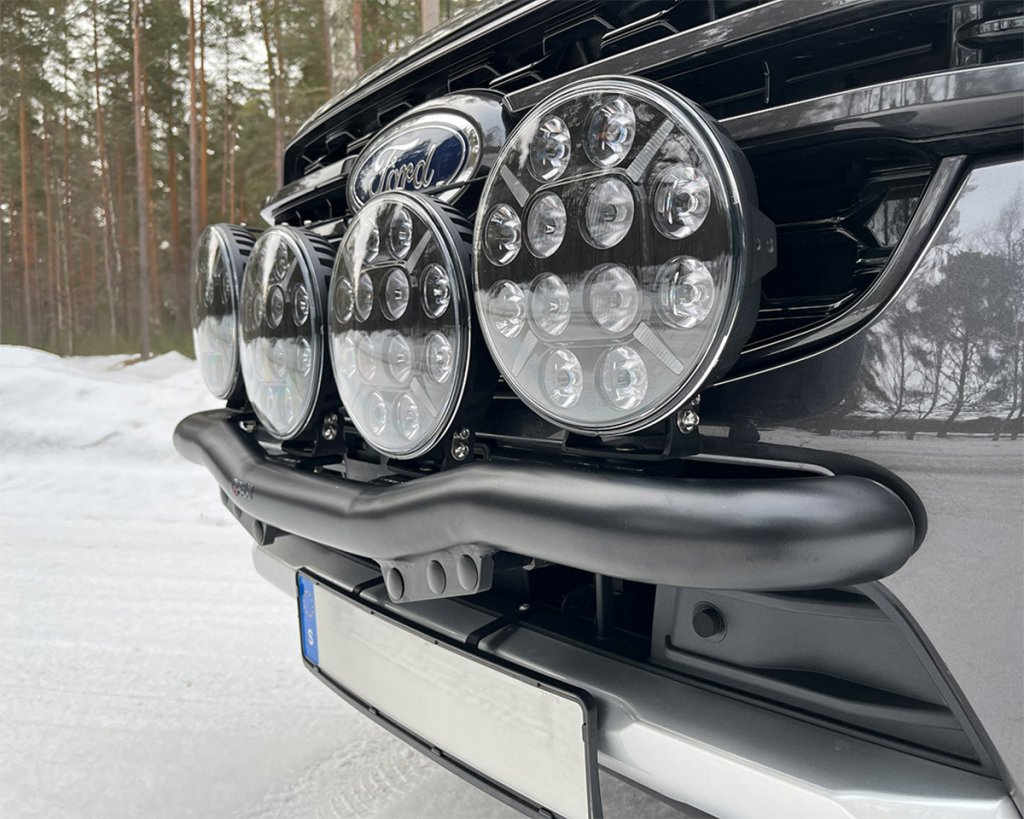

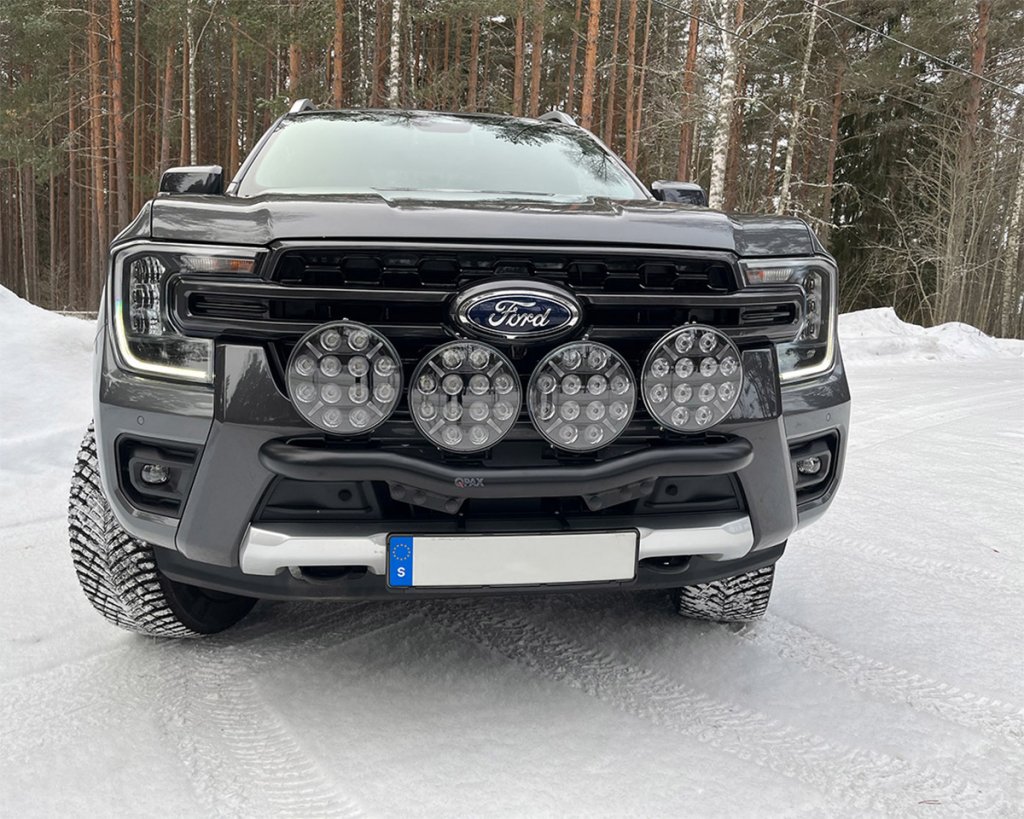

This vehicle-specific auxiliary light bracket for the Ford Ranger from 2022- provides a stable platform when mounting auxiliary driving lights at the front. The bar is equipped with four fixed, welded mounting points that accommodate a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tubing and features a durable powder-coated finish resistant to stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Ford Ranger, the bar anchors securely into the vehicle's load-bearing structure for optimal strength.

Auxiliary Light Bracket - Vehicle-Specific and Gentle Q-GRIP Mounting

The light bracket is mounted using custom-fit brackets where the attachment attaches to the lower crash beam using QPAX's proven Q-GRIP system for a solid and gentle installation. Detailed step-by-step instructions for installation on your Ford Ranger are provided in the installation manual attached as a PDF here on the product page. To ensure a stable and vibration-free beam pattern on rough roads, the auxiliary lights must be stabilized at the top using the included stay bars.

Mounting and attachment: Installed onto the vehicle's lower crash beam using the QPAX Q-GRIP system.
Sensors and radar compatibility: The parking sensors closest to the license plate must be disabled using the Nonsens blocker pads (included in the kit). The vehicle's radar is not affected by the bracket or installation.
Impact on front camera: On models equipped with a front camera, the camera's field of view will be partially obstructed by the installation.
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilizer stay bars must always be used.

Choose Your Variant for Ford Ranger

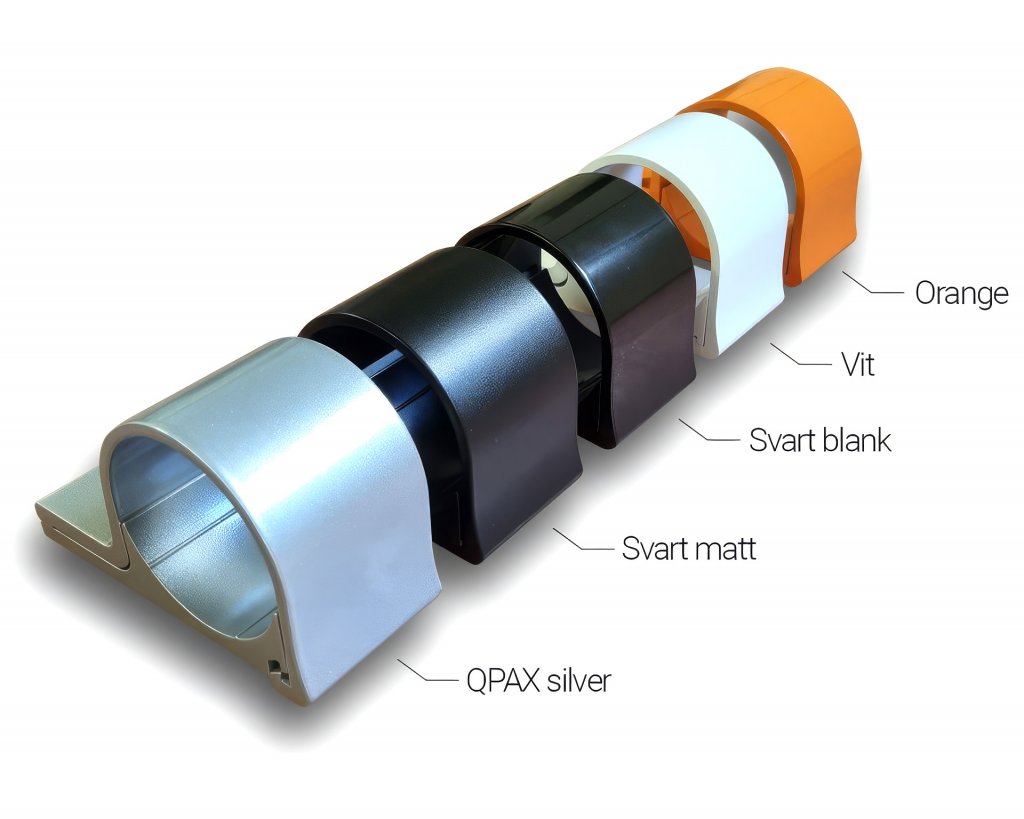

Five available colours (powder coated)

The auxiliary light bracket can be ordered in five different finishes to match your Ford Ranger's paint or trim:

Silver: Classic powder-coated silver finish.
Black Velvet (matte): Understated matte black finish.
Black (gloss 80): Gloss black finish with a gloss rating of 80.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting system: QPAX Q-GRIP to lower crash beam (see PDF installation manual)

What is Included?

Delivered as a complete kit tailored for the Ford Ranger, containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Vehicle-specific mounting kit (Q-GRIP for lower crash beam)
Stabilizer stay bars for auxiliary lights
Nonsens sensor blockers for parking sensors
Installation manual (included in the box and available as a downloadable PDF)

A durable, custom-engineered solution for the Ford Ranger from 2022- that provides a rigid mount and optimal light output for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Ford Ranger 2022-
