Auxiliary Light Bracket for 4 Lights MAN TGE from 2016-

Item ID: 44001-4340

€870

Incl. VAT

Which variant would you like?

Matte Silver

44001-4340

€870

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

44001-4340-O

€870

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

44001-4340-S

€870

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

44001-4340-S80

€870

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

44001-4340-V

€870

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

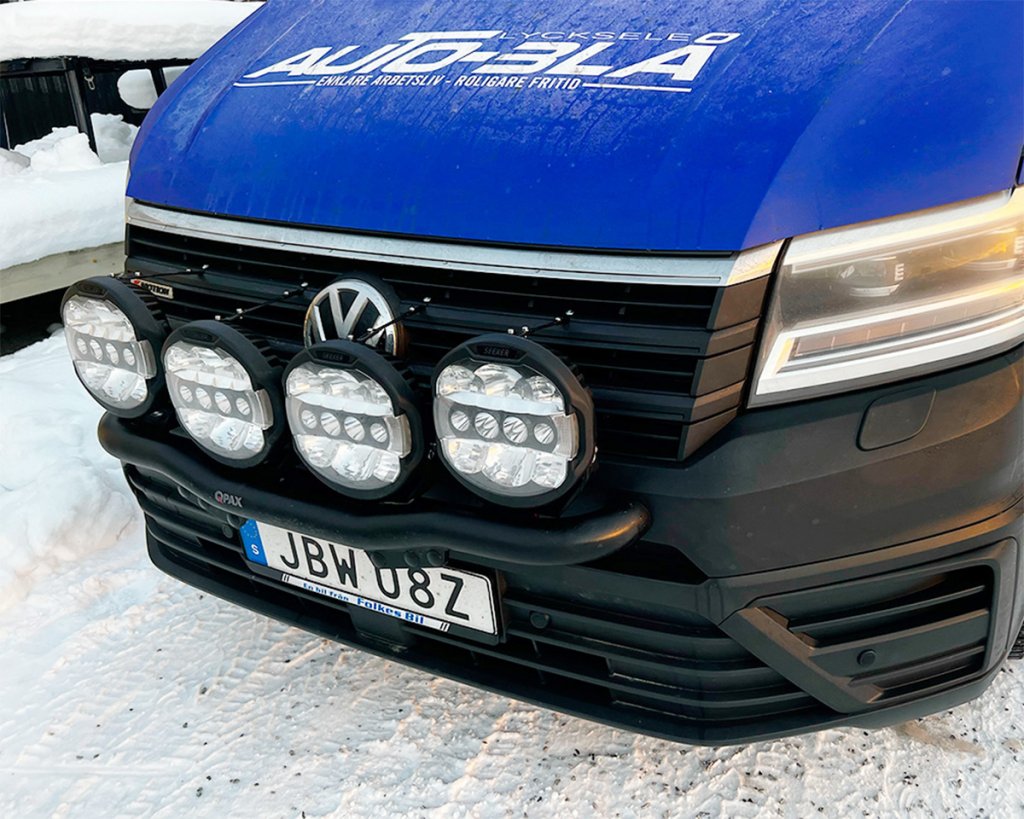

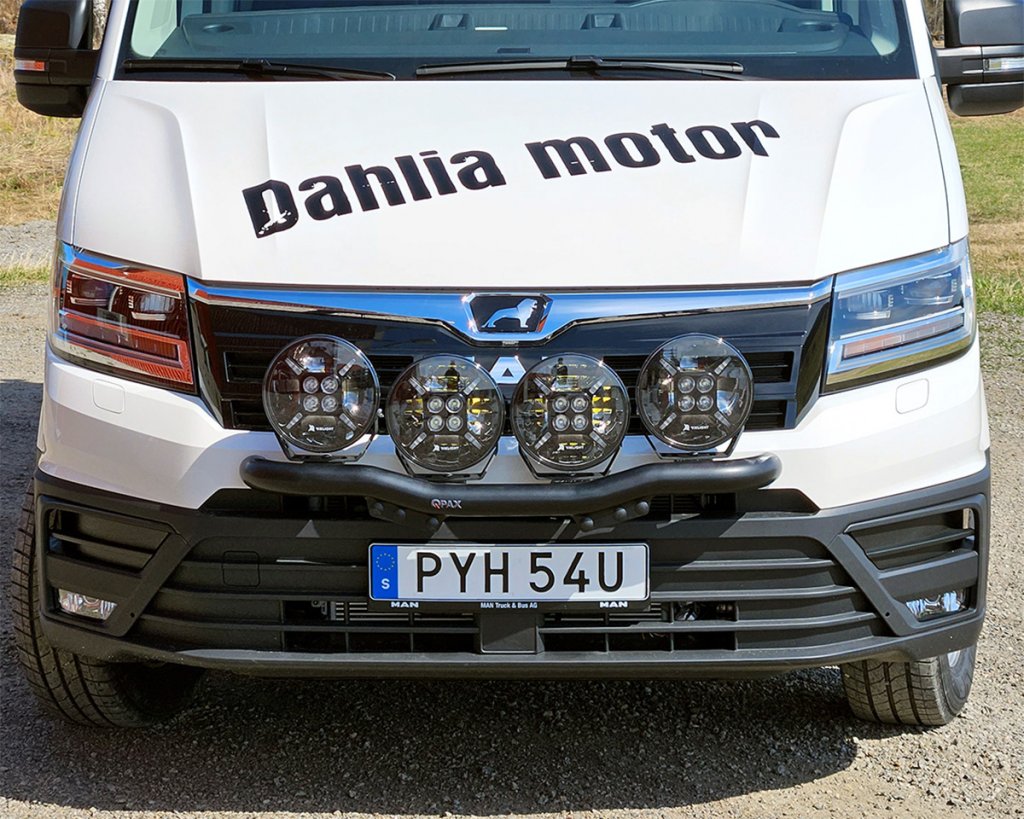

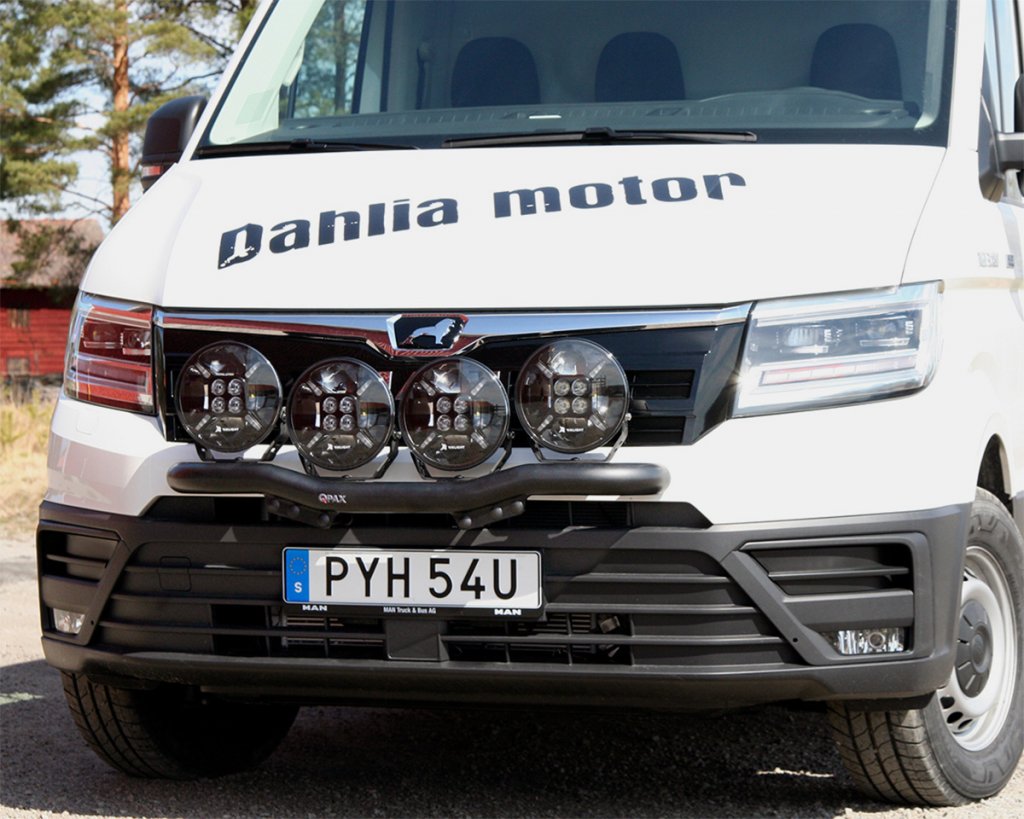

This model-specific auxiliary light bracket for MAN TGE from 2016- provides a stable platform when mounting auxiliary lights to the front. The bar is equipped with four fixed, welded mounting tabs accommodating a total of four auxiliary lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tubing and features a durable powder-coated finish designed to withstand stone chips, road salt, and the harsh Nordic climate. Specifically engineered for your MAN TGE, the bar anchors securely to the vehicle's load-bearing structure for optimal rigidity.

Auxiliary Light Bracket - Gentle Q-GRIP Mounting Around the Crash Beam

The light bracket mounts using QPAX's proven Q-GRIP system, clamping securely around the vehicle's existing crash beam to provide vibration-free mounting without unnecessary modification to the front. Detailed step-by-step installation instructions for your MAN TGE can be found in the mounting manual attached as a PDF on this product page. To ensure a stable and flicker-free beam pattern on rough roads, the lights must be stabilized at the top using the included support struts.

Mounting and attachment: Clamped around the crash beam using the QPAX Q-GRIP system.
Radar compatibility: Fully compatible with models equipped with radar below the license plate.
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per light. Included stabilization struts must always be used.

Choose Your Variant for MAN TGE

Five available colours (powder coating)

The auxiliary light bracket can be ordered in five different finishes to match your MAN TGE's paint or trim details:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Subtle matte black surface.
Black (gloss 80): Gloss black finish with an 80 gloss level.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface treatment: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Mounting system: QPAX Q-GRIP clamp around crash beam (see PDF installation guide)

What is Included?

Supplied as a complete kit tailored for MAN TGE containing:

Auxiliary light bar in 60 mm powder-coated aluminium
Model-specific mounting kit (Q-GRIP for crash beam)
Stabilization struts for auxiliary lights
Installation instructions (included in box and downloadable PDF)

A durable, custom-fit solution for MAN TGE from 2016- delivering a rigid mount and optimal beam performance for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for MAN TGE 2016-
