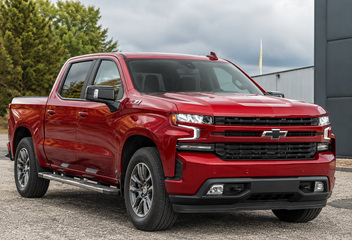

Auxiliary light bracket for 4 lights Chevrolet Silverado from 2019-2022

Item ID: 16001-4340

€784

Incl. VAT

What type of coating would you like?

Matte finish

16001-4340

€784

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

16001-4340-O

€784

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (matte)

16001-4340-S

€784

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

16001-4340-S80

€784

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

16001-4340-V

€784

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

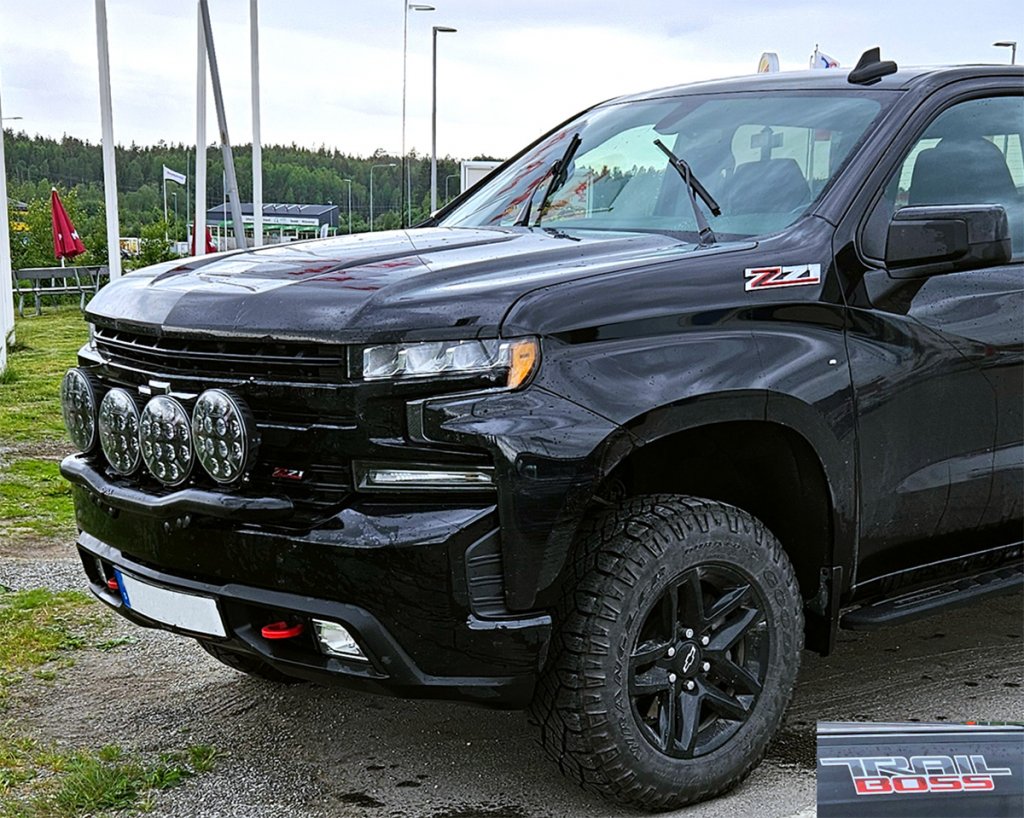

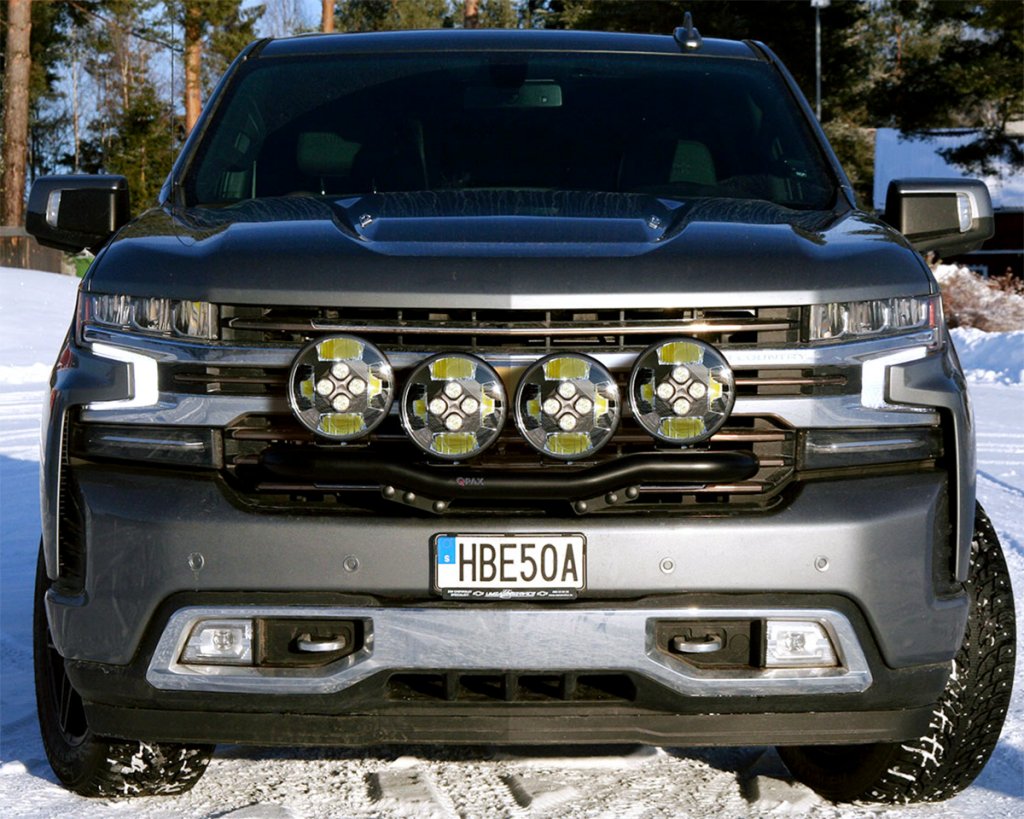

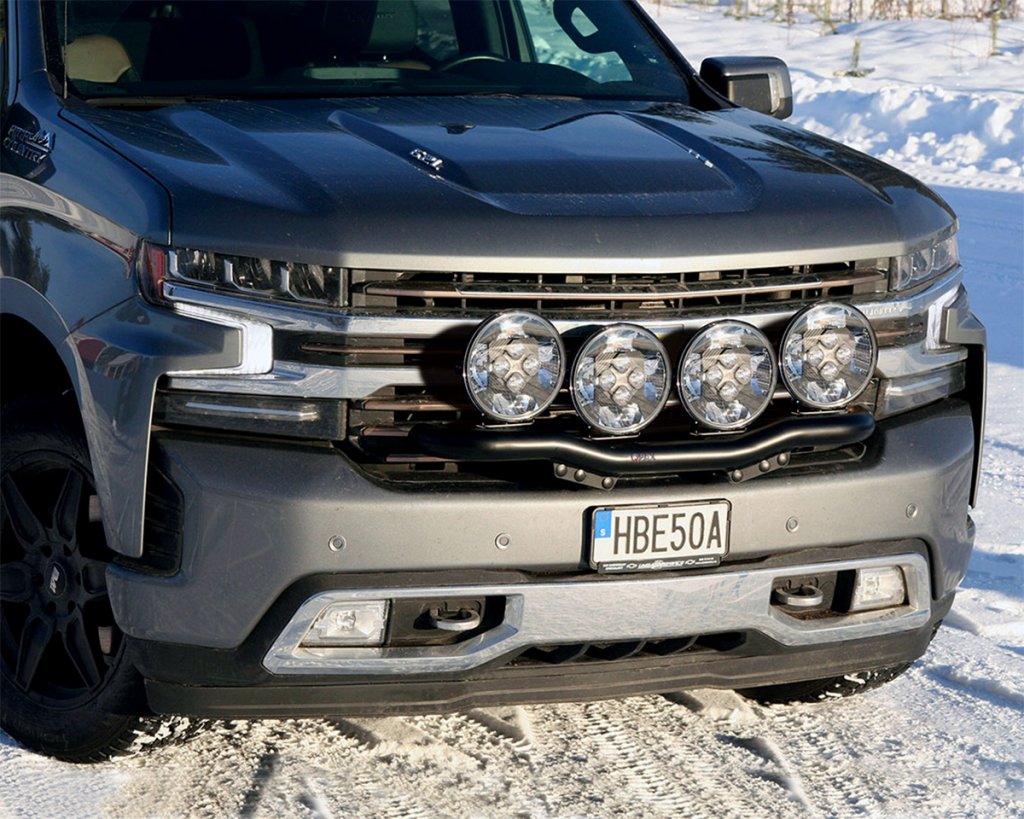

This vehicle-specific auxiliary light bracket for Chevrolet Silverado from 2019-2022 provides a solid platform when you want to mount auxiliary driving lights to the front. The bar is equipped with four fixed, welded mounting tabs accommodating a total of four driving lights with a maximum diameter of 240 mm per light.

The bracket is made from 60 mm aluminium tubing and features a durable powder-coated finish that withstands stone chips, road salt, and harsh Nordic climates. Installation on your Chevrolet Silverado is done using the QPAX Q-GRIP system directly onto the crash beam, without any damage or permanent modifications to the vehicle or bumper.

Auxiliary light bracket - Gentle Q-GRIP installation without front modifications

With the Q-GRIP system, a clamp bracket is installed around the vehicle's existing crash beam, where the spacers between the clamp and the light bar extend out through the air intake above the license plate. This well-thought-out design means you don't have to drill or modify plastic trim on your Chevrolet Silverado. To ensure a stable beam pattern on rough roads, the driving lights should be stabilized at the top using the included support struts.

Tested and verified fitment: Evaluated on Chevrolet Silverado 1500 Trail Boss (petrol) as well as High Country (petrol and diesel).
Important note for High Country Diesel: When installing on the diesel model, clearance is limited against the auxiliary cooler, and the mount rests against the protective plastic. The lowest flap/vane of the vehicle's active grille shutters must be removed.
Stabilization requirement and max weight: Recommended maximum weight is 2 kg per light. Included stabilizer struts must always be used.

Choose your variant for Chevrolet Silverado

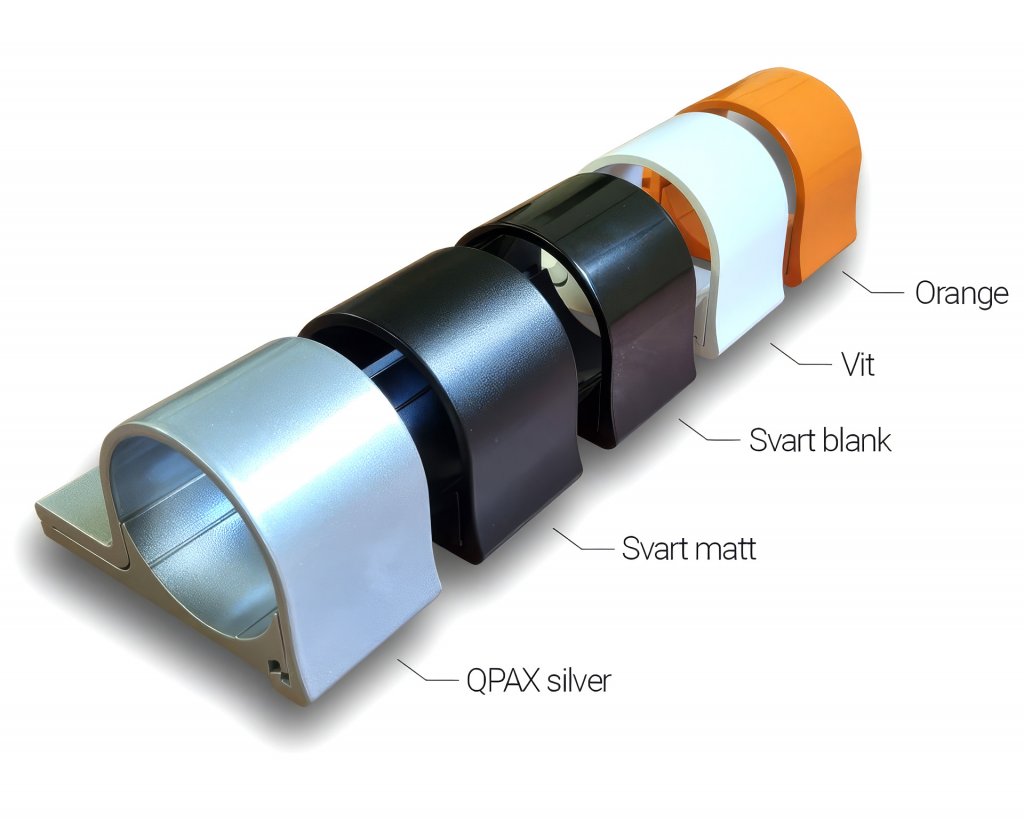

Five available colours (powder coated)

The auxiliary light bracket can be ordered in five different colours to match the paintwork or accents of your Chevrolet Silverado:

Silver: Classic powder-coated silver finish.
Velvet black (matte): Subtle matte black finish.
Black (gloss 80): Gloss black finish with an 80 gloss rating.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Total width: 1019 mm
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max light diameter: 240 mm
Recommended max weight per light: 2 kg each
Mounting system: QPAX Q-GRIP (clamp mount on crash beam)

What is included in the package?

Delivered as a complete kit tailored for Chevrolet Silverado, including:

Auxiliary light bracket in 60 mm powder-coated aluminium
Mounting hardware for Q-GRIP installation
Stabilizer struts for auxiliary lights
Installation instructions

A durable, custom-fit solution for Chevrolet Silverado from 2019-2022 that provides a rigid mount for four driving lights without any vehicle modification.

Documents:
attachment

Installation Instructions for the Auxiliary Light Mount for the 2019–2022 Chevrolet Silverado
