Ledson LED light bar Scania Next Gen 2017-

Item ID: 1360263

€535

Incl. VAT

Which LED light bar do you want in the package?

EPIX30+

1360263

€535

Available in external warehouse | Ships within 1-4 business days

EPIX30+ Strobe

1360269

€602

Available in external warehouse | Ships within 1-4 business days

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

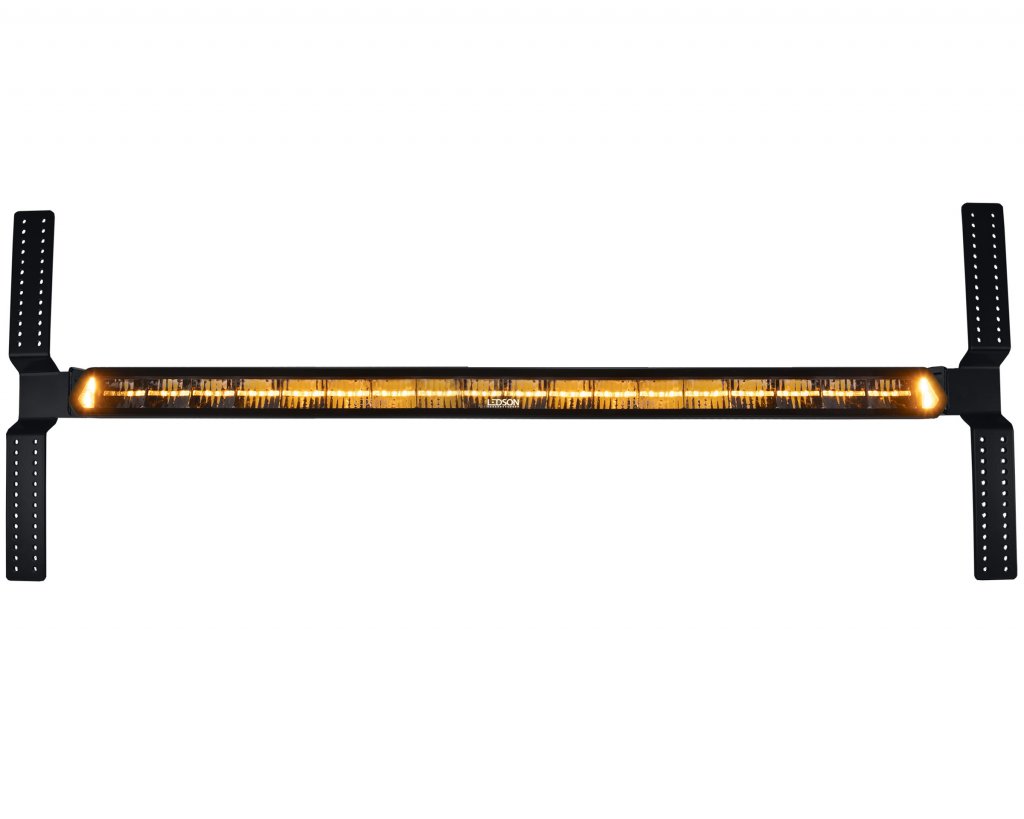

Ledson EPIX30+ with model-specific bracket for Scania Next Gen
Integrated position light & optional R65-approved flashing light
Reaches up to 672 m away at 1 lux (in Powerboost mode)

Ledson's EPIX30+ LED ramp with integrated flashing light & position light and with model-adapted mounting bracket for Scania Next Generation, model year 2017 and newer.

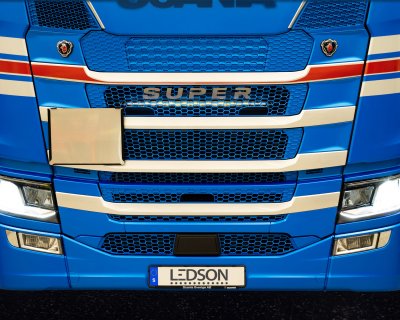

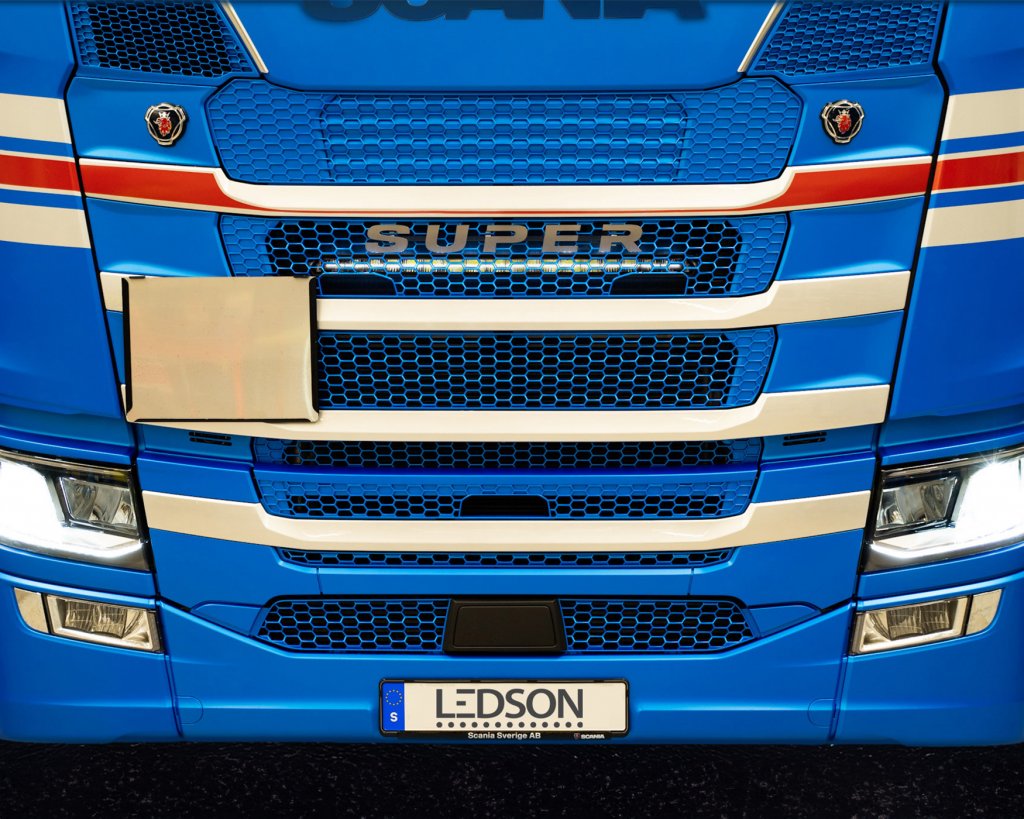

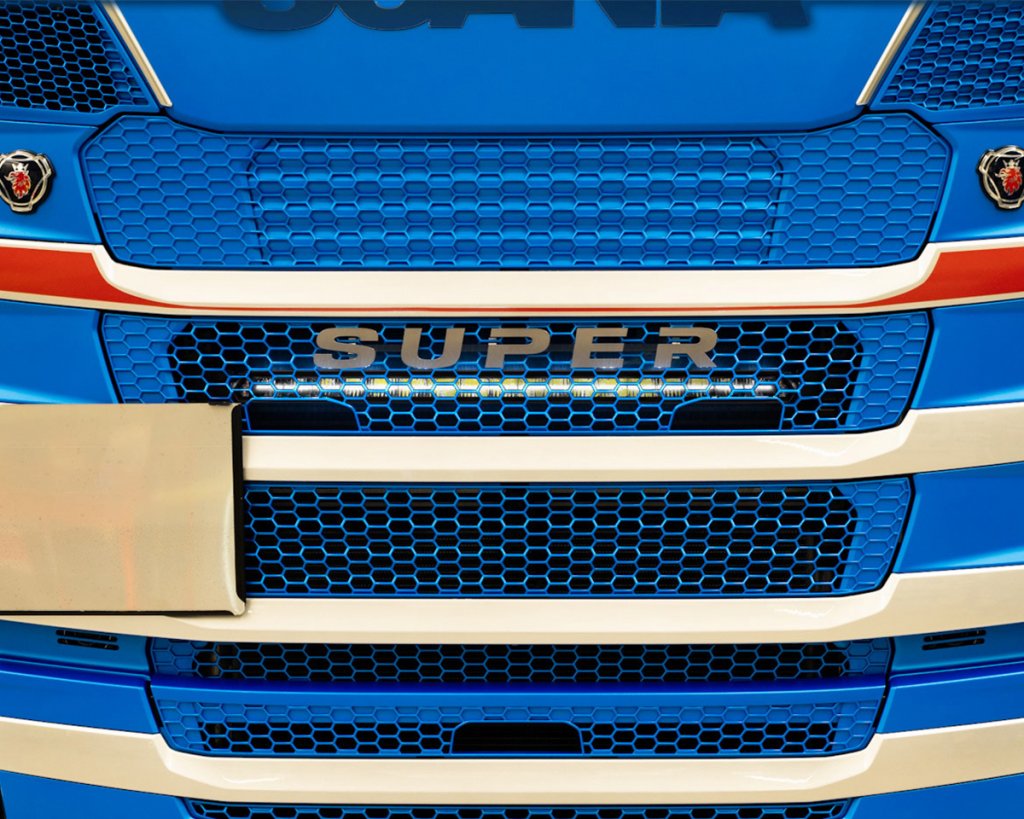

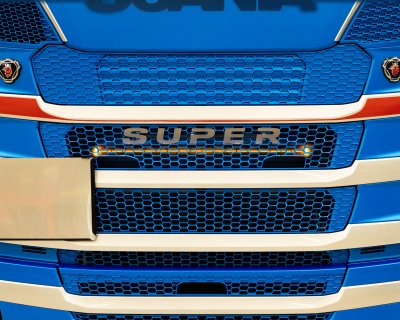

With Ledson's own designed mounting kit, you get a quick and cost-effective installation as well as an optional mounting position for the ramp. Mount it either hidden behind the front grille or let the ramp protrude through the grille, either in the upper or lower grille.

Characteristics of the handrail

R65 approved flash light with 10 different flash patterns
E-marked R112 (approved as extra light), R7, R10 (EMC classified)
EMC-protected according to ECE R10

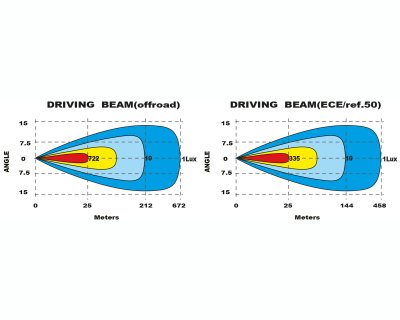

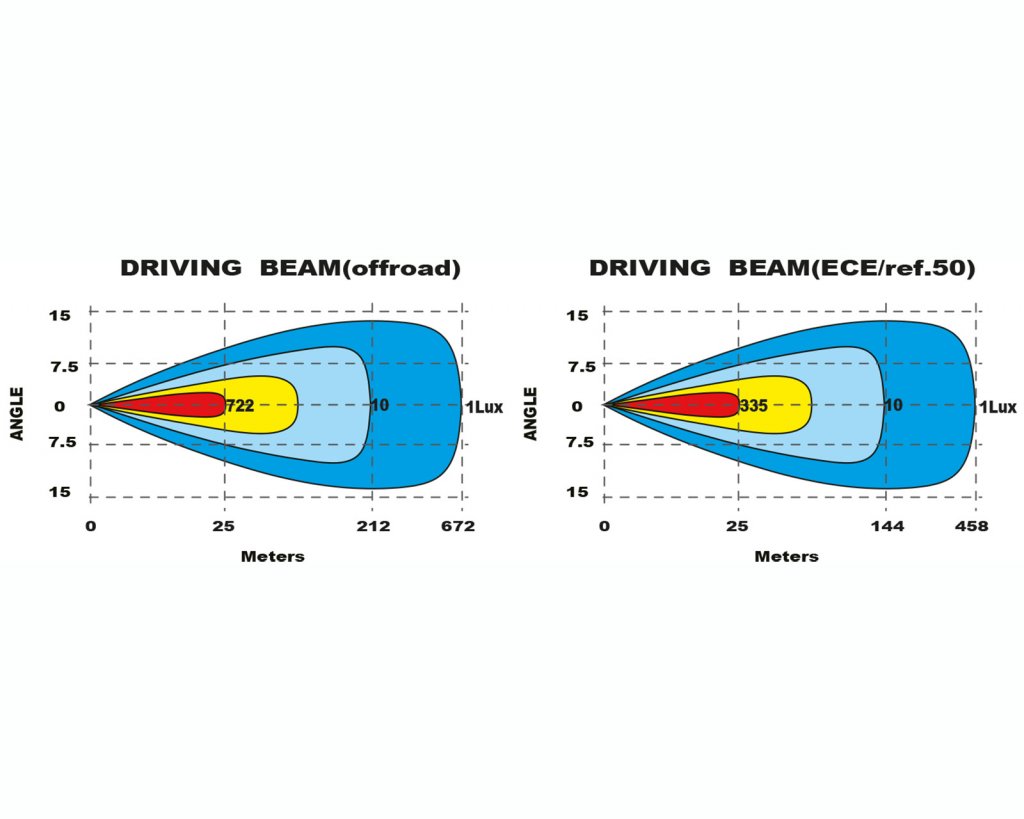

"Driving beam light pattern (wide and oblong)
23 200 lumens (theoretical), 16 300 lumens (actual)
Color temperature 5000K (cool white)
Range 458 m (1 lux), Powerboost: 672 m (1 lux)

Technical data led ramp

270 W (18 x 15 W LED)
IP69K (water/dust proof)
Aluminum housing and polycarbonate lens
DT connector 4-pin (included)
Voltage: 9-36 V

Dimensions led ramp

Width: 740 mm
Height: 43 mm (excl. brackets)
Depth: 61 mm
Weight: 2,25 kg

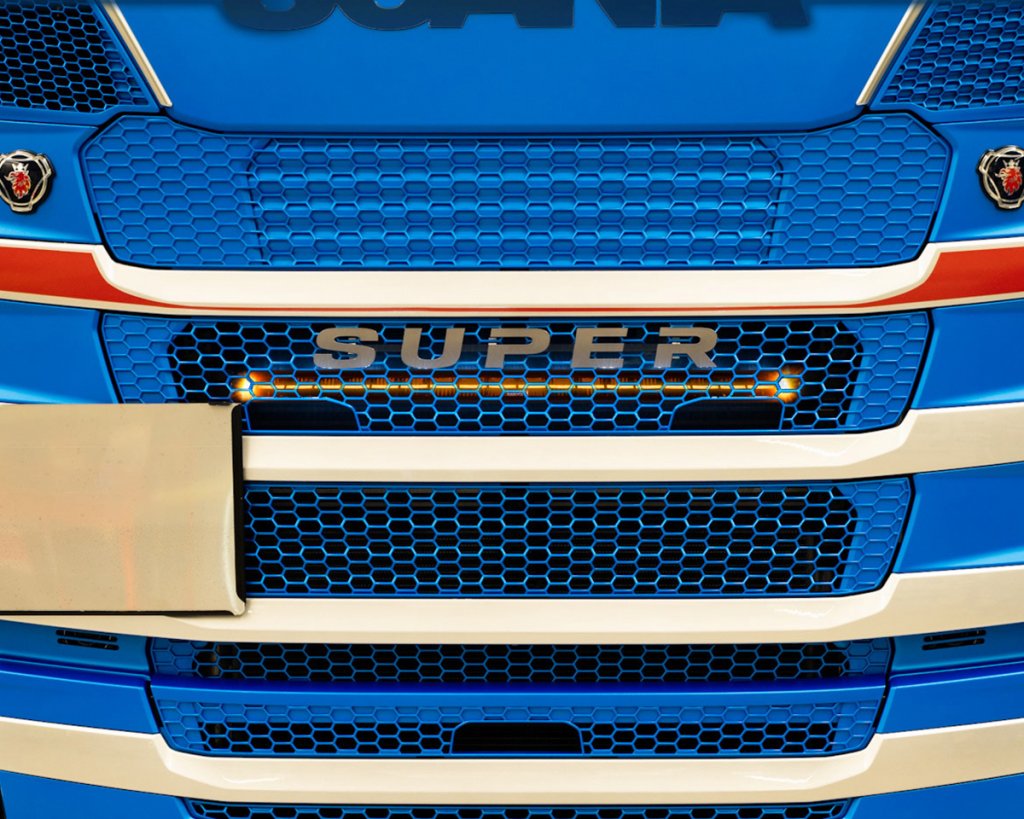

Flash pattern (if you choose Epix30+ Strobe):

Single flash synchronized: 2.2HZ (R65)
Single flash asynchronous: 2.2HZ
Triple flash synchronized: 1.1HZ
Triple flash asynchronous: 1.1HZ
Quadruple flash synchronized: 1.25HZ
Quadruple flash asynchronous: 1.25HZ
Combination between one long and five short synchronized: 0.83HZ
Combination between one long and five short asynchronous: 0.83HZ
Lightning series synchronized: 10HZ
Flash series asynchronous: 10HZ

What is included in the extra light package Ledson Scania Next Gen?

30" EPIX30+ Led ramp
Customized mounting kit for Scania Next Gen
Relay kit
Mounting instructions

Extra light kit Ledson Scania Next Gen is delivered as a complete kit

Documents:
attachment

Assembly instructions for article 1360269 - LED light bar Scania Next Gen
