Ledramp Phoenix+ 32" for Scania Next Gen from 2017-

Phoenix+ Led ramp package Scania Next Gen 2017-

Item ID: 1360225

€546

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

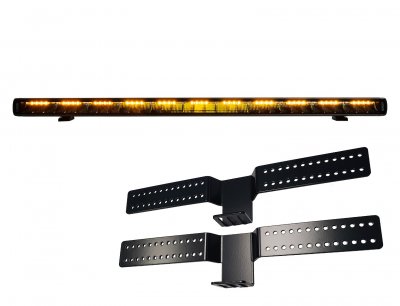

Complete kit with LEDSON Phoenix+ 32" LED ramp, model-adapted brackets and wiring for mounting in the grill on Scania Next Gen from 2017 onwards.

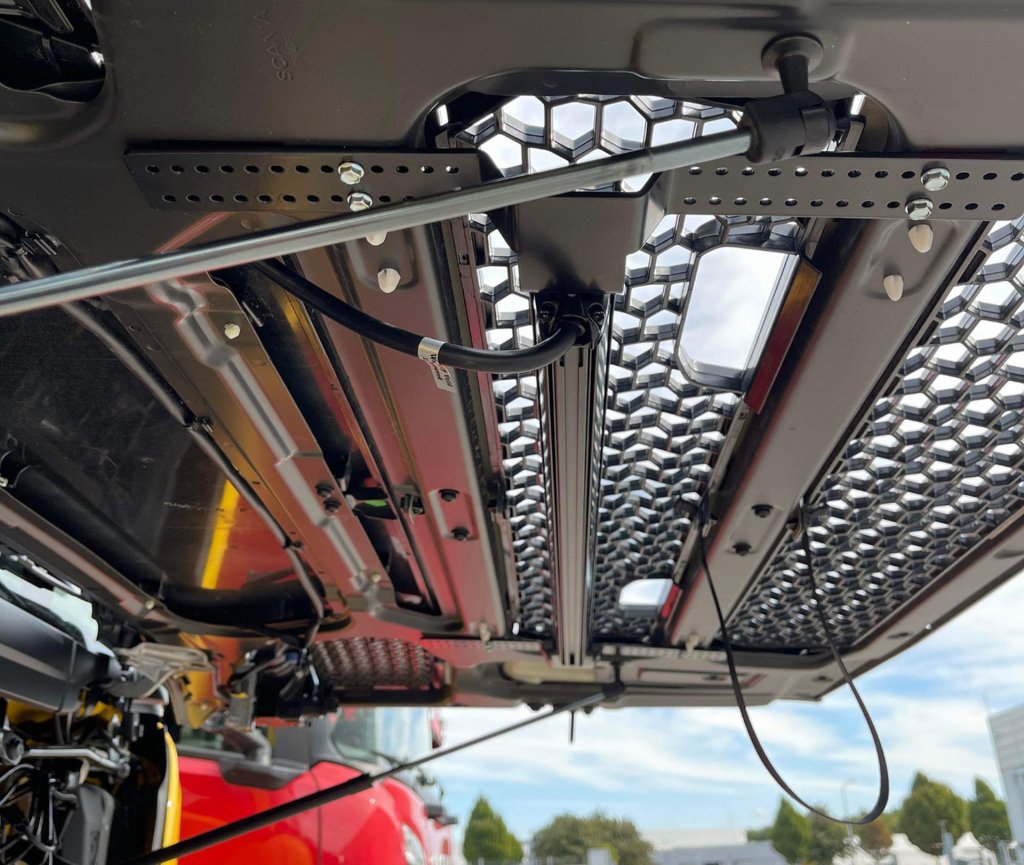

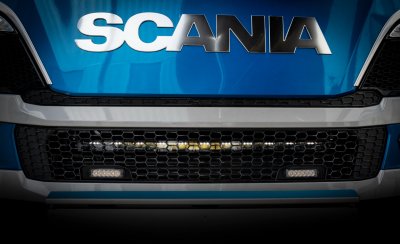

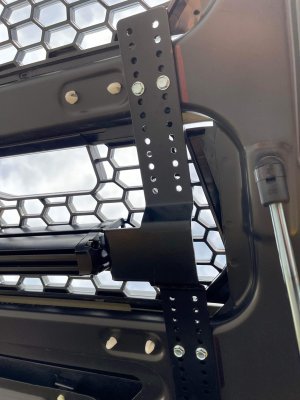

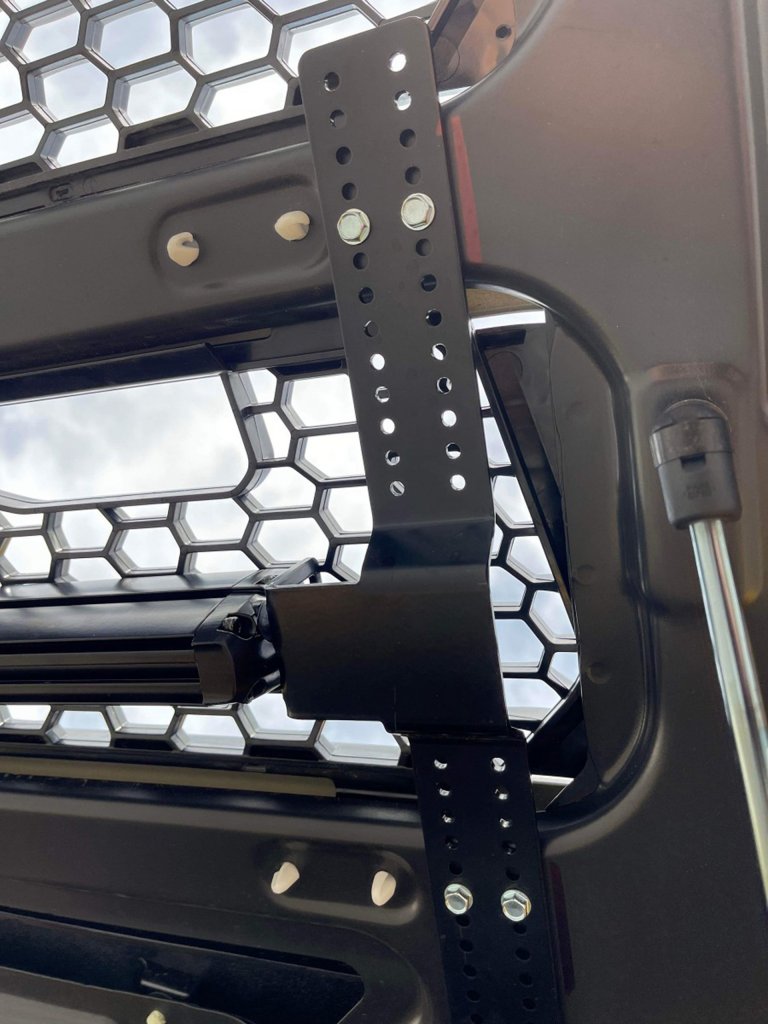

Ledson Phoenix 32" with flash light & position light LED ramp kit for Scania Next Generation, model year 2017 and newer. With our self-designed mounting kit, you get a quick and cost-effective installation and an optional mounting position for the LED ramp. Mount it either hidden behind the front grille or let the ramp protrude through the grille, either at the upper or lower grille.

Phoenix+ offers true multifunctionality with extra light and warning light in one! Install an LED ramp with flashing light function and you will save both precious installation time and get a much cleaner look in the bargain.

Technical specifications:

LEDSON Phoenix+ 32"

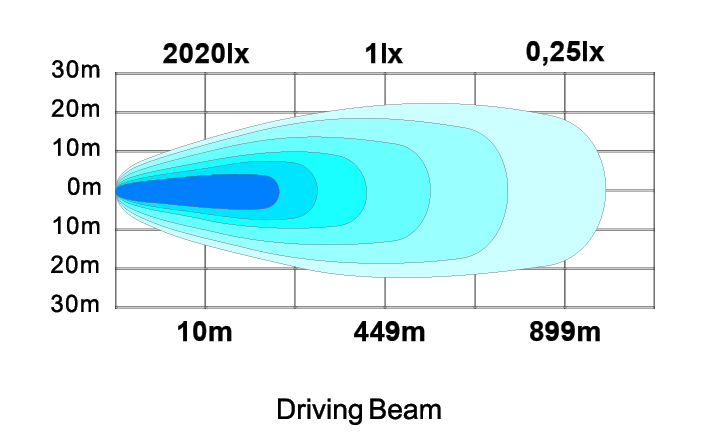

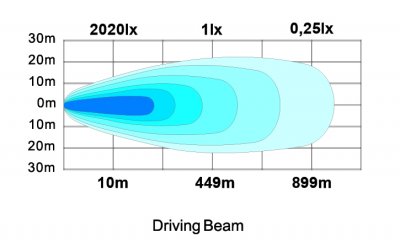

Driving beam light pattern
E-marked ECE R112 (ref. 50)
ECE R65/R7/R10 (EMC-rated)
Range: 449 m (1 lux)
Lumen: 13860 lm (theoretical), 5583 lm (actual)
Color temperature 5700K (cool white)
Flashing light: Orange (ECE R65)
Position light: Xenon white or yellow/orange
165 W (33 x OSRAM CSHP LED)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
4-pin DT connector (included)
Voltage: 10-30V

The complete package includes bracket, led frame and dedicated relay kit for connection to the car electrical system.

This product is suitable for the following car models:

Scania R- & S-series (Next Gen) from 2017-
From model year 2017 onwards

Scania R- & S-serien (Next Gen) från 2017-

Documents:
attachment

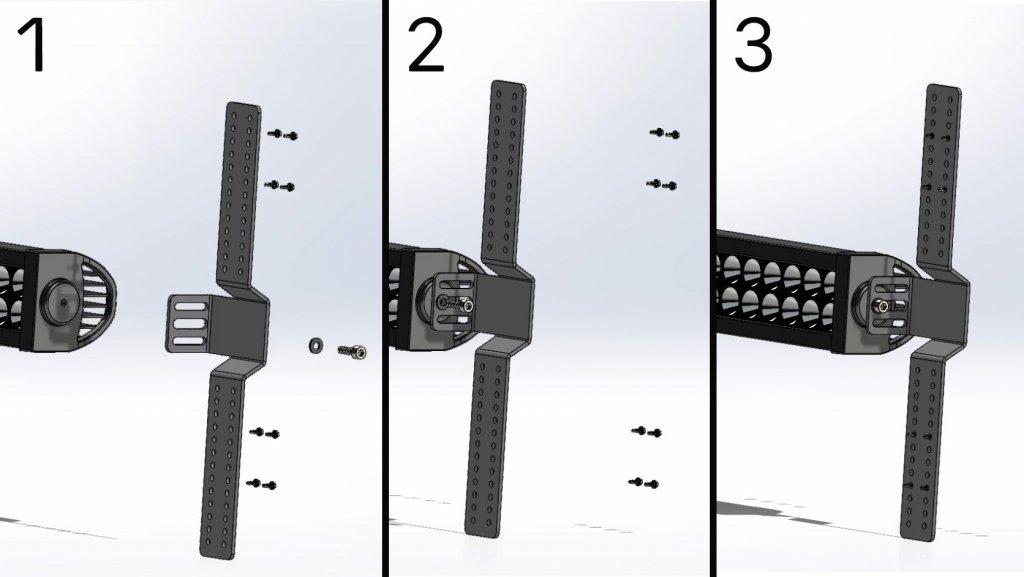

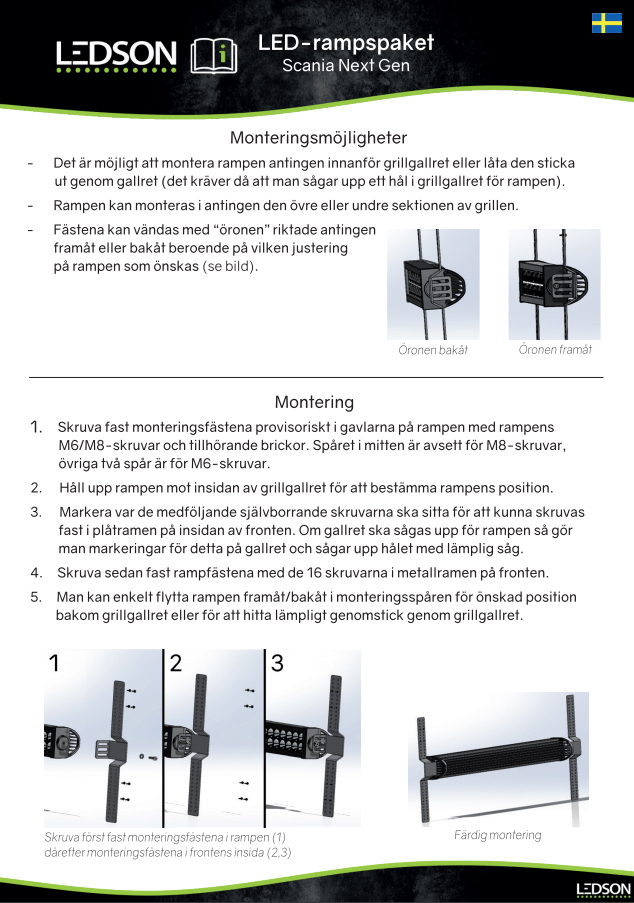

Mounting instructions for the LED ramp kit 1360225
