Articulated ramp Alfa 30" Powerboost for Scania Next Gen from 2017-

Alfa Led ramp package Scania Next Gen 2017-

Item ID: 1360226

€502

Incl. VAT

Available

Available in external warehouse | Ships within 1-4 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Ships within 1-4 business days

Product Description:

Complete kit with LEDSON Alfa 30" Powerboost LED ramp, model-adapted brackets and wiring for mounting in the grill on Scania Next Gen from 2017 onwards.

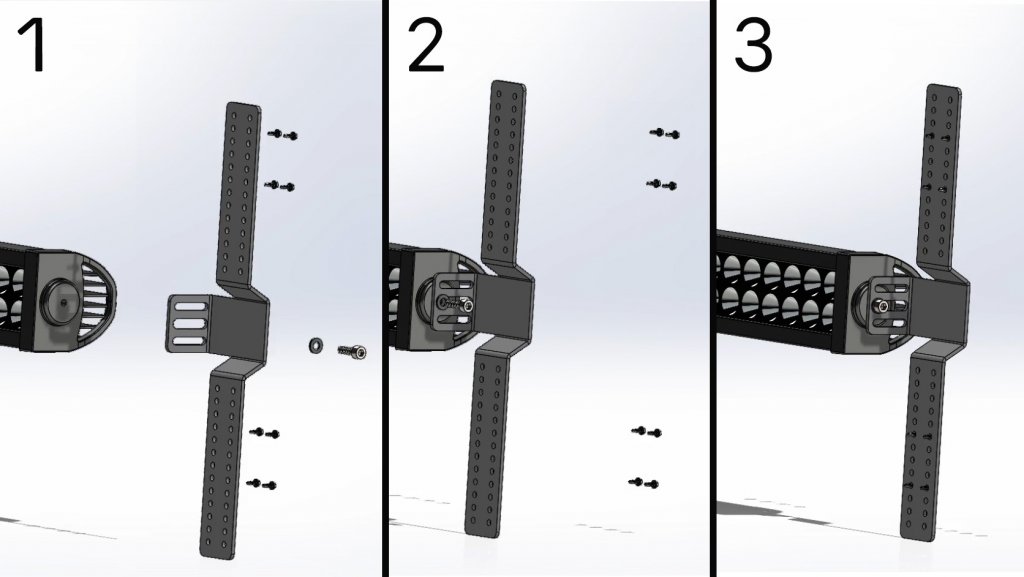

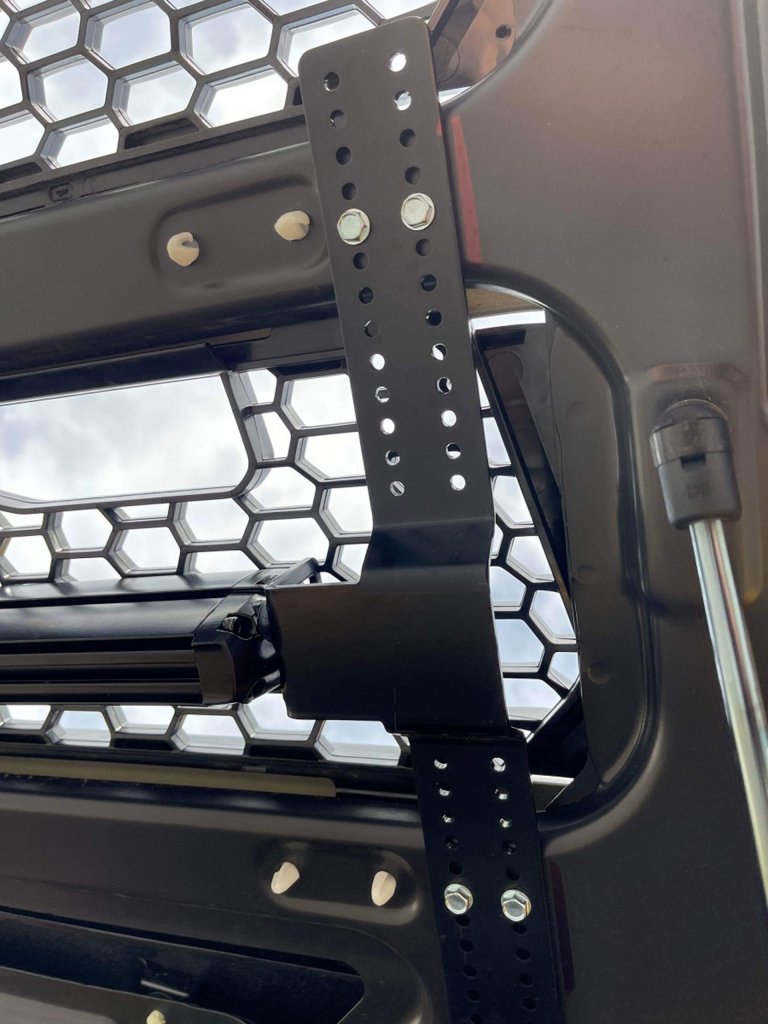

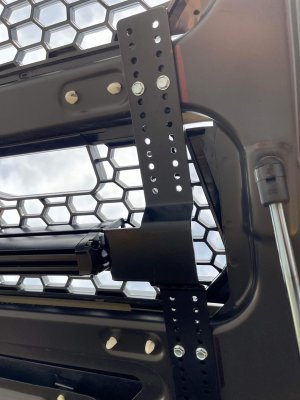

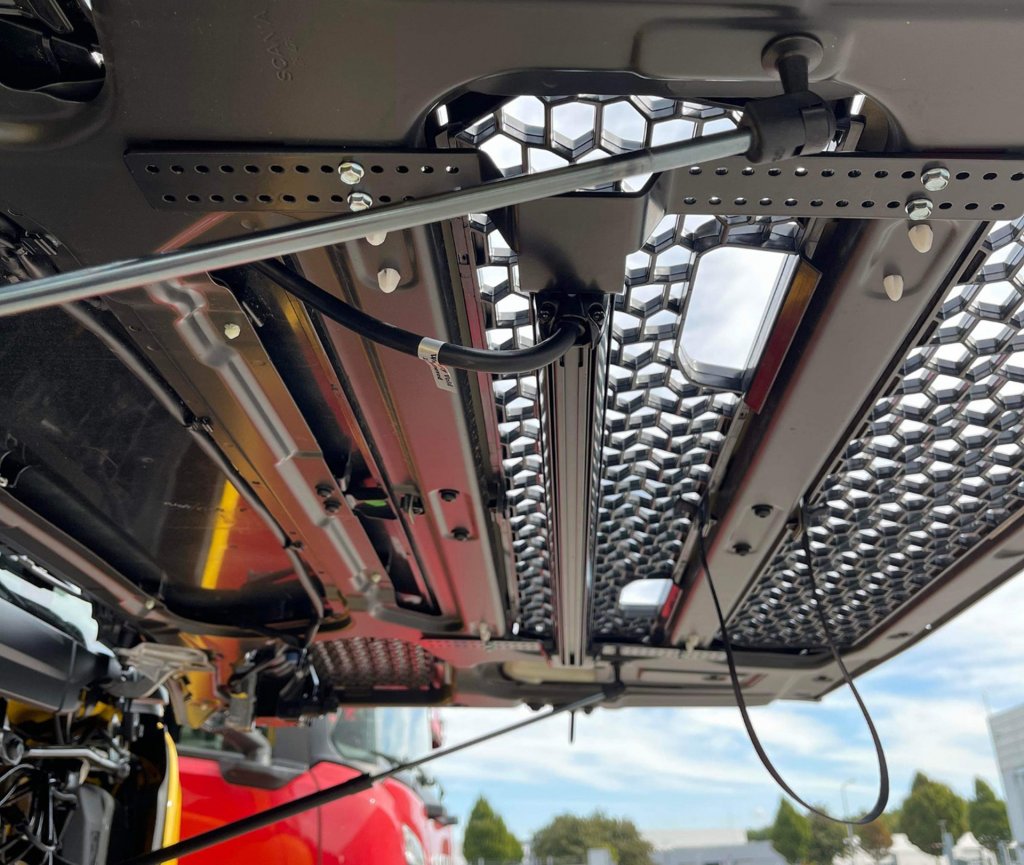

Ledson Alfa 30" with Powerboost LED ramp kit for Scania Next Generation, model year 2017 and newer. With our mounting kit you get a quick and cost-effective installation and an optional mounting position for the LED ramp. Mount it either hidden behind the front grille or let the ramp protrude through the grille, either at the upper or lower grille.

Alfa Powerboost allows you to choose whether you want to run with an E-marked ECE R112 LED ramp and 1 lux brightness at 466 meters or with a little extra power in the light with Powerboost activated and 1 lux at 673 meters and 20,600 actual lumens (non-E-marked). You easily choose this by plugging in a third cable!

Regardless of Powerboost, this stylish ramp is capable of delivering large amounts of light and ensures that your driving is safe and comfortable while the led ramp makes itself really delicious mounted on your Scania.

Technical specifications:

LEDSON Alfa 30" Powerboost

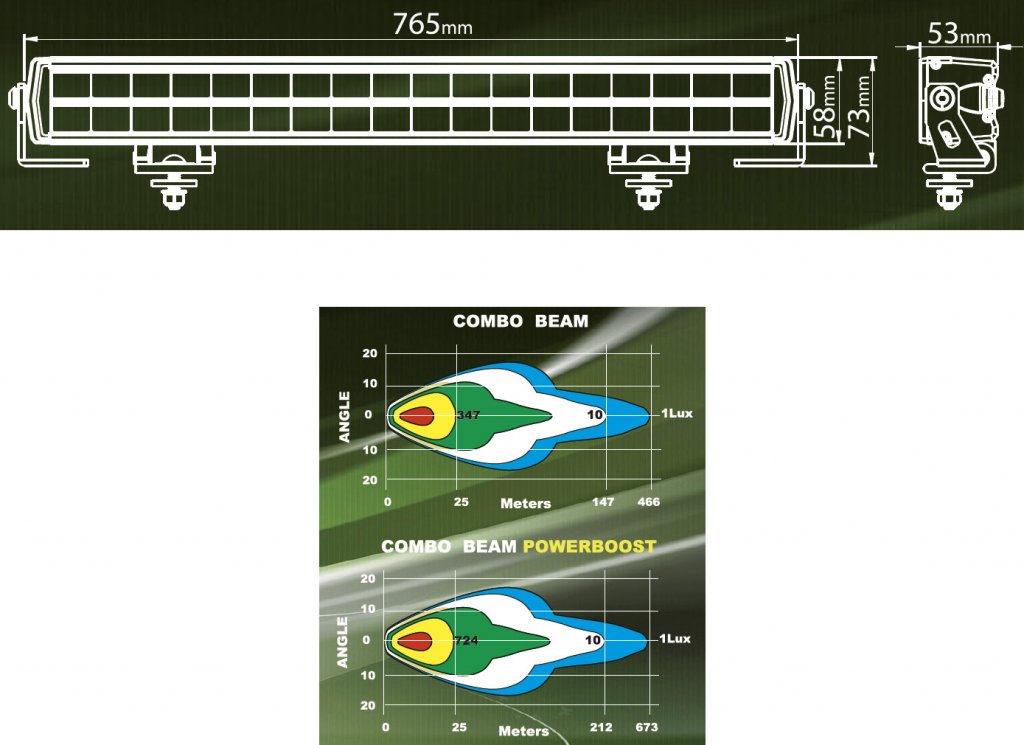

Combo Beam light pattern (wide and oblong)
E-marked ECE R112 (ref. 50) NOTE: only when Powerboost is not activated
ECE R10 (EMC-rated)
Range without Turboboost: 466 m (1 lux)
Range with Turboboost: 673 m (1 lux)
Lumen without Turboboost: 12150 lm (theoretical), 10300 lm (actual)
Lumen with Turboboost: 24300 lm (theoretical), 20600 lm (actual)
Color temperature 6000K (cool white)
Dual mounting options
270 W (54 x 5 W LED)
IP68 (water/dust proof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
ATP connector (included)
Voltage: 9-36V

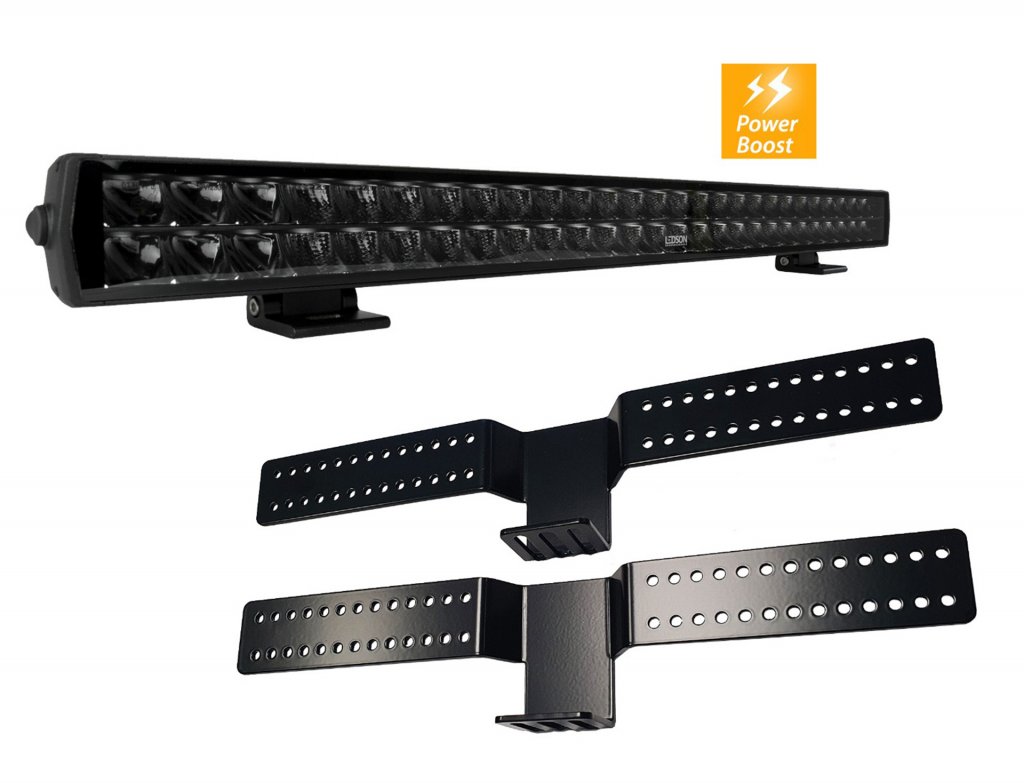

The complete package includes the bracket, the led frame and the appropriate relay kit for connection to the car's electrical system.

This product is suitable for the following car models:

Scania R- & S-series (Next Gen) from 2017-
From model year 2017 onwards

Scania R- & S-serien (Next Gen) från 2017-

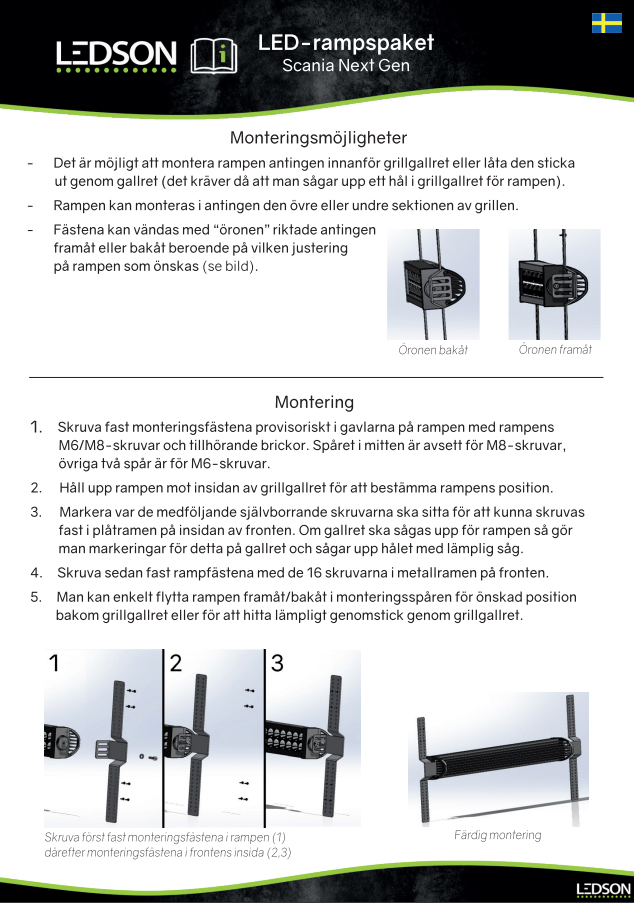

Documents:
attachment
