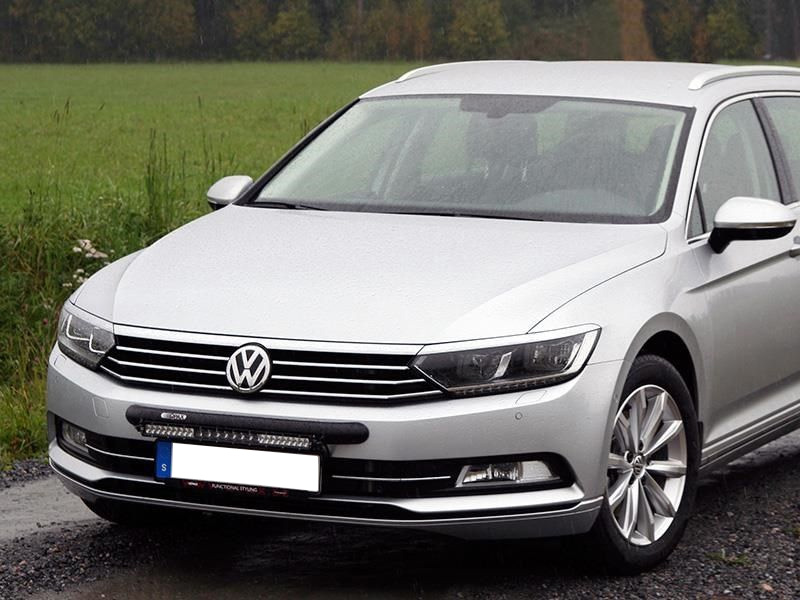

Extra light bracket incl. led ramp for Volkswagen Passat/Alltrack from 2015-

Extra light bar incl. LED light bar VW Passat/Alltrack 2015-

Item ID: 7545-264-X220

Sorry - this product is currently not avaiable for purchase.

You can find similar products here

Extra light bracket with associated led frame (incl. relay kit) for VW Passat/Alltrack 2015- .

Extra light bracket QLED

Stylish and stable auxiliary light bracket made of aluminum with black structural powder coating. Maintenance-free and easy to handle, both easy to wash off and keep clean.

Easy to install with little impact on the bumper, the extra light bracket is clamped around the crash beam (the front is removed during installation). See attached assembly instructions further down the page.

Specification

Tube dimension: Ø60 mm
Total width: 763 mm
Total depth to front: 75 mm
Material: Aluminum
Surface treatment: Black textured powder coating

Handrail Elite 20 inch

The led ramp is an Elite X2 20" consisting of advanced led and reflector technology, generates full power directly on impact and is not affected by vibrations.

The light pattern of this lightbar is of the combined type. It provides both length far in front of your Passat while the one closest to the car gives you a wide light pattern. This is thanks to the design of the reflectors of the auxiliary light. The outer diodes on the sides of the Led Ramp have the "Flood" light pattern while the middle diodes have the "Spot" light pattern.

The ramp has a high luminous flux, 13 960 lumens (measured). The color temperature is 6000 K.

The entire 3-year product warranty guarantees quality, function and performance in absolute top class!

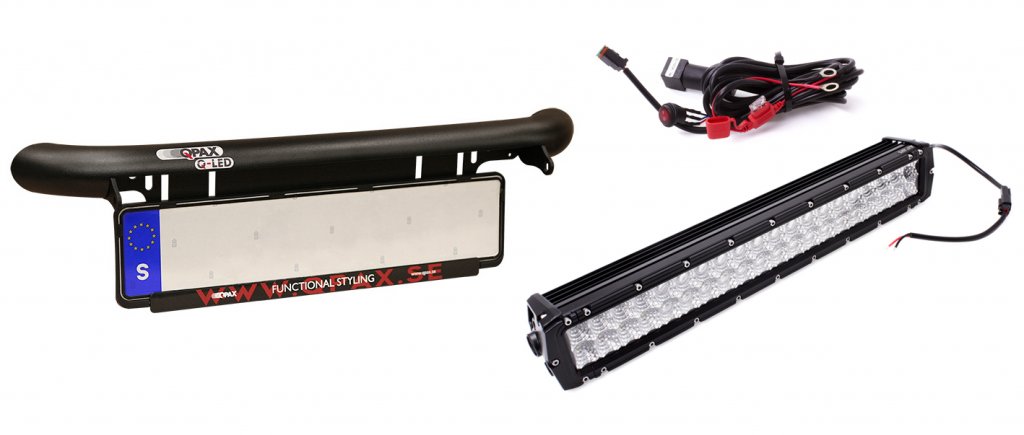

Supplied with extra light bracket, LED frame, relay kit and installation instructions.

This product is suitable for the following car models:

Volkswagen Passat B8 from 2015-
From model year 2015 onwards

Den här produkten passar till Volkswagen Passat (B8) från 2015-
