  5. Canbus interface for auxiliary lights for Volkswagen Passat from 2015-2023
Categories

Auxiliary lights Volkswagen Passat 2015-2023

  • Extra light Volkswagen Passat from 2015-2023
  • Extra light Volkswagen Passat from 2015-2023
Item ID:  7545-2400
€106
Incl. VAT

What year model do you have?

€106
Available
€106
Available
Available
Available in external warehouse | Shipped within 2-7 working days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 2-7 working days
Product Description:

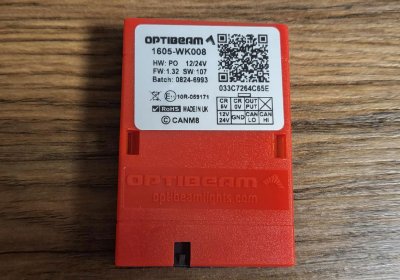

Flexible CANBUS interface for connecting extra lights Volkswagen Passat from 2015-2023. The CANBUS interface works just as well if you instead want to install a led ramp or other extra lighting in front.

Canbus interface - Auxiliary light Volkswagen Passat

The CANBUS interface provides the control signal to your external relay set, which means that the auxiliary lights are started together with the car's main beam. If the car is equipped with adaptive main beam, this function will also be included in the auxiliary lights or the handrail.

The installation of auxiliary lights Volkswagen Passat is specific to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: the CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

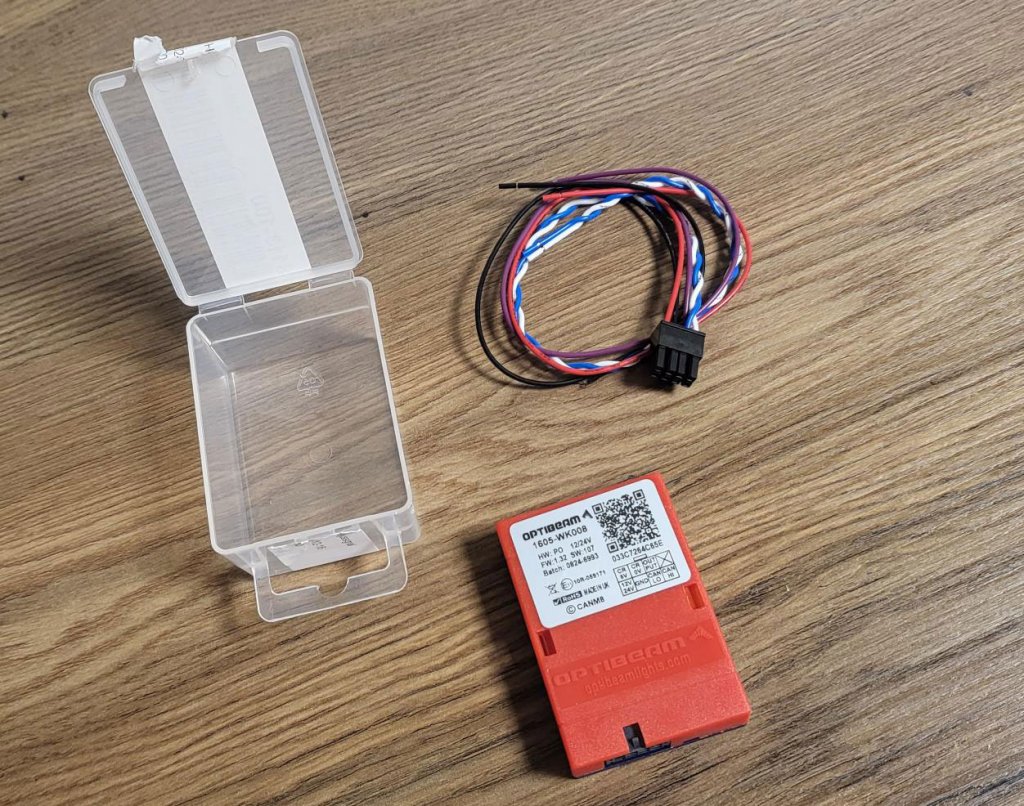

From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.

Canbus interface - Extra light Volkswagen Passat delivered individually


Documents:
attachment Mounting description for canbus interface 7545-2400
attachment Mounting description for canbus interface 7545-2401

Fits the following car models:

Volkswagen Passat from 2015-2023

Cars manufactured from November 2014 to 2023

Volkswagen Passat Variant 2011-2014 Volkswagen Passat Sportscombi 2015-2023 Volkswagen Passat from 2024-

Body code: B8

Engine:

  • Gasoline
  • Diesel
  • Hybrid

Body:

  • Alltrack
  • Sedan
  • Sportscombi

Assembly time: about 60 minutes

Warranty: 1 year warranty
