Auxiliary Light Bracket for 4 Lights Volkswagen Multivan T6.1 from 2019-2021

Item ID: 75008-4340

€851

Incl. VAT

Which variant would you like?

Matte Silver

75008-4340

€851

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

75008-4340-O

€851

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

75008-4340-S

€851

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

75008-4340-S80

€851

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

75008-4340-V

€851

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

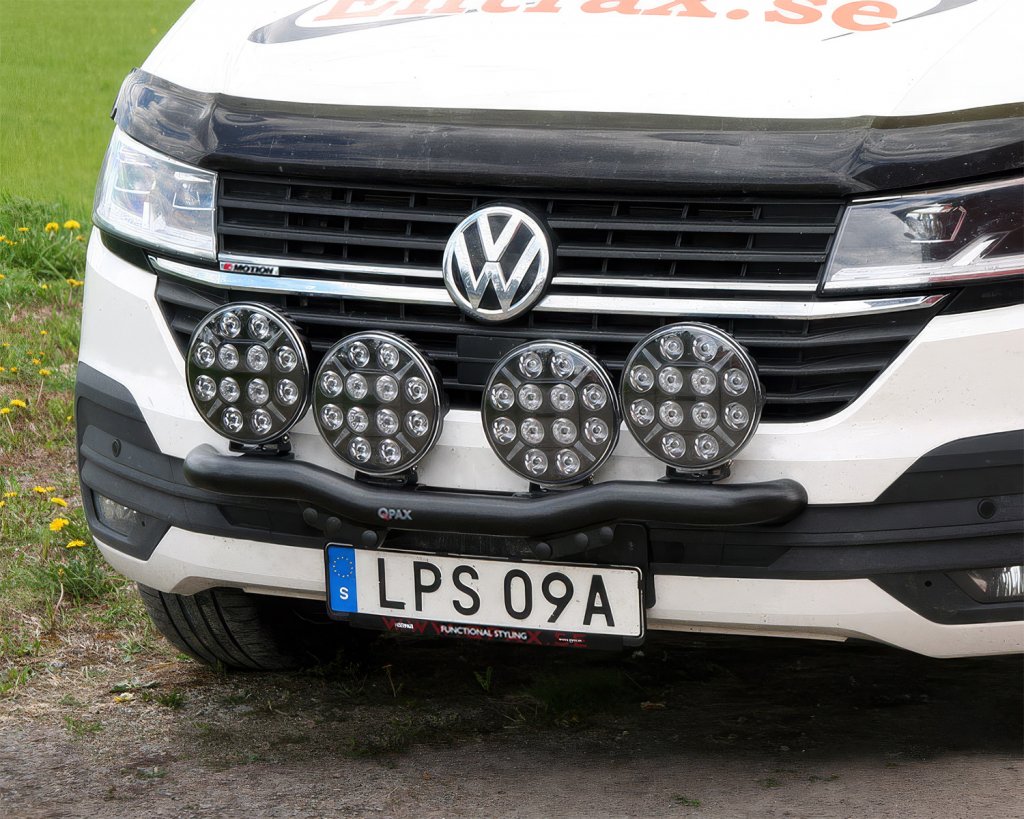

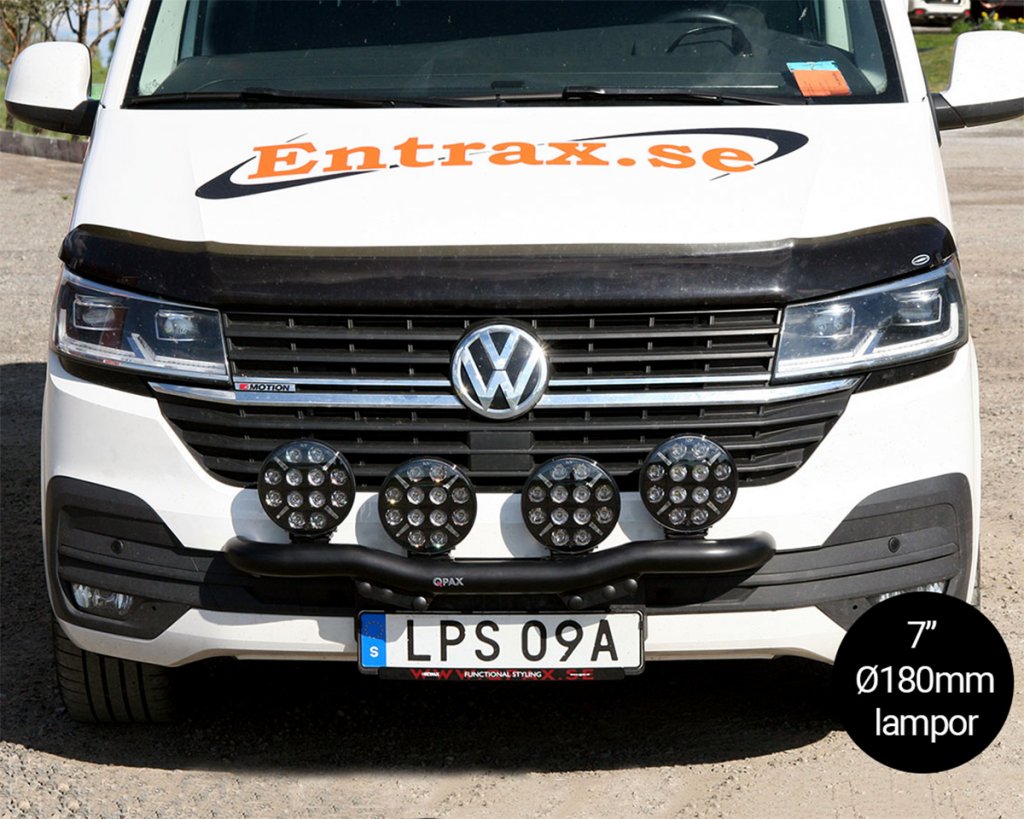

This vehicle-specific auxiliary light bracket for Volkswagen Multivan T6.1 from 2019-2021 provides a stable mounting platform when installing auxiliary lights on the front of your vehicle. The light bar is equipped with four fixed, welded mounting tabs accommodating a total of four driving lights with a maximum diameter of 240 mm per light.

The bracket is manufactured from 60 mm aluminium tube and features a durable powder-coated finish designed to withstand stone chips, road salt, and harsh northern climates. Specifically engineered for your Volkswagen Multivan T6.1, it securely mounts to the vehicle's structural frame for optimum strength.

Auxiliary Light Bracket - Vehicle-Specific and Stable Installation

The auxiliary light bracket is installed using vehicle-specific brackets where mounting is attached via brackets directly to the vehicle's crash beam for maximum torsional rigidity and stability. Detailed step-by-step instructions for installation on your Volkswagen Multivan T6.1 can be found in the mounting manual provided as a PDF on this product page. To ensure a stable and vibration-free beam pattern on uneven surfaces, the driving lights must be stabilized at the top using the included stay bars.

Mounting and procedure: Attachment is mounted with brackets directly onto the vehicle crash beam. Please note that the front bumper/grille needs to be disassembled during installation.

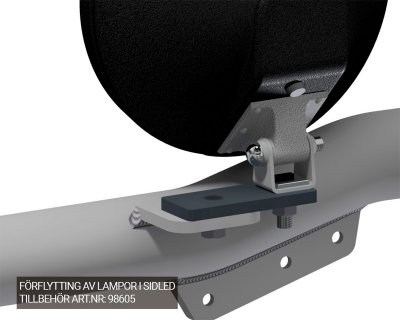

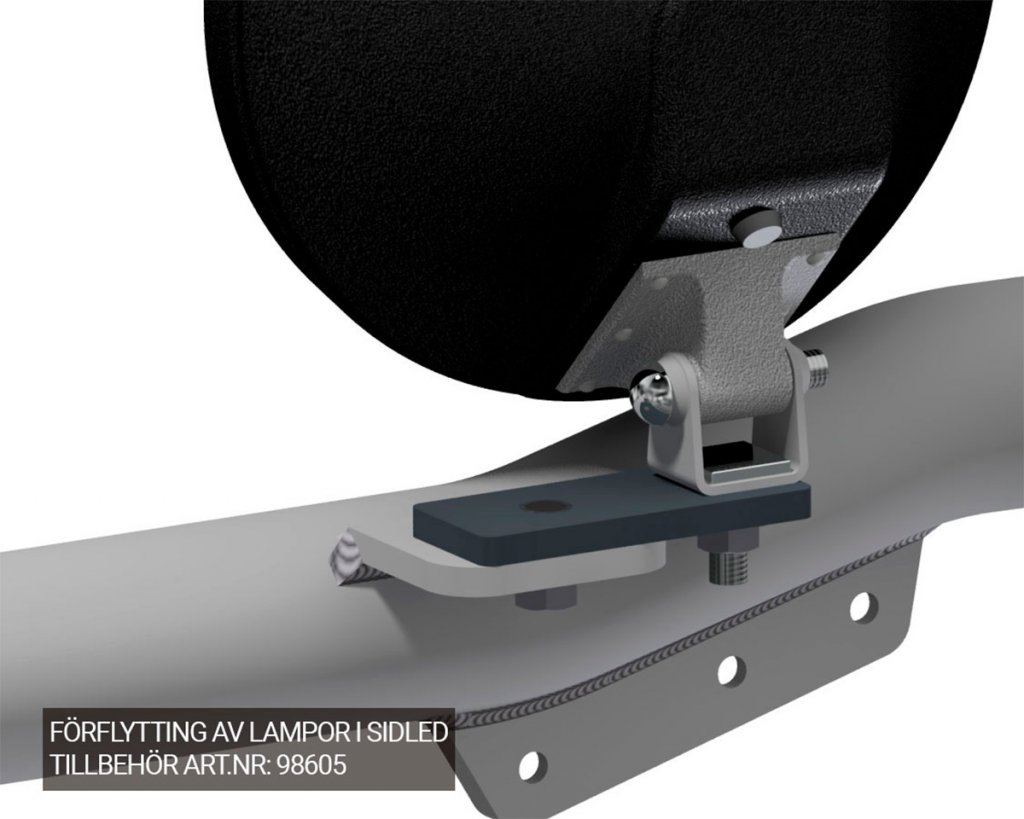

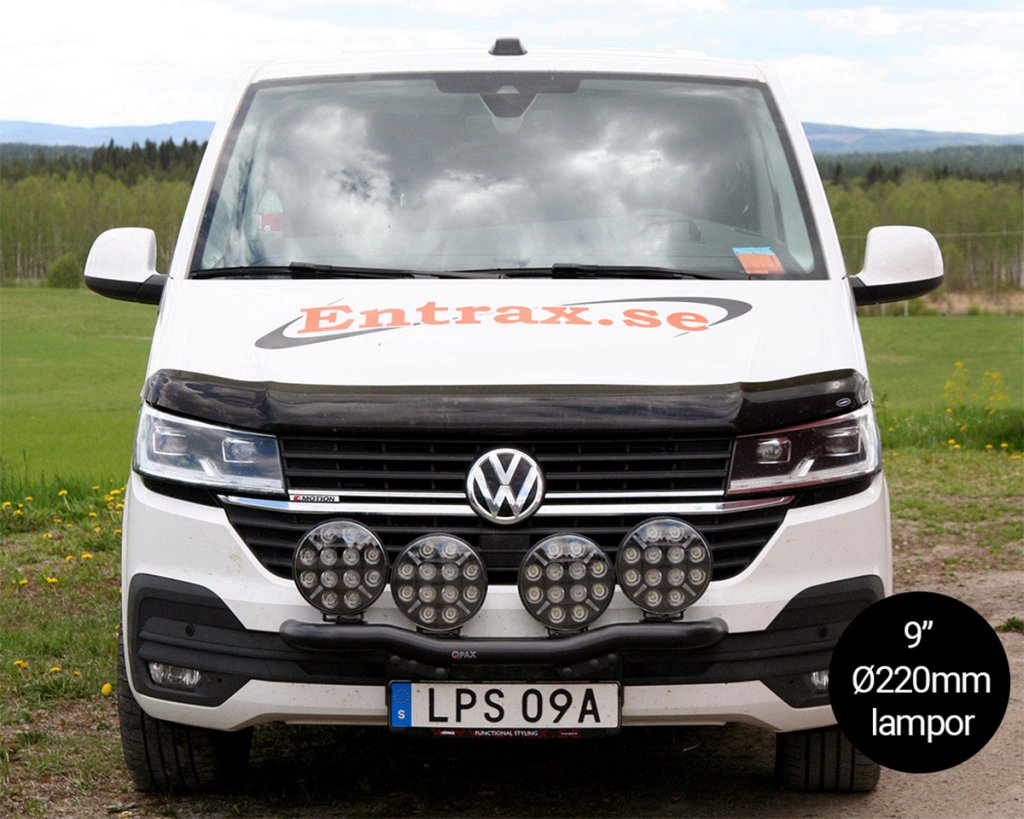

Radar compatibility and light adjustment: The installation does not interfere with the vehicle radar located below the emblem (verified through testing with Ø220 mm LED driving lights, reference model Seeker NS9). To ensure a clear line of sight for the radar, lights should be adjusted as far outward from the center as possible using the adjustment screw in the light base. For other auxiliary light models, extension brackets (accessory 98605) are recommended to move the lights further away from the radar's field of view.
Stabilization requirements and max weight: Recommended maximum weight is 2 kg per auxiliary light. The included stabilizer struts must always be used.

Choose Your Variant for Volkswagen Multivan T6.1

Five available colors (powder coating)

The auxiliary light bracket can be ordered in five different colors to match your vehicle's paint or exterior styling on your Volkswagen Multivan T6.1:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Understated matte black finish.
Black (gloss 80): Gloss black finish with an 80 gloss rating.
White (RAL9016): Powder-coated in white RAL 9016.
Orange (RAL2008): Powder-coated in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4 pcs
Fixed/adjustable mounting points: Fixed (welded)
Max auxiliary light size: 240 mm in diameter
Recommended max weight per light: 2 kg/pc
Installation: Bracket mounting directly to crash beam – front removed during installation (see PDF mounting instructions)

What is Included in the Delivery?

Supplied as a complete kit tailored for Volkswagen Multivan T6.1 containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Vehicle-specific mounting kit with crash beam brackets
Stabilizer struts for auxiliary lights
Installation instructions (included and available as downloadable PDF)

A durable and vehicle-specific solution for Volkswagen Multivan T6.1 from 2019-2021 that delivers rigid mounting and an optimal light beam pattern for four auxiliary driving lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Multivan T6.1 2019–2021
