  5. Canbus interface for auxiliary lights for Volkswagen Golf from 2014-2019
Categories

Extra light Volkswagen Golf from 2014-2019

  • Extra light Volkswagen Golf from 2014-2019
  • Extra light Volkswagen Golf from 2014-2019
Item ID:  7515-2400
€106
Incl. VAT
Available
Available in external warehouse | Shipped within 2-7 working days
.
Select options
Add to cart »
Product reminder

Enter your e-mail address below and we will notify you when the product is available!

Available in external warehouse | Shipped within 2-7 working days
Product Description:

Flexible CANBUS interface for connecting extra lights Volkswagen Golf from 2014-2019. The CANBUS interface works just as well if you instead want to install a led ramp or other extra lighting in front.

Canbus interface - Extra light Volkswagen Golf

The CANBUS interface provides the control signal to your external relay set, which means that the auxiliary lights are started together with the car's main beam. If the car is equipped with adaptive main beam, this function will also be included in the auxiliary lights or the handrail.

Installation of auxiliary lights Volkswagen Golf is specific to the car's electrical system. The CANBUS interface needs contact with the CAN HI and CAN LO functions to be able to read when the car's high beam is activated.

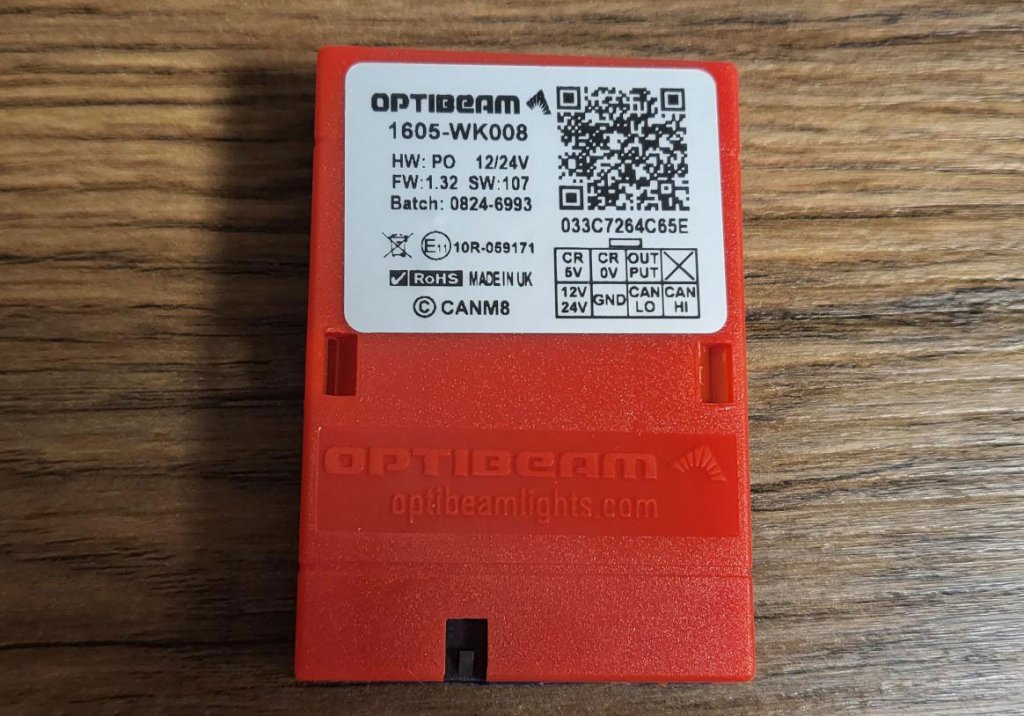

The CANBUS interface has a hidden LED next to the connector that indicates the status of contact with the vehicle as shown below:

Solid red: CANBUS interface has contact but the vehicle is not identified
Flashing red: the CANBUS interface is in contact with the vehicle and checking the vehicle status
Solid green: CANBUS interface is in contact and the vehicle is identified
Flashing green: the CANBUS interface is in contact and the vehicle is identified, and the CANBUS interface indicates that the vehicle is moving

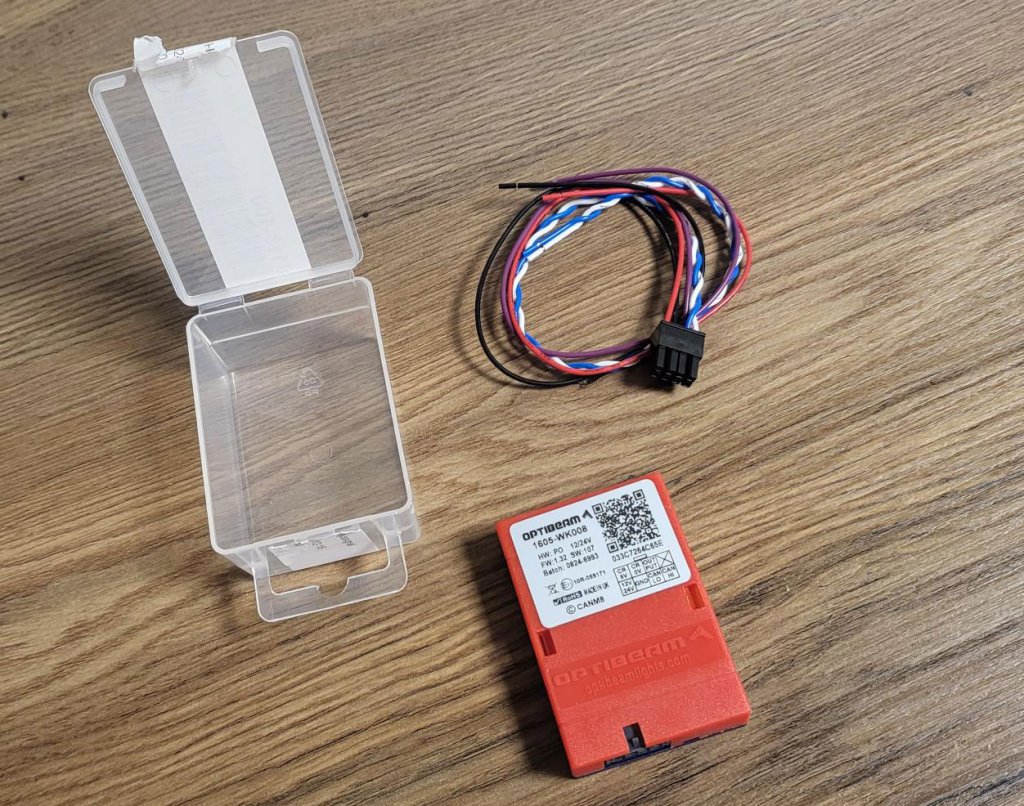

From the CANBUS interface you get 5 cables with the following functions:

  • RED - Connects to +12V from the car battery/plus pole (fused 5A)
  • BLACK - Connects to a ground point / negative terminal on the car battery
  • WHITE - Connects to CAN HI (connection point specified in the installation instructions)
  • BLUE - Connects to CAN LO (connection point specified in the installation instructions)
  • PURPLE - Connects to external relay input 85 (control current/relay switching), providing +12V (maximum 1A)

Installation instructions are attached below.

Canbus interface - Extra light Volkswagen Golf delivered individually


Documents:
attachment Mounting description for canbus interface 7515-2400

Fits the following car models:

Volkswagen Golf from 2014-2019

Hatchback: Cars manufactured from November 2012 to December 2019

Sportscombi/Alltrack: Cars manufactured from June 2013 to August 2020

Sportsvan: Cars manufactured from May 2014 to July 2020

Volkswagen Golf 6 Variant from 2009-2013 Volkswagen Golf 7 Sportscombi from 2014-2016 Volkswagen Golf 8 Sportscombi from 2020-

Body code: 7

Engine:

  • Gasoline
  • Diesel
  • Hybrid

  • Hatchback
  • Sports combi
  • Alltrack
  • Sports van (Minibus)

Assembly time: about 60 minutes

Warranty: 1 year warranty
