Auxiliary Light Bracket for 4 Lights Volkswagen Caravelle T7 from 2024-

Item ID: 75053-4340

€709

Incl. VAT

Which variant would you like?

Matte Silver

75053-4340

€709

In stock at external warehouse | Ships within 2-7 business days

Orange (RAL2008)

75053-4340-O

€709

In stock at external warehouse | Ships within 2-7 business days

Black Velvet (Matte)

75053-4340-S

€709

In stock at external warehouse | Ships within 2-7 business days

Black (Glossy 80)

75053-4340-S80

€709

In stock at external warehouse | Ships within 2-7 business days

White (RAL9016)

75053-4340-V

€709

In stock at external warehouse | Ships within 2-7 business days

Available

In stock at external warehouse | Ships within 2-7 business days

Select options

Add to cart »

Product reminder

Enter your e-mail address below and we will notify you when the product is available!

In stock at external warehouse | Ships within 2-7 business days

Product Description:

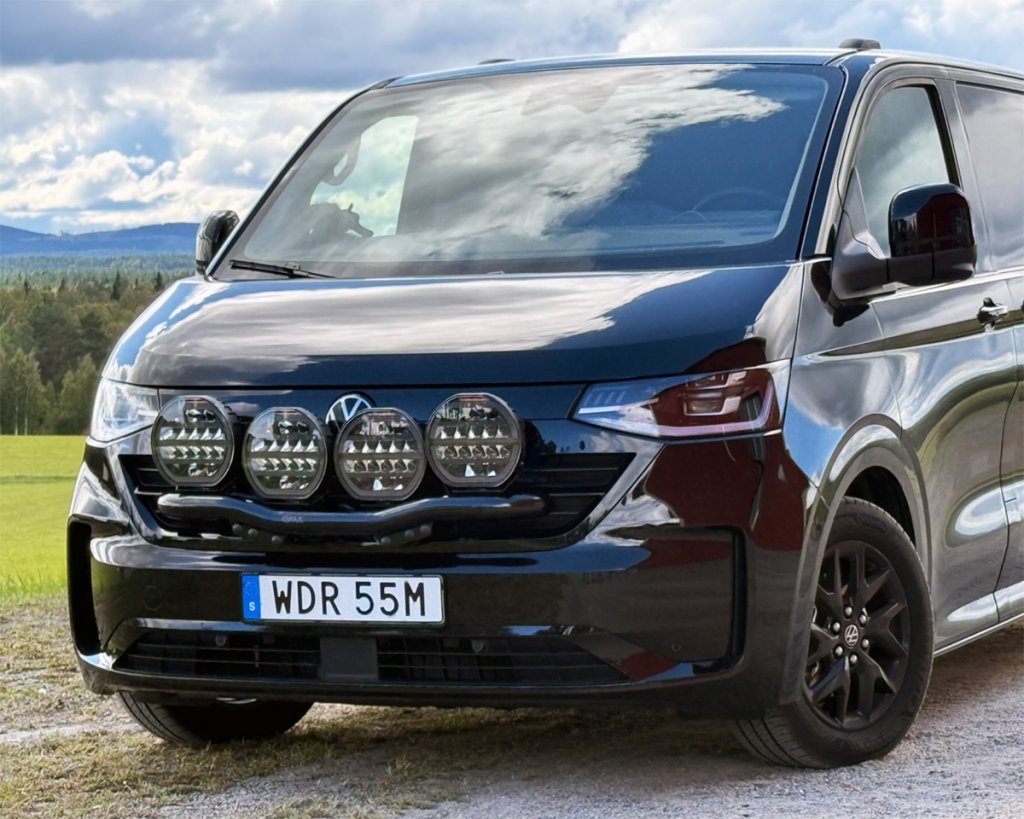

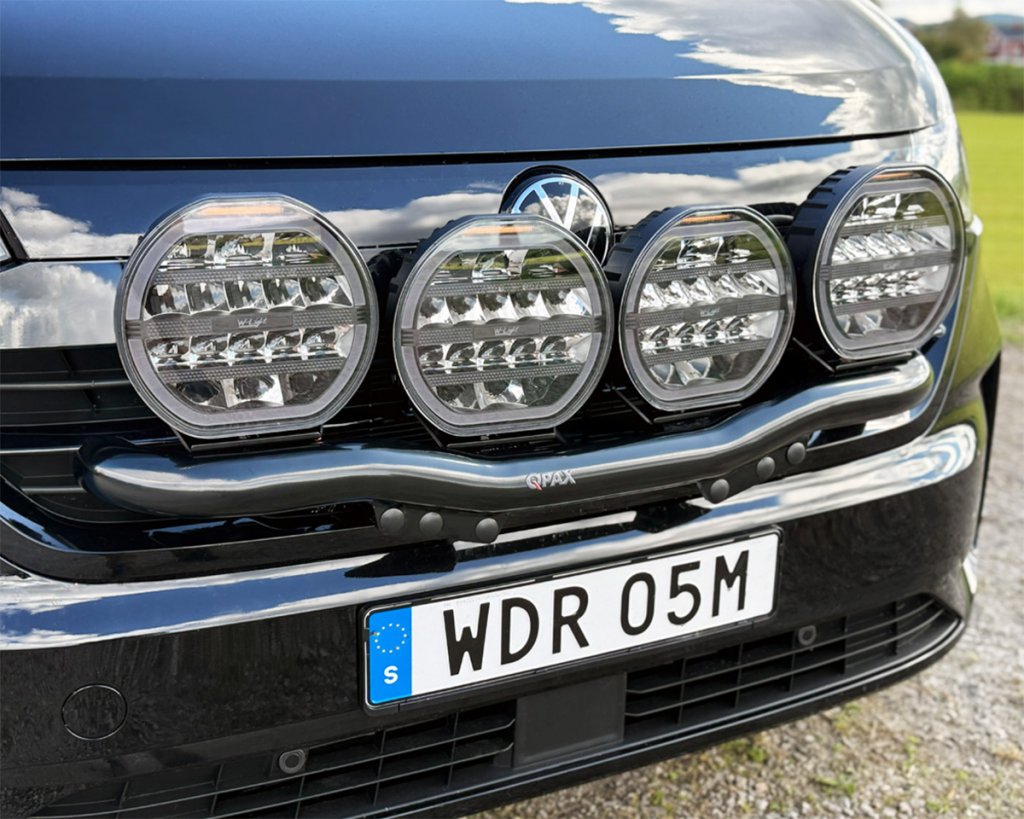

This vehicle-specific auxiliary light bracket for the Volkswagen Caravelle T7 from 2024- provides a stable platform when mounting auxiliary driving lights on the front of your vehicle. The bar is equipped with four fixed, welded mounting tabs, accommodating a total of four driving lights with a maximum diameter of 240 mm per light.

The bracket is made of 60 mm aluminium tube and features a durable powder-coated finish resistant to stone chips, road salt, and harsh Nordic climates. Specifically engineered for your Volkswagen Caravelle T7, it mounts securely to the vehicle's structural frame for optimal strength and rigidity.

Auxiliary Light Bracket - Vehicle-Specific and Gentle Q-GRIP Installation

The auxiliary light bar is installed using model-specific mounts that attach to the lower crash beam via QPAX's proven Q-GRIP system for a solid and vehicle-friendly installation. Detailed step-by-step instructions for installation on your Volkswagen Caravelle T7 are provided in the mounting manual available as a downloadable PDF on this product page. To ensure a stable and vibration-free beam pattern on rough roads, the driving lights must be braced at the top using the included support struts.

Mounting and attachment: Installed onto the vehicle's lower crash beam using the QPAX Q-GRIP system.
Sensors and radar compatibility: The parking sensors closest to the license plate must be blanked using the included Nonsens covers. The vehicle's radar is not affected by the bar or installation.
Impact on front camera: On models equipped with a front emblem camera, the camera's field of view will be obstructed by the auxiliary lights.
Stabilisation and weight limits: Recommended maximum weight is 2 kg per auxiliary light. The included top support struts must always be used.

Choose Your Finish for Volkswagen Caravelle T7

Five available colours (powder coated)

The auxiliary light bracket can be ordered in five different finishes to match your vehicle's paintwork or accents on your Volkswagen Caravelle T7:

Silver: Classic powder-coated silver finish.
Velvet Black (matte): Subtle matte black surface.
Black (gloss 80): Gloss black finish with an 80 gloss level.
White (RAL9016): Powder coating in white RAL 9016.
Orange (RAL2008): Powder coating in orange RAL 2008.

Technical Specifications

Material: Aluminium
Tube diameter: 60 mm
Surface finish: Powder coating
Number of light mounting points: 4
Mounting points type: Fixed (welded)
Max light diameter: 240 mm
Recommended max weight per light: 2 kg
Mounting system: QPAX Q-GRIP to lower crash beam (see PDF installation manual)

What's Included in the Box?

Delivered as a complete kit tailored for the Volkswagen Caravelle T7, containing:

Auxiliary light bracket in 60 mm powder-coated aluminium
Vehicle-specific mounting kit (Q-GRIP for lower crash beam)
Support struts for auxiliary lights
Nonsens blanking covers for parking sensors
Installation instructions (included in package and available as downloadable PDF)

A durable, custom-fit solution for the Volkswagen Caravelle T7 from 2024- that delivers a rigid mount and optimal light pattern for four auxiliary lights.

Documents:
attachment

Installation Instructions - Auxiliary Light Mount for Volkswagen Caravelle 2024-
